Siersema Scheffers Double jacketed tank

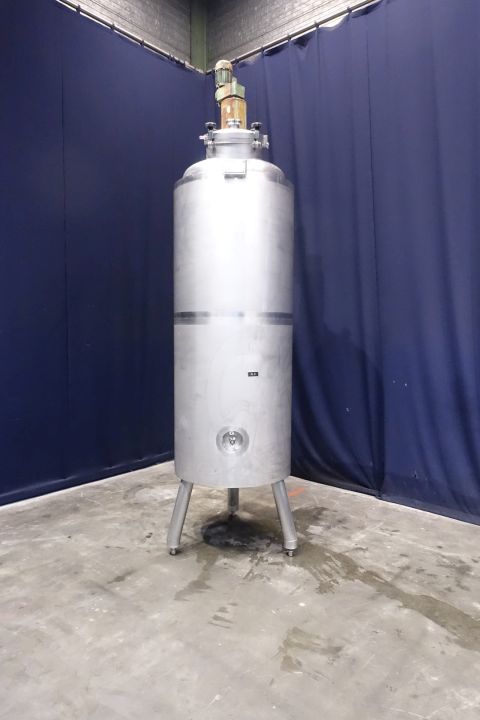

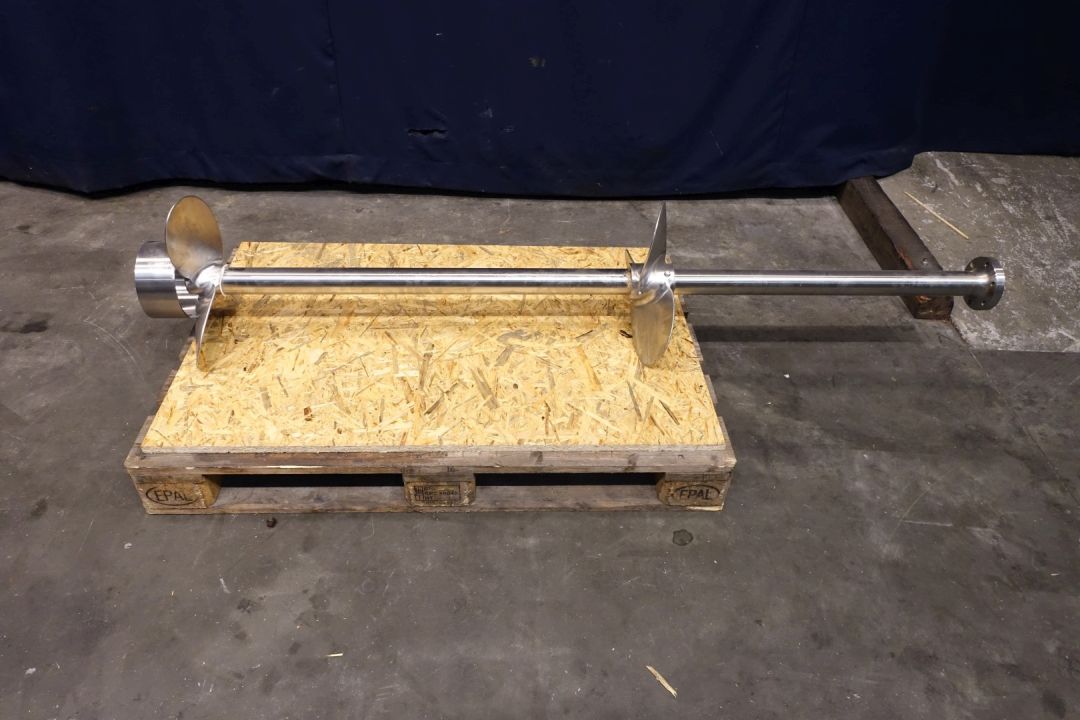

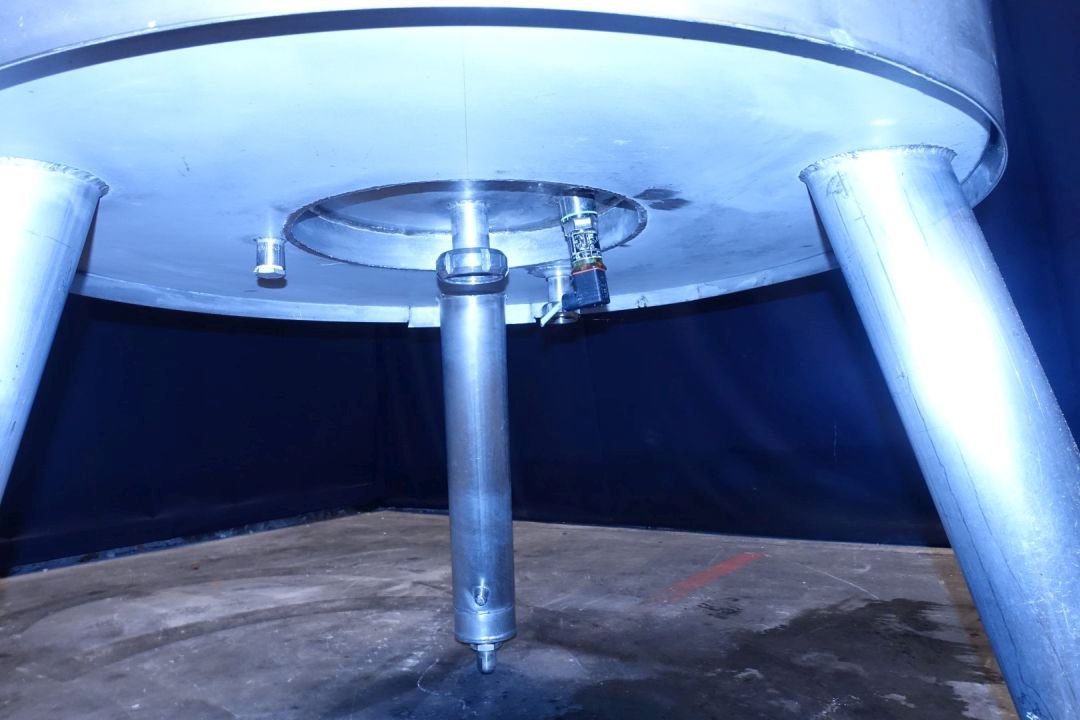

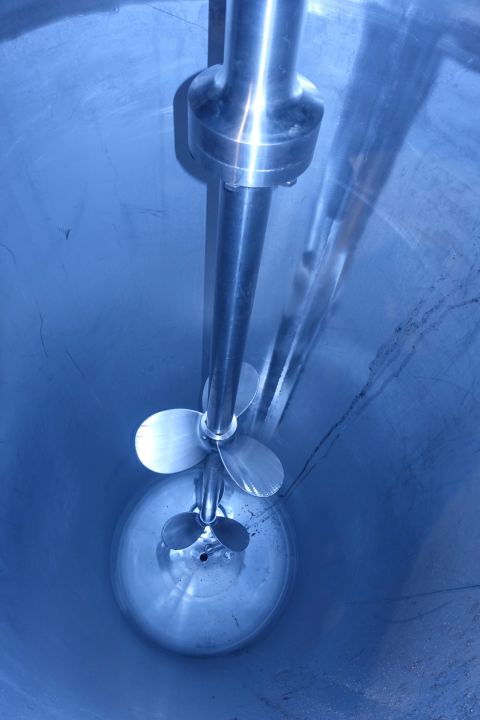

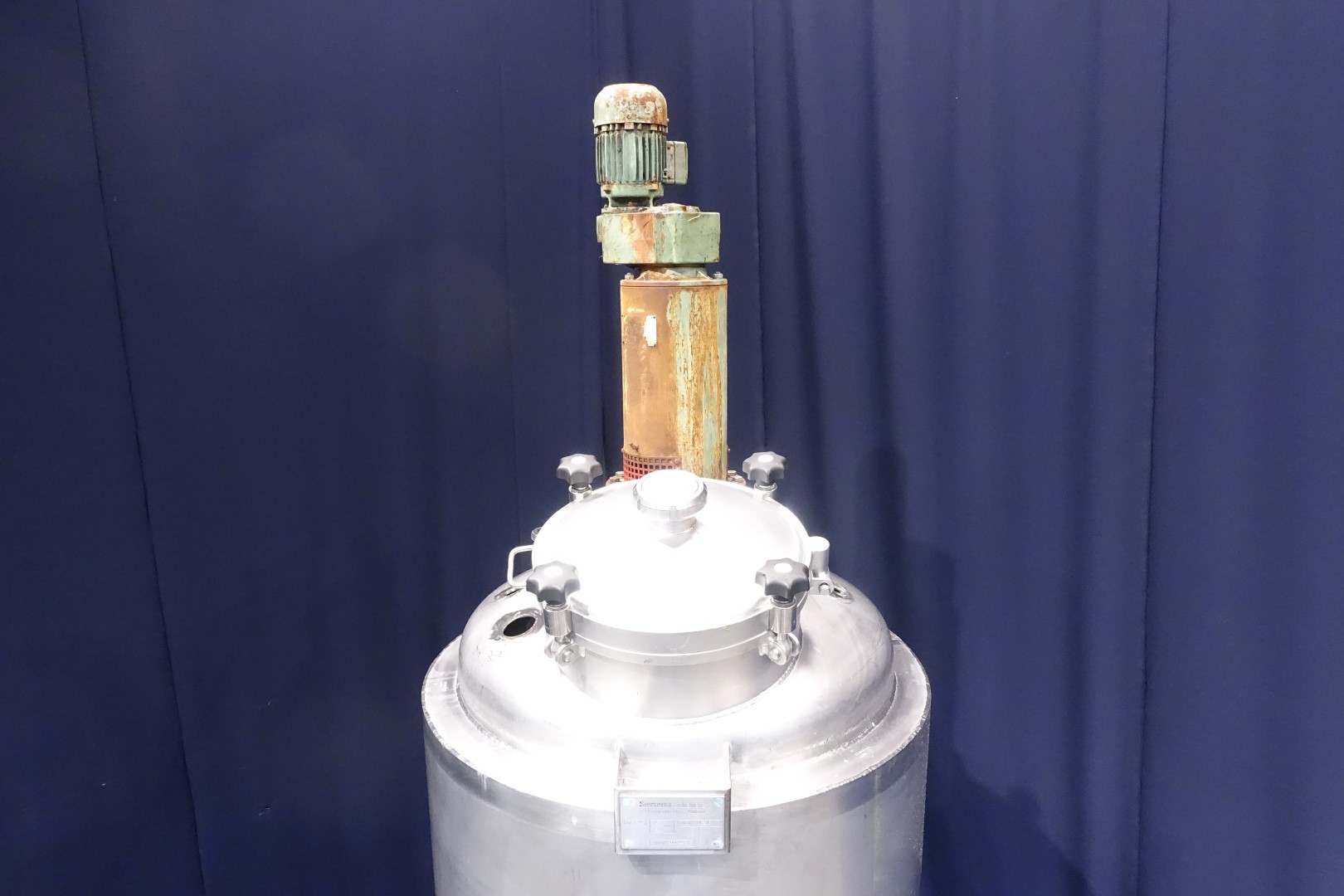

Double jacketed process tank. Top driven double propellor agitator. Motor power: 0,55 kW - n2: 151 rpm. Pressure: 1,5 / 3 bar. Test pressure: 4/-1 bar. Max temperature: 150 °C. Bottom flat, product outlet bottom, 2'' SMS. Sample valve at the side. Connections for: PT-100 tempemperature sensor. CIP cleanable. Manhole in top, round. 3 Adjustable feet. Inside dimensions of tank: Ø 80 cm and height 220 cm. Total dimensions: 80 x 80 x 390 cm.
