Back to overview

Ampack

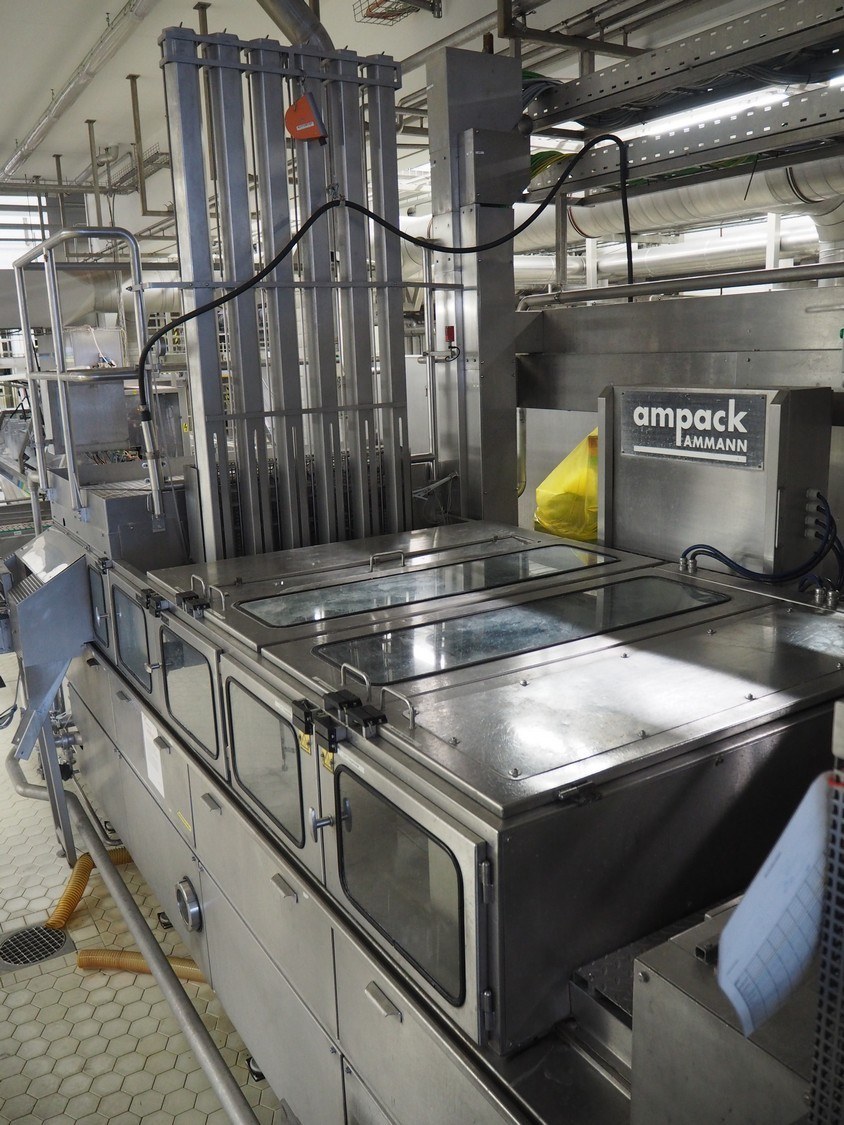

Ampack AF 6/6

Assortment
Filling and packaging machines
Category
Cup filling machines
Stock number
STN16183
Type
AF 6/6
Year of construction
2004
Capacity
10.800 cups per hour

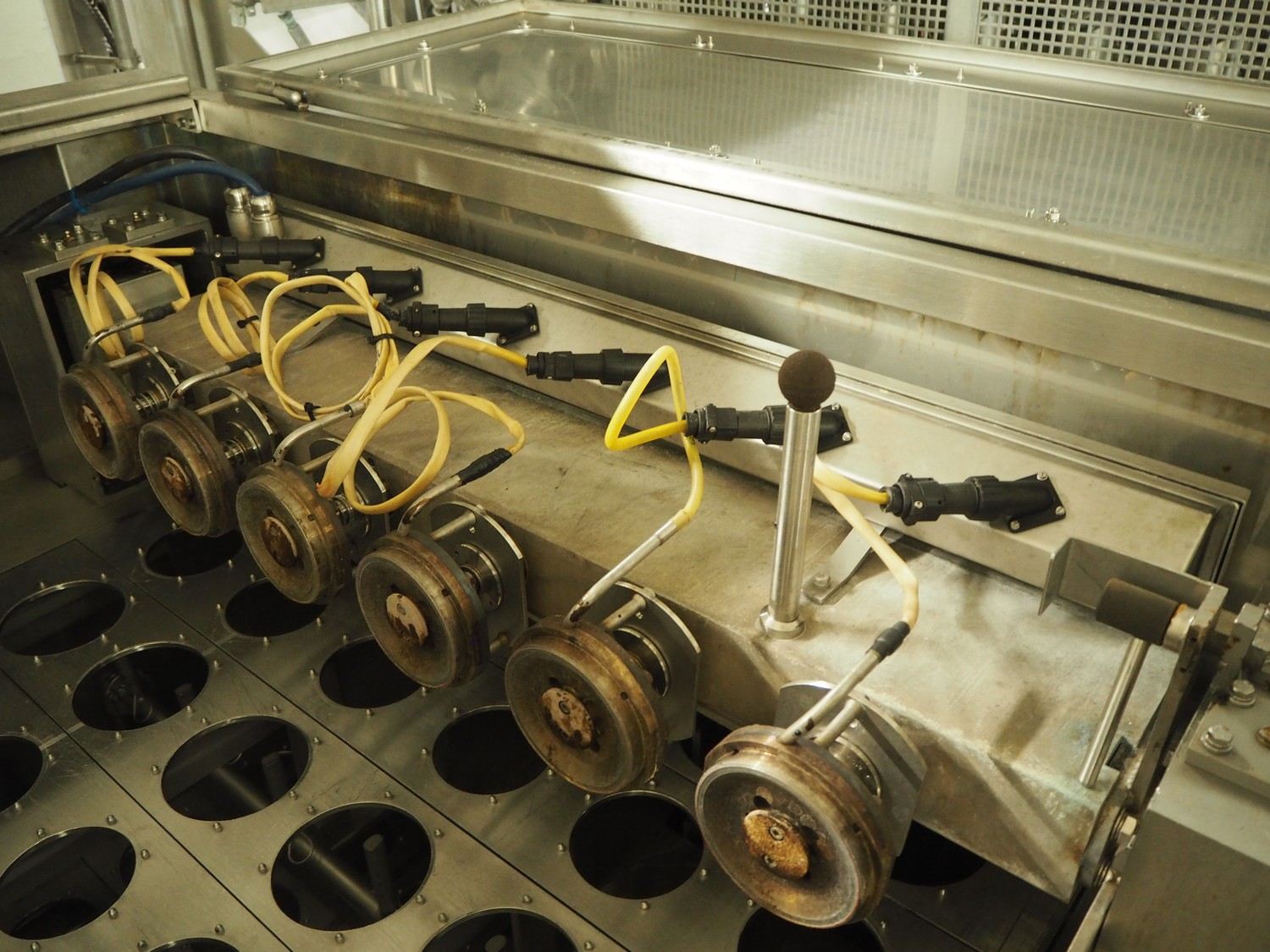

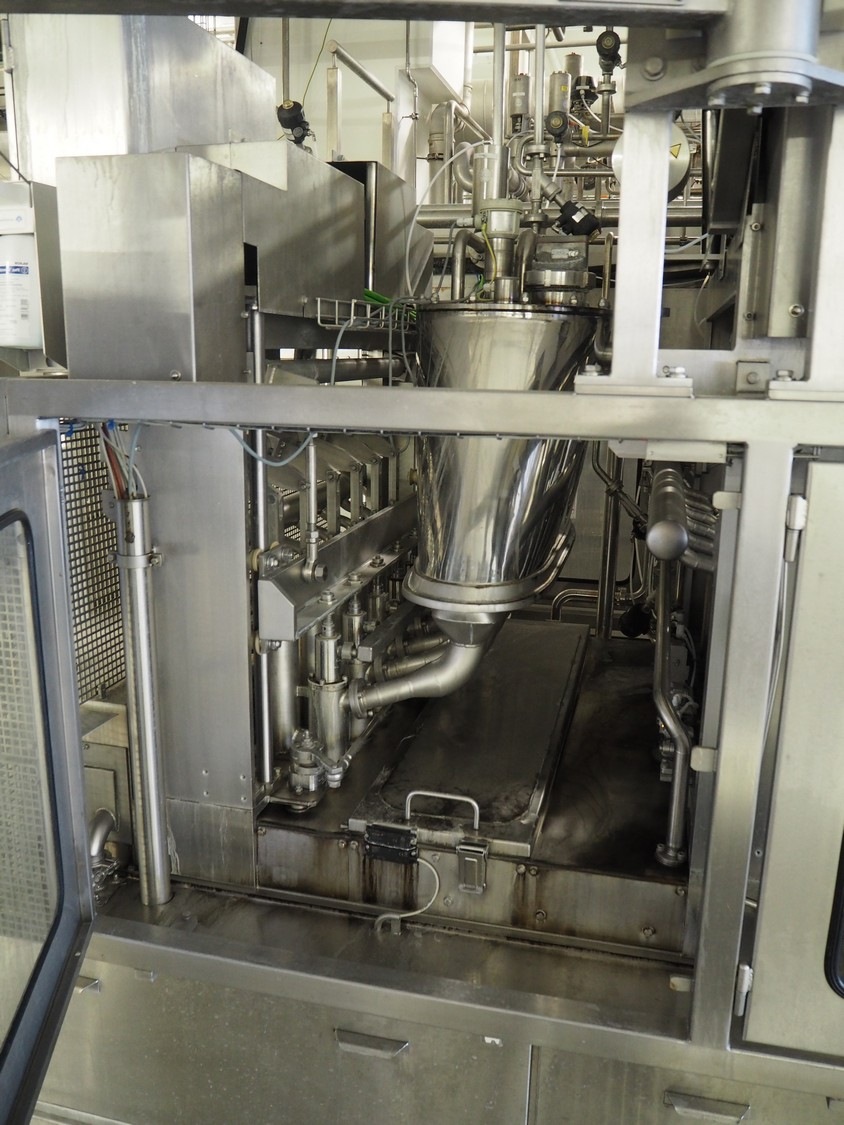

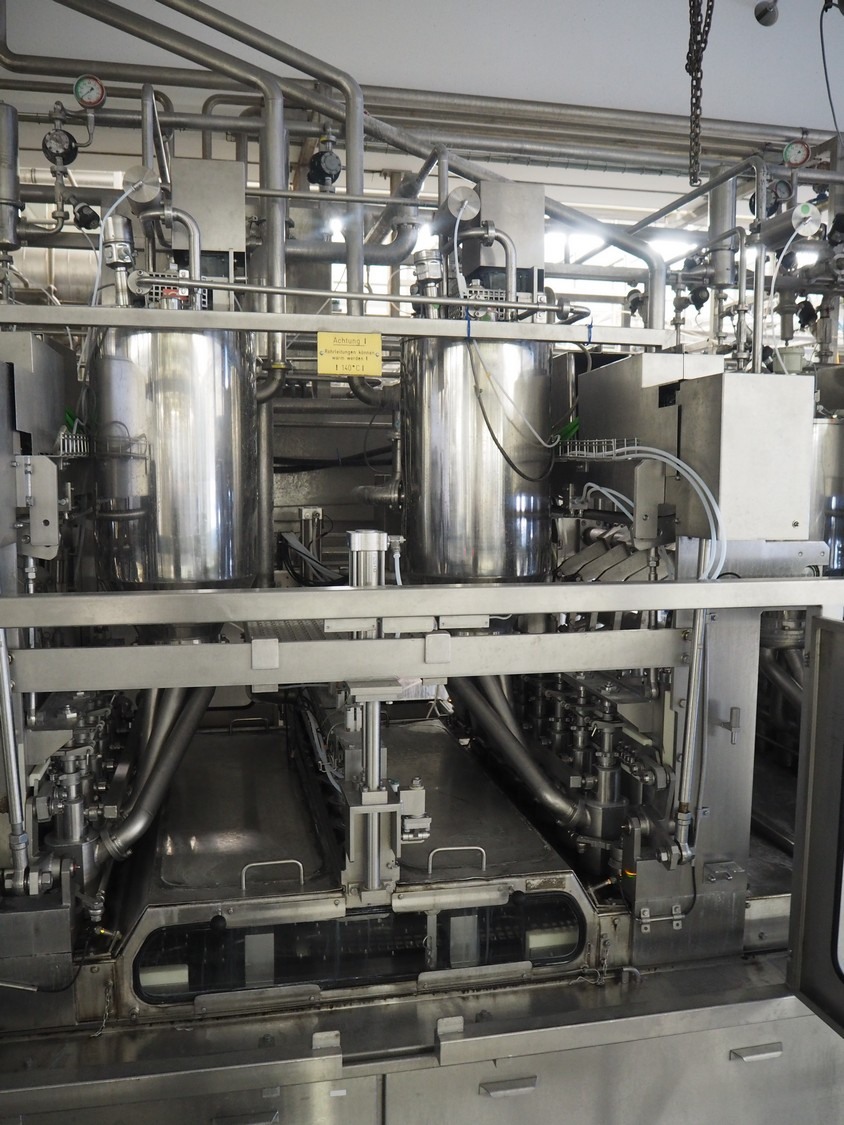

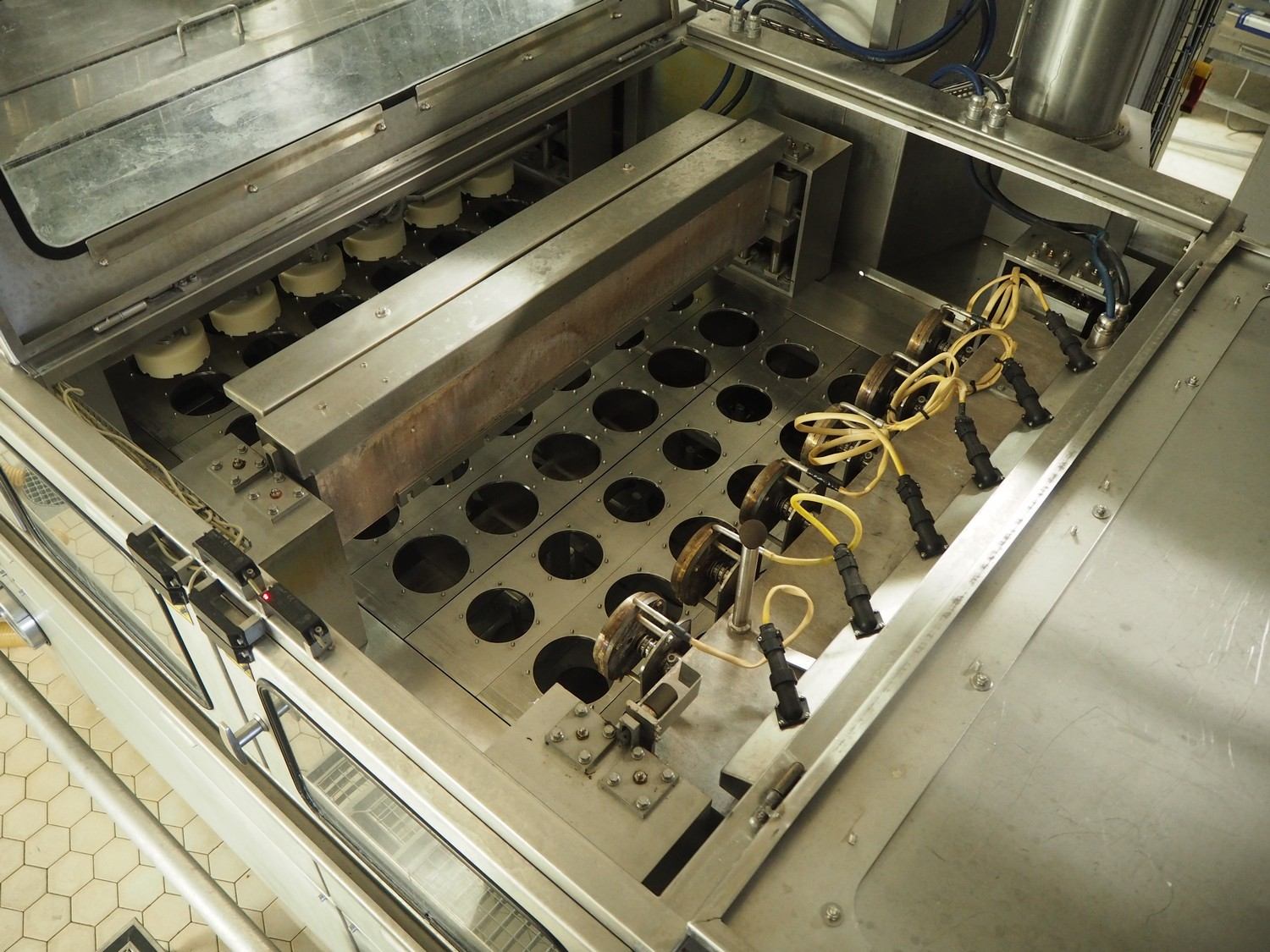

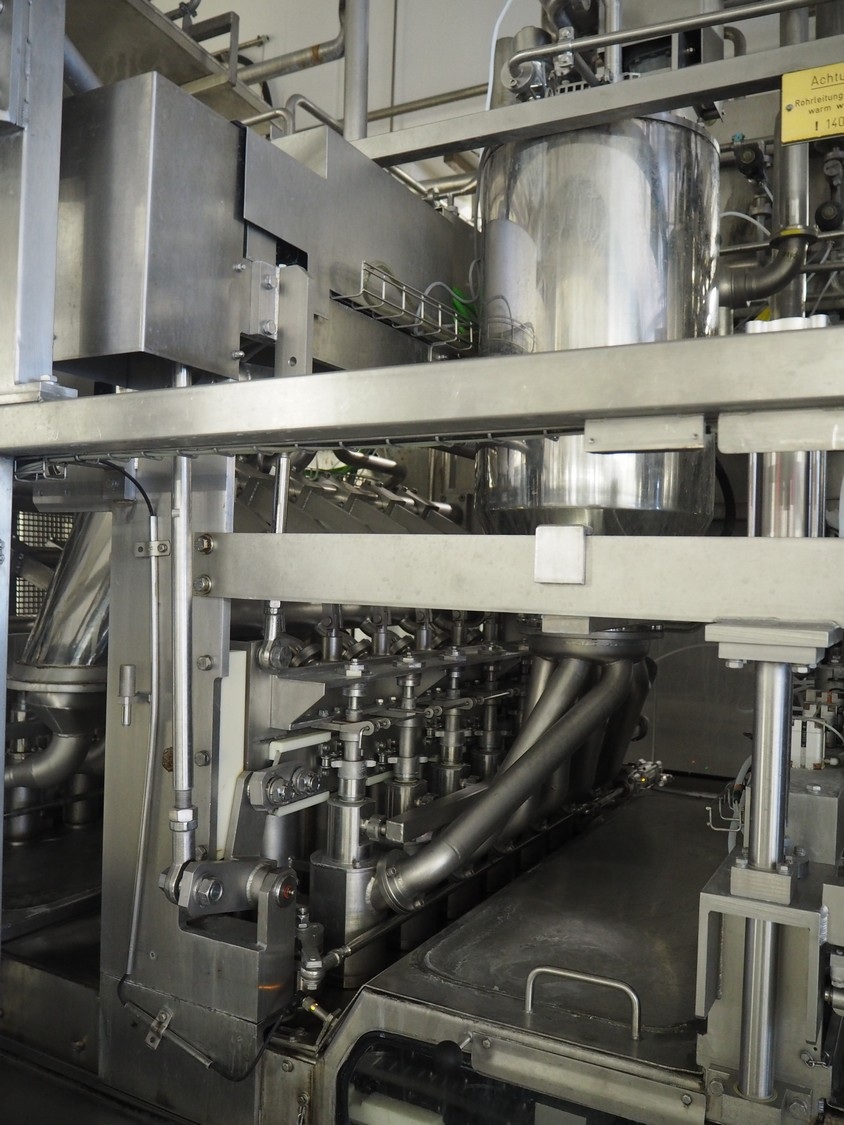

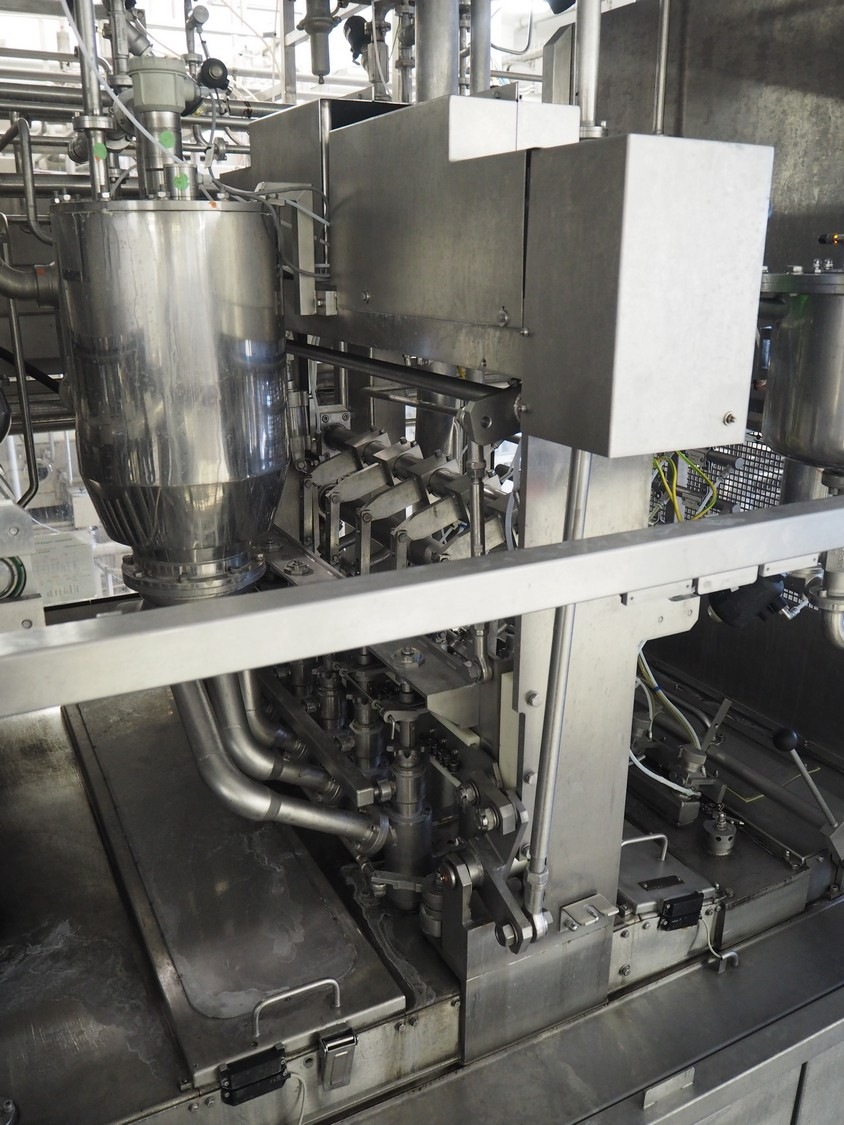

Liniair cup filler with 6 heads, cup size round: 112 and 130 mm. Stations: Automatic cup infeed (placed directly above the machine on 2nd floor), cup destacking.“No“ and “double“ cup detection, cup decontamination by peroxide (H2O2), predoser 1: oil (sunflower or corn oil) injection as antistick, predoser 2: pistondoser (20-175 ml) for fruit pulp (400-2000 cP, particles up to 16 mm), doser 3: maindoser 1 (50-525 ml) for viscous products. With 1 jacketed hopper with agitator, (CIP cleanable), Doser 4: main doser 2 (80-800 ml, 400-2000 cP, particles up to 18 mm) with 1 jacketered hopper with agitator. Dosers: nr 2, 3 and 4 are piston dosers with rotary cut of valves. Doser 5: After doser 20-175 ml. Negative-valve (suitable for whipped cream up to 150% over run), and a 6th combined doser. This is a system to make 'side by side' duo filled products, 2 products next to eachother, this is done by a filler nozzle that takes the product from main doser 1 and 2 at the same time and it is possible to rotate the cup to get 'swirreld' products. Seal decontamination by spray H2O2+ UV lamps and dispending by vacuum, 2 x heat sealing station for 112 and 130 mm separate, seal leak detection system, snap-on lid, outfeed conveyor. Cuplifters under the dosers with servo drive. Machine is fully guarded, is ultraclean with an sterile air system and 2 external air blowers (make: Becker) and has automatic central greasing systems. Easy format switch by moving the chain 1 step. The speed depends on cup volume, head space and product viscosity between 9720 (27 to 34 strokes/min) Controls: Siemens model: S7 and Siemens Touch screen HMI. CIP collecting tank, CIP pump and valves. Full set documentation.

Can LDFE help me with the installation?

Yes, if desired our mechanics can install the equipment at your premises . Also, we can offer long-distance assistance by giving instructions by video call or remote control (when installed).

What do the conditions ‘refurbished’, ‘good running’ and ‘as is’ mean?

We can offer our machinery in three conditions: ‘refurbished’,  ‘good running’ and ‘as is’. ‘Refurbished’ refers to a complete revision of a used machine to give it a second life. Our standard procedure when completely refurbishing a used machine is:

  • Strip down to the frame: blasting and spraying of steel components
  • All component wear: replacement of bearings, bushes and gaskets
  • Replacement of damaged or worn components
  • New cabling and control systems (latest updates)
  • 6 month warranty
  • Guaranteed spare parts supply for 5 years
  • Optional: supervision of commissioning and operator training
  • Optional: CE marking
  • Optional: custom modifications

Buying a ‘good running’ machine is a cheaper solution. In this condition, we do not completely overhaul the machine,  but do the necessary works to get the machine in working condition. The machine is tested in our workshop and components are only replaced if necessary. This price is always subject to conditions, as on occasion it becomes evident during the tests that there is an expensive fault. If this is the case, the buyer receives a quotation for the additional costs and is also given the option to cancel the purchase.

Machines are almost always sold ex-factory and can be deployed in the same condition in which we bought them: ‘as is’. However, the machine has not been inspected by us and there is no guarantee of its current condition. We always recommend that a machine is inspected prior to purchase and only to buy ‘as is’ if you have a thorough knowledge of machines. We can always tell you whether we purchased the machine in operating condition or whether it had already been decommissioned. Documentation is not always included and can only be supplied if it was present at the time of purchase.

Can I trust used machines?

We have been dealing with used machines since 1996 from the same place we started the business and growing every year. If a (small) problem arises, we also try to find a solution with our customers. We always have been a reliable partner due to our experience with used machinery.

Can LDFE also offer new machines?

Yes, in particular process equipment such as pasteurisers, standardisation equipment, CIP units, Cheese UHT unit etc. A hybrid form of new and rebuild is also possible.
