Stephan TC/HC 600

Stephan TC/HC 600 Processed cheese equipment
Stephan TC/HC 600 Processed cheese equipment Stephan TC/HC 600 Processed cheese equipment Stephan TC/HC 600 Processed cheese equipment Stephan TC/HC 600 Processed cheese equipment Stephan TC/HC 600 Processed cheese equipment Stephan TC/HC 600 Processed cheese equipment
Processed cheese equipment Processed cheese equipment STN14886 Stephan TC/HC 600 K.716.071 1990 600 liters

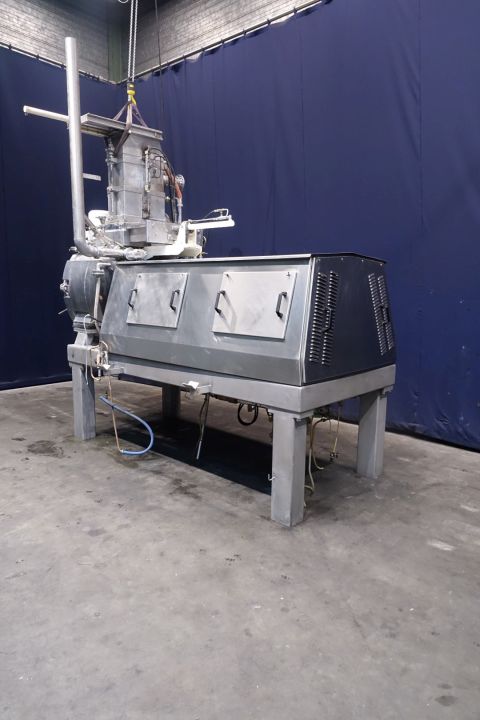

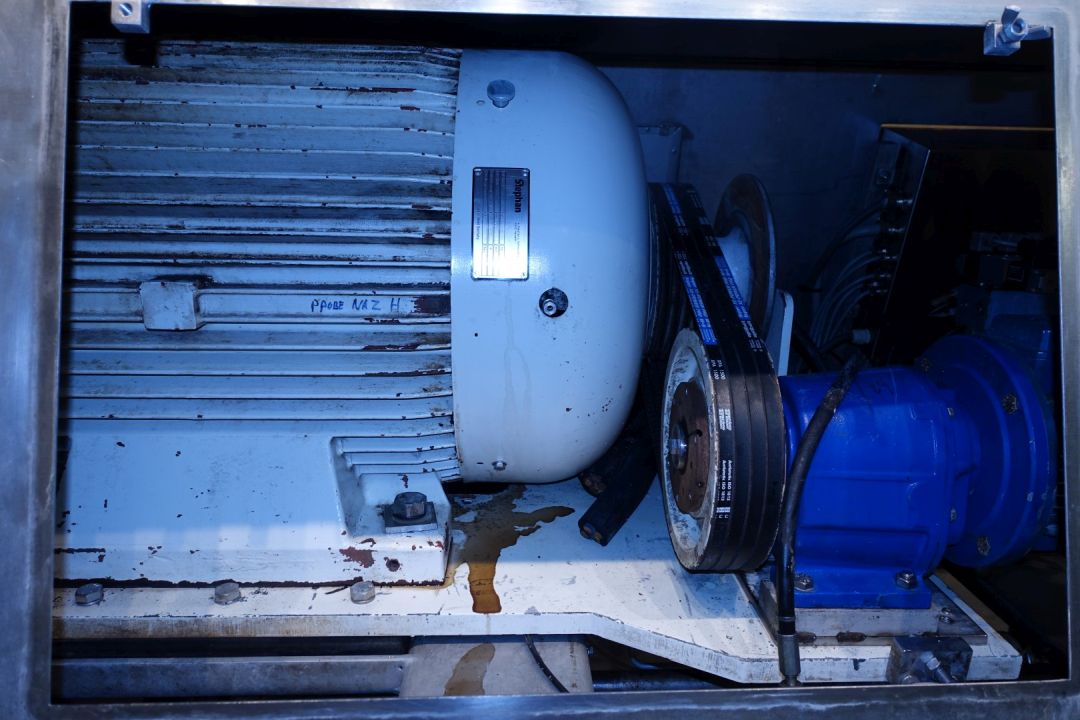

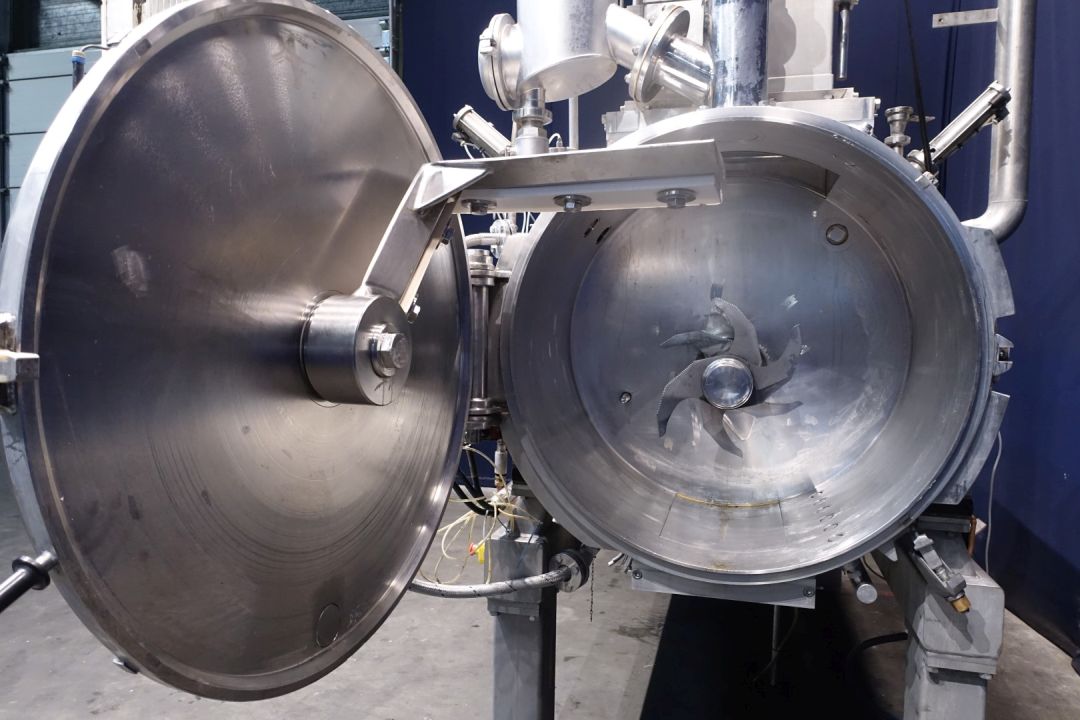

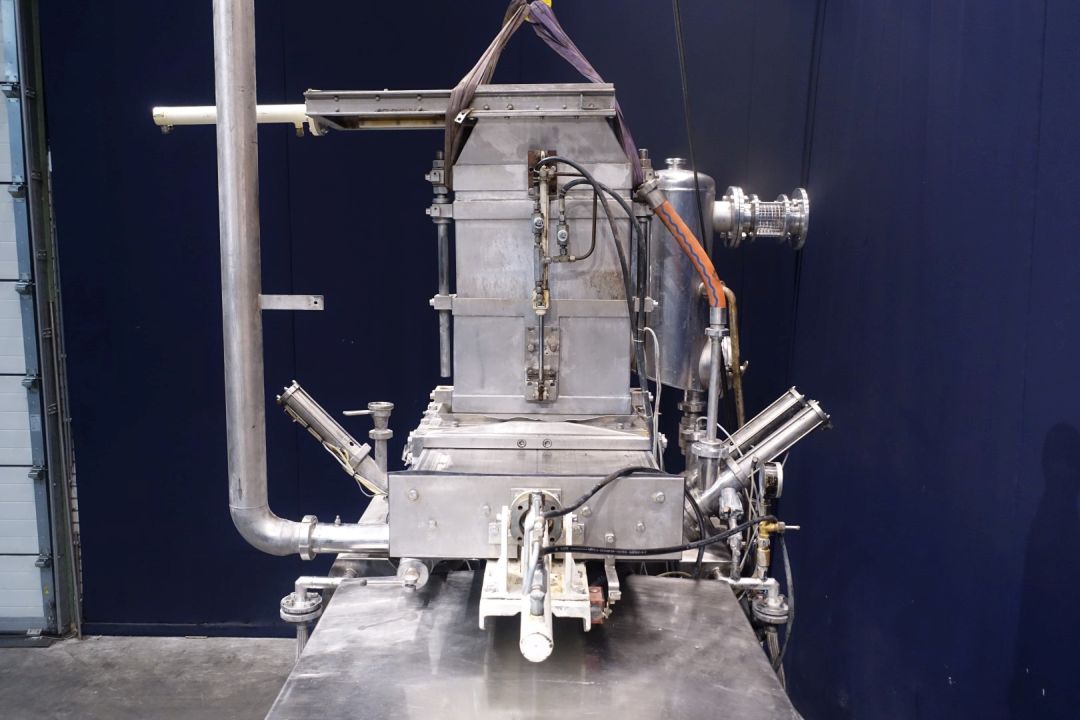

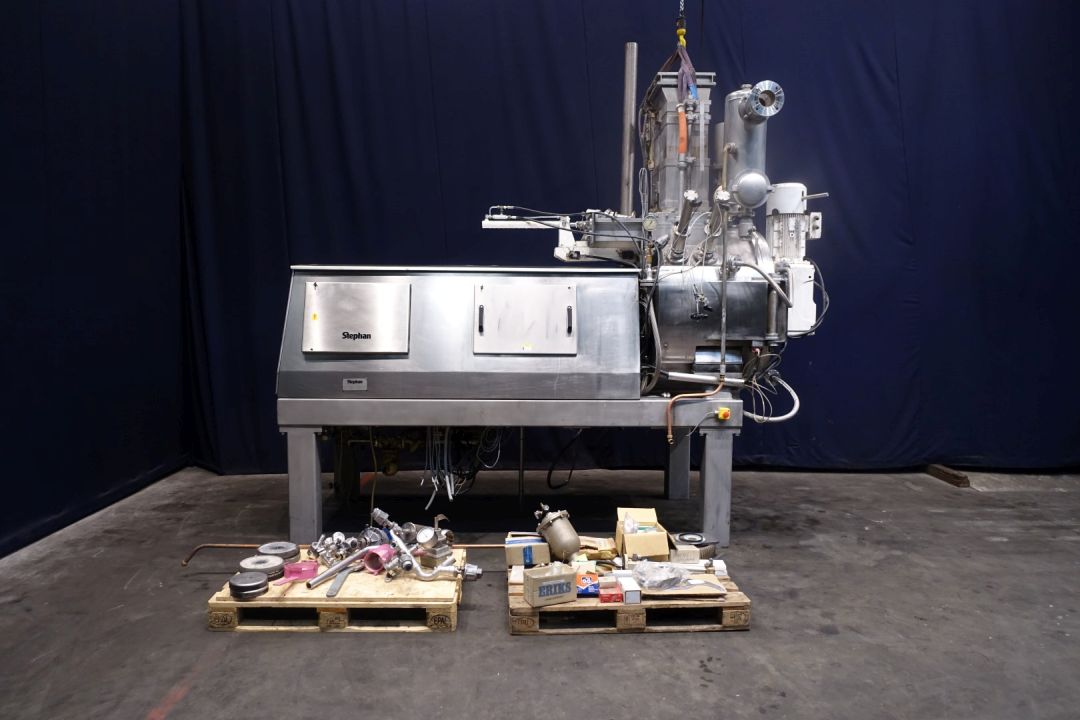

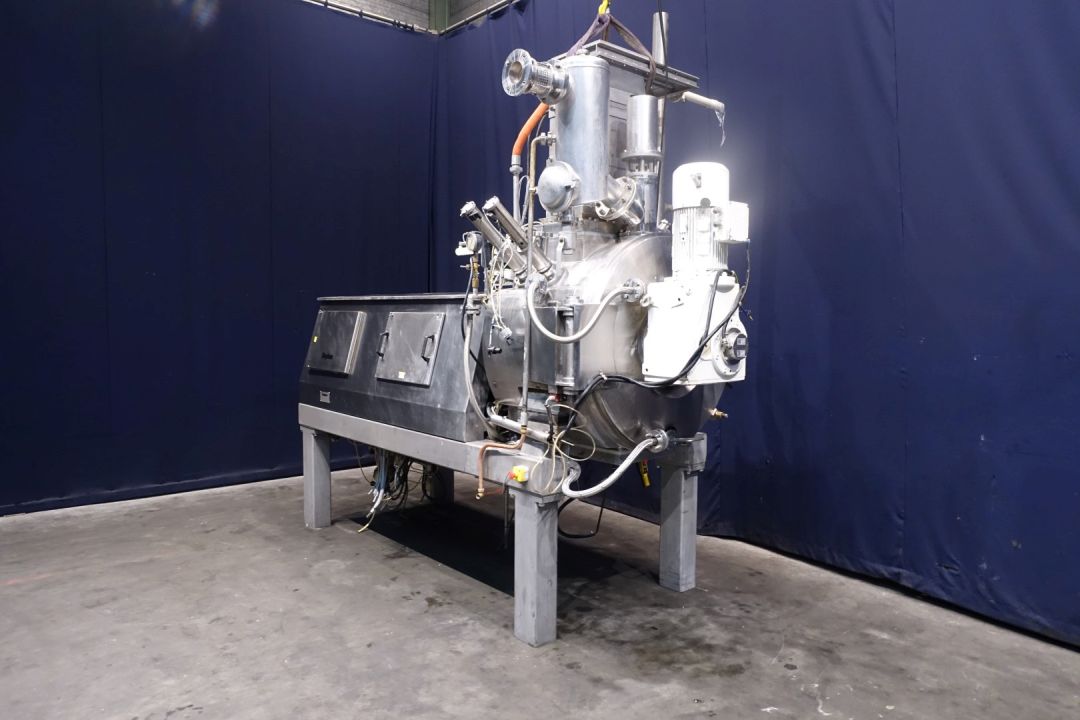

Universal horizontal cutter/melter/cooker with vacuum system. The main product bowl and cover are double jacketed for cooling or heating (jacket of the cover has cracks, so cannot be used anymore in the future). 6 Built in ports for injecting steam directly into the bowl. 2x Liquid injection valves on top of the bowl. Water dosing system with water meter/flowtransmitter, vacuum connection with separting tank and deaeration valve. PT-100 sensor in the bowl. Overpressure valve on the back side of the bowl. Hydraulic unit and cylinders for slide opening top and bottom. The cover has 2 manual tightening clamps. Hopper (extractable if slide closes) on the top inlet. 2 agitators: 1 scraper agitator (± 25 rpm) and 1 mixer / homogenize knife, main motor 3 speeds: 50/70/103 kW, 750/1500/3000 rpm. Pressure in bowl vacuum up to + 0,3 bar overpressure, max temp: 95°C. Including spare parts, documentation excluding: vacuumpump, control cabinet, elevator or outfeed trolley/pump. Total dimensions: 370 x 165 x 375 cm. Weight: 4.550 kg.

Request inquiry Back to the overview
