Schröder Tubular heatexchanger
Heat exchangers
Tubular heat exchangers
STN14868
Schröder
Tubular heatexchanger
0000
1997
± 35 liters

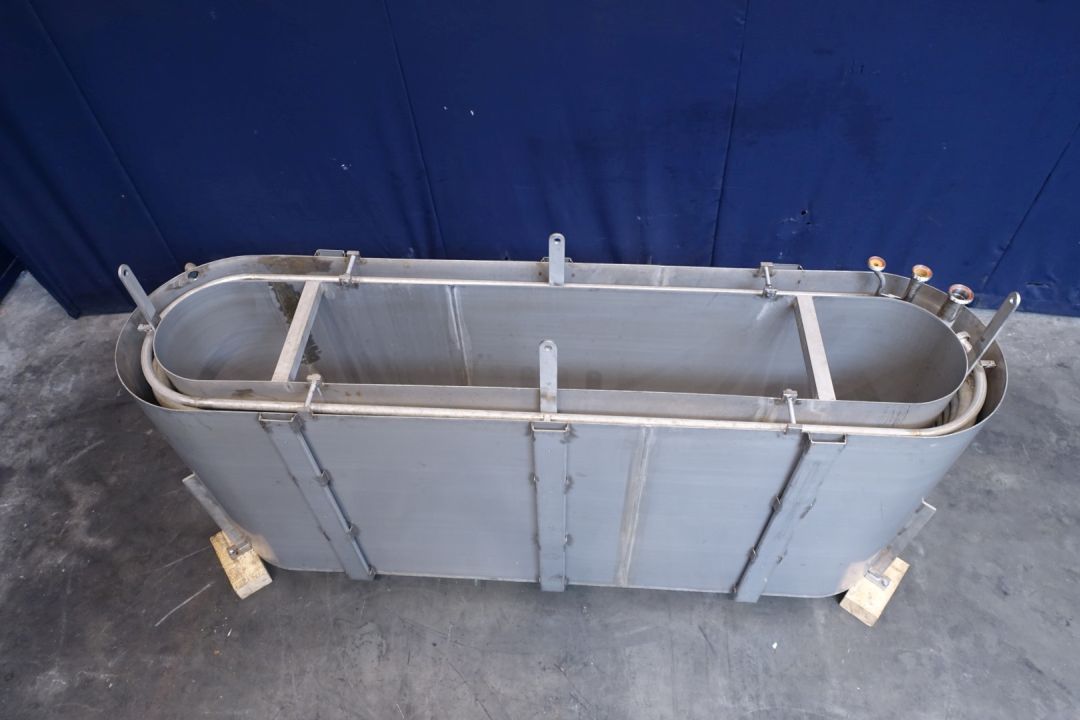

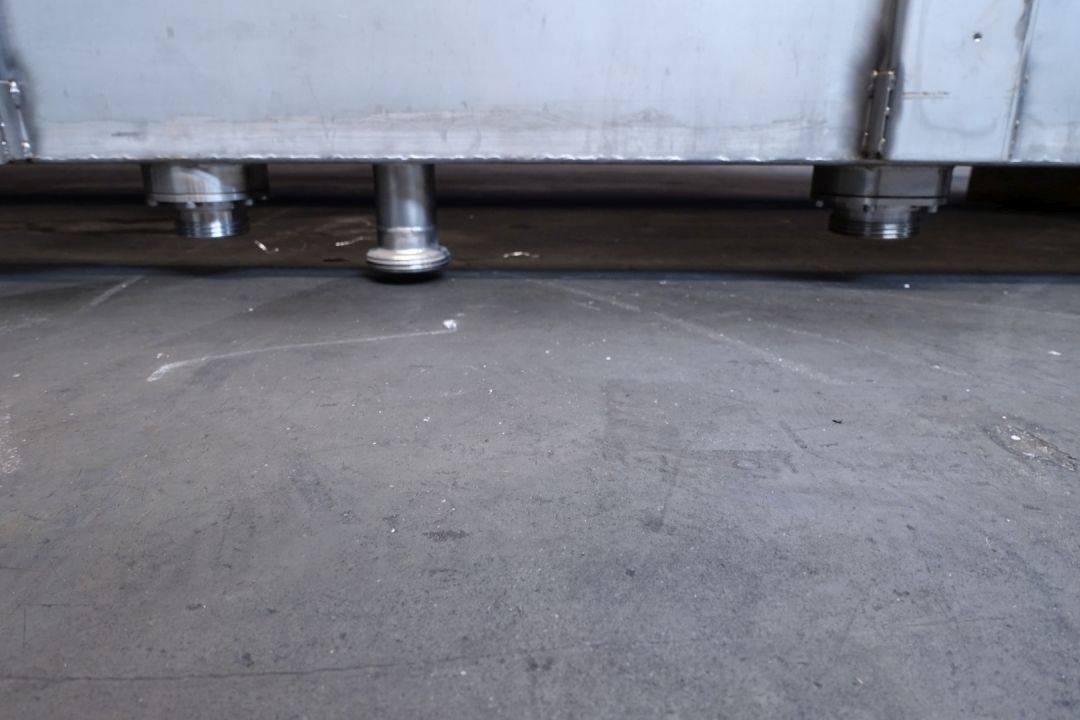

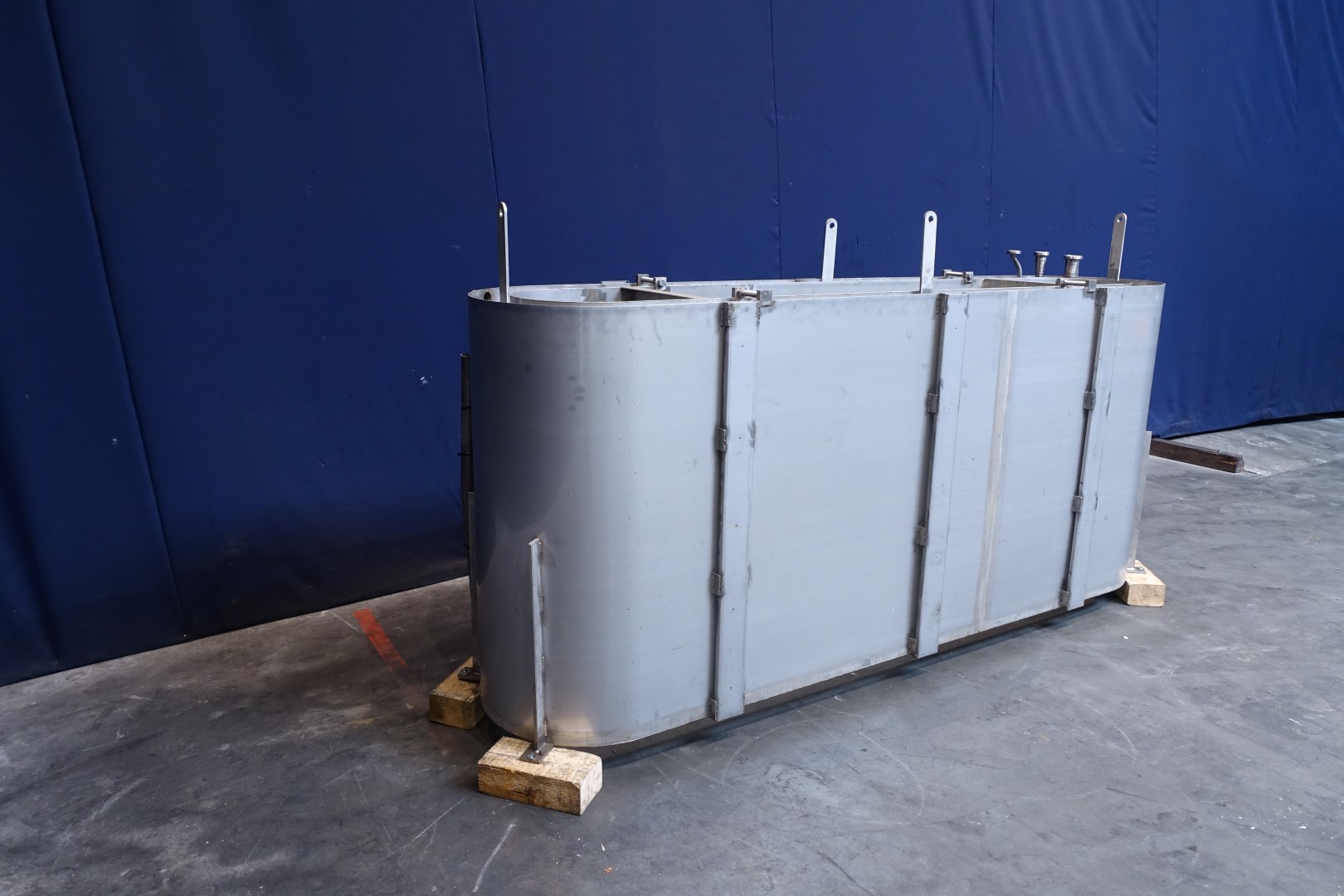

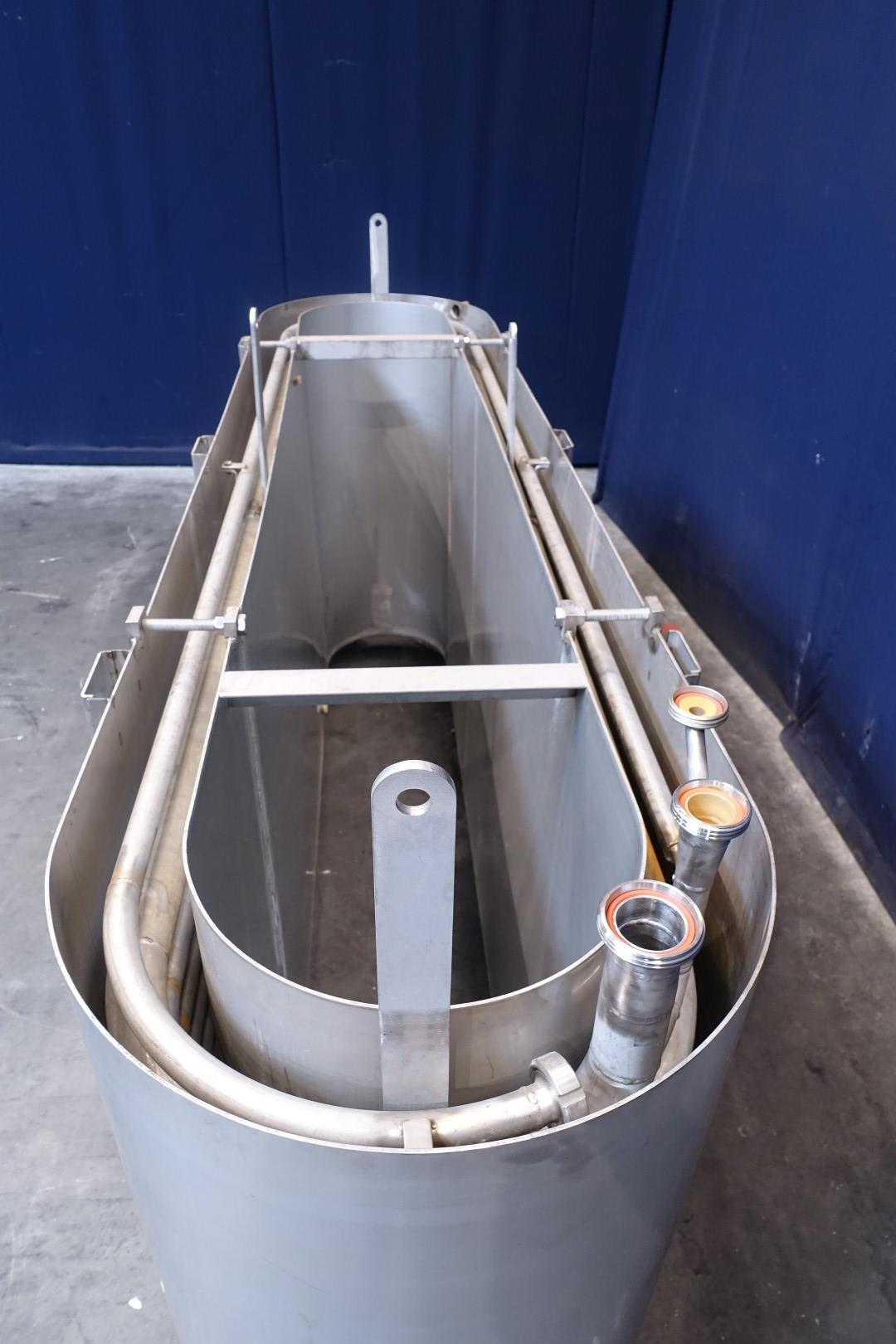

Tubular heatechanger (cooler) previous used for cooling of a margarine emulsion from ± 85°C-> 40°C @ 3.600 kg/h. The THE exist of a double-tube coil which is mounted in a frame work. The cooling water flows through the inner tube and the product flows in the opposite direction in the outer tube. In addition, the tube was cooled from the outside by means of irrigation cooling water (free flow of water around the tubes to be collected in bottom part). Total dimensions: 280 x 72 x 160 cm.
