Burtech SLMS
Other equipment
Foaming machines
STN13484
Burtech
SLMS
06.05/05048
2005
1.250 kilograms per hour

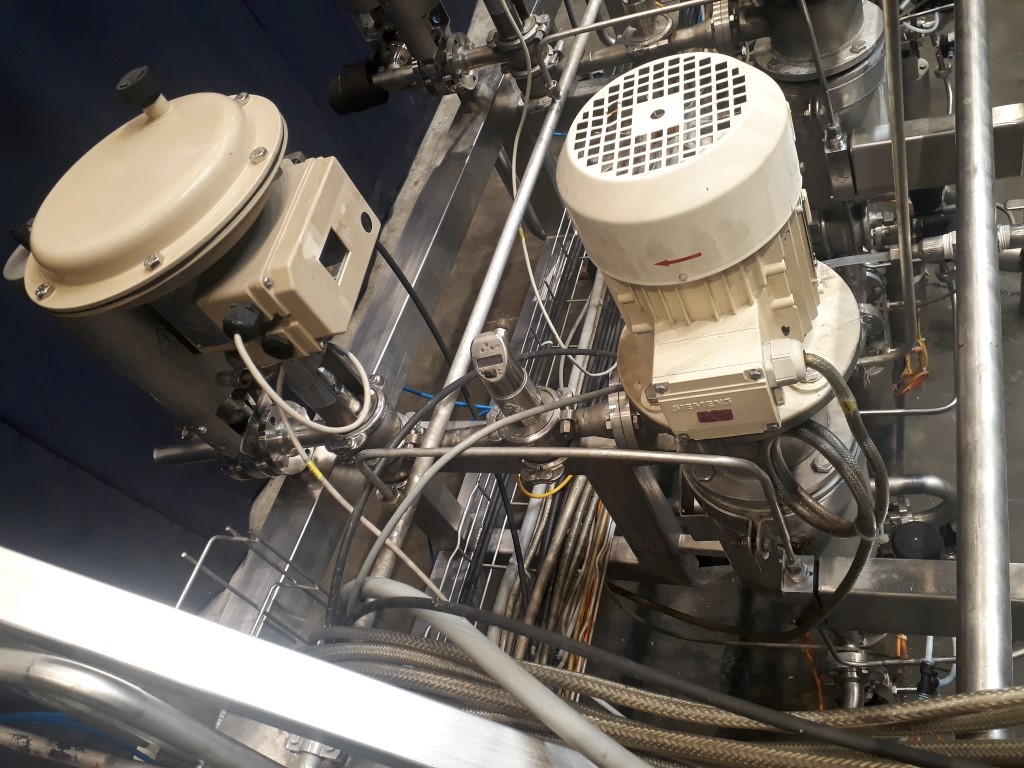

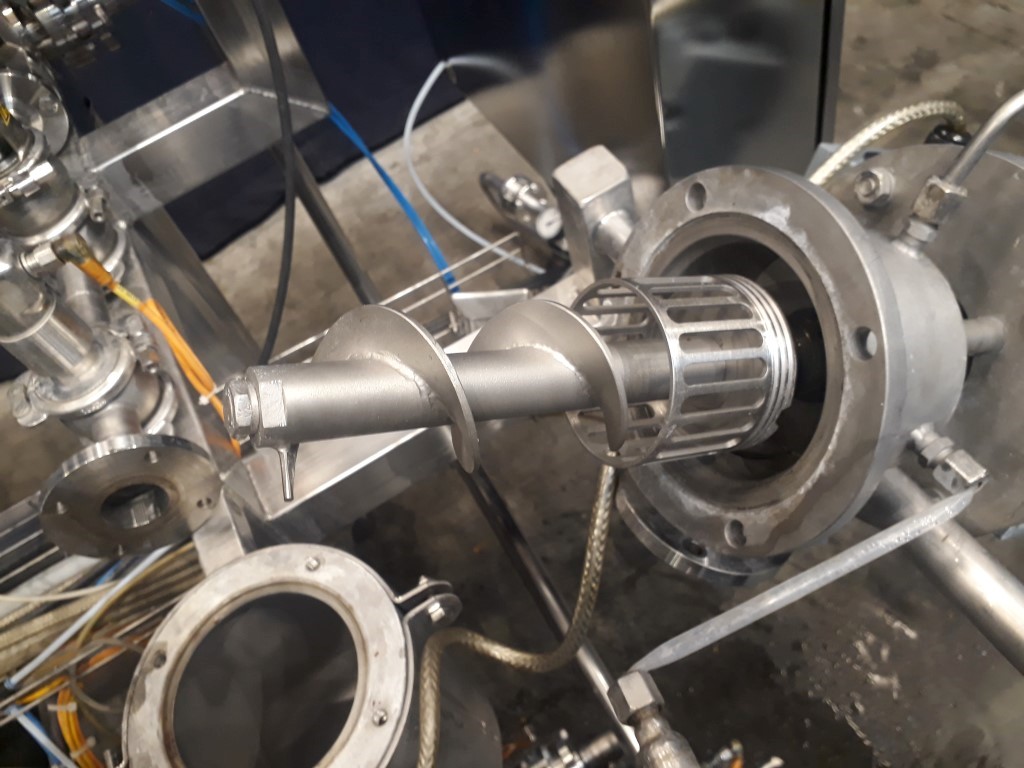

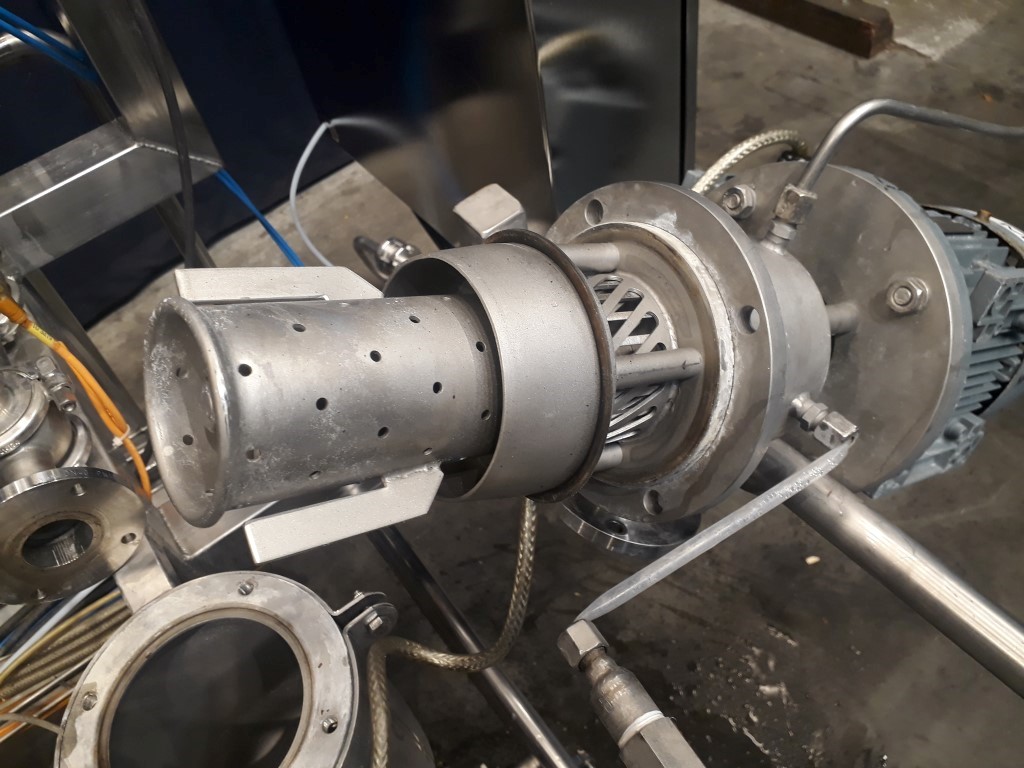

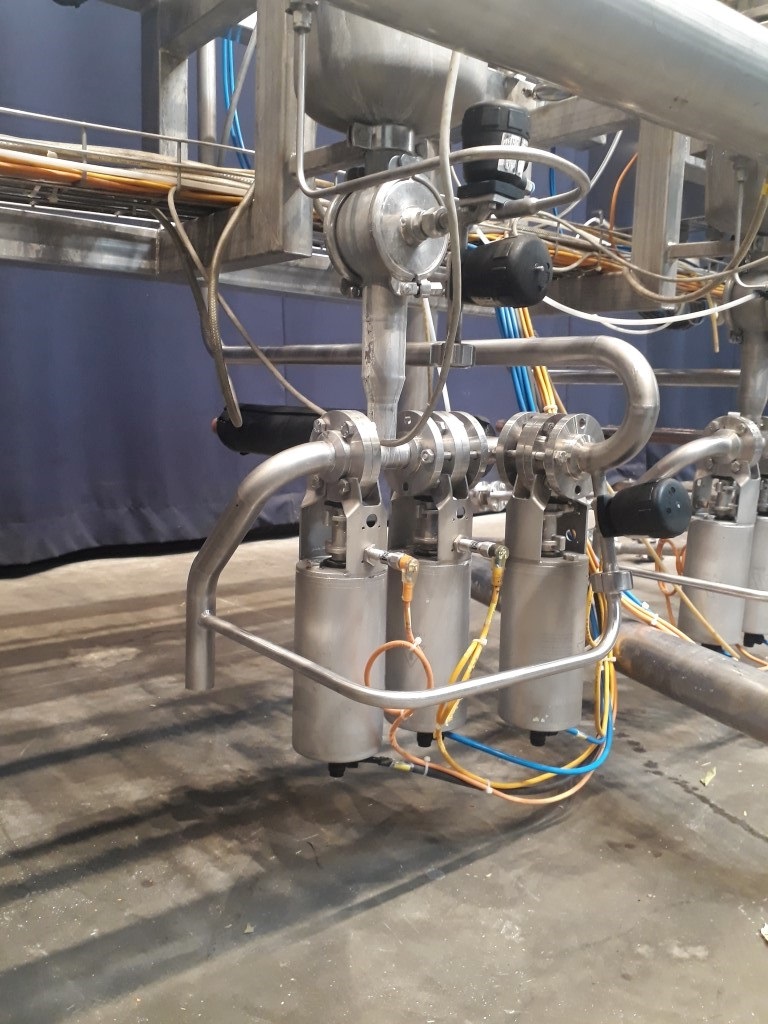

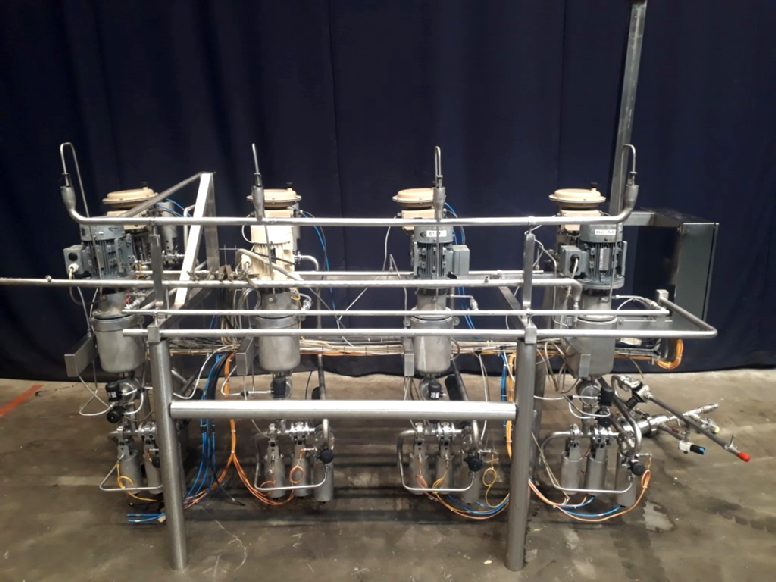

Inline mini fruit mix and foaming machine, Aseptic design. Head dimensions: inner diameter 100 mm and length: 150 mm. Volume: 4 ltr. Single jacketed. Main motor 0,75 kW - 1,93 A - 1418 rpm. Max temp. 100°C. Max pressure 6 bar. Connections for insert of sterile air / nitrogen, flow transmitter for air, pressure transmitter (IFM) on outlet and counter pressure valve (Samson). 4 pieces mounted on 1 frame (STN13482 + STN13483 + STN13484 + STN13485) , can be used as small foaming machine or as a set for a 4 line machine to feed 4 different products. Total dimensions 4p 130 x 310 x 230 cm.
