Schröder KL03
Margarine equipment
Margarine equipment
STN13361
Schröder
KL03
11-420
1979
3.500 liter per hour

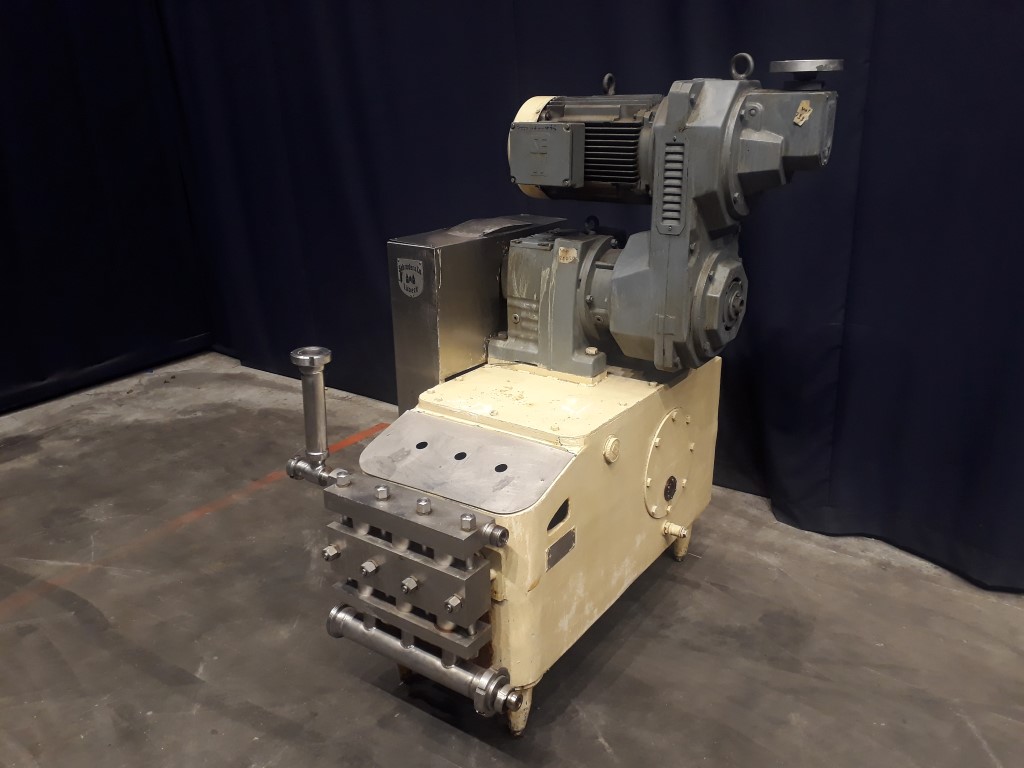

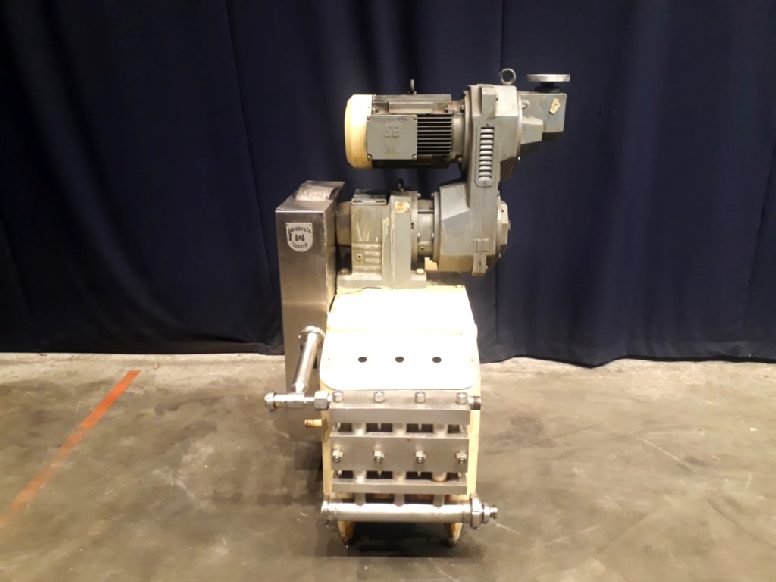

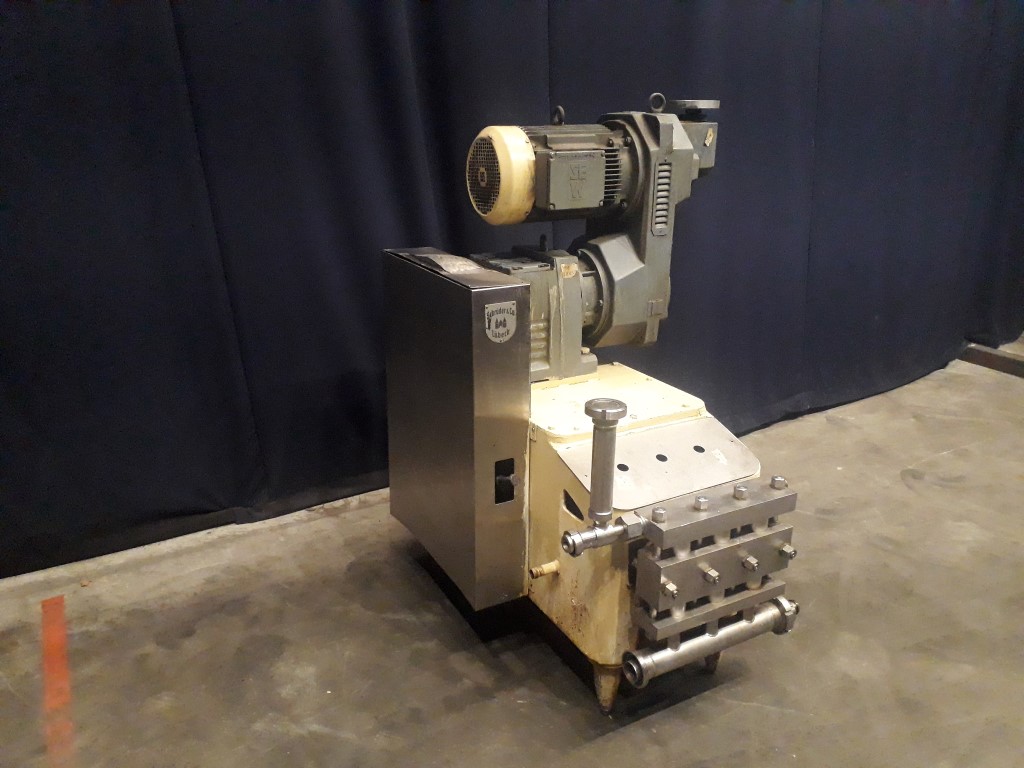

High pressure pump used for margarine. The conveying pump is a 3 piston pump with 3 suction and pressure valves. It conveys the margarine emulsion coming from the premix / buffer vessel at a pressure of 10 - 50 bar overpressure (table margarine) or 30 - 70 bar overpressure (pastry margarine) into and through the cooling cylinders of the crystalliser. Piston diameter: 40 mm and stroke: 105 mm. Motor: 11 kW. Variable speed 81 - 492 rpm with mechanical variator wich results in 640 - 3.893 kg/h. Complete with over pressure valve. Connections: 1,5''/1,5'', DIN. Documentation available. Including set of spare parts. Total dimensions: 110 x 140 x 160 cm.
