Stulz H+E AG

Stulz H+E AG Pilot Filtration Unit

Assortment
Filtration units
Category
Ultra filtration units
Stock number
STN13662
Type
Pilot Filtration Unit
Year of construction
2013
Capacity
3-40 liter per hour

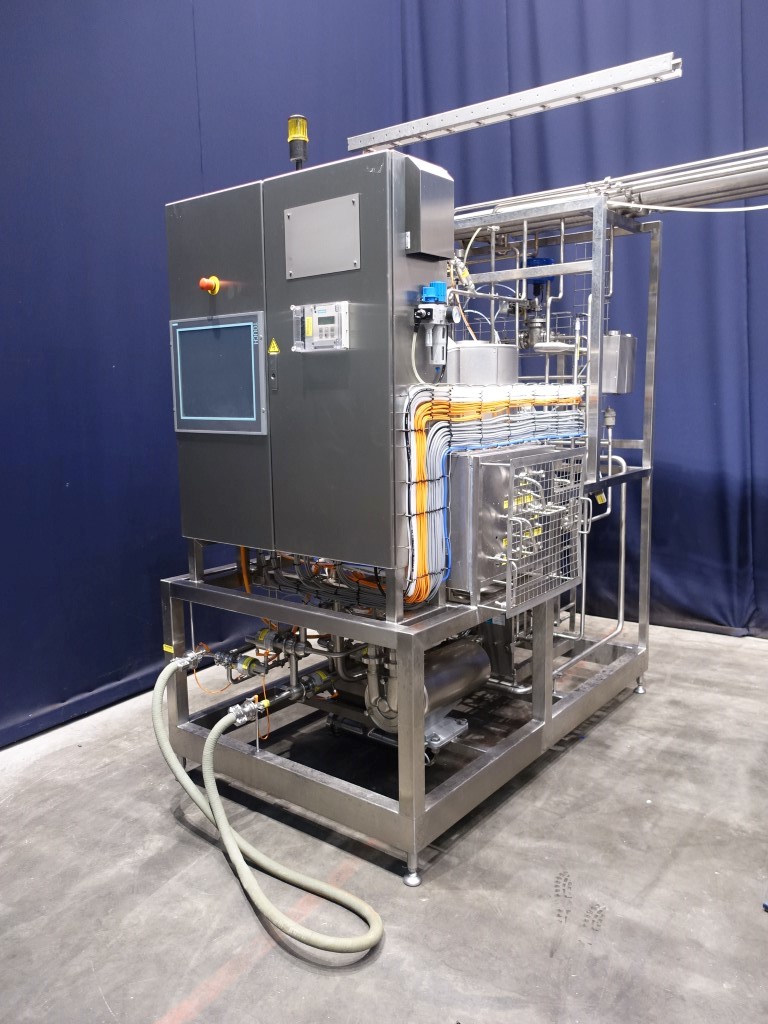

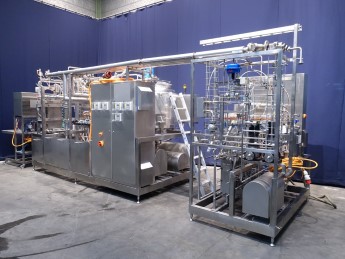

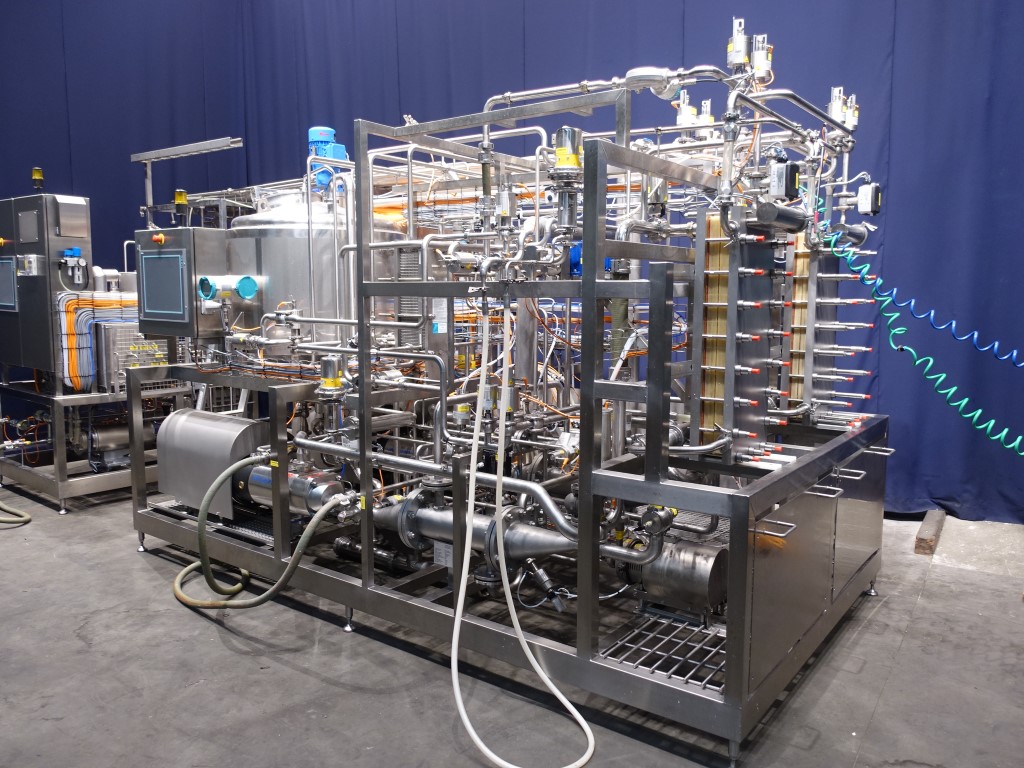

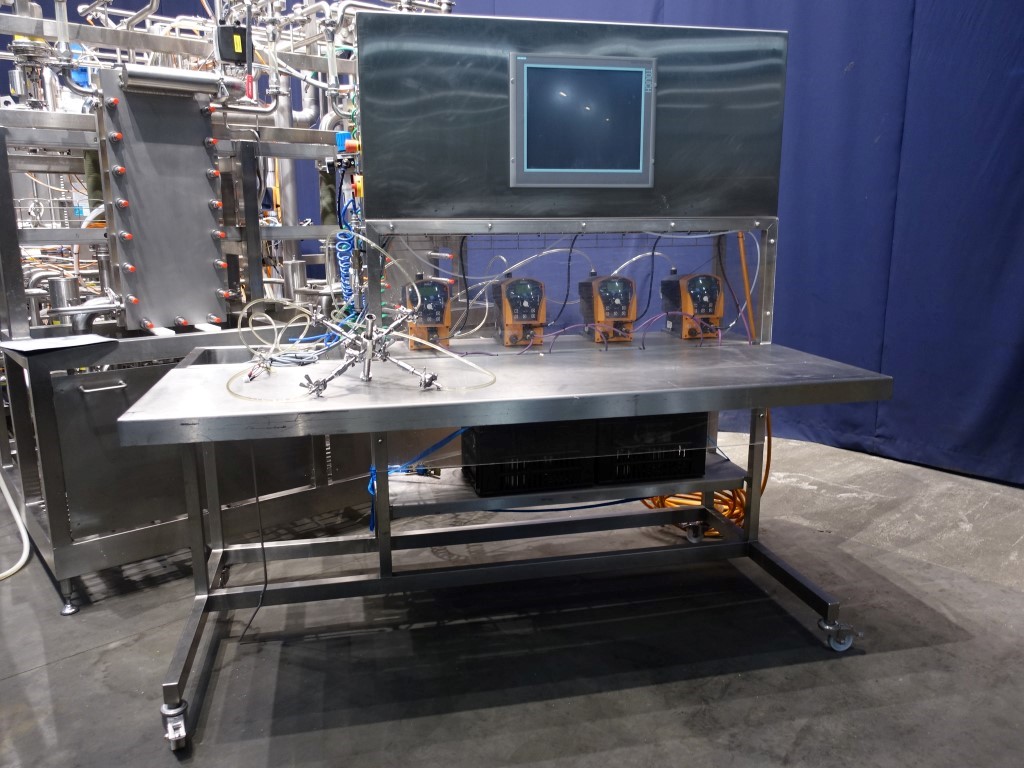

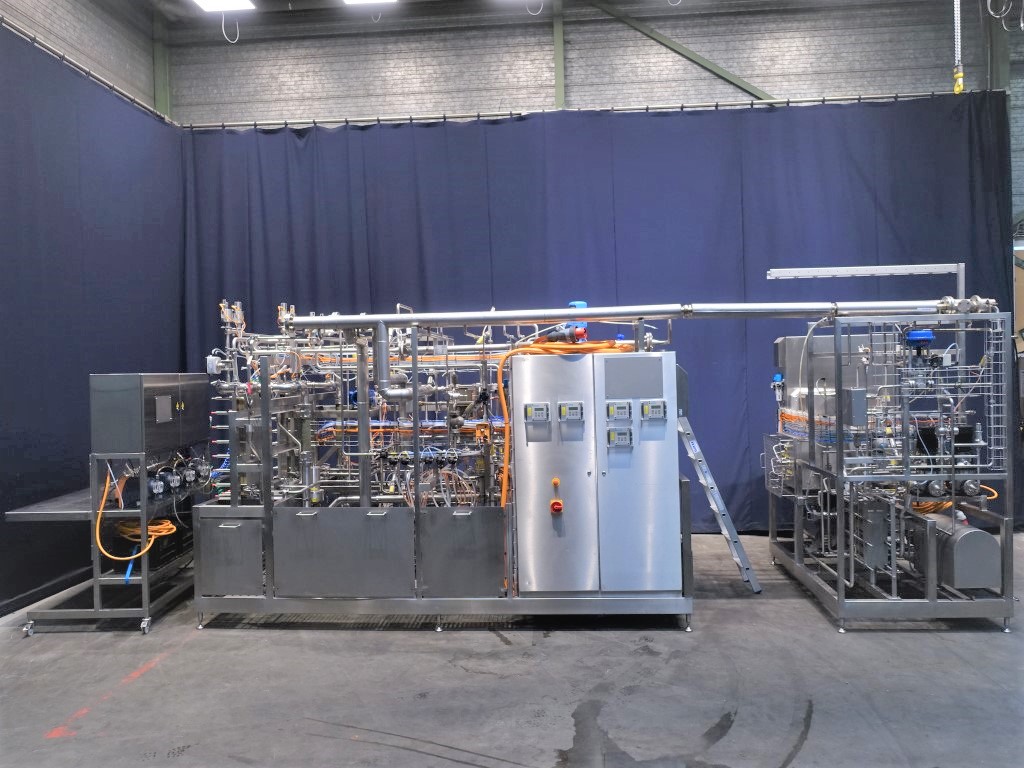

Pilot plant line 2 stage UF plant used for the NDC process. Incoming raw material: Milk, MCI 80, cream etc. Line existing out of : 1) Skid mounted pretreatment pasteurisation unit, 200 ltr/h @ 70/100°C (Fristam FZ15 self-priming pump for emptying feed IBC tank, 1.000 ltr/h, balance tank, BamInox, 50 ltr, Jung Hyghspin double screw product feed pump of 200 ltr/h @ 4 bar, GEA Ecoflex VT04 plate heat exchanger with 6 sections, temperature cycles adjustable: in 5°C - 50/55° - 70/100°C - various holding tubes in insulated box 10/15/30''- 68/98°C - 50/55°C - 6°C, indirect hotwater system with steam, cooling with city and icewater, 2 Grundfos centrifugal waterpumps, unit has its own control panel with frequency convertors, Siemens S7 PLC and Siemens touch screen, dimensions: 140 x 220 x 280 cm). 2) Dosing unit with 4 dosing pumps mounted on a mobile frame with table (Prominent Delta, 1608NPE, dosing rate of each pump: 7,8 l/h, 16 bar, unit has its own control panel with Siemens S7 PLC and Siemens touch screen, dimensions: 140 x 220 x 220 cm). 3) Ultrafiltration unit with an outfeed of 3-40 ltr/h, 2 stages (balance tank 500 ltr with agitator, feed pump of 960 ltr/h @ 4 bar, plate heat exchanger, preheater with 2 sections, 5°C - 60 °C, UF1, PF plate and frame filter system with plate filter, CONSEP Filter Module, Membrane Type: 10kda PES, max 20 m2, Jung Hyghspin 90 twin/double screw circulation pump 49 m3/h @ 10 bar, UF2, plate and frame filter, CONSEP Filter Module, Membrane Type: 10kda PES, max 10 m2, UF1 and UF2 could run each only or in series, Jung Hyghspin 90 double /twin screw pump 32 m3/h @ 8 bar, 2 Alfa Laval centrifugal pumps, Grundfos centrifugal pump, Lobbe pump, 3 tubular heat exchangers in which 2 for product and 1 for water, unit has its own control panel with Siemens S7 PLC and Siemens touch screen, dimensions: 480 x 220 x 280 cm). Flowschemes and electric schemes of the line available.

Can LDFE help me with the installation?

Yes, if desired our mechanics can install the equipment at your premises . Also, we can offer long-distance assistance by giving instructions by video call or remote control (when installed).

What do the conditions ‘refurbished’, ‘good running’ and ‘as is’ mean?

We can offer our machinery in three conditions: ‘refurbished’,  ‘good running’ and ‘as is’. ‘Refurbished’ refers to a complete revision of a used machine to give it a second life. Our standard procedure when completely refurbishing a used machine is:

  • Strip down to the frame: blasting and spraying of steel components
  • All component wear: replacement of bearings, bushes and gaskets
  • Replacement of damaged or worn components
  • New cabling and control systems (latest updates)
  • 6 month warranty
  • Guaranteed spare parts supply for 5 years
  • Optional: supervision of commissioning and operator training
  • Optional: CE marking
  • Optional: custom modifications

Buying a ‘good running’ machine is a cheaper solution. In this condition, we do not completely overhaul the machine,  but do the necessary works to get the machine in working condition. The machine is tested in our workshop and components are only replaced if necessary. This price is always subject to conditions, as on occasion it becomes evident during the tests that there is an expensive fault. If this is the case, the buyer receives a quotation for the additional costs and is also given the option to cancel the purchase.

Machines are almost always sold ex-factory and can be deployed in the same condition in which we bought them: ‘as is’. However, the machine has not been inspected by us and there is no guarantee of its current condition. We always recommend that a machine is inspected prior to purchase and only to buy ‘as is’ if you have a thorough knowledge of machines. We can always tell you whether we purchased the machine in operating condition or whether it had already been decommissioned. Documentation is not always included and can only be supplied if it was present at the time of purchase.

Can I trust used machines?

We have been dealing with used machines since 1996 from the same place we started the business and growing every year. If a (small) problem arises, we also try to find a solution with our customers. We always have been a reliable partner due to our experience with used machinery.

Can LDFE also offer new machines?

Yes, in particular process equipment such as pasteurisers, standardisation equipment, CIP units, Cheese UHT unit etc. A hybrid form of new and rebuild is also possible.
