Back to overview

Steiner

Steiner Apparatebau GmbH LK 1000

Assortment
Tanks
Category
Mix tanks
Stock number
STN16087
Type
LK 1000
Year of construction
2010
Capacity
1.000 liters

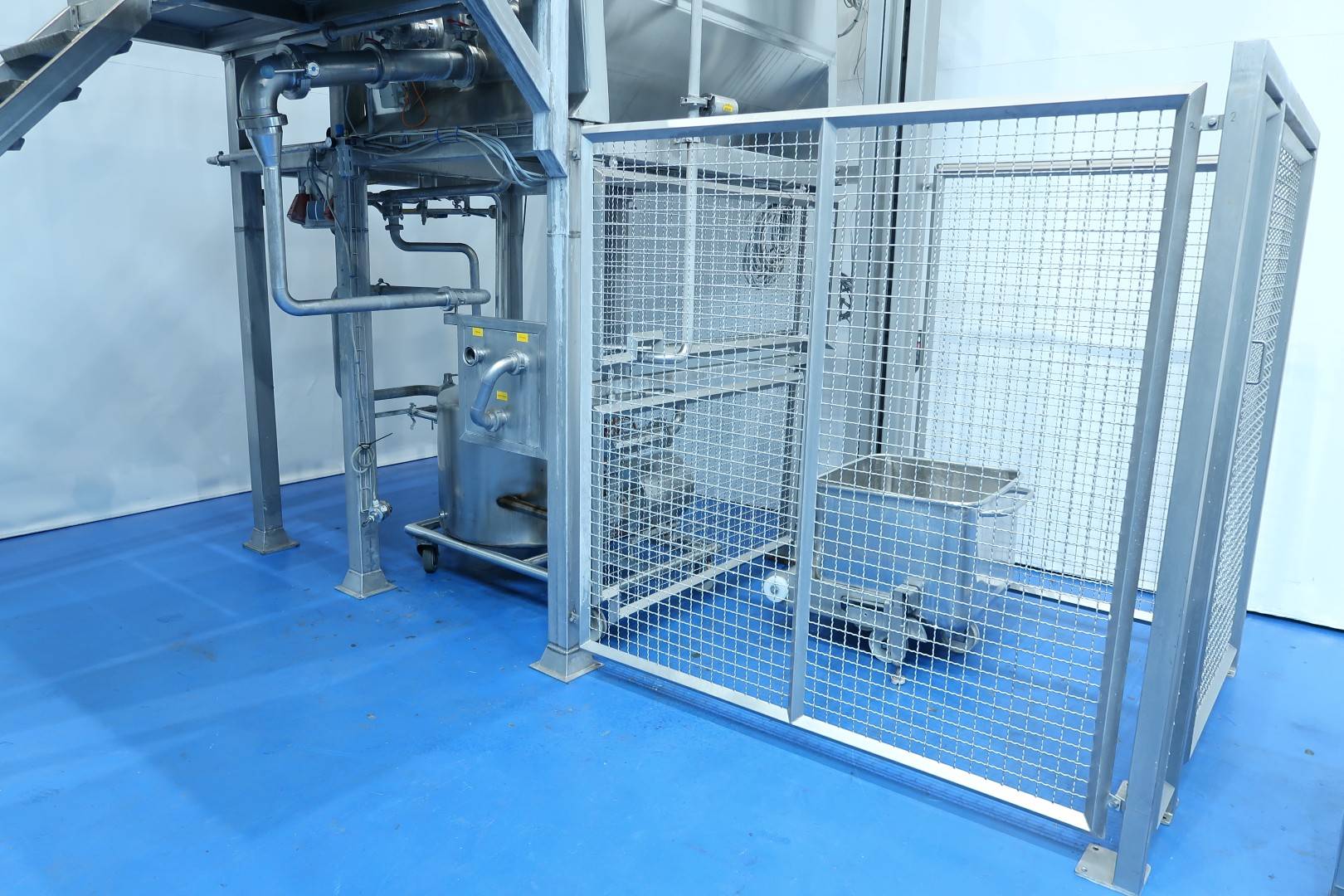

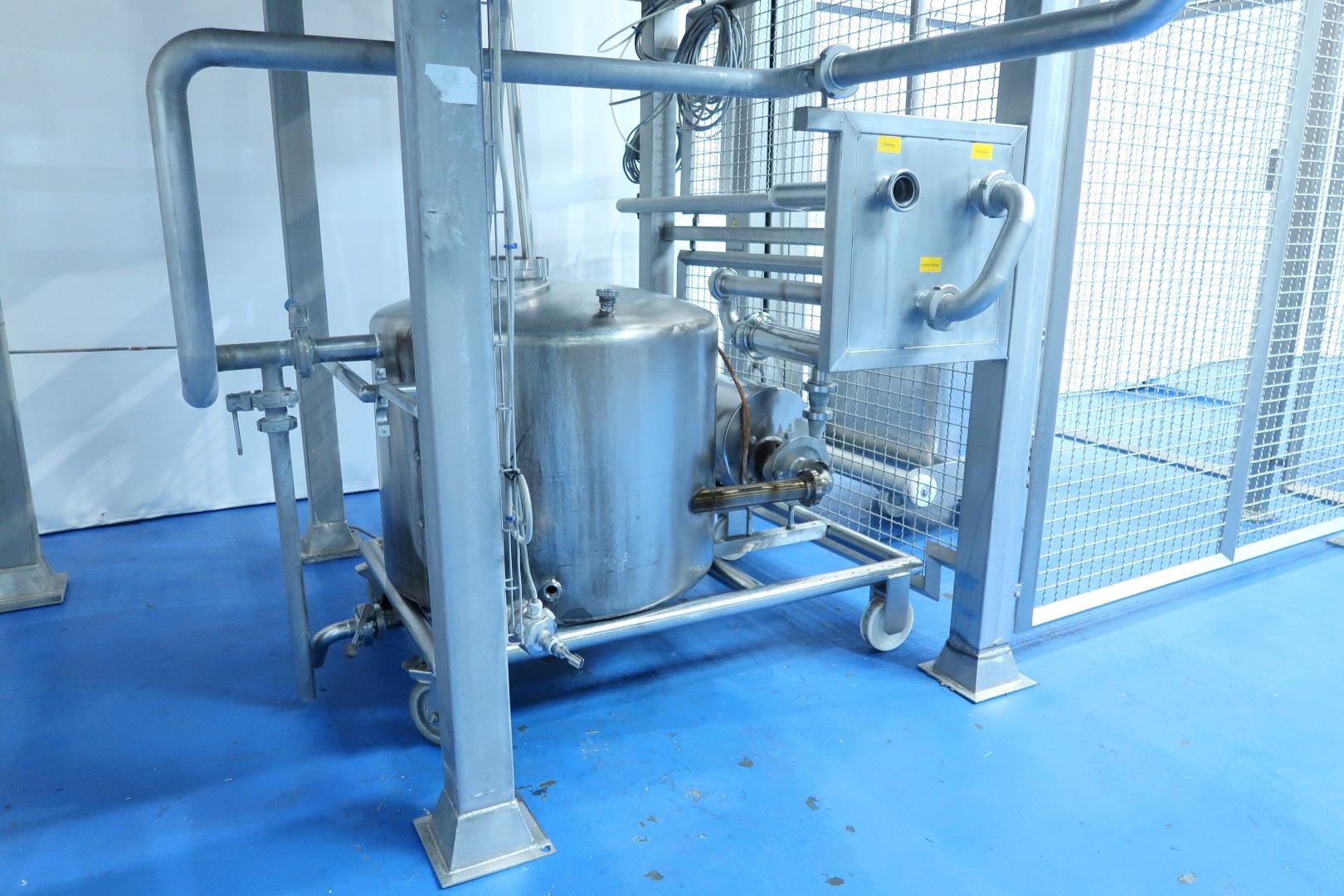

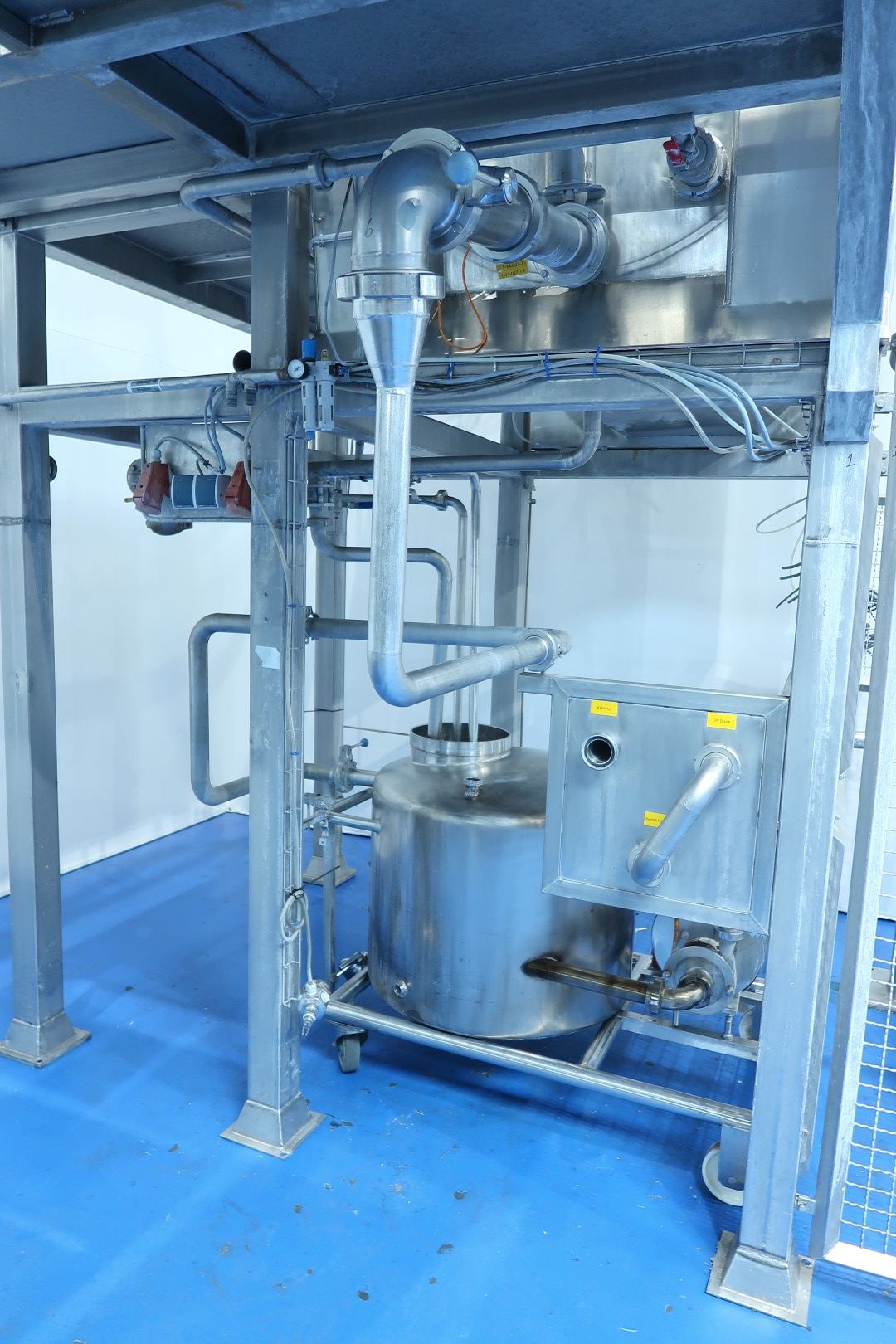

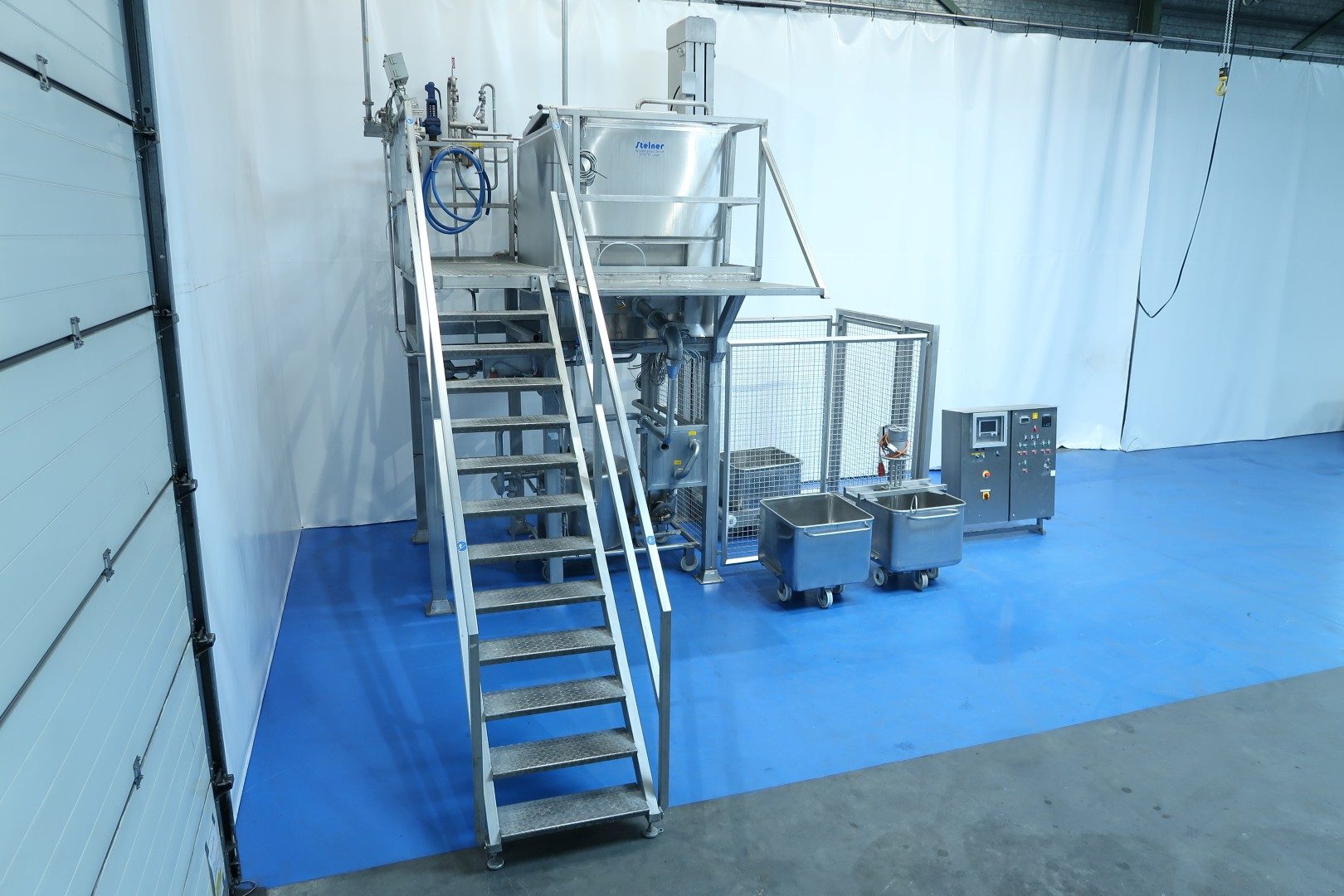

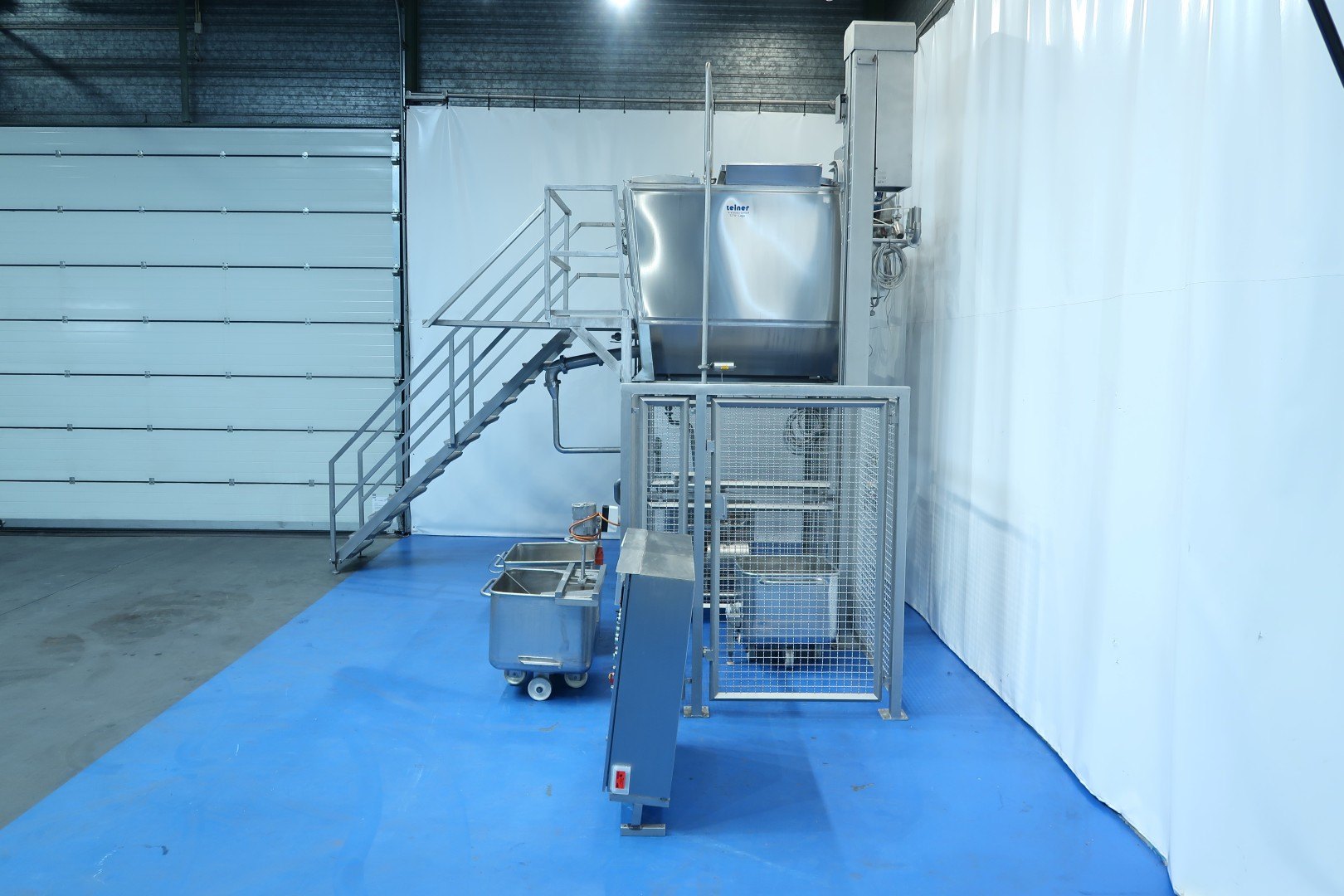

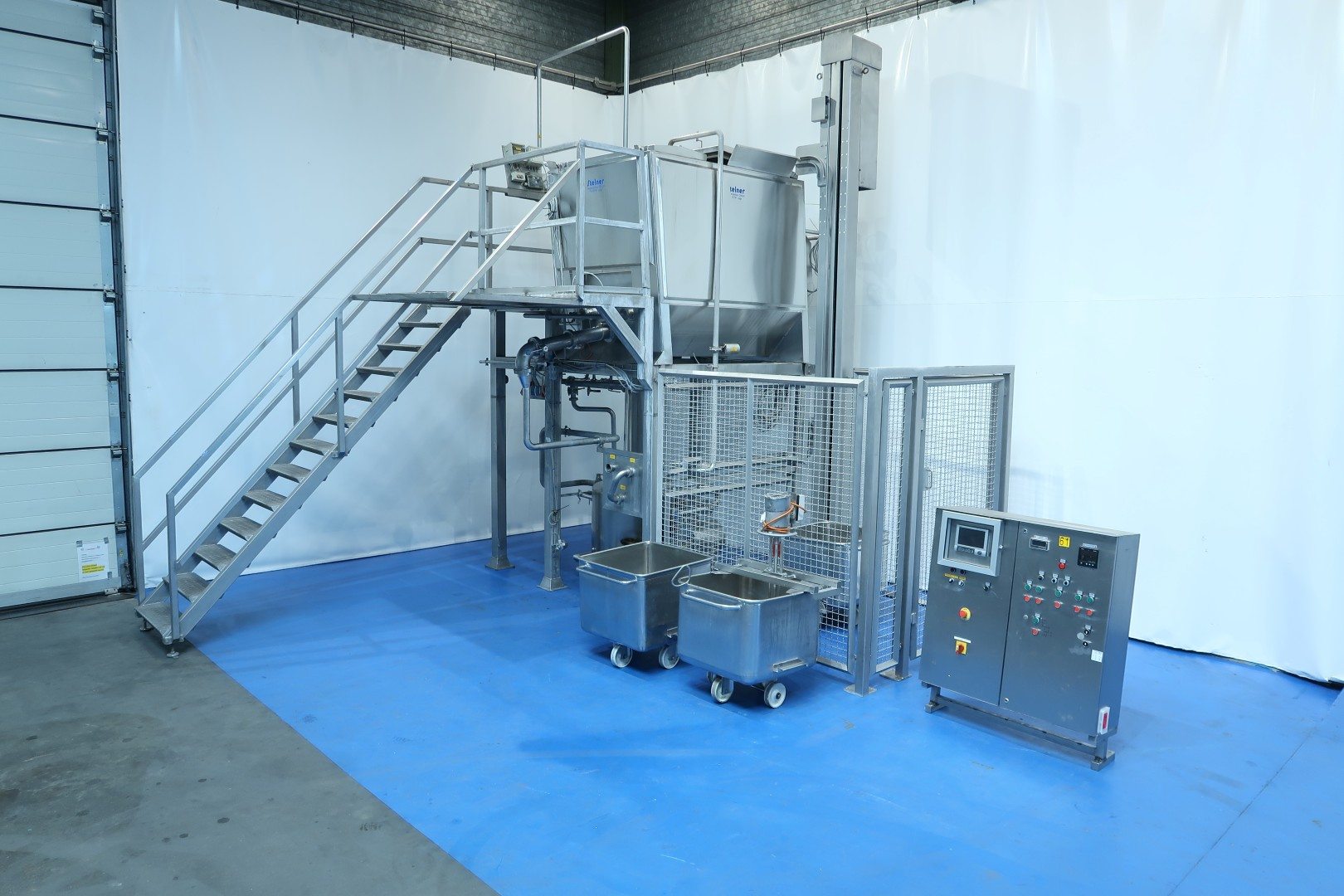

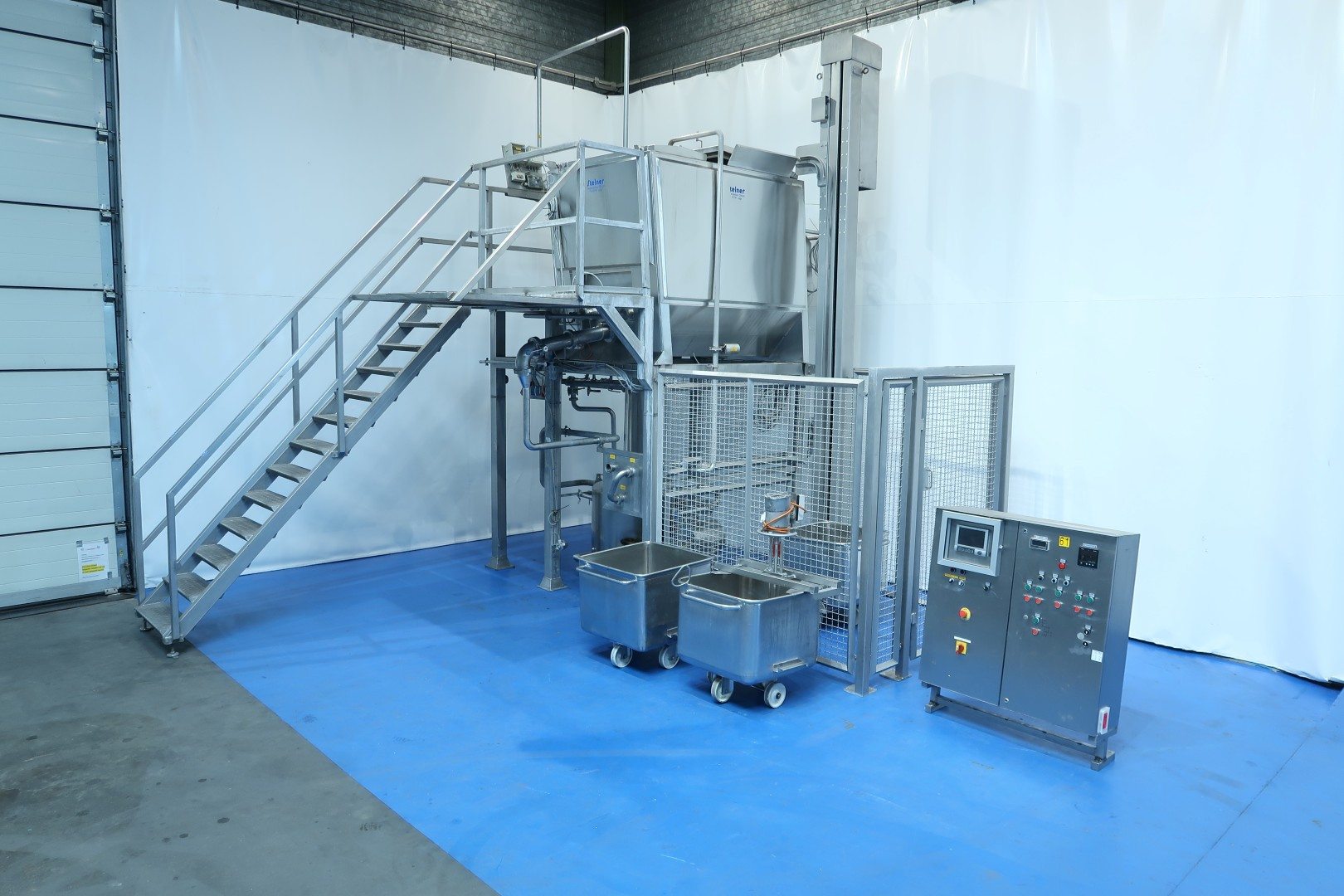

Complete cooking-mixing installation existing out of: SS support framework with working platform and stairs, mix cooking tank, trolley-bin elevator for loading with safety fence, 2x standard norm trolley, 1x norm trolley with build on mixer, balance vessel with pump, control panel, swingbend panel, valves and piping. Previously used for making red berry compote. Steiner mixtank double jacketed and insulated with centered scraper agitator, motor: 1,5 kW - 3,6 A - 2.860 rpm - n2: 10 rpm- 50 Hz. Full scraping coverage along the sides with spring-loaded teflon (PTFE) scrapers. Stirring: speed adjustable (via Danfoss frequency convertor), time and interval adjustable. Mounted on SS frame under an angle of 12°. With 3x Cip Bowls. Insulated lid consists of two parts, big part for loading norm trolley opens en closes via aircilinder, small part manually both with safety sensors. Total volume: 1.250 ltr - working capacity: 1.000 ltr - inner dimensions: Ø 100 cm, 150 cm length and total height: 130 cm. Heating with saturated steam via jacket or via direct steam injection, 4 steam injection ports; two ports at the front and two at the back. 1x E&H temperature sensor to be able to check the filling temperature. Diessel flowmeter with control valve for water. Elevator max 300 kg- can be operated on the floor and on platform. With position sensor on top. SS fencing with door with safety sensor. Trolley mixer in height adjustable with agitator for dissolving. Trolley capacity: 200 liters, mobile with lifting strips. Balance vessel and pump on mobile frame, vessel 300 liter (Ø 80cm - H 65 cm), 1 x level sensor low - with perforated cip pipe. Fristam pump impellor Ø 125 mm (serial nr. 41436218) motor: 1,5 kW - 3,6 A - 50 Hz - 2.860 rpm, connections in: DN50 Din - out: DN40 Din. Condition: good. Documentation: electrical diagram. Total dimensions: 540x430x450 (lxwxh) cm.

Can LDFE help me with the installation?

Yes, if desired our mechanics can install the equipment at your premises . Also, we can offer long-distance assistance by giving instructions by video call or remote control (when installed).

What do the conditions ‘refurbished’, ‘good running’ and ‘as is’ mean?

We can offer our machinery in three conditions: ‘refurbished’,  ‘good running’ and ‘as is’. ‘Refurbished’ refers to a complete revision of a used machine to give it a second life. Our standard procedure when completely refurbishing a used machine is:

  • Strip down to the frame: blasting and spraying of steel components
  • All component wear: replacement of bearings, bushes and gaskets
  • Replacement of damaged or worn components
  • New cabling and control systems (latest updates)
  • 6 month warranty
  • Guaranteed spare parts supply for 5 years
  • Optional: supervision of commissioning and operator training
  • Optional: CE marking
  • Optional: custom modifications

Buying a ‘good running’ machine is a cheaper solution. In this condition, we do not completely overhaul the machine,  but do the necessary works to get the machine in working condition. The machine is tested in our workshop and components are only replaced if necessary. This price is always subject to conditions, as on occasion it becomes evident during the tests that there is an expensive fault. If this is the case, the buyer receives a quotation for the additional costs and is also given the option to cancel the purchase.

Machines are almost always sold ex-factory and can be deployed in the same condition in which we bought them: ‘as is’. However, the machine has not been inspected by us and there is no guarantee of its current condition. We always recommend that a machine is inspected prior to purchase and only to buy ‘as is’ if you have a thorough knowledge of machines. We can always tell you whether we purchased the machine in operating condition or whether it had already been decommissioned. Documentation is not always included and can only be supplied if it was present at the time of purchase.

Can I trust used machines?

We have been dealing with used machines since 1996 from the same place we started the business and growing every year. If a (small) problem arises, we also try to find a solution with our customers. We always have been a reliable partner due to our experience with used machinery.

Can LDFE also offer new machines?

Yes, in particular process equipment such as pasteurisers, standardisation equipment, CIP units, Cheese UHT unit etc. A hybrid form of new and rebuild is also possible.
