Simon Freres
Simon Frères BR 380 / RD 550
Deep frozen butter reworking machine for frozen 25 kg butter blocks. For reworking frozen butter blocks up to – 20°C. Excellent regulation of the butter temperature by control of the mechanical energy given to the product.

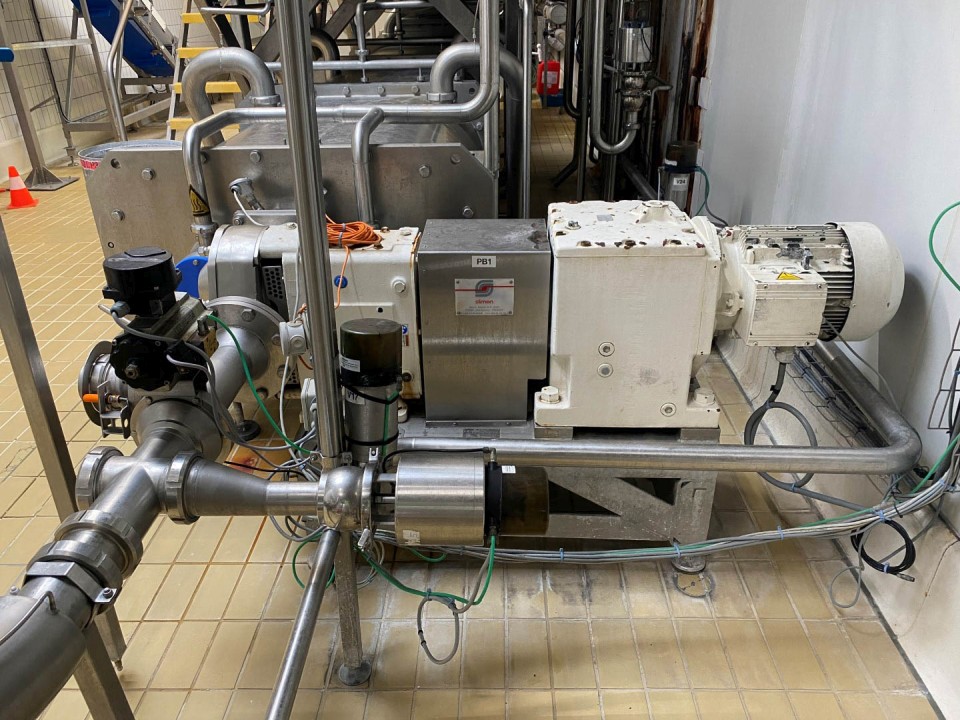

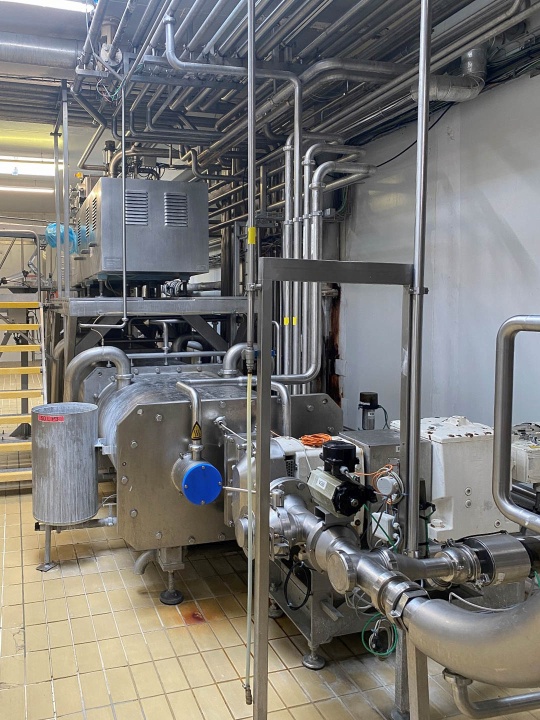

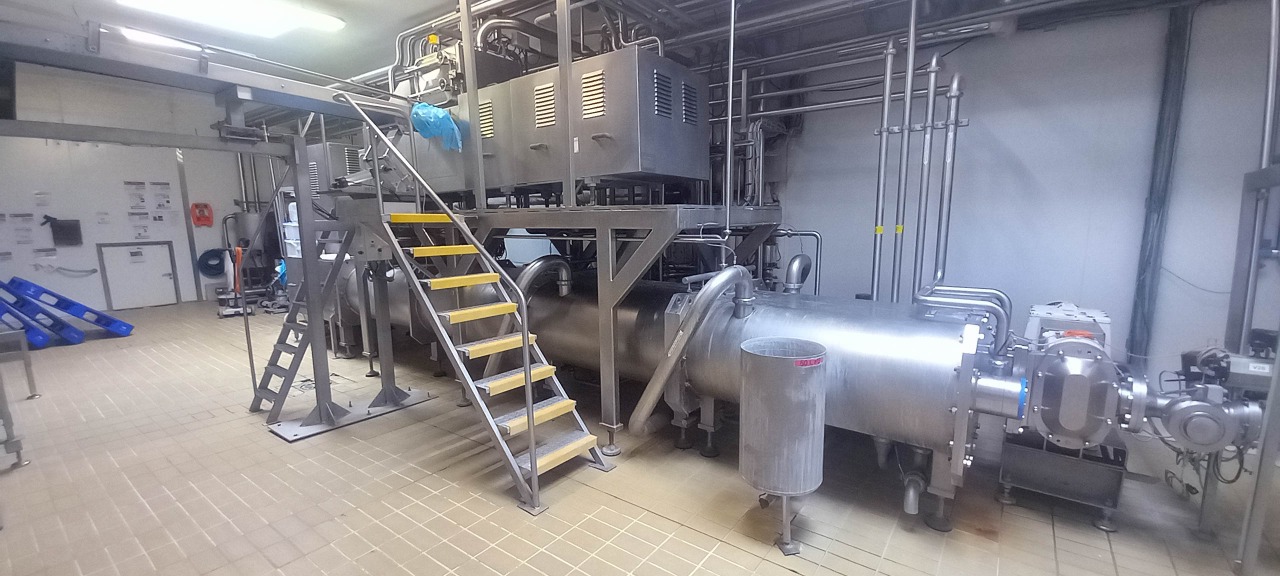

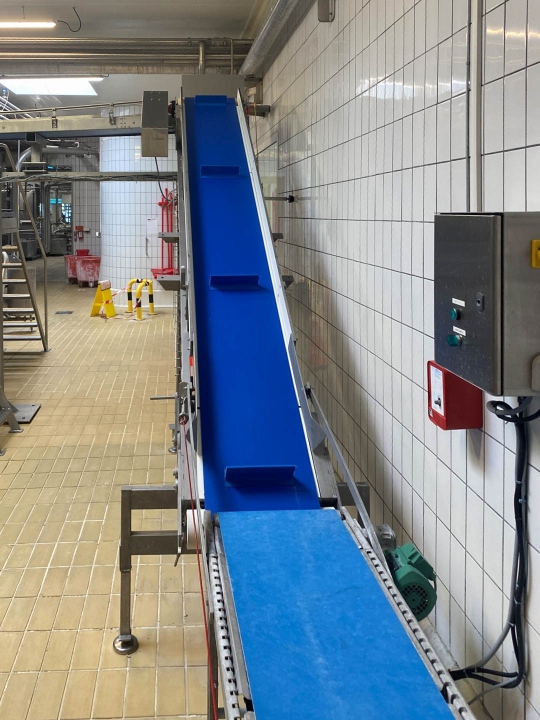

Infeed of the blocks by a infeed conveyor. Butter blocks are first crushed and reduced to small pieces by 2 Augers pushing the blocks through a raster, Model: BPR 380 Crusher (power: 30 kW motor). Then, the RD 550 reworker (power: 22 kW) will homogenize and texture the butter. This reworker is double jacketed with circulation hot or cold water through the jacket, also the augers are jacketed and water can be circulated through this worms. Outfeed of the butter by a Waukesha butter pump (model 324-U2, power: 15 kW motor). Including hot water set usable to heat up the double jacket of the machine (up to 32 °C) when working without a texturizer after the reworker in production. CIP: to clean the inside of the crushing tank and reworker after production (up to 90 °C water temperature). Including control panel, the frequency converters and HMI operator panel. Variable capacity: approx 2,000-5,000kg/h Including infeed conveyors of butter blocks, upfeed and unpacking table, balance tanks, water pump and Tubular heatexchangers for heating or cooling with control valves, Cip pump and cip tank, small electric heated tank and circulation pump for water in double jacket of piping. Documentation, Parts manual, P&ID and electrical diagrams. "
