Het Stempel BV

Het Stempel B.V. Pilot Crystallizer

Assortment
Heat exchangers
Category
Scrape heat exchangers
Stock number
STN16234
Type
Pilot Crystallizer
Year of construction
2014
Capacity
50 liter per hour

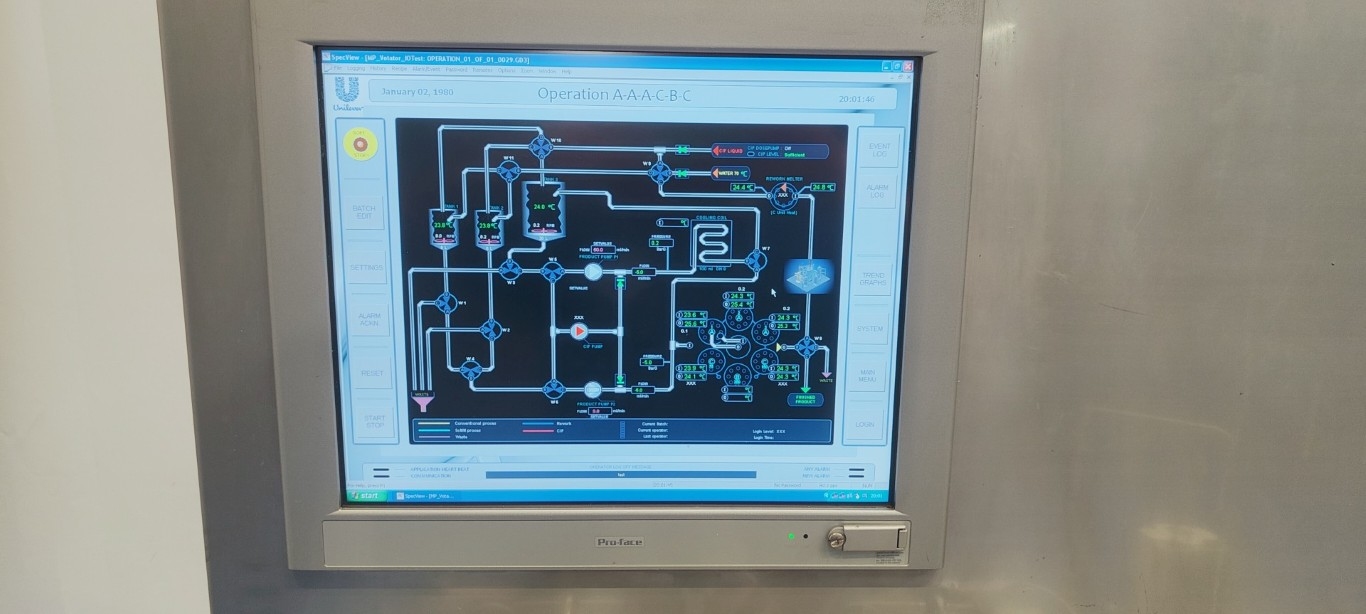

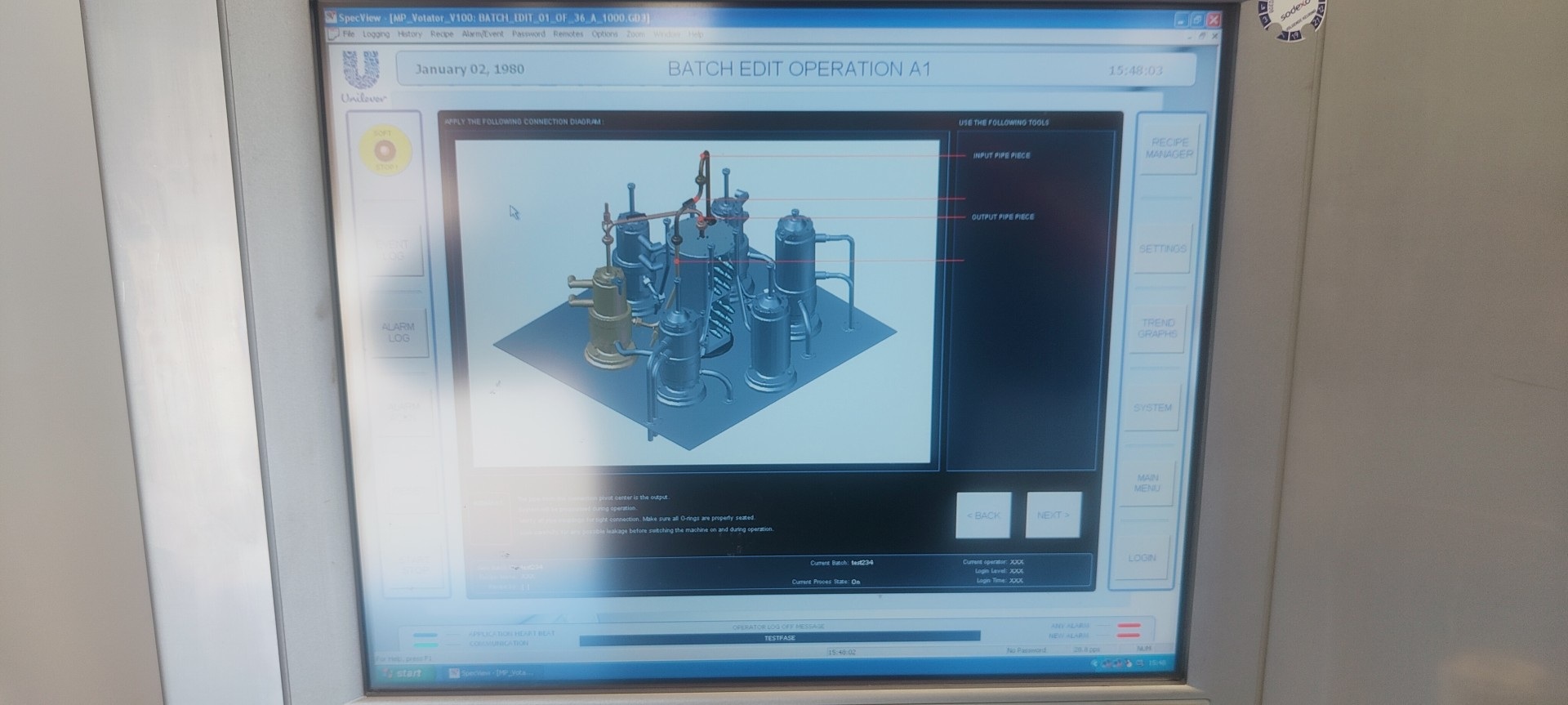

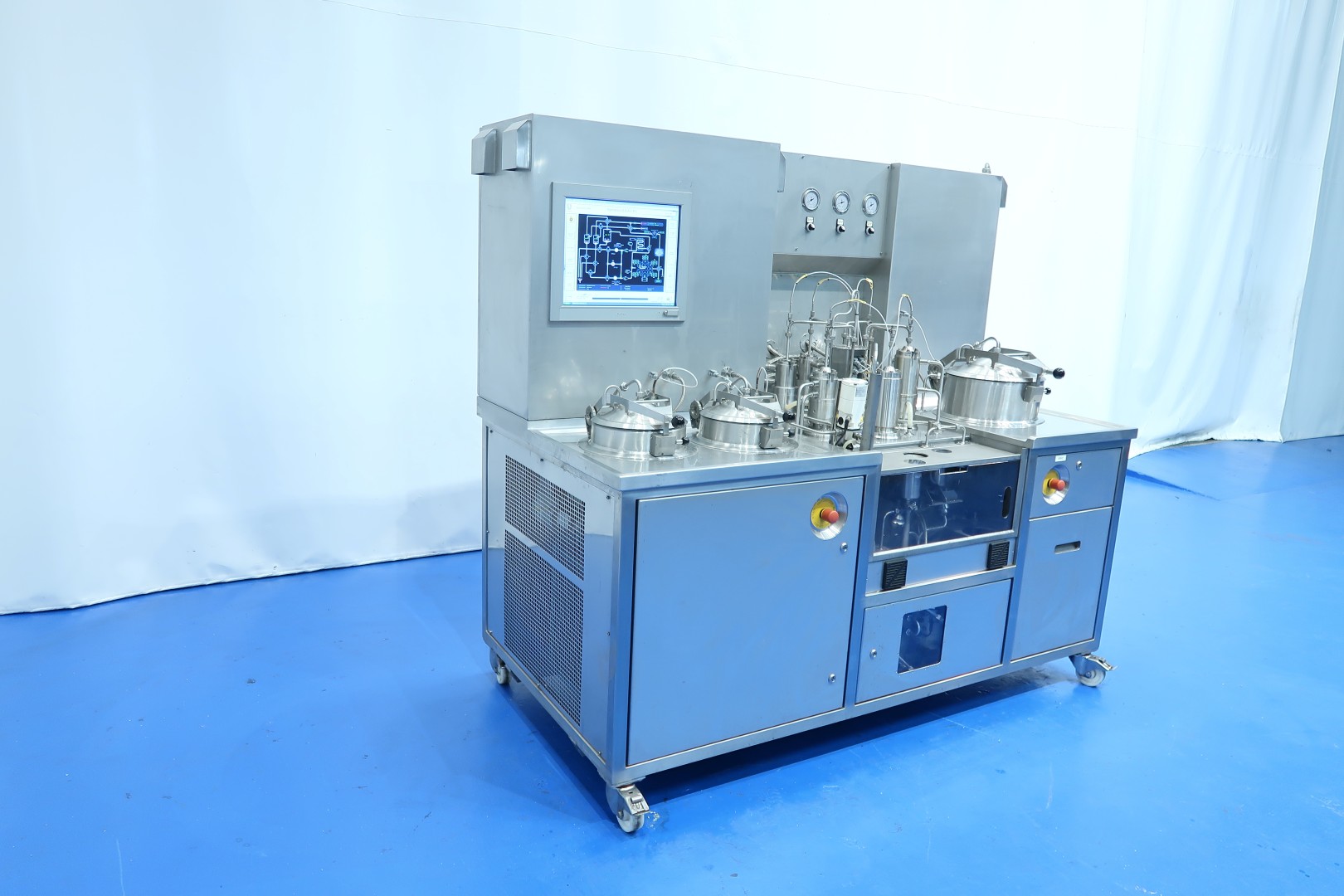

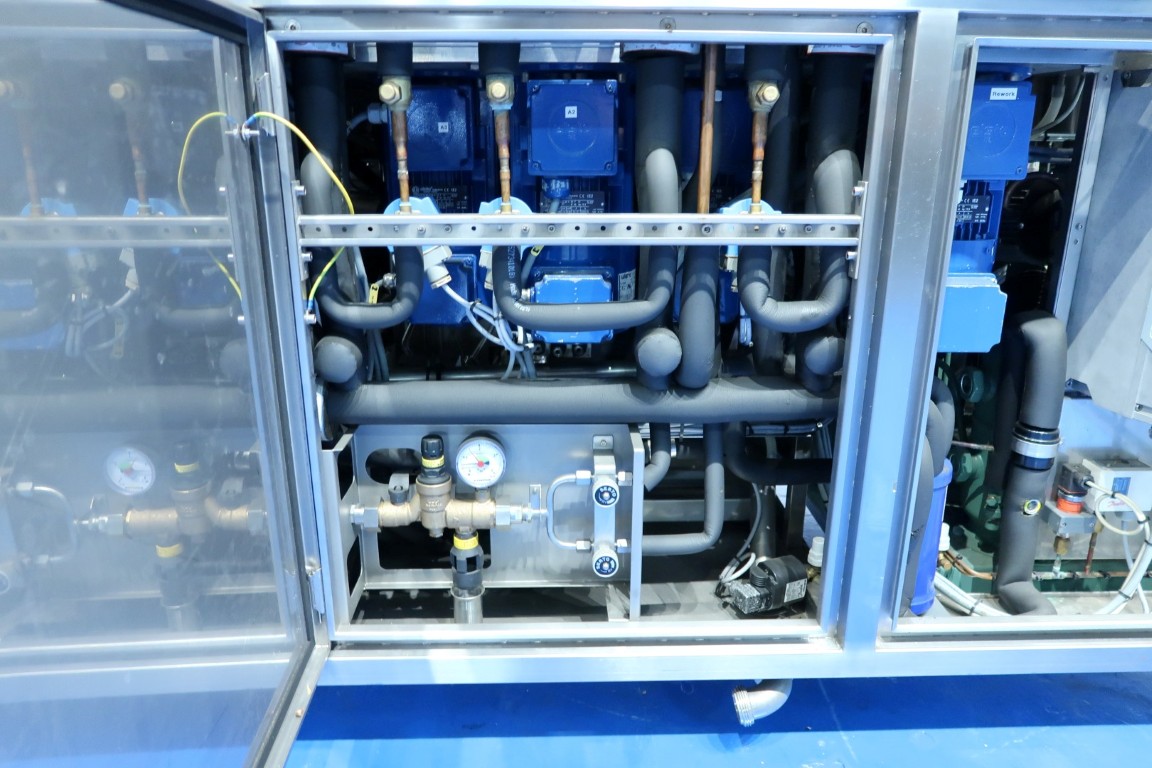

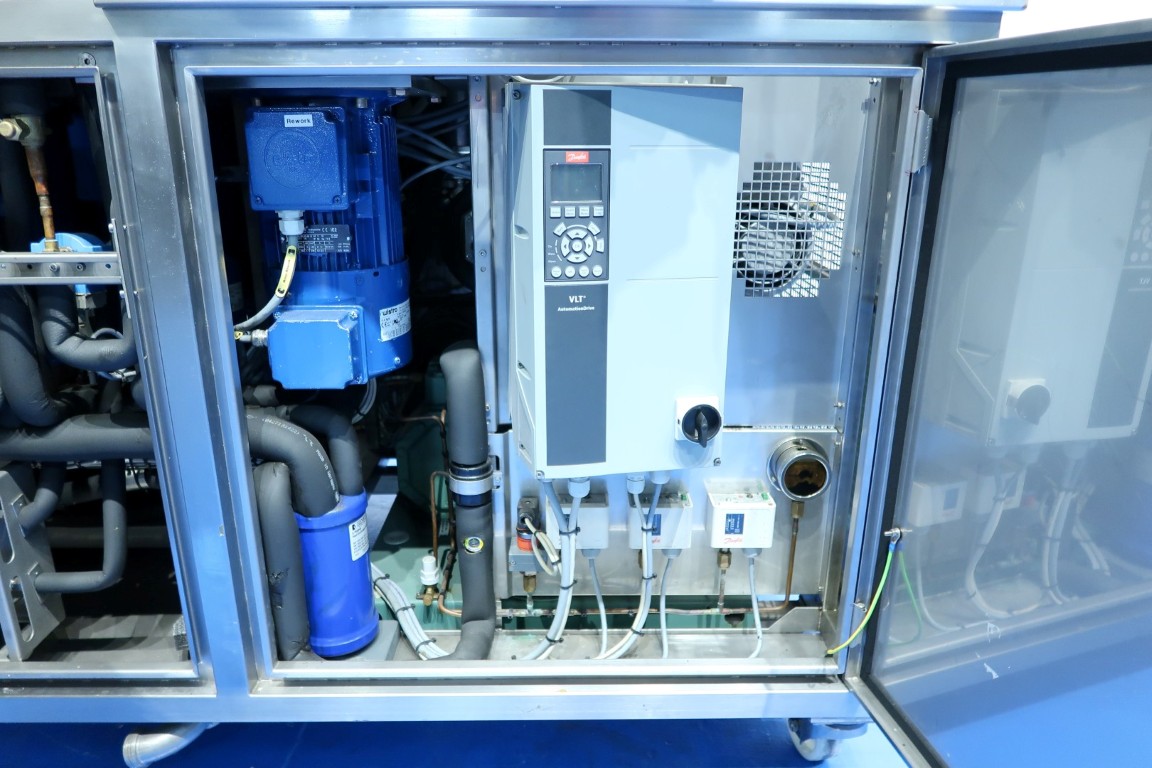

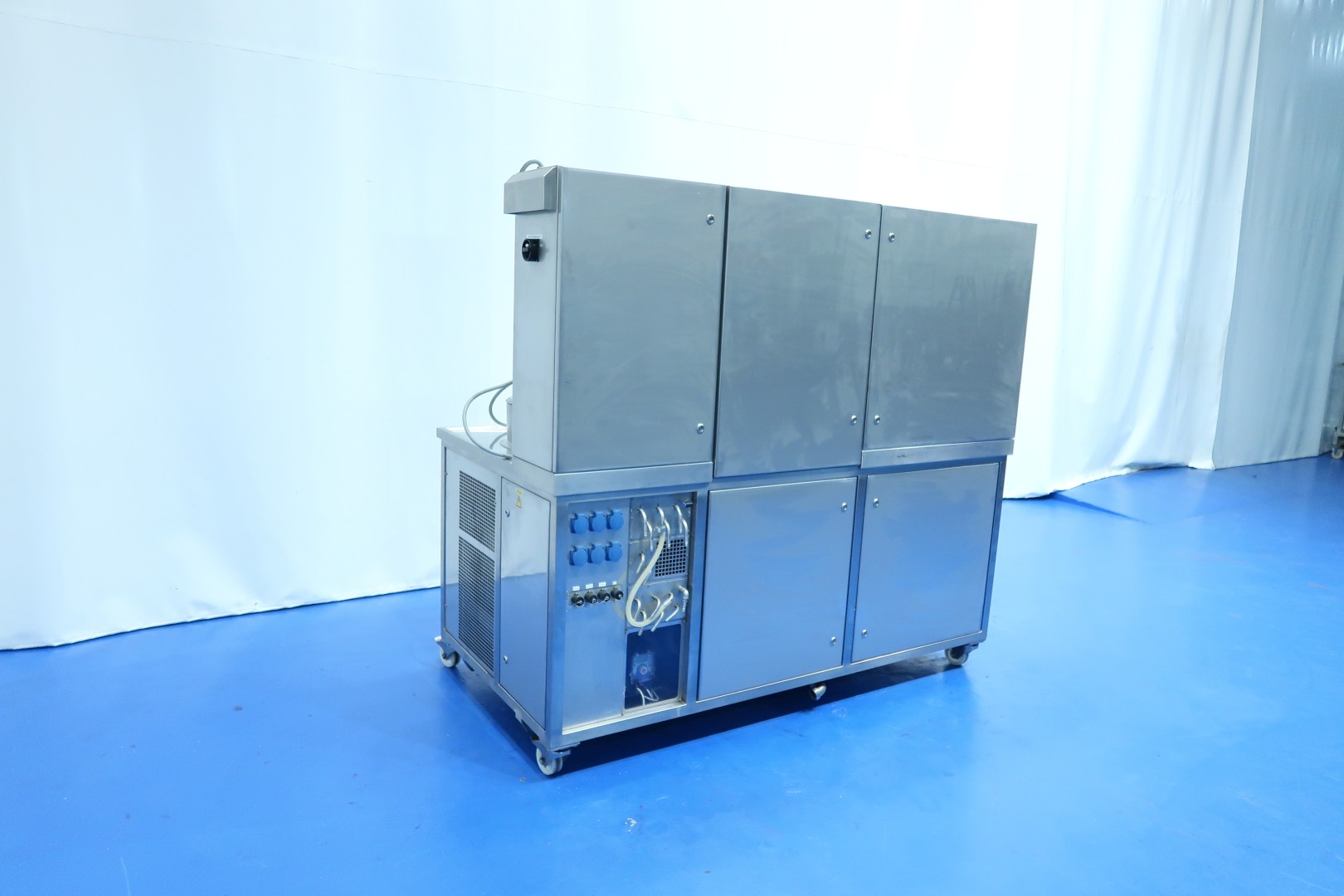

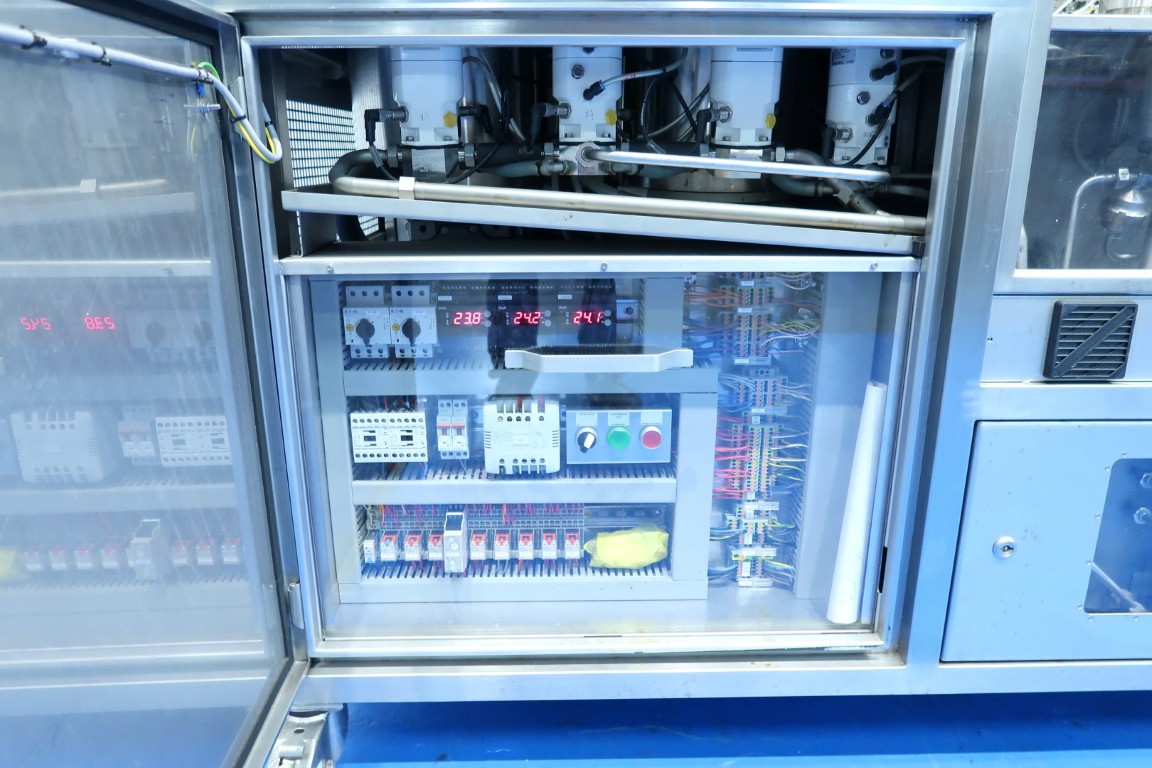

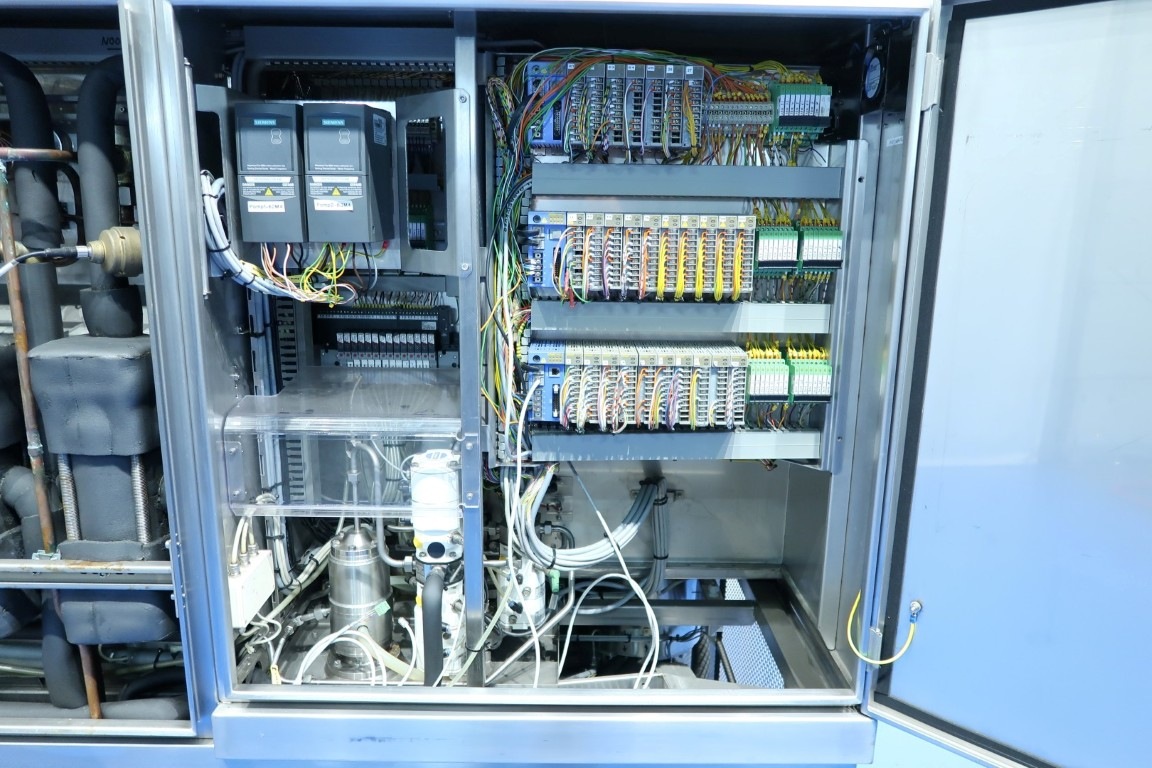

Mini Pilot plant for Margarine – Shortening – Puff Pastry and other products that require mixing and cooling. A complete mini laboratory plant for research and development. Including: 2 Tanks 5ltr for Water and Fatt Phase ingredients. 1 Buffer tank 20ltr High pressure pump up to: 75bar 3 Crysalisation cylinder named: A1+A2+A3 2 Pinmixers named: C75 + C150 1 Rework melter C heat 1 Resting tube named: B200 The above-mentioned units can be positioned in any possible way for instand A1-A2-B or A1-C75-A2-A3-C150 by switching pre-assembled hp piping. The Crystallizer cylinders, scraped surface heat exchanger (SSHE) are cooled by direct evaporation of a integrated Freon cooling compressor. The tubes have a Ø 30 mm, length 80 mm, the rotor is equipped with 2 scrapers giving a Surface per tube 0,113 m² After each unit there is a temperature sensor. The capacity is variable adjustable up to 50ltr/h Cooling system made by GEA with integrated compressor and water cooled condenser. There are 3 in depended cooling circuits (for each crystaliser). The tanks are double jacked with an agitator and temperature sensors. The whole unit is built on frame and mobile. The controls are integrated and tested a HMI touch screen Control screen with ‘Spekview’ software and the controllers are of RKC systems. The unit can be controlled from the HMI by simply start and stop the items but also a recipe can be made for the controls of the motors speed, temperatures and valves . All motors are on Frequency converter Siemens micromasters and 1 x Danfoss. An integrated CIP system, with CIP circulation and CIP concentrate hose dosing pump.

Can LDFE help me with the installation?

Yes, if desired our mechanics can install the equipment at your premises . Also, we can offer long-distance assistance by giving instructions by video call or remote control (when installed).

What do the conditions ‘refurbished’, ‘good running’ and ‘as is’ mean?

We can offer our machinery in three conditions: ‘refurbished’,  ‘good running’ and ‘as is’. ‘Refurbished’ refers to a complete revision of a used machine to give it a second life. Our standard procedure when completely refurbishing a used machine is:

  • Strip down to the frame: blasting and spraying of steel components
  • All component wear: replacement of bearings, bushes and gaskets
  • Replacement of damaged or worn components
  • New cabling and control systems (latest updates)
  • 6 month warranty
  • Guaranteed spare parts supply for 5 years
  • Optional: supervision of commissioning and operator training
  • Optional: CE marking
  • Optional: custom modifications

Buying a ‘good running’ machine is a cheaper solution. In this condition, we do not completely overhaul the machine,  but do the necessary works to get the machine in working condition. The machine is tested in our workshop and components are only replaced if necessary. This price is always subject to conditions, as on occasion it becomes evident during the tests that there is an expensive fault. If this is the case, the buyer receives a quotation for the additional costs and is also given the option to cancel the purchase.

Machines are almost always sold ex-factory and can be deployed in the same condition in which we bought them: ‘as is’. However, the machine has not been inspected by us and there is no guarantee of its current condition. We always recommend that a machine is inspected prior to purchase and only to buy ‘as is’ if you have a thorough knowledge of machines. We can always tell you whether we purchased the machine in operating condition or whether it had already been decommissioned. Documentation is not always included and can only be supplied if it was present at the time of purchase.

Can I trust used machines?

We have been dealing with used machines since 1996 from the same place we started the business and growing every year. If a (small) problem arises, we also try to find a solution with our customers. We always have been a reliable partner due to our experience with used machinery.

Can LDFE also offer new machines?

Yes, in particular process equipment such as pasteurisers, standardisation equipment, CIP units, Cheese UHT unit etc. A hybrid form of new and rebuild is also possible.
