Bünder & Schmitt

Bünder & Schmitt MFL004

Assortment
Filling and packaging machines
Category
Bottle filling machines
Stock number
STN15132
Type
MFL004
Year of construction
2008
Capacity
6000 cups per hour

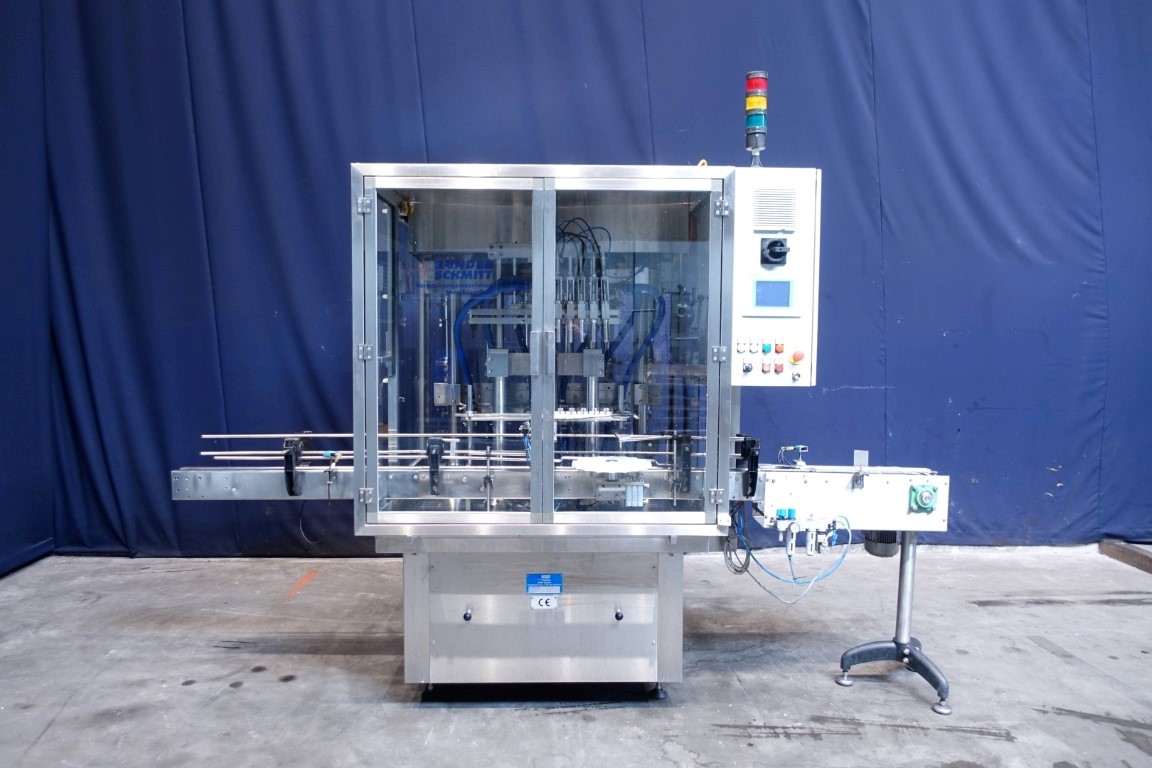

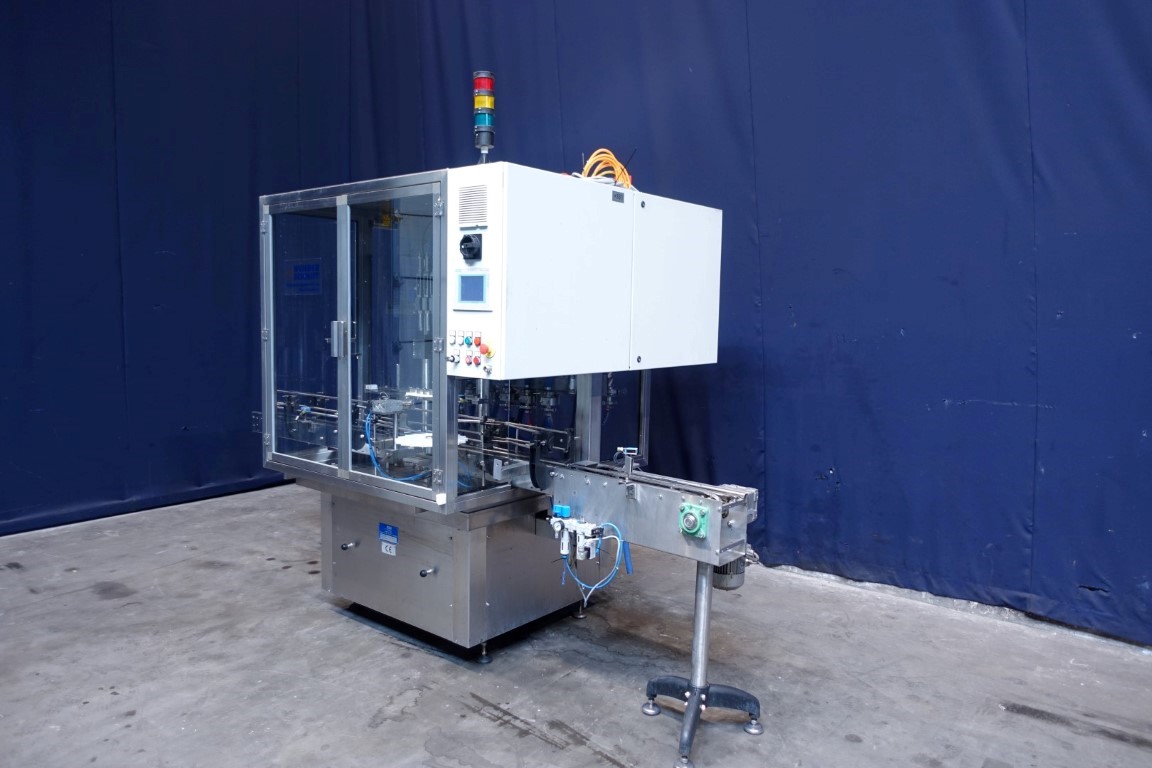

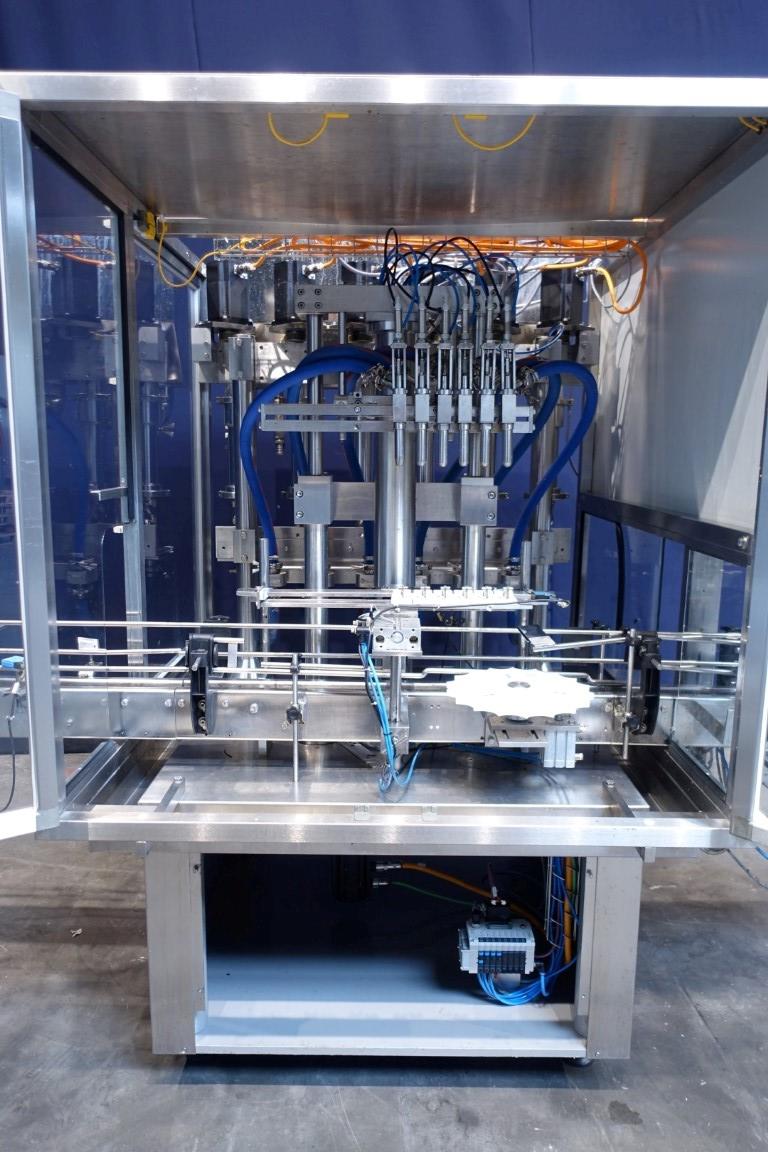

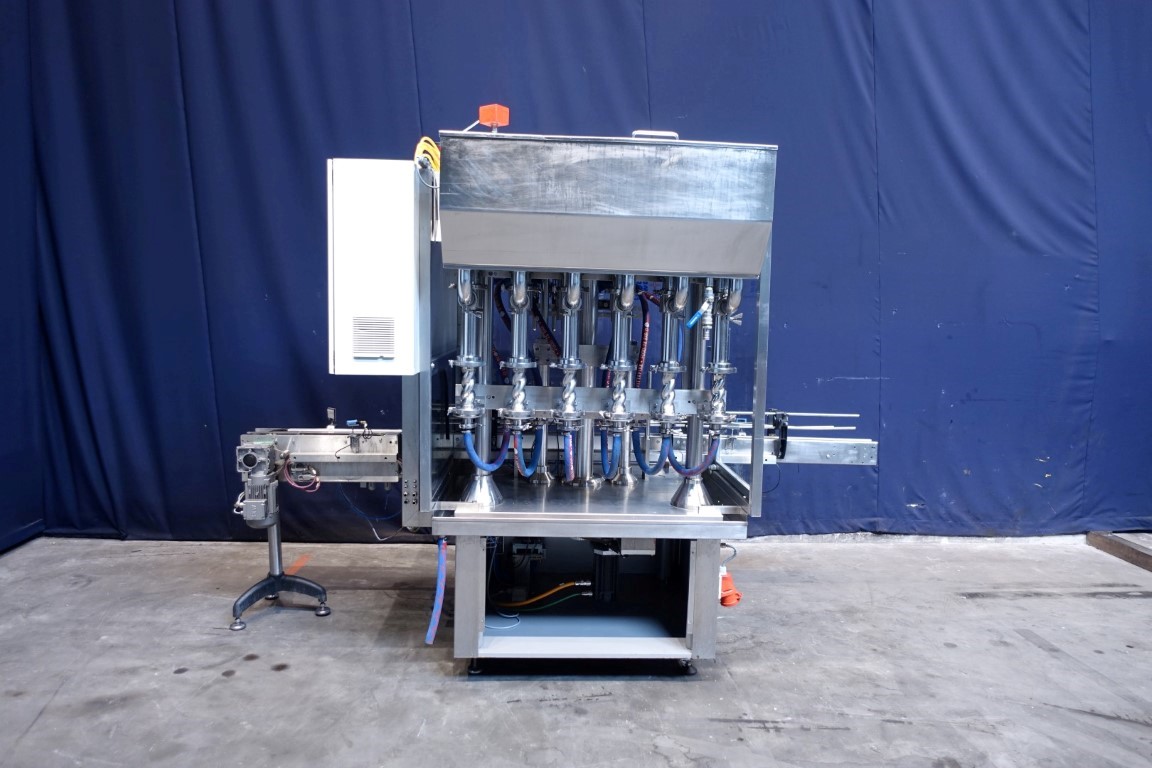

"Fully automatic linear filling machine with stop star for product singularization. The machine was equipped by eccentric screw pumps which are servo driven. By couting the rotations the volume can stepless be set invery volume, CIP cleanable. Currently 2 pumps are dismanled so machine incomplete, valves and cylinders are made of stainless steel. capacity adjustable, depending on the form of the bottles shape, volume, filling height and product Transport conveyor through the machine (belt missing) and guide railing Machine drive frequency drive The pumps have to be fed constantly with the product. Dry running of the pumps can be avoided by means of a reservoir with float command. Machine management Siemens SPS S7, control touch panel OP177B Festo pneumatic valves and cams Basic frame in solid cast-steel-aluminum-construction, lacquered, table sheets and side casing in stainless steel with collecting vat Control device running-in jam control switch and light sensor Machine stop while filling tubes setup Filler switch min./max. running-in jam control switch and light sensor Safety device. All-around covering against accidental intervention into the running machine Panes made of Sekurit safety glass Door protection by end switches Working height 900 mm +/- 50 mm"

Can LDFE help me with the installation?

Yes, if desired our mechanics can install the equipment at your premises . Also, we can offer long-distance assistance by giving instructions by video call or remote control (when installed).

What do the conditions ‘refurbished’, ‘good running’ and ‘as is’ mean?

We can offer our machinery in three conditions: ‘refurbished’,  ‘good running’ and ‘as is’. ‘Refurbished’ refers to a complete revision of a used machine to give it a second life. Our standard procedure when completely refurbishing a used machine is:

  • Strip down to the frame: blasting and spraying of steel components
  • All component wear: replacement of bearings, bushes and gaskets
  • Replacement of damaged or worn components
  • New cabling and control systems (latest updates)
  • 6 month warranty
  • Guaranteed spare parts supply for 5 years
  • Optional: supervision of commissioning and operator training
  • Optional: CE marking
  • Optional: custom modifications

Buying a ‘good running’ machine is a cheaper solution. In this condition, we do not completely overhaul the machine,  but do the necessary works to get the machine in working condition. The machine is tested in our workshop and components are only replaced if necessary. This price is always subject to conditions, as on occasion it becomes evident during the tests that there is an expensive fault. If this is the case, the buyer receives a quotation for the additional costs and is also given the option to cancel the purchase.

Machines are almost always sold ex-factory and can be deployed in the same condition in which we bought them: ‘as is’. However, the machine has not been inspected by us and there is no guarantee of its current condition. We always recommend that a machine is inspected prior to purchase and only to buy ‘as is’ if you have a thorough knowledge of machines. We can always tell you whether we purchased the machine in operating condition or whether it had already been decommissioned. Documentation is not always included and can only be supplied if it was present at the time of purchase.
