Back to overview

APV

APV N35

Assortment
Heat exchangers
Category
Plate heat exchangers
Stock number
STN15788
Type
N35
Year of construction
2007
Capacity
10.000 liter per hour

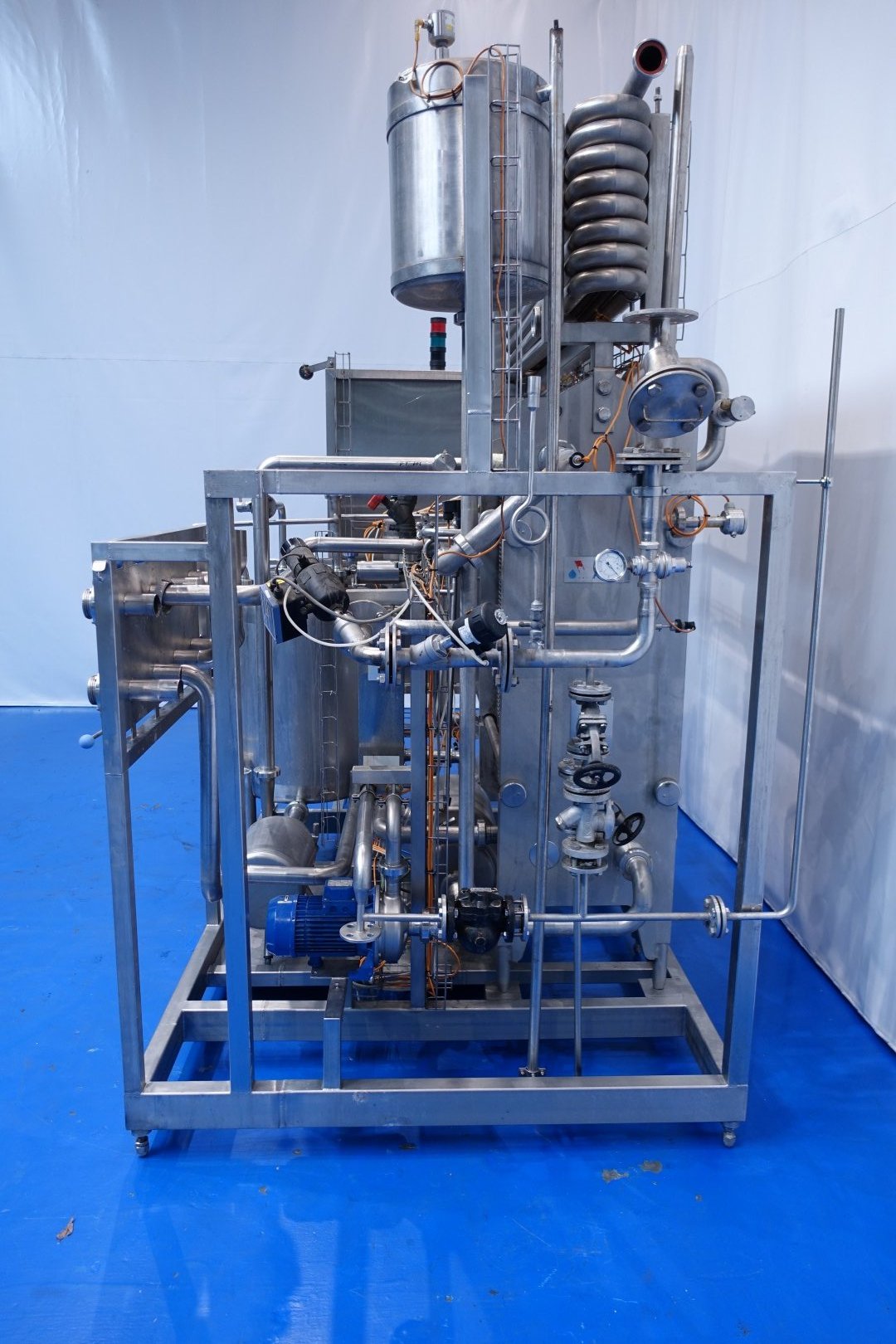

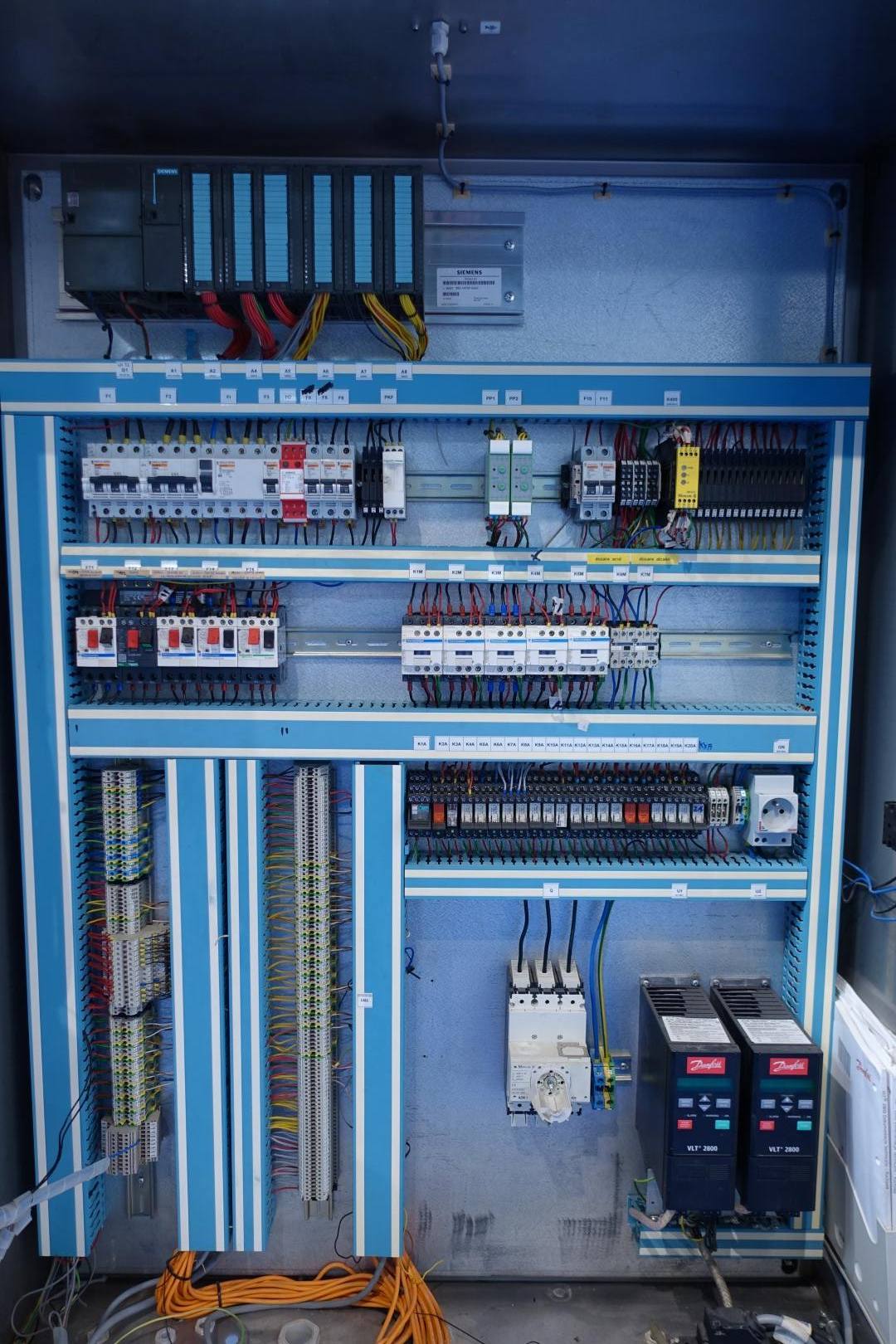

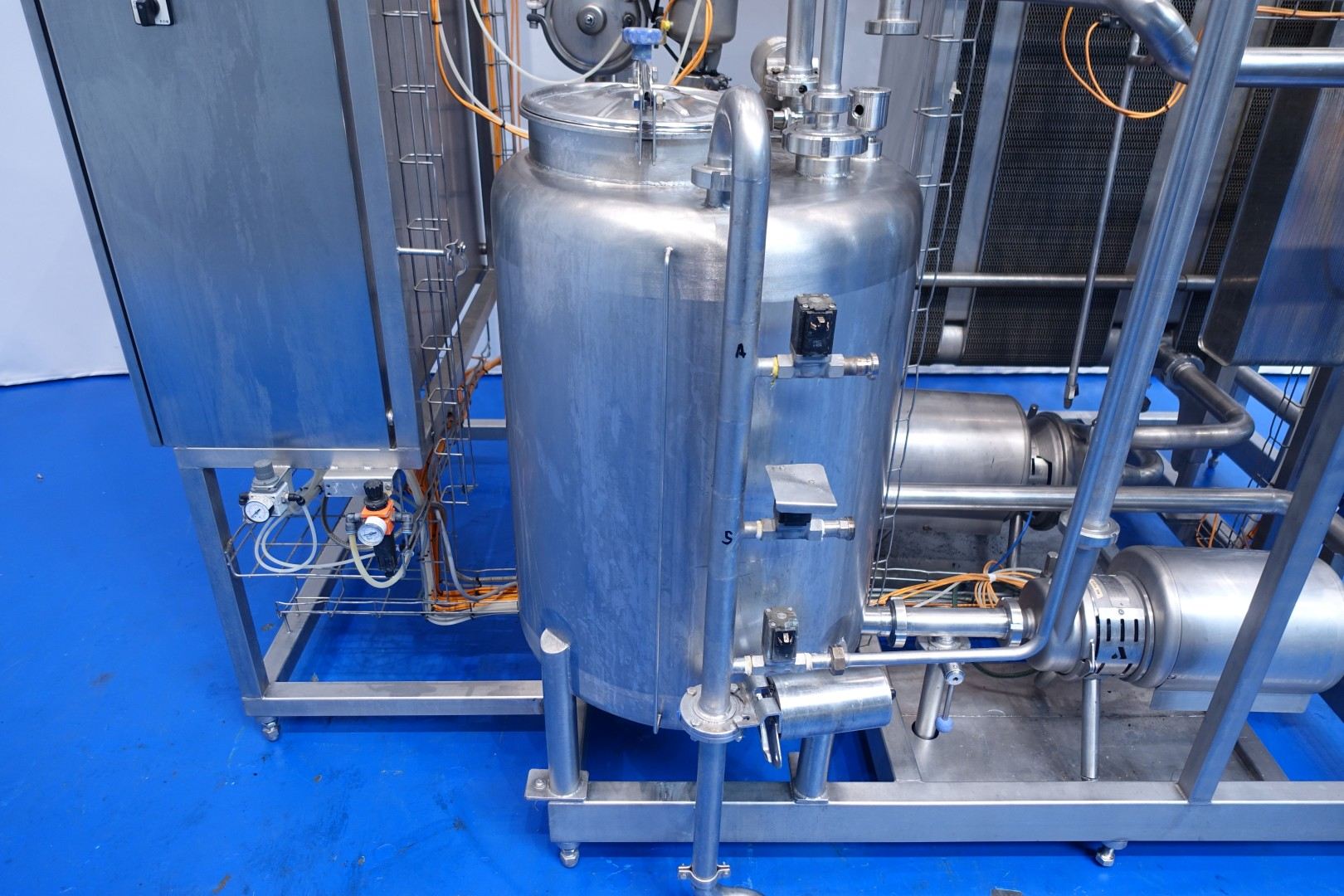

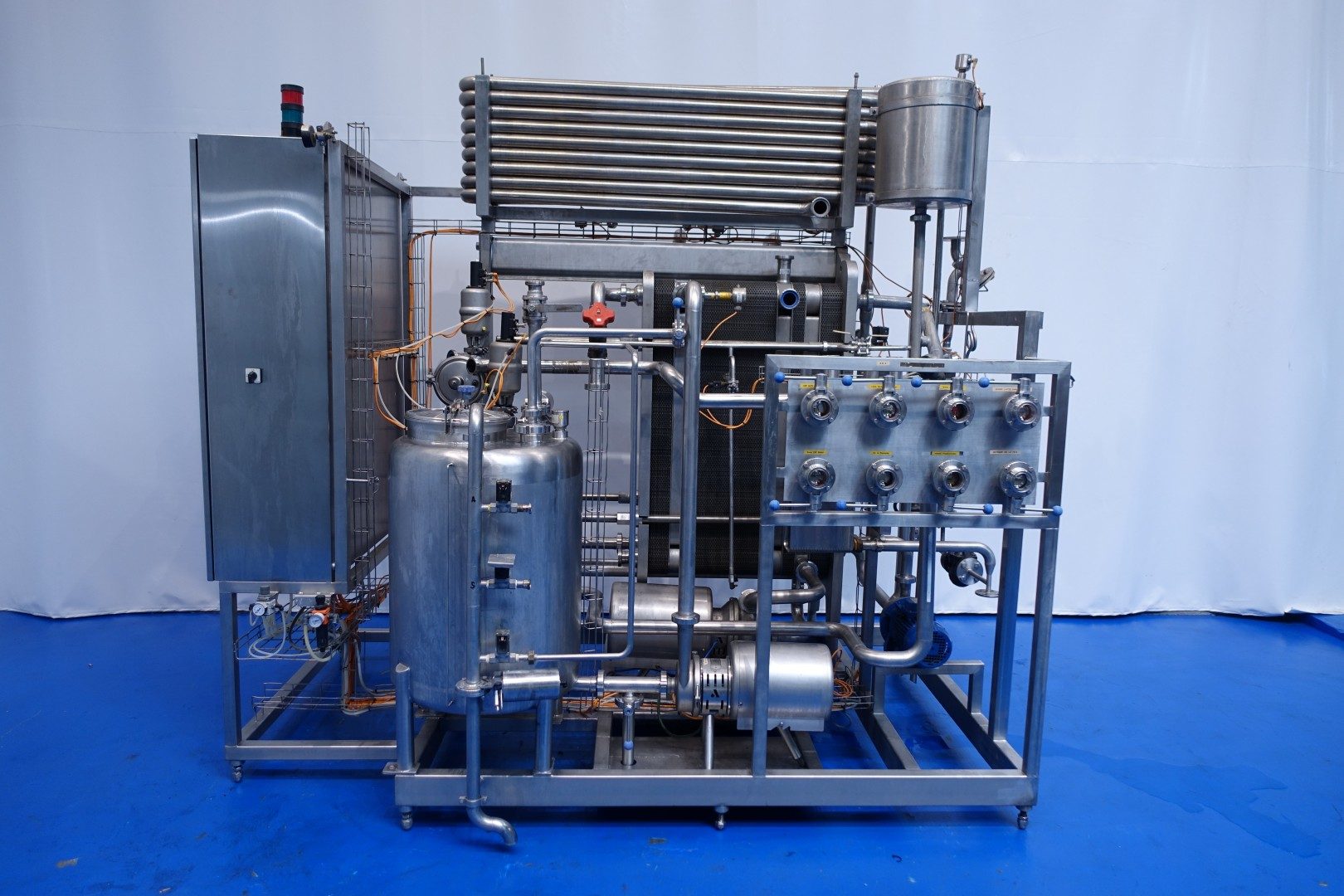

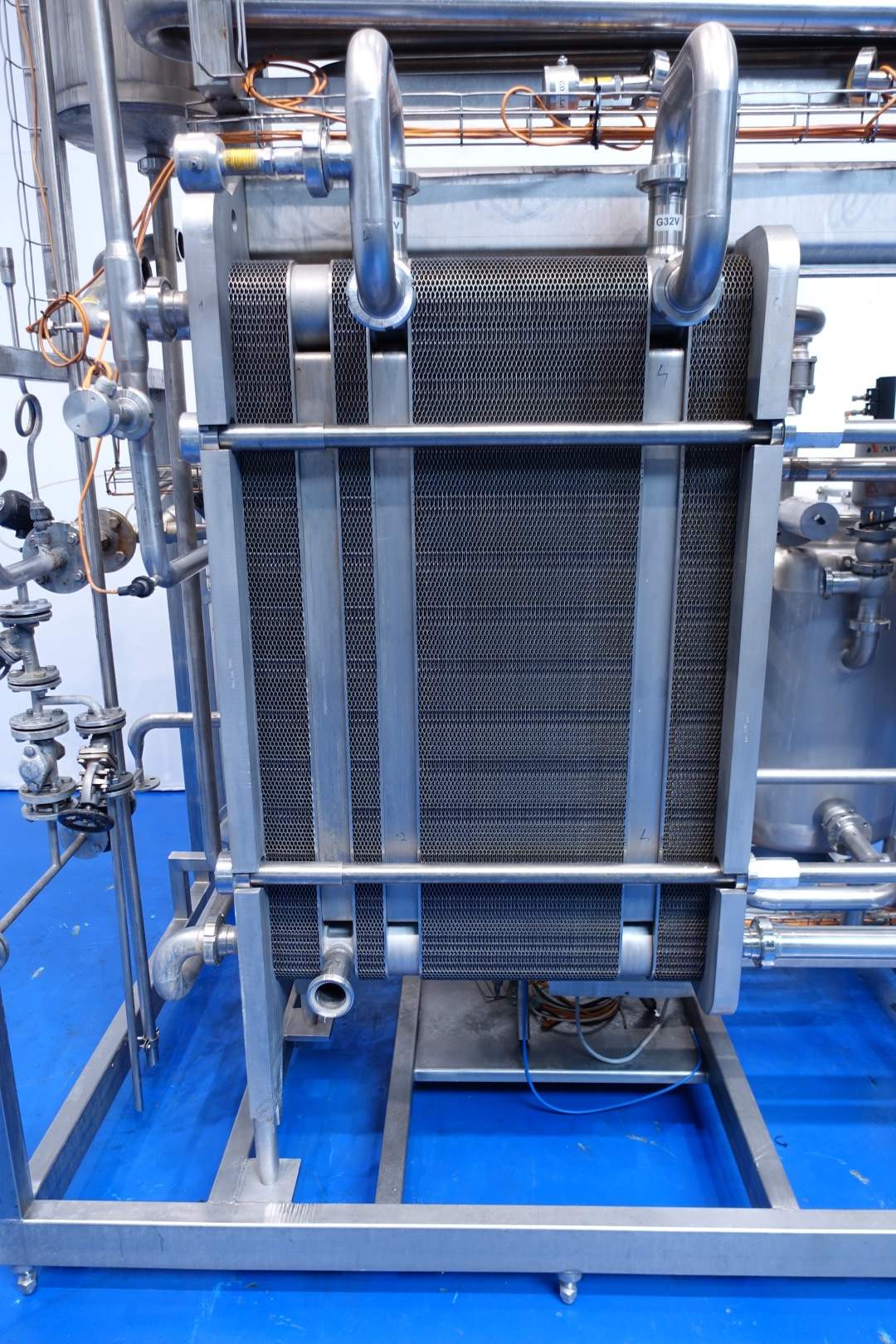

Milk pasteurization unit. complete skid mounted unit with all piping, valves on 1 stainless steel frame. Temperature scheme of milk: in 4°C -> outlet to homogeniser and/or separator (homogeniser/separator excluded) -> at approx 60-65 °C -> Pasteurization adjustable 72 - 95 °C -> holding 20 sec. -> Out 4 °C. Main component: plate heat exchanger Manufacturer: SPX-APV model: N35 (serial nr 71559). Working pressure: 10 bar. Beam length: 140 cm, 4 Sections: 26-15-105-26 plates (total 172). Holding tube mounted on top op the skid. Infeed Balance vessel 200ltr with 1 x CIP spray bowl, manhole in top (round 30 cm), level sensors. Feed pump, APV W 22/20 dairy feed pump (impellor 95 mm - motor 1,1 Kw). APV W+55/35 dairy booster pump (impellor 180 mm - motor 3,0 Kw). With Siemens Flowtransmitter, pressure sensors (over pressure system, milk on rawmilk side is maintained at higher pressure than on pasteurised milk side by a booster pump and controlled by pressure transmitters) and temperature sensors. Flow diversion and circulation valve (make APV). Steam heated with Steam control valve Bürkert, hotwater circulation pump and steam/hotwater exchange set. There is a Swingbend panel with 8 connections x 2,5" SMS connections to connect the in and outgoing lines of milk and CIP loops. Operation by touch screen. Controls: Siemens Simatic S7 and Color HMI (needs repair). Jumo temperature recorder. Skid made by Tewes Bis (Poland) model: UPM. Documentation: Operating manual (English, Polish and Romanian), Electrical diagrams and APV plate heat exchanger instructions. Total dimensions: 295x160x260 (lxwxh) cm - weight: 1.890 kg.

Can LDFE help me with the installation?

Yes, if desired our mechanics can install the equipment at your premises . Also, we can offer long-distance assistance by giving instructions by video call or remote control (when installed).

What do the conditions ‘refurbished’, ‘good running’ and ‘as is’ mean?

We can offer our machinery in three conditions: ‘refurbished’,  ‘good running’ and ‘as is’. ‘Refurbished’ refers to a complete revision of a used machine to give it a second life. Our standard procedure when completely refurbishing a used machine is:

  • Strip down to the frame: blasting and spraying of steel components
  • All component wear: replacement of bearings, bushes and gaskets
  • Replacement of damaged or worn components
  • New cabling and control systems (latest updates)
  • 6 month warranty
  • Guaranteed spare parts supply for 5 years
  • Optional: supervision of commissioning and operator training
  • Optional: CE marking
  • Optional: custom modifications

Buying a ‘good running’ machine is a cheaper solution. In this condition, we do not completely overhaul the machine,  but do the necessary works to get the machine in working condition. The machine is tested in our workshop and components are only replaced if necessary. This price is always subject to conditions, as on occasion it becomes evident during the tests that there is an expensive fault. If this is the case, the buyer receives a quotation for the additional costs and is also given the option to cancel the purchase.

Machines are almost always sold ex-factory and can be deployed in the same condition in which we bought them: ‘as is’. However, the machine has not been inspected by us and there is no guarantee of its current condition. We always recommend that a machine is inspected prior to purchase and only to buy ‘as is’ if you have a thorough knowledge of machines. We can always tell you whether we purchased the machine in operating condition or whether it had already been decommissioned. Documentation is not always included and can only be supplied if it was present at the time of purchase.

Can I trust used machines?

We have been dealing with used machines since 1996 from the same place we started the business and growing every year. If a (small) problem arises, we also try to find a solution with our customers. We always have been a reliable partner due to our experience with used machinery.

Can LDFE also offer new machines?

Yes, in particular process equipment such as pasteurisers, standardisation equipment, CIP units, Cheese UHT unit etc. A hybrid form of new and rebuild is also possible.
