Waukesha Altec model 18 - 30

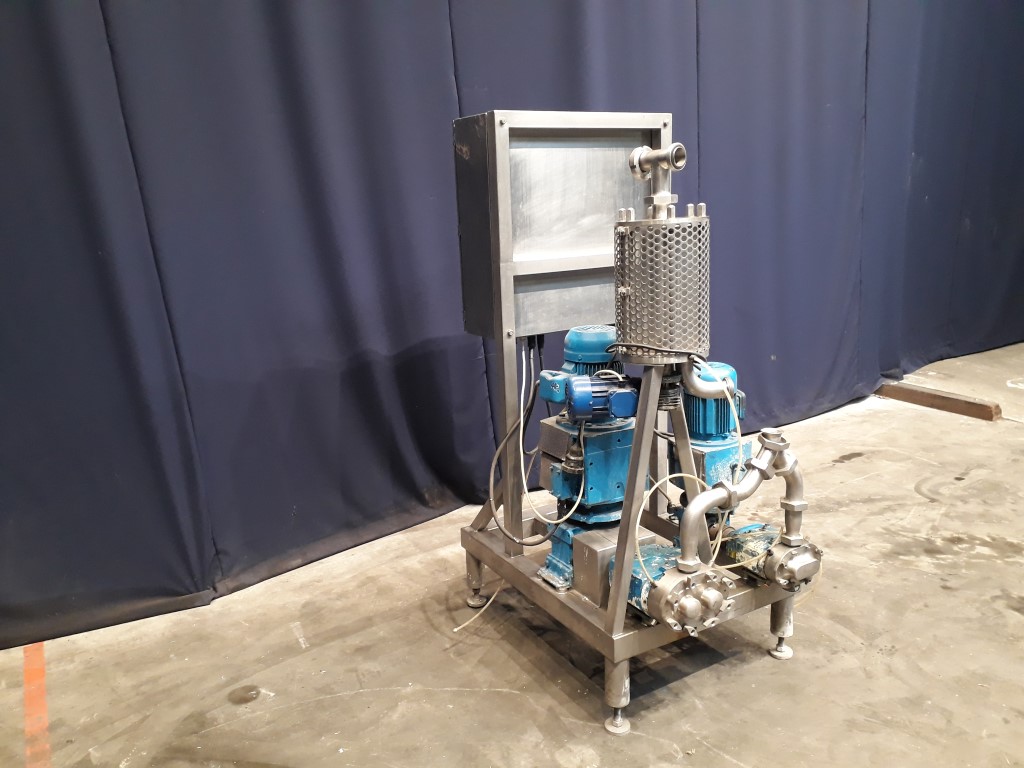

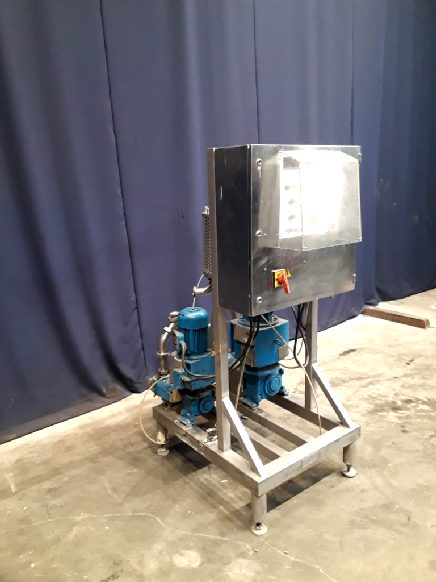

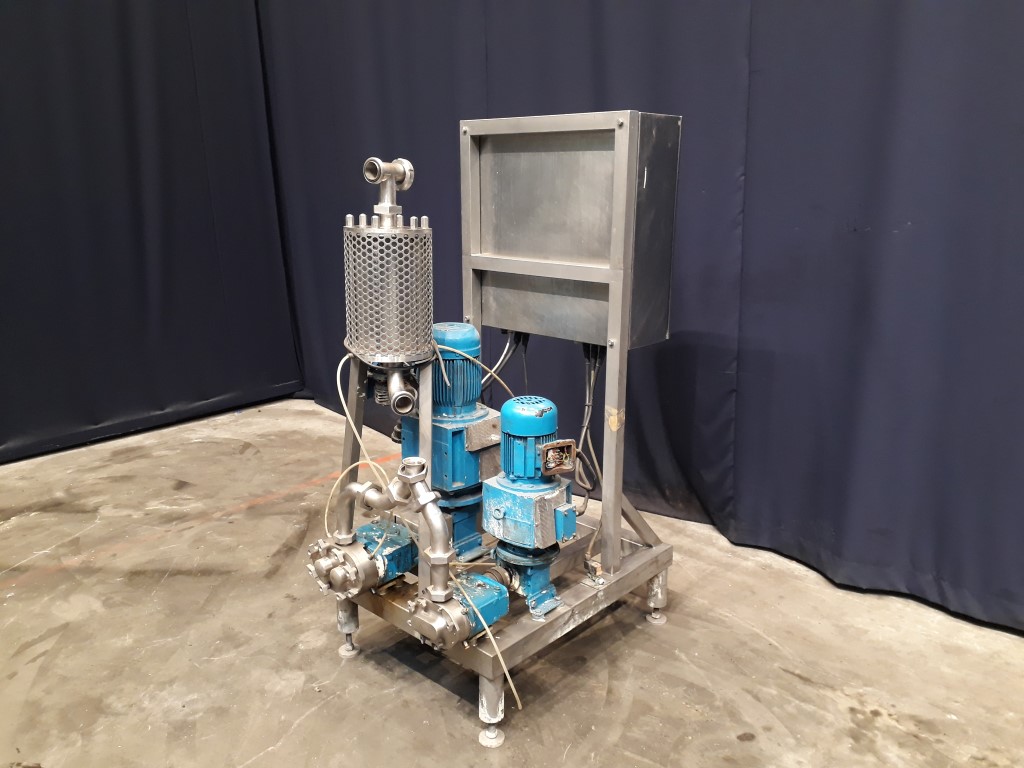

Altec skid mounted fruitmix unit. Used for mixing plain yoghurt with fruit ( ratio adjustabe). Existing out of 2 x Waukesha lobbe pump model 15 and 30 and a mixer. Speed controlled by potential meters. Complete with controls and electric scheme. Model 015-u1, Lobbe pump with duo stainless steel lobbes. Diameter lobbes: ± 87 mm. Displacement per revolution: 0,054 ltr. Nominal capacity 2,0 m3/h. Pressure up to 13,8 bar. Current motor: 1,5 kW - 3 A - n1: 2850 rpm. Flushed seal. Connections: 1,5'', RJT. Model 030-u1, Lobbe pump with duo stainless steel lobbes. Diameter lobbes: ± 110 mm. Displacement per revolution: 0,227 ltr. Nominal capacity 8,2 m3/h. Pressure up to 13,8 bar. Current motor: 3,0 kW - 5,6 A - n1: 2860 rpm. Flushed seal. Connections: 1,5'', RJT. Mixer 0,37 KW - 2730 rpm. Connections: 2'' RJT Total dimensions: 90 x 130 x 190 cm
