Miromatic MRA

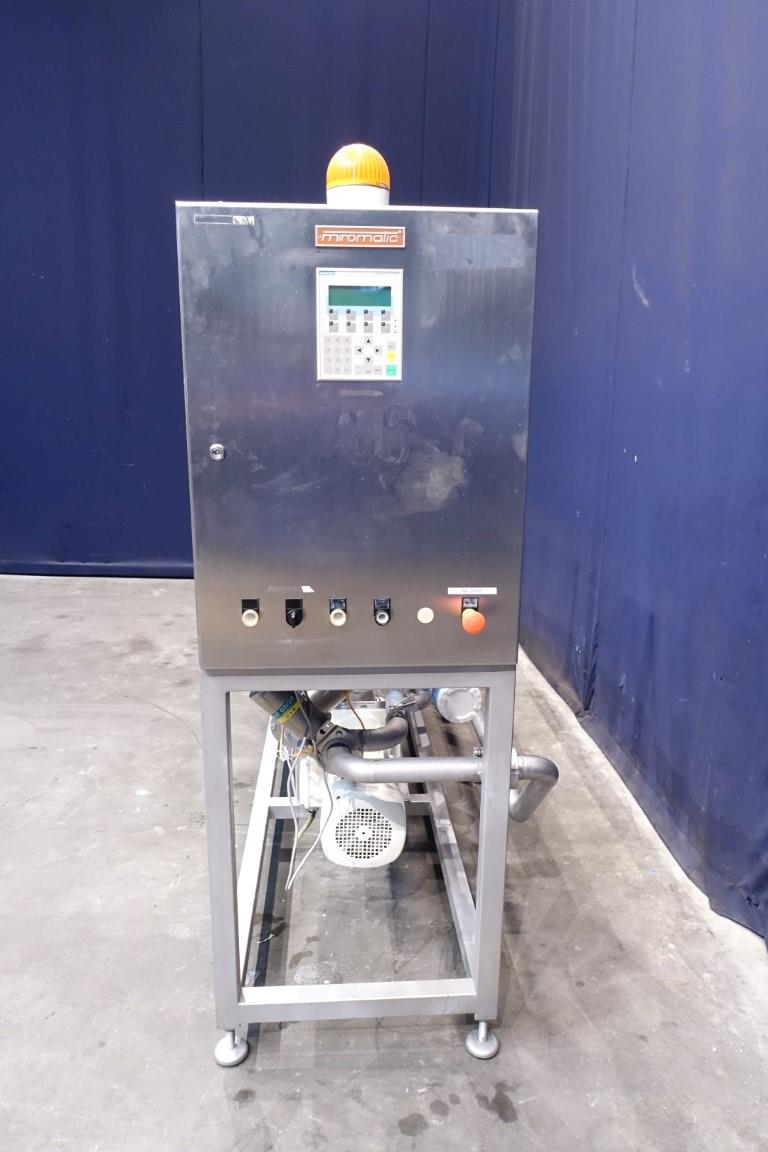

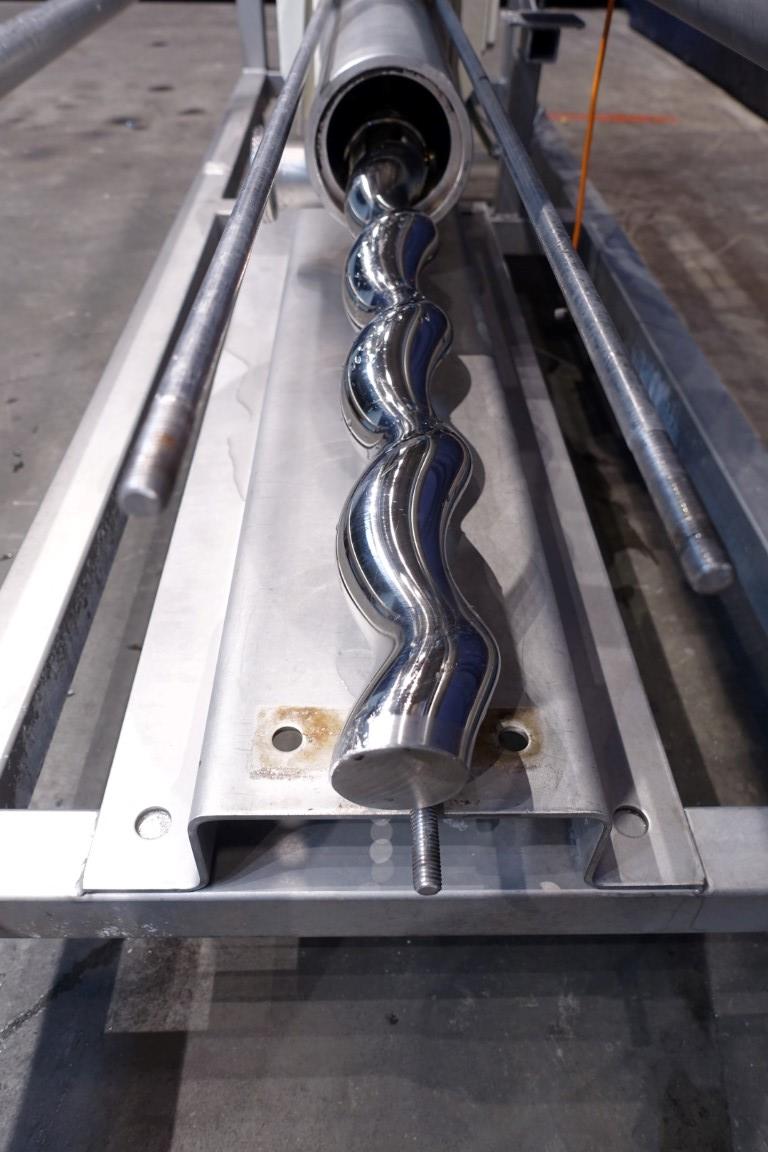

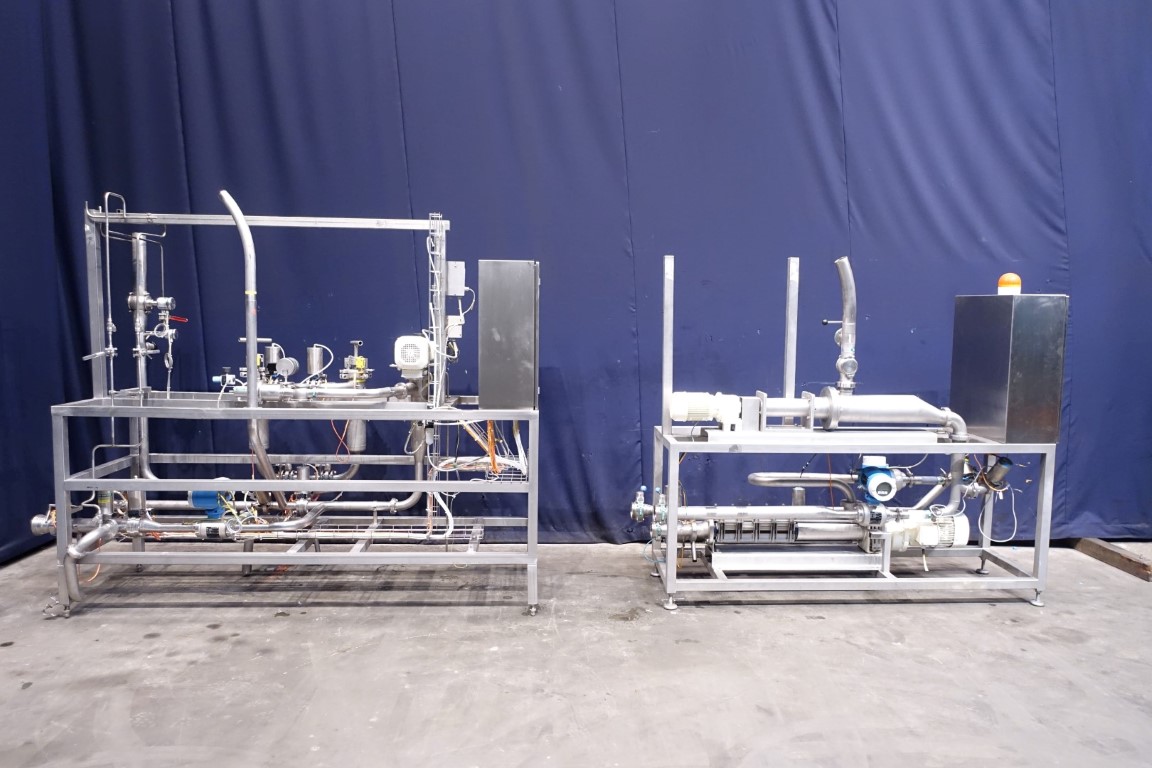

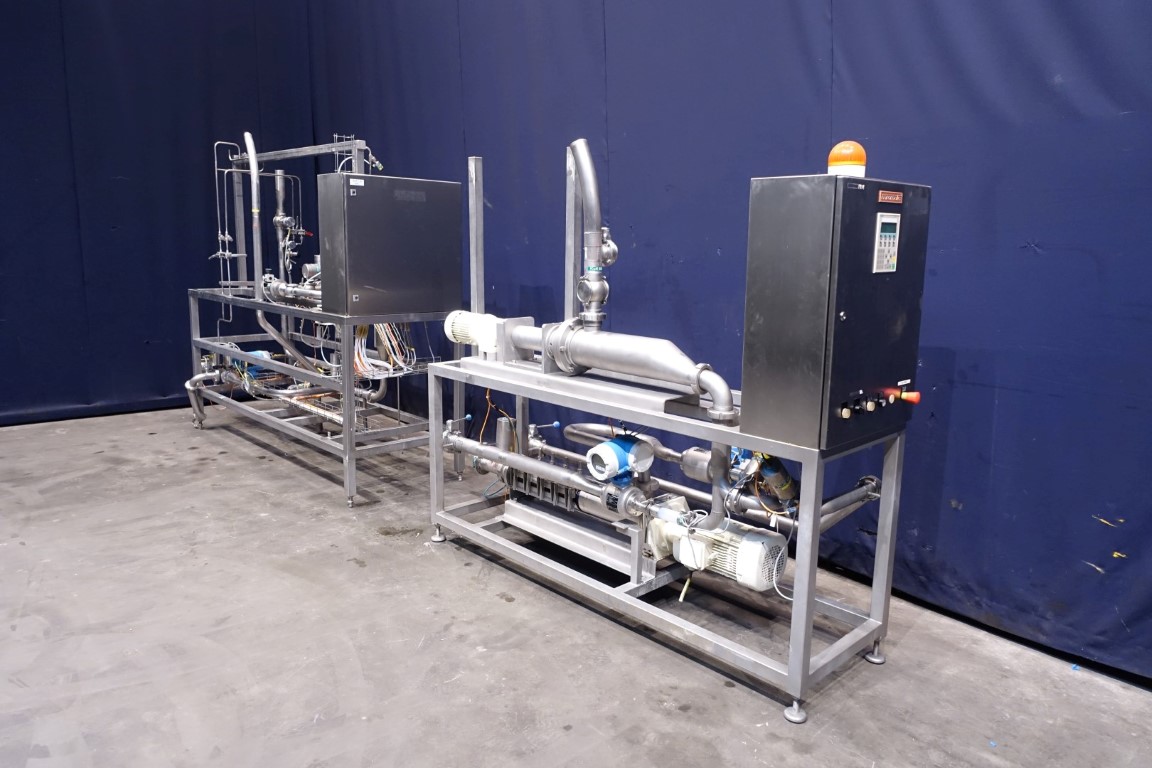

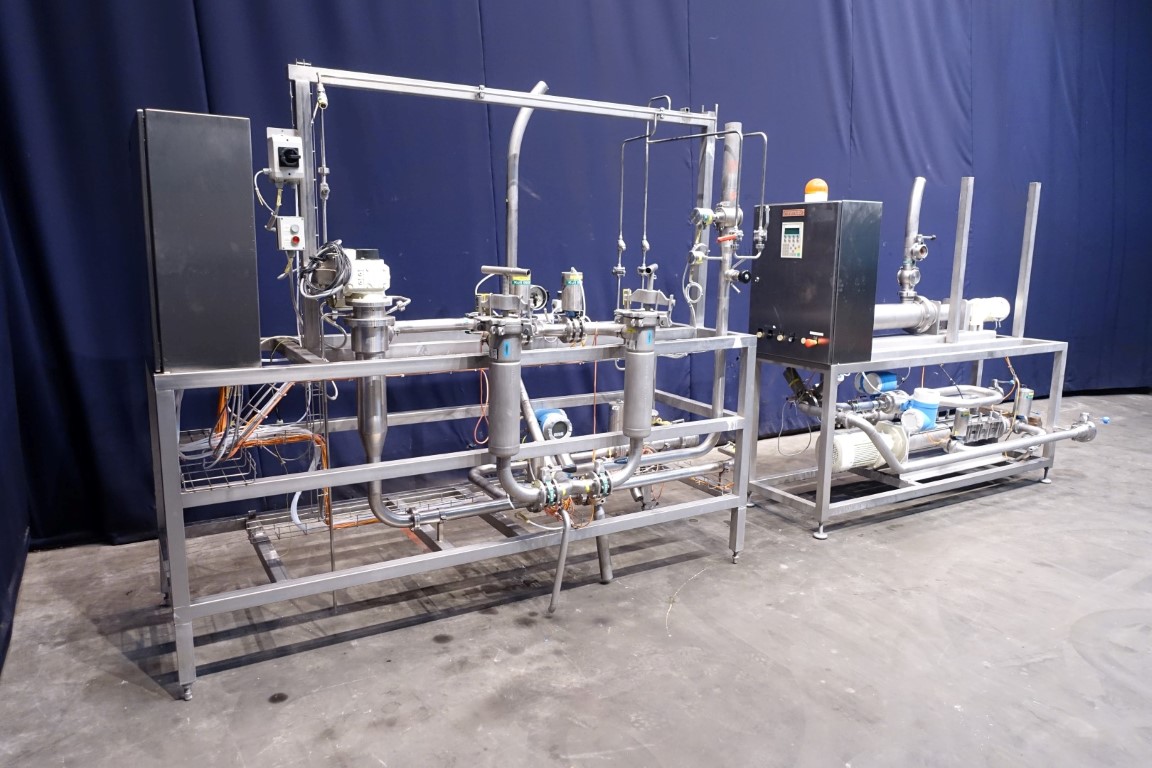

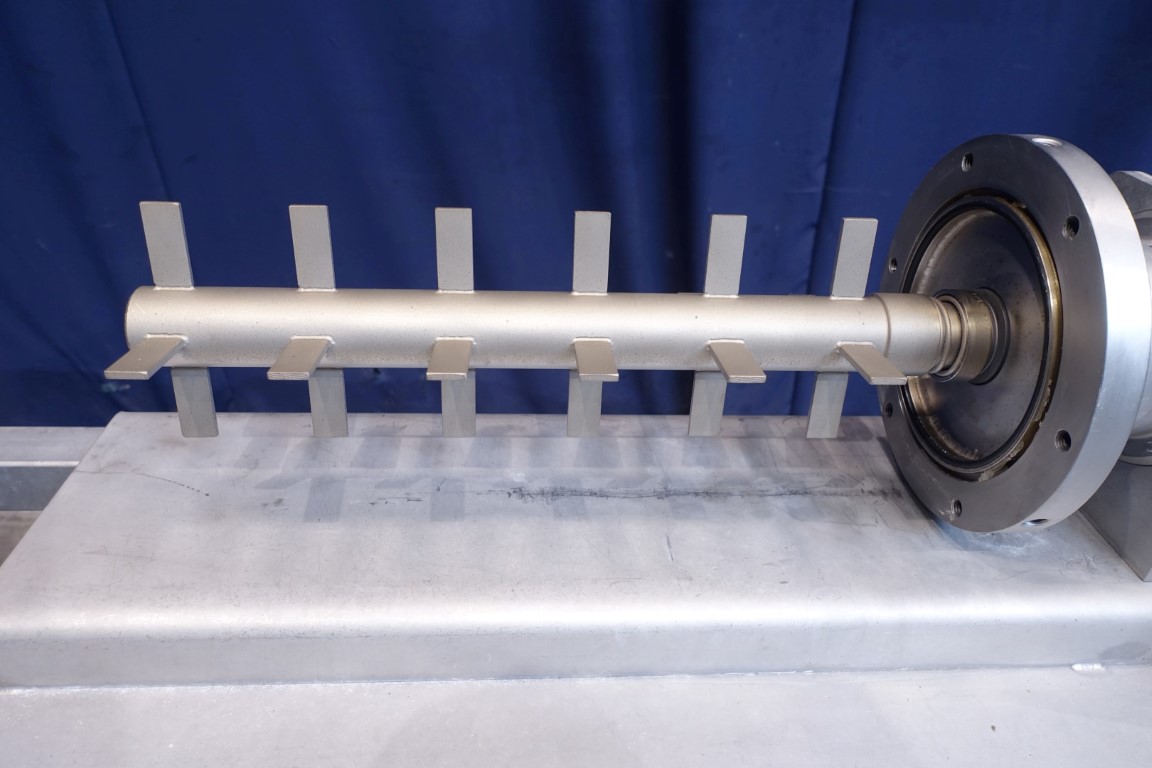

Inline Quark mixing device to add Cream to fresh cheese to increase the fatt content. 2 ingredients, Cream and fresh cheese are added together by regulating the speed of the cream pump (Eccentric screw pump make Seepex, type: BCSO Size10 pressure12bar, 2,3kw) controlled by 2 flowtransmitters (Make Endress & Houser model Promag 53H40. After injecting the cream the 2 ingredients are mixed together in a rotary mixer model KME150 (150mm diameter with a variable speed mixer inside), skid mounted including all by-pass and product valves, sample valve, controls only remote I-O (no plc/program). 2de skid to connect containers with 2 inline filters and by-pass valves. After injecting the cream the 2 ingredients are mixed together in a rotary mixer Miromatic model KME150 (100mm diameter with a variable speed paddle mixer inside), skid mounted including all by-pass and product valves, 3 steamable sample valves, incomplete controls (no program).
