Westfalia KDB 45-02-076

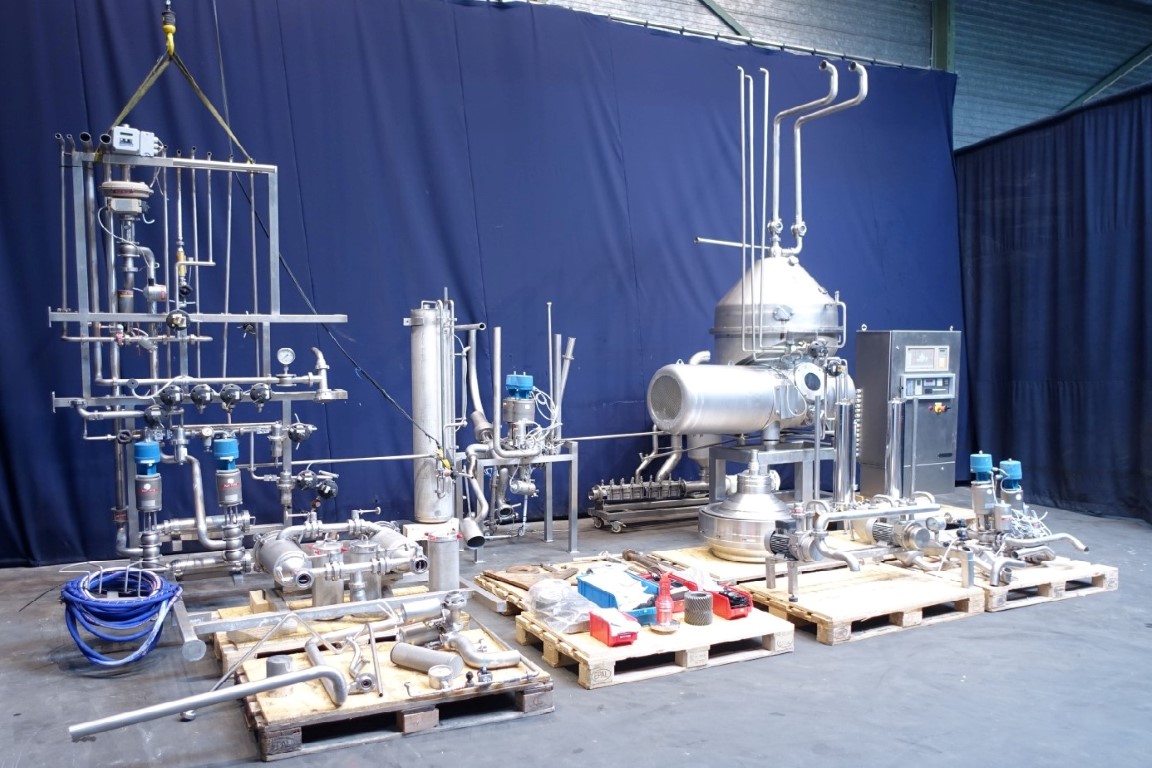

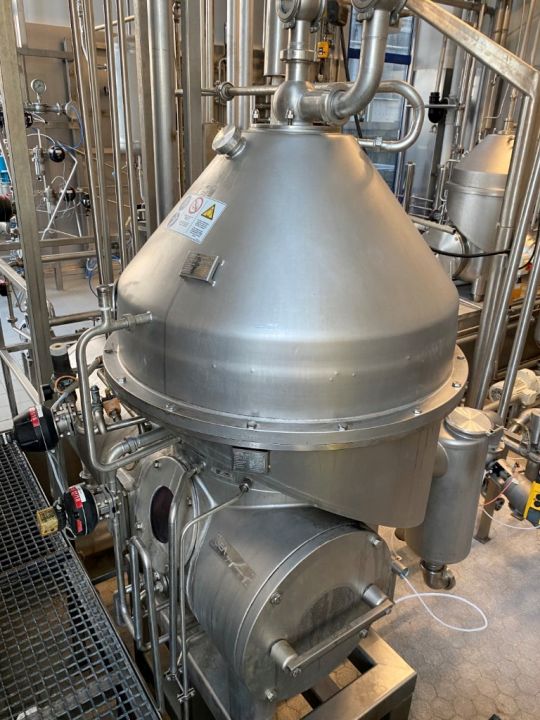

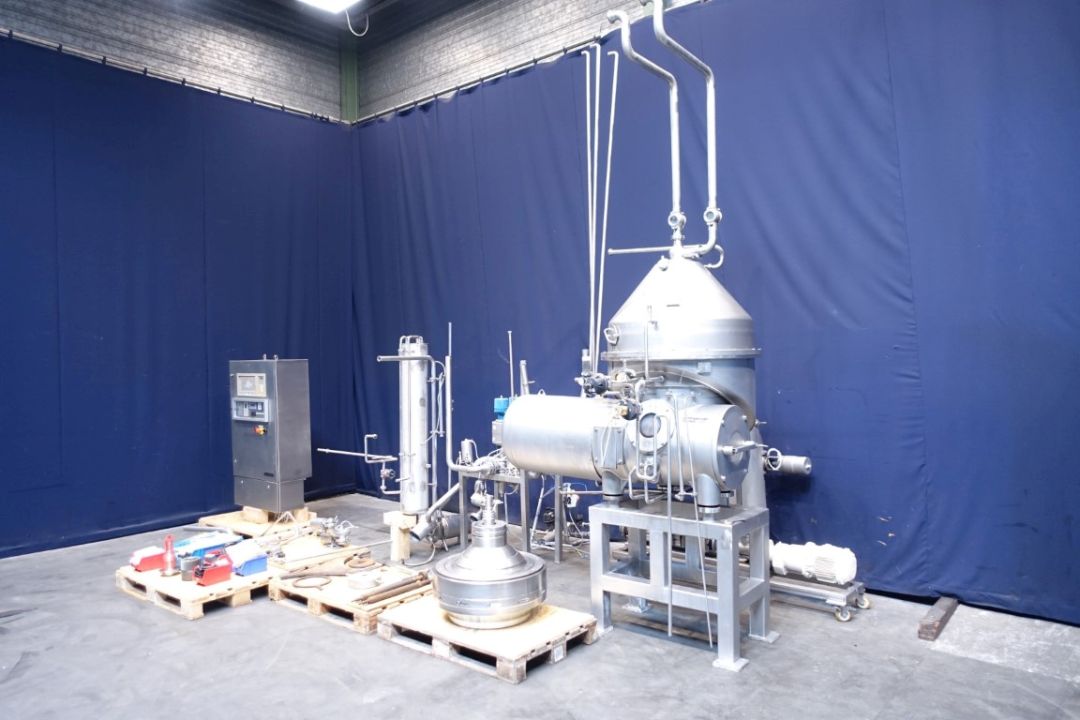

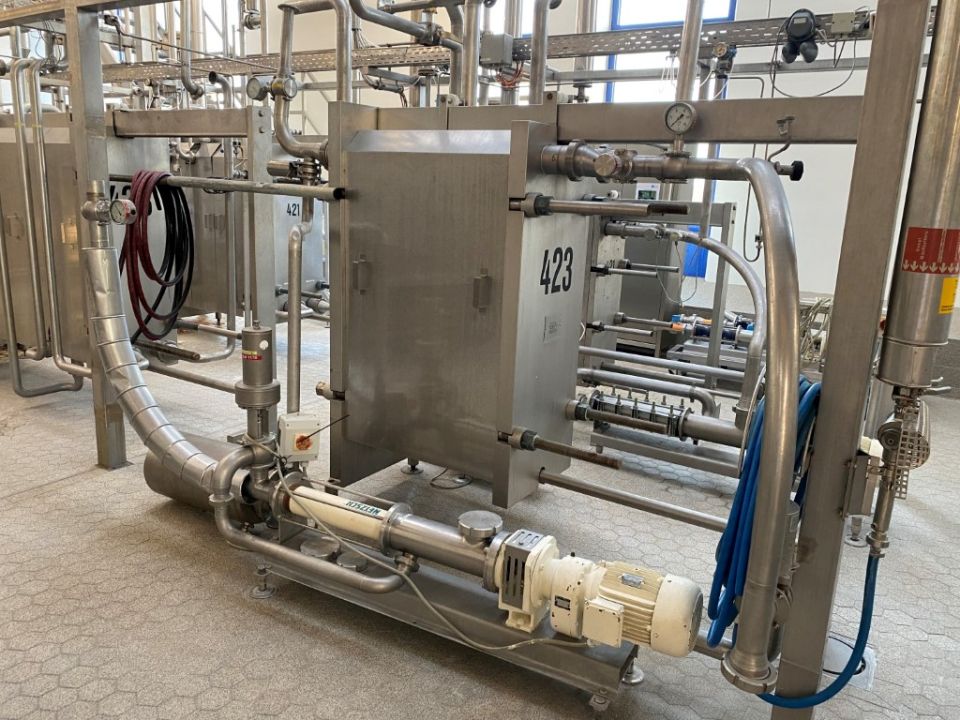

Fresh cheese - Quark - Yoghurt separator. Nozzle separator suitable for the production of: Quark/Fresh cheese, Greek style yoghurts, strained yoghurts, Labaneh, Labneh and Skyr. Dry matter adjustable by nozzle size and chosen flow between 15-22%. Input capacity 7,000 up to 15,000ltr/h the separator separtes fermented skimmilk in heavy fase Whey and light phase Curd/yoghurts to concentrate the protein by a nozzle system. Ratio input/output between 2 and 3ltr for 1 ltr of concentrated product. CIP cleanable. Including: all auxiliry equipment around the separator double inlet filters, Feed flow control for infeed skim milk, closed design with sterile air filter and vacuum system for extended shelf life of product, Back pressure valve for whey, flow transmitter, vibro sensor and a free standing control panel with Siemens S5 and Westfalia operators screen. Motor: 45 kW. quark funnel (CIP cleanable), with a drain valve and a quark screw pump and under the hopper and part of the tools. Next to the separator also included: Water filter on inlet of water, The product plate cooler 2 sections GEA Ahlborn model: VT40 LOCIN machine nr: to cool product and stop fermentation and valves for cooling by city water and ice water. with its own outfeed eccentric screw quark pump (Netzsch, eccentric pump.. ) with by-pass valve, outfeed pipe long bend to have a minimum pressure in the cooler with interconnecting piping between pump/cooler and valves. Excluding motor control cabinet (MCC).. Dimensions: 1725 x 2231 x 1796 mm.
