- Doserpump (TA-Fyllare) Singel

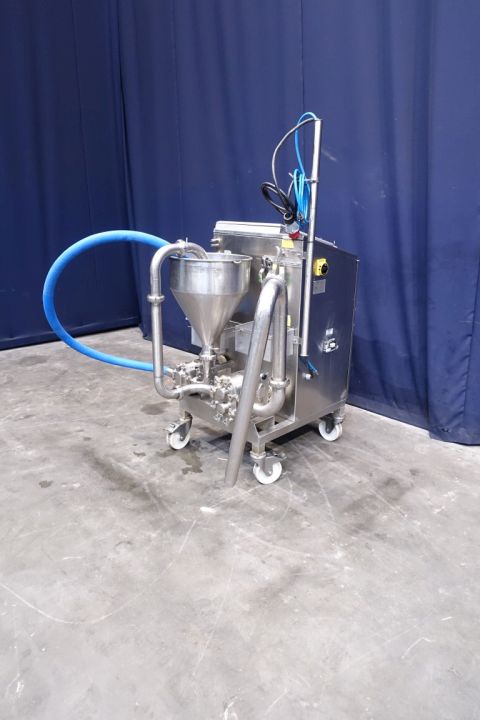

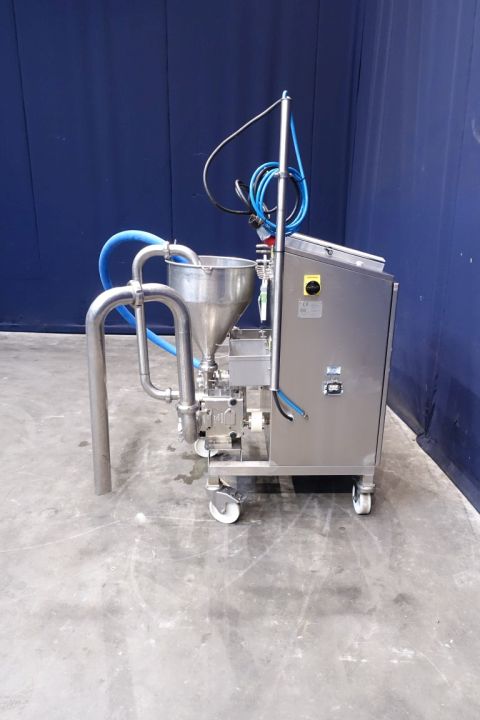

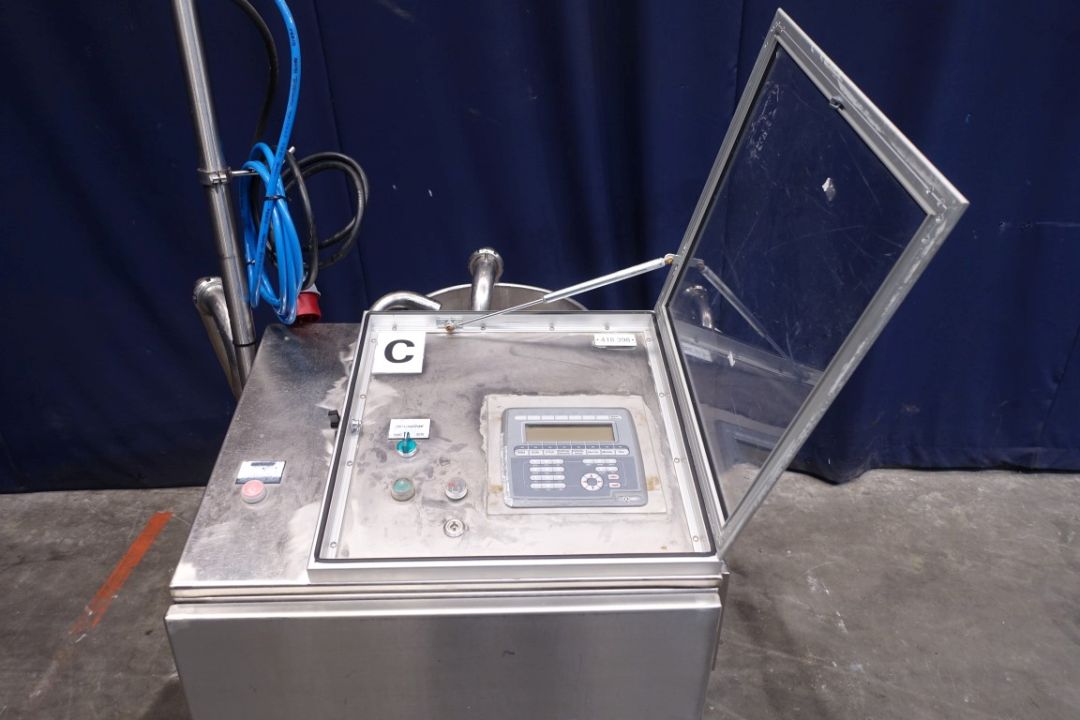

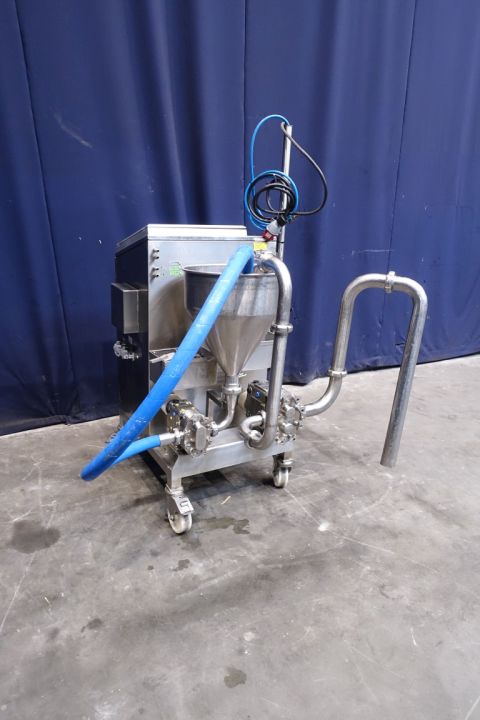

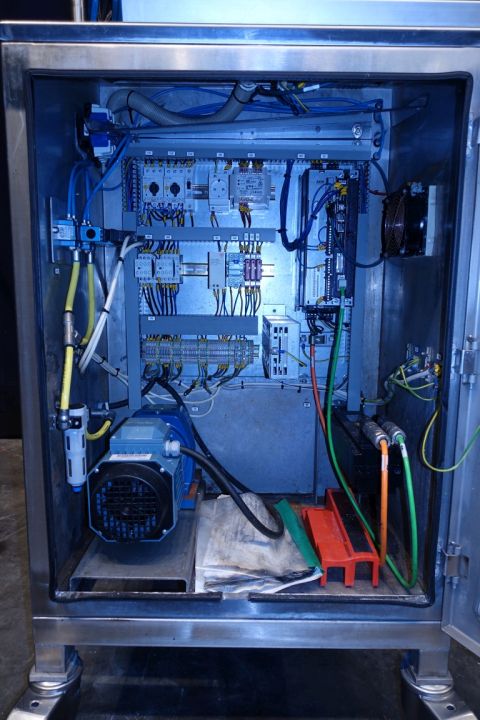

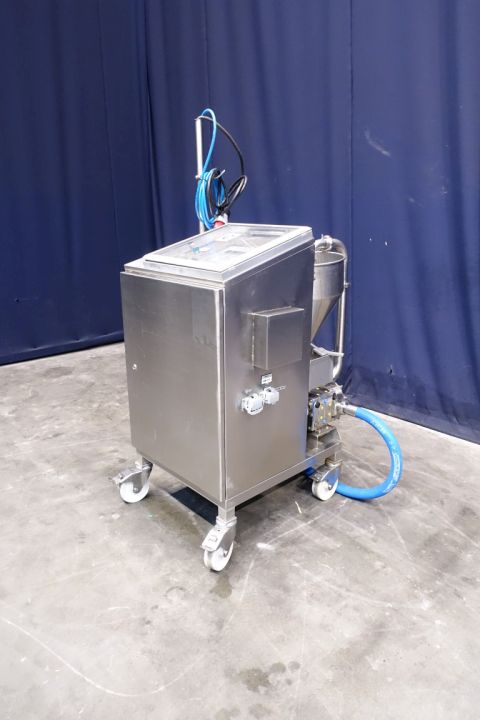

Dosing unit. a skid mounted unit with 2 pumps, 1 pump pumping the product in the hopper and 1 pump dosing the product. 1-Line. Existing out of: 2x duo lobe pumps with stainless steel lobes. (1st: Waukesha, type: 018-U1, year: 2010, serialnr 1000002455977, diameter lobbes: 85 mm, displacement per revolution: 0,12 ltr, nominal capacity: 7,5 m3/h, current drivework: servo driven: SEW Eurodrive, Movidrive, MDX61B0030-5A3-4-00, connections: DN40/DN40 SMS. 2nd: Waukesha, type 030, year: 2007, serialnr: 450679, diameter lobbes: 110 mm, displacement per revolution: 0,27 ltr, nominal capacity 15,9 m3/h, current drivework: motor 1,1 kW - n1: 2850 rpm, i: 9,09 - n2: 314 rpm, connections: DN40/DN40 SMS), hopper and control panel with operation panel. Total dimensions: 150 x 125 x 185 cm.
