Waukesha 030U1
Pumps
Lobe rotary pumps
STN14988
Waukesha
030U1
1000003843903
2000
up to 8.200 liter per hour

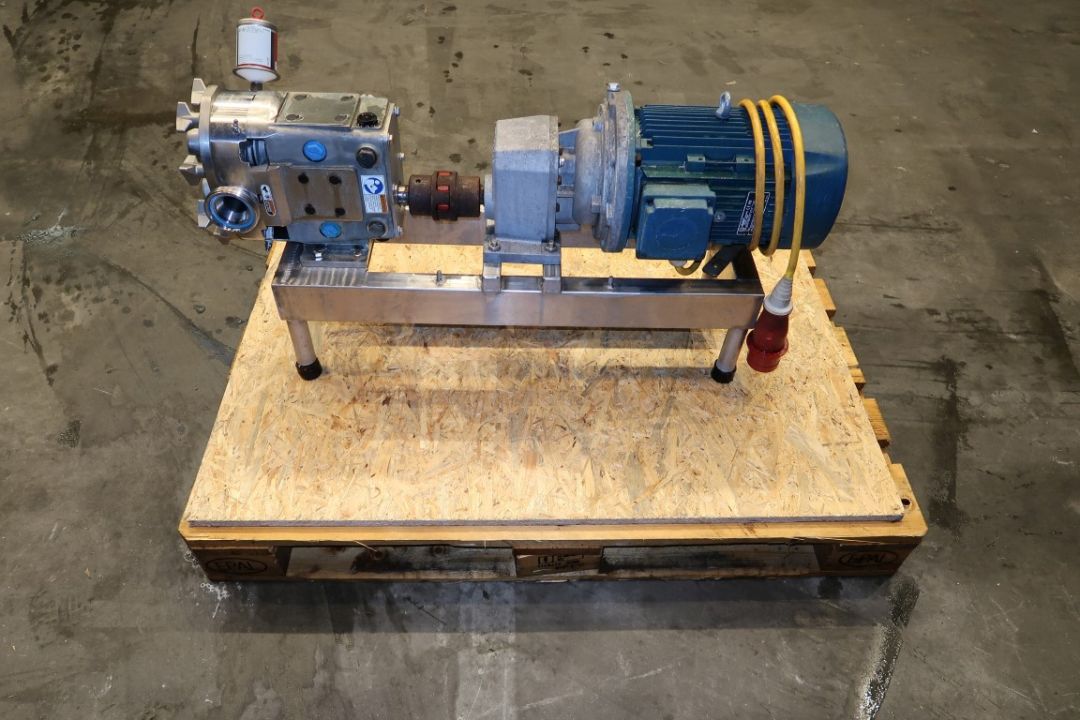

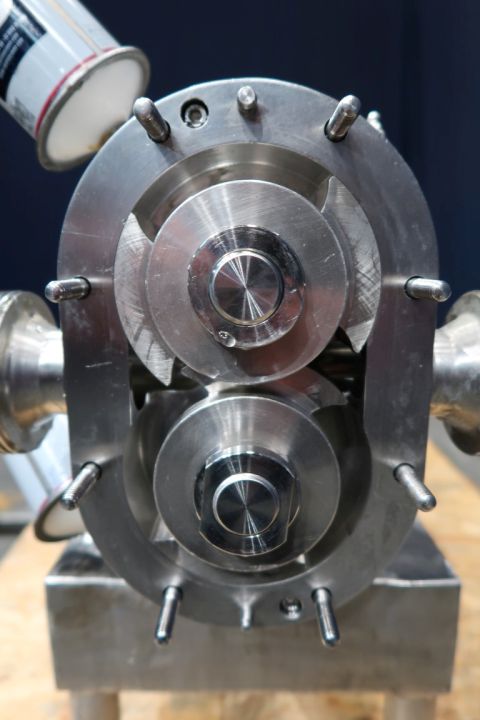

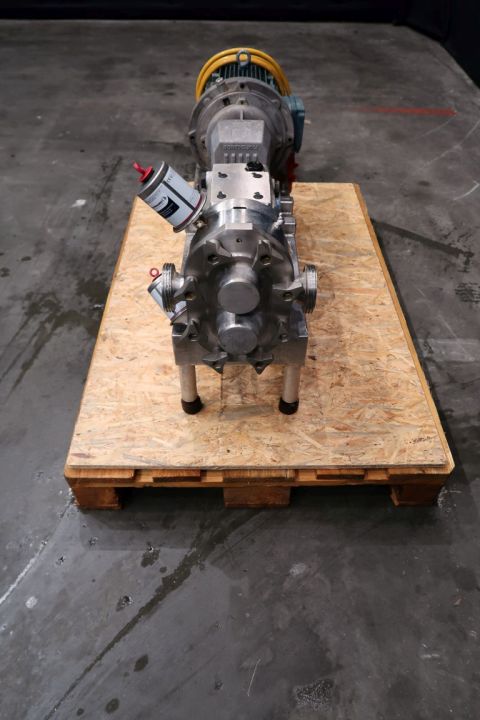

Lobbe pump, with duo stainless steel lobbes. Diameter lobbes: 110 mm. Displacement per revolution: 0,227 ltr. Nominal capacity maximum 8,2 m3/h. At Maximum: 600 rpm. Current drive work: motor: 2,2 kW - 9,2 / 5,3 A - n1: 950 rpm, n2: unknown (no typeshield on drive work). Design pressure up to 13,8 bar. Mounted on stainless steel frame with adjustable feet. Connections: 2'' / 2'', DIN. Flushed seal with closed grease system.
