Tetra Pak Alsafe MH-Tank

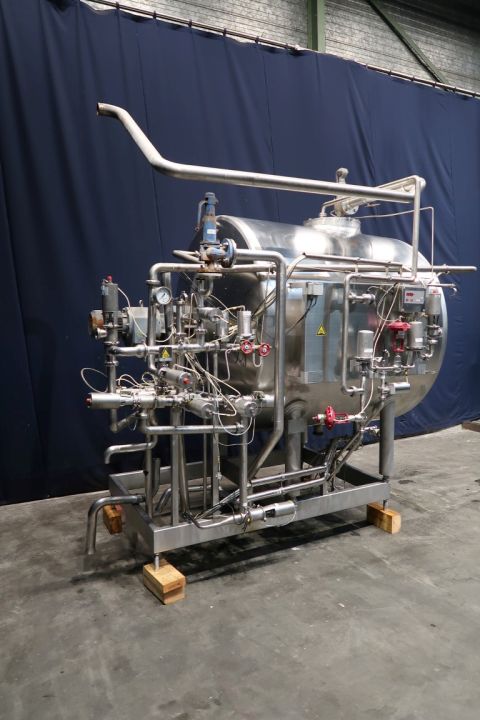

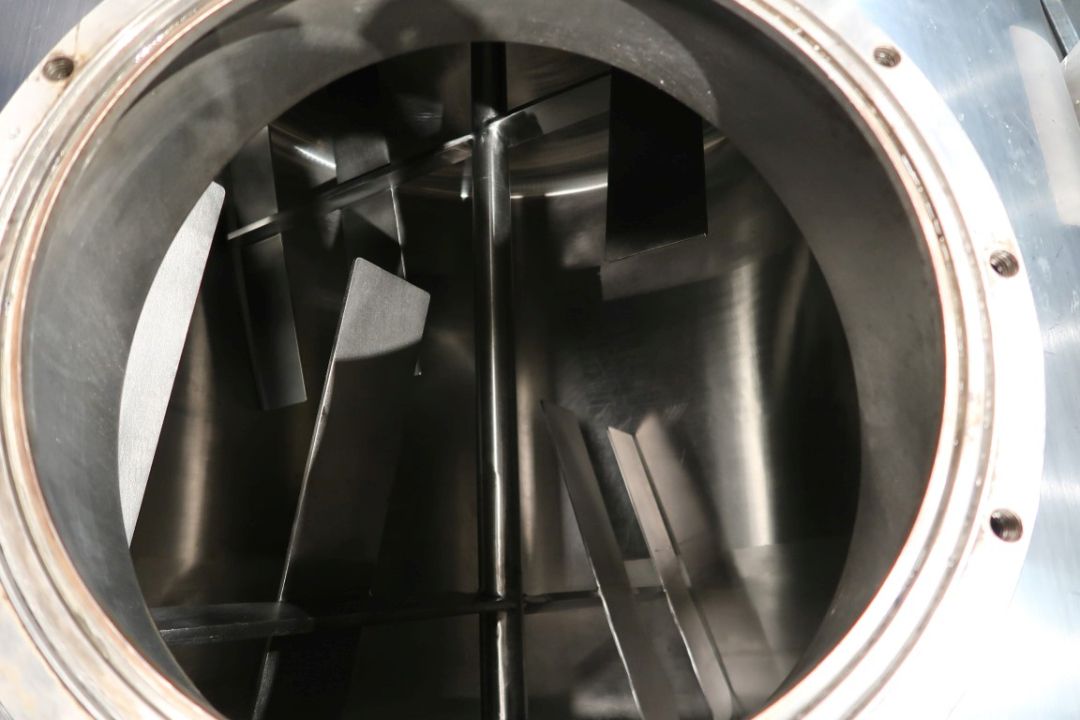

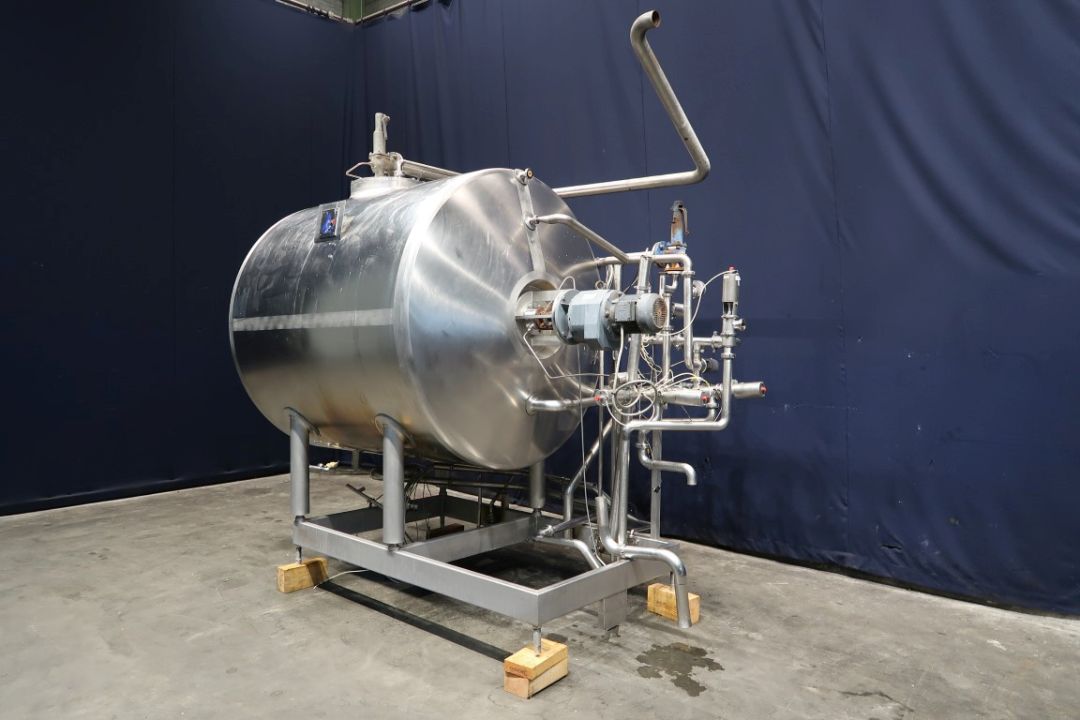

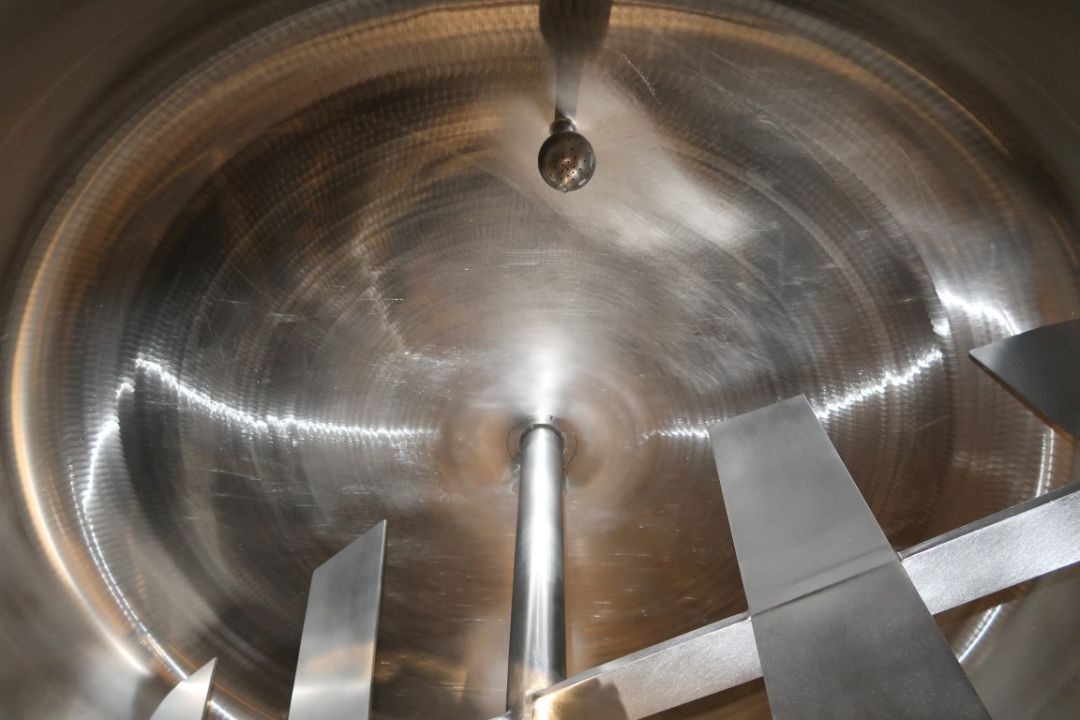

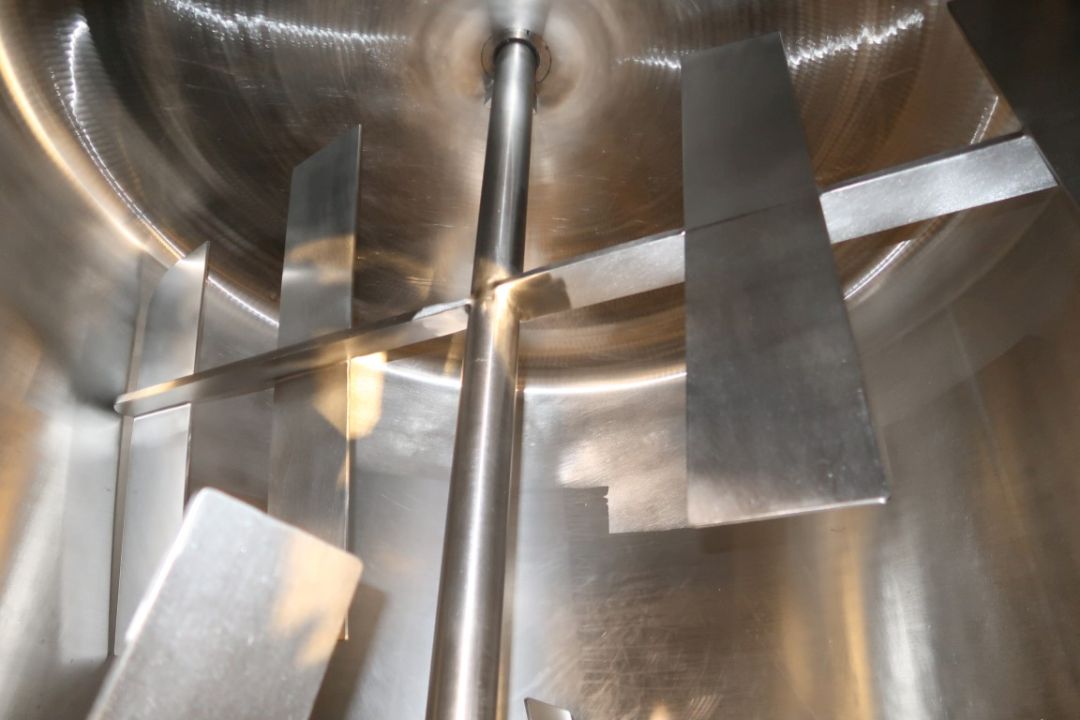

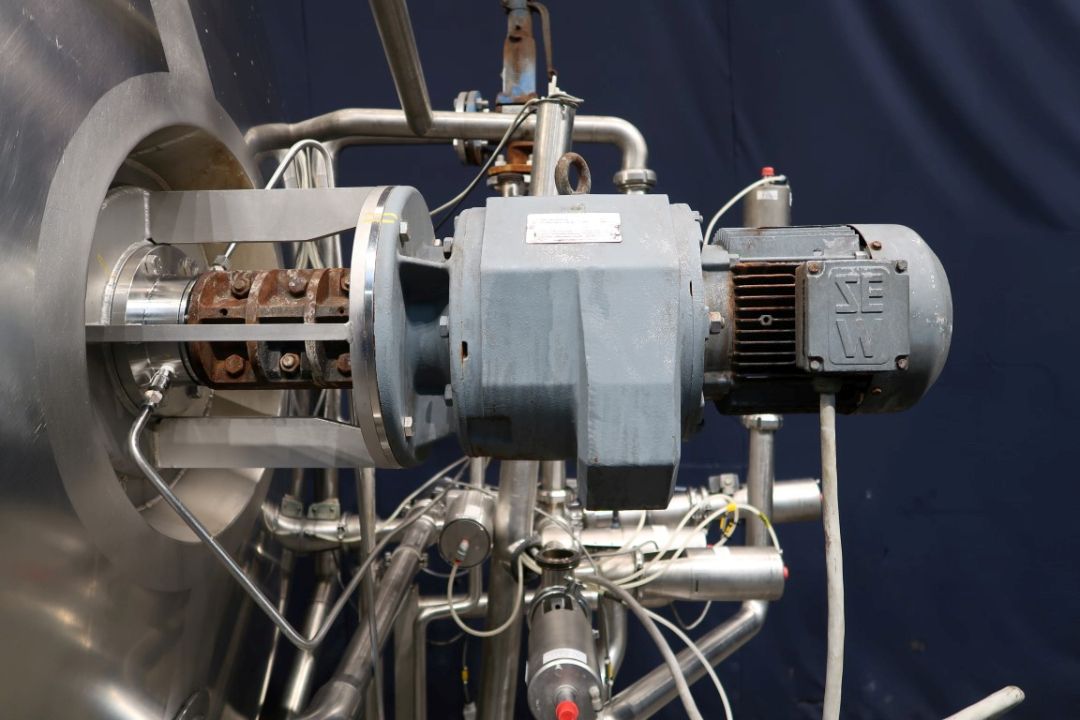

Skid mounted horizontal high hygiene tank used as intermediate buffer tank between pasteuriser and a filling machine that evens out capacity difference. The tank maintains consistent high product quality with a separate inlet and outlet to eliminate product recirculation and gentle agitation that protects particle integrity and ensures even distribution. The slow paddle-type agitator enables it to handle a wide range of products, from low to high viscous high acid, smooth to particulate products. Sterile air flows constantly through the system to prevent contamination and maintain food safety. Working principle: First, the tank is sanitized with steam introduced from the end valve cluster backwards through the filling pipe into the tank. The steam exits through the air vent and after sanitation sterile air evacuates the remaining steam and slowly cools the tank down. Next, the product enters the tank through a separate inlet and exits through a separate outlet, ensuring turnover and preventing recirculation. During operation, sterile air flows over the product surface preventing microorganisms from entering. The tank is cleaned in place (CIP) with an external CIP station. The internal CIP nozzles ensure efficient cleaning. Manufacturing Number: 31802-474. Max. work pressure room 1: -1/6,0 bar. Max. work temperature: 140/50°C. Effective volume: 2.500 liter. Agitator motor: 1,5 kW - n1: 1410 rpm - n2: 12 rpm. Manhole. 4 legs. Complete with sterile air filter, control valves for to keep pressure in the tanks, product valves, over pressure valves for steam and air. Excluding controls. Total dimensions: 300 x 170 x 320 cm.
