STN14974
N.N.
Pilot UHT plant
0000
2008
250 liter per hour

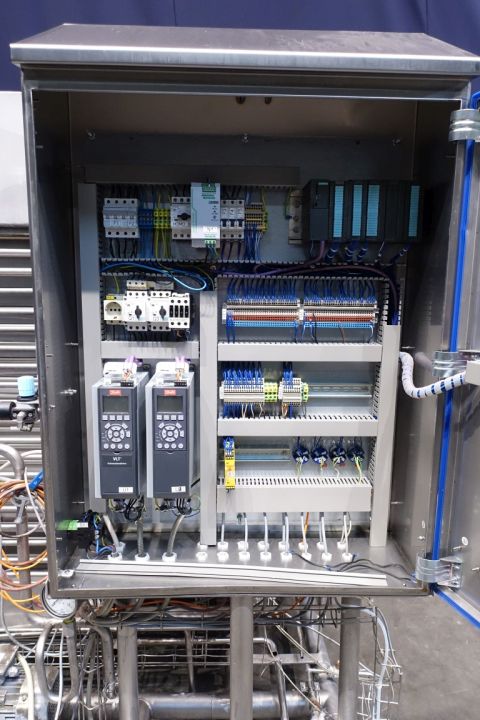

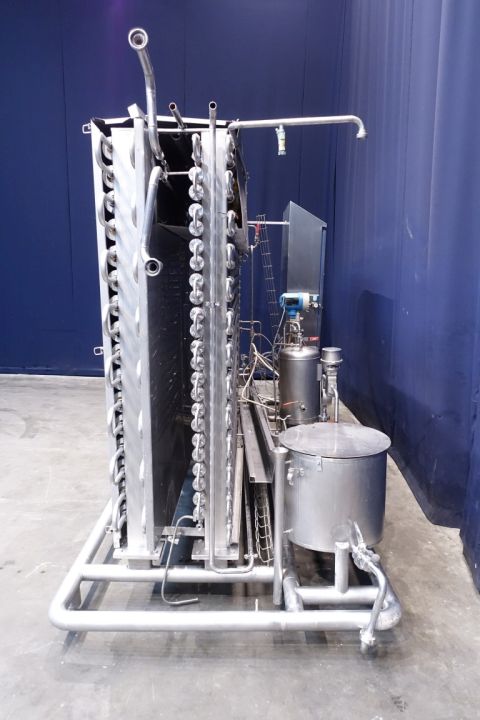

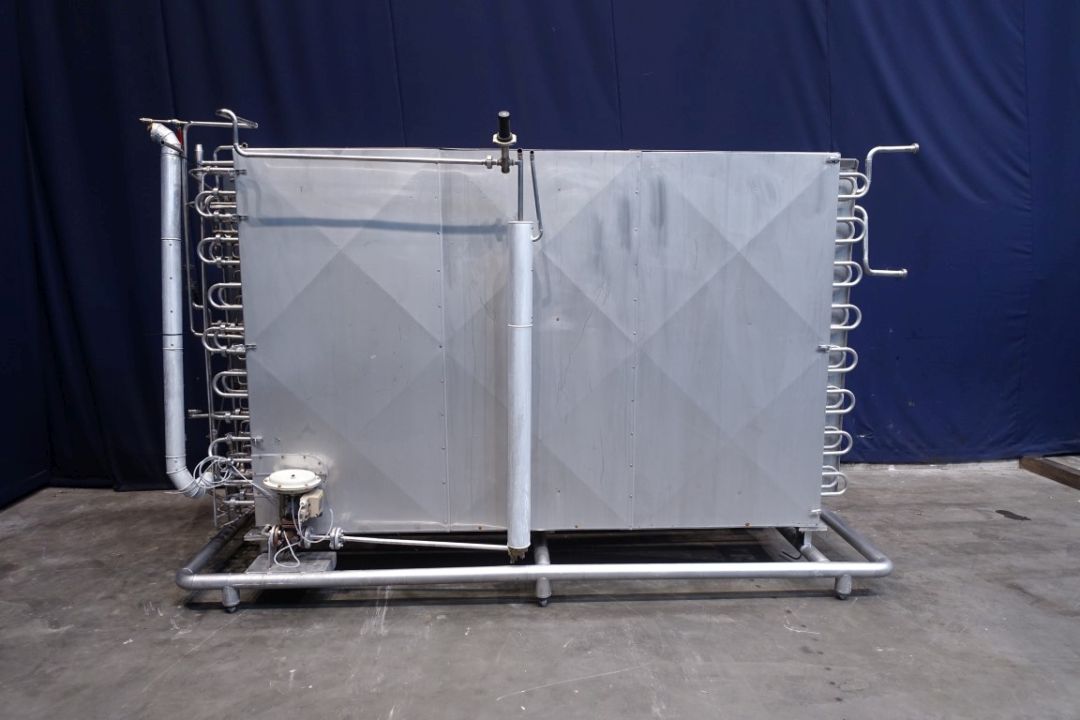

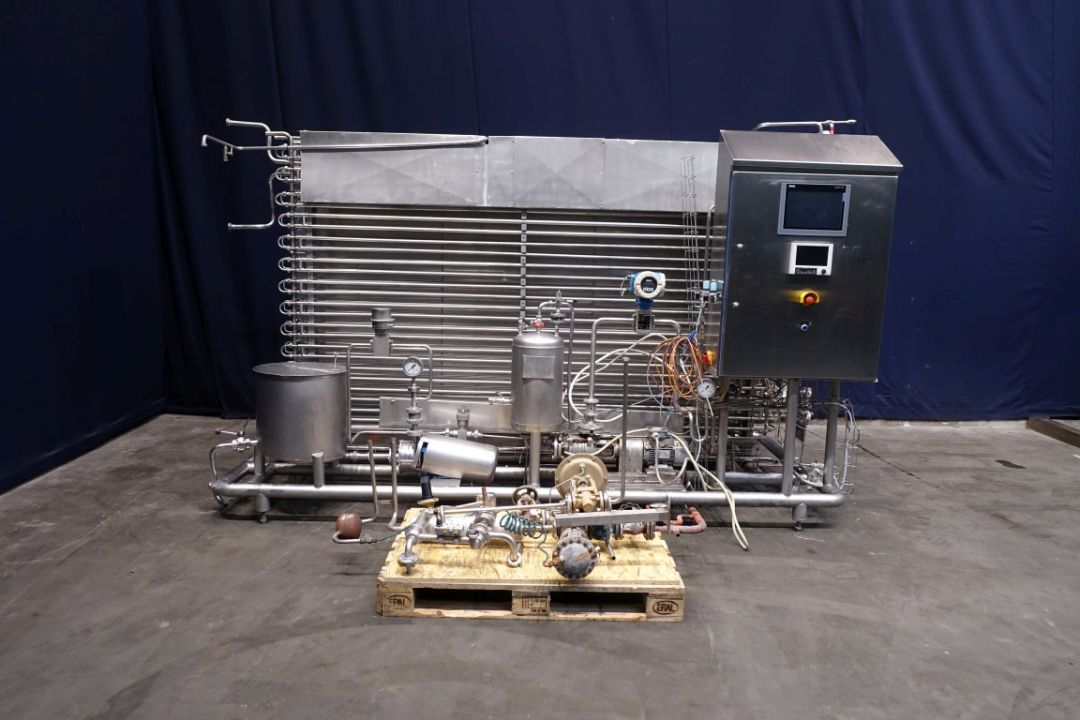

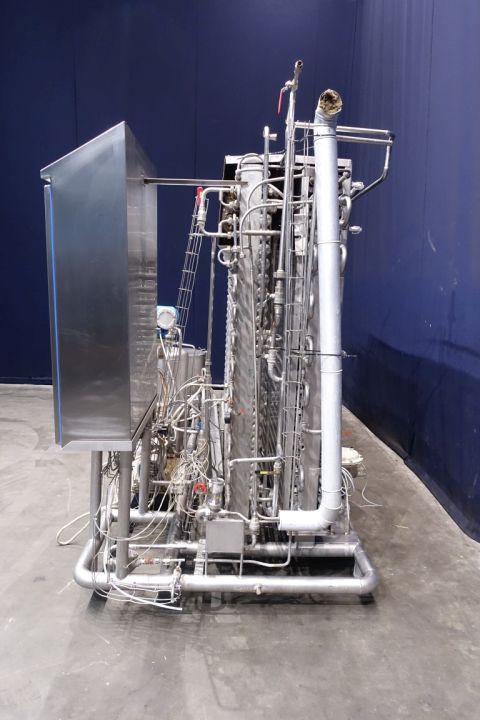

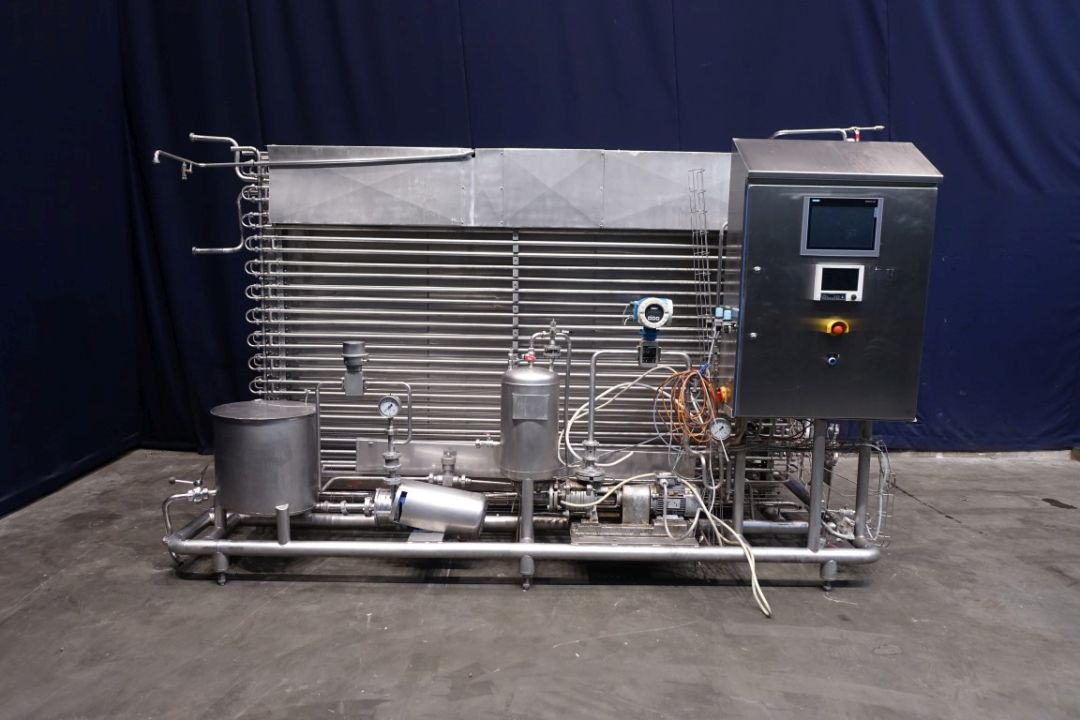

Pilot UHT plant, skid mounted, with tubular heatexchanger (mono tube, 52x pipes of diameter 23 mm, 32x pipes of diameter 20 mm), feed pump (Hilge Hygiana SI/3, 2 kW), open level tank, hotwater set with steam / hotwater heatexchanger (Samson steam valves), water pump, control valve, flowtransmitter for product and water (E&H), control panel with Siemens S7-300 PLC, touchscreen panel Siemens TP1200 Comfort, 2x Danfoss frequency converters and temperature recorder. Connection for homogeniser available but without homogeniser itselves. Capacity is estimated, based on the homogeniser which was located with this pilot plant. Total dimensions: 320 x 150 x 212 cm.
