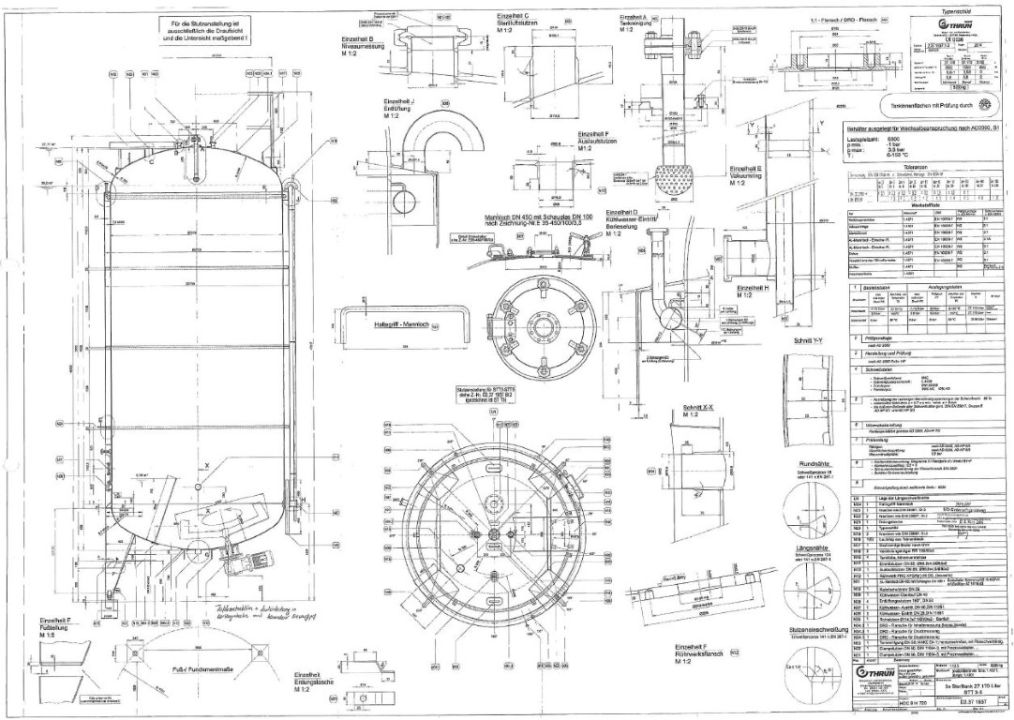

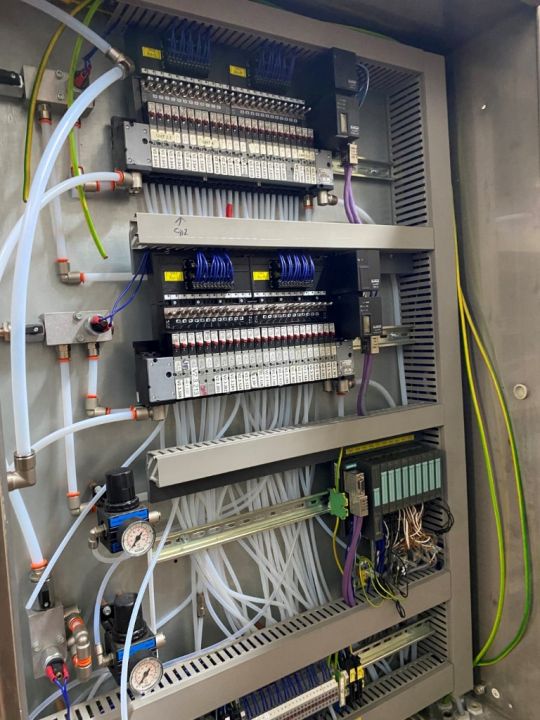

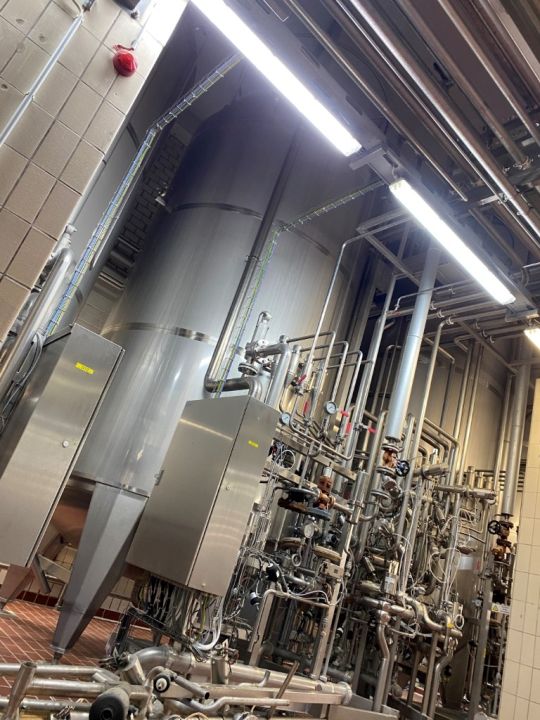

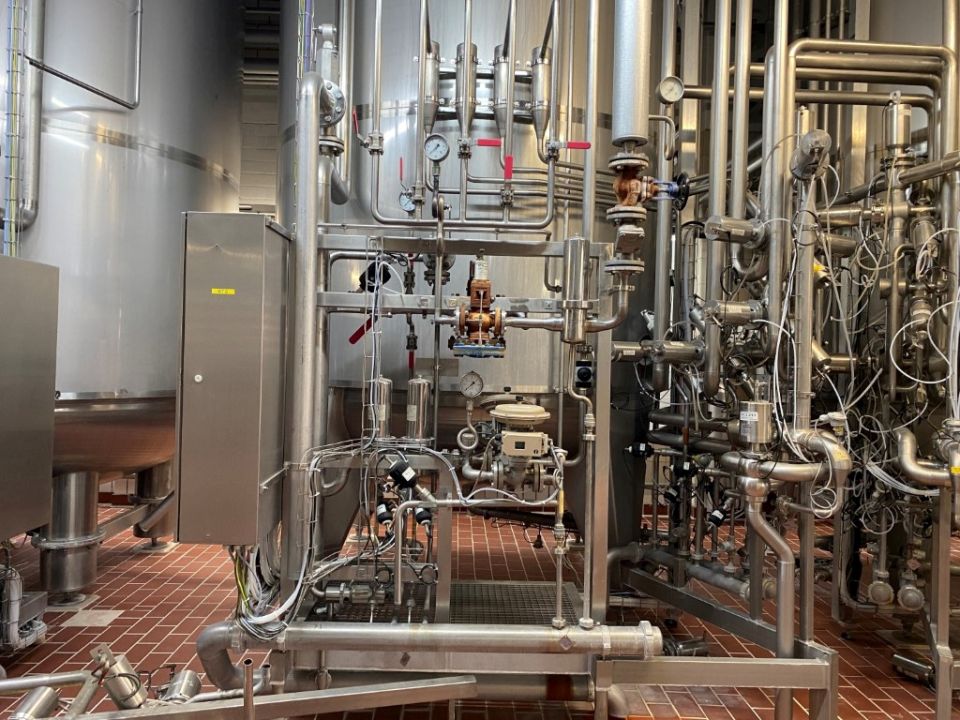

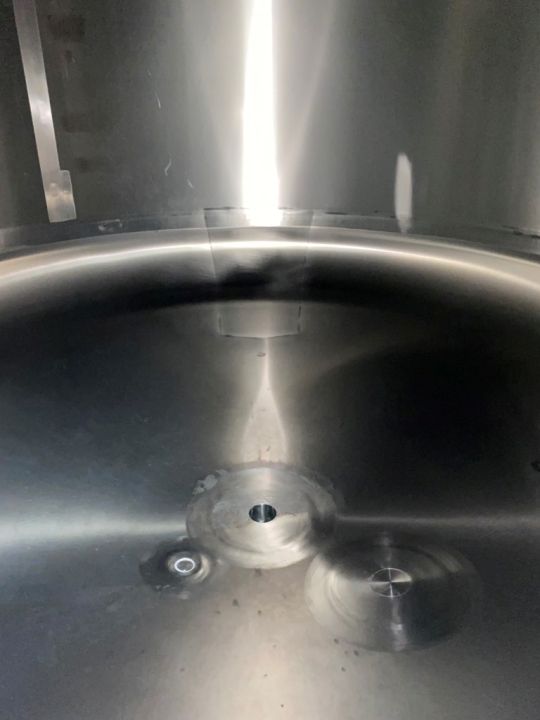

Aseptic sterile tank with walking top frame work. Skid with sterile air filters, steam filters, control valves and Remote I-O box on a frame. Product and CIP valves for 4 incoming lines. The product valves, make Aseptomag, model: PA100/65, have a peroxide flush chamber. Set of end valves with steam valve, temperature sensors, noise damper etc. The inlet product on the side of the tank, the outlet product on the bottom so the tank can be used for various products. Connecting for wing agitator in bottom prepared in tank, but not included. Agitator can be bought and installed at Thrun company. Tank drawing and P&ID available. No controls. Tank outside diameter: 2,72 mtr and total height approx 7,5 mtr. This steril tank will only be sold in combination with GEA Finnah 6500/140 UHT unit of 14.000 ltr/h, our stocknumber STN14929 (details can be found by this STN on our website).
