Diversey CIP Unit

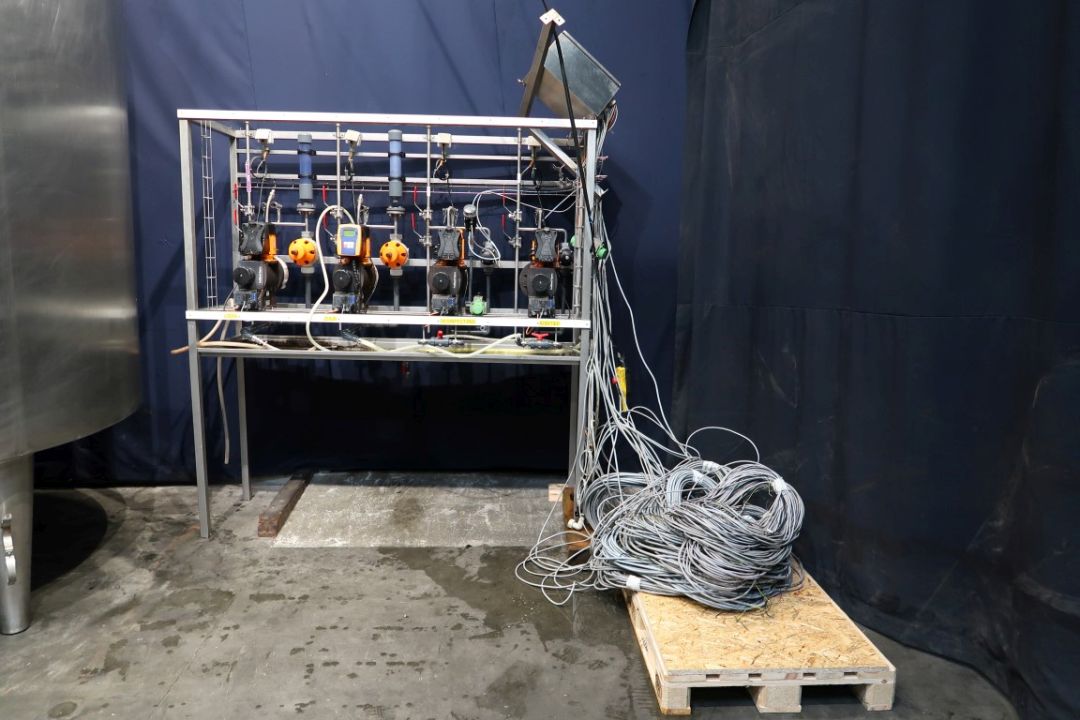

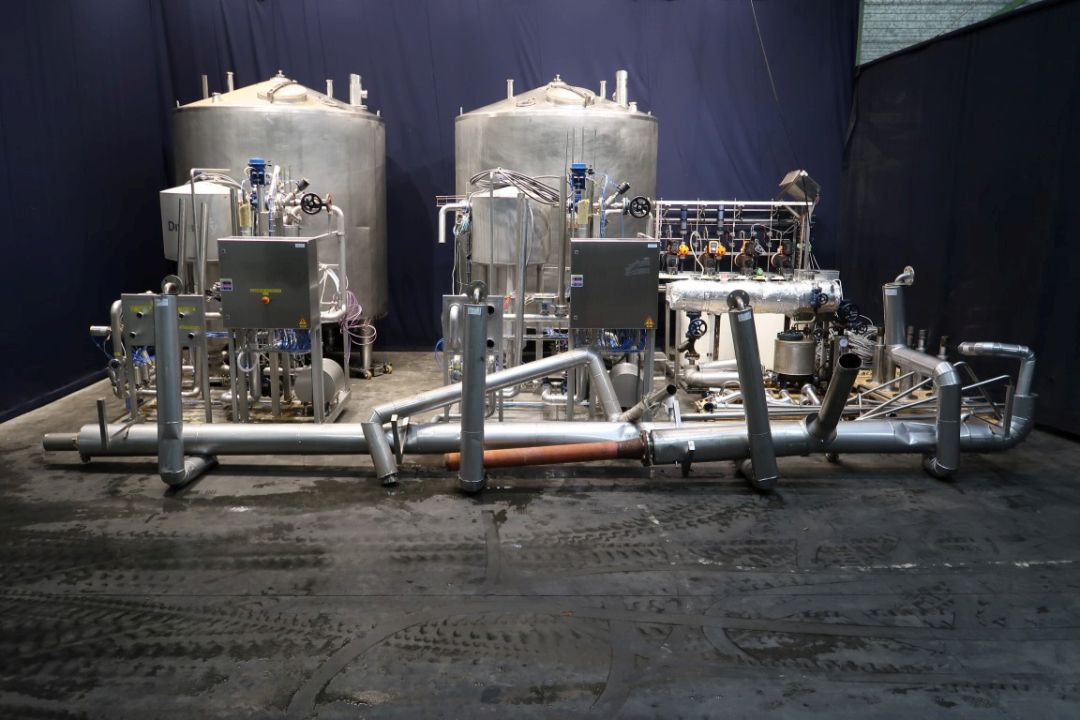

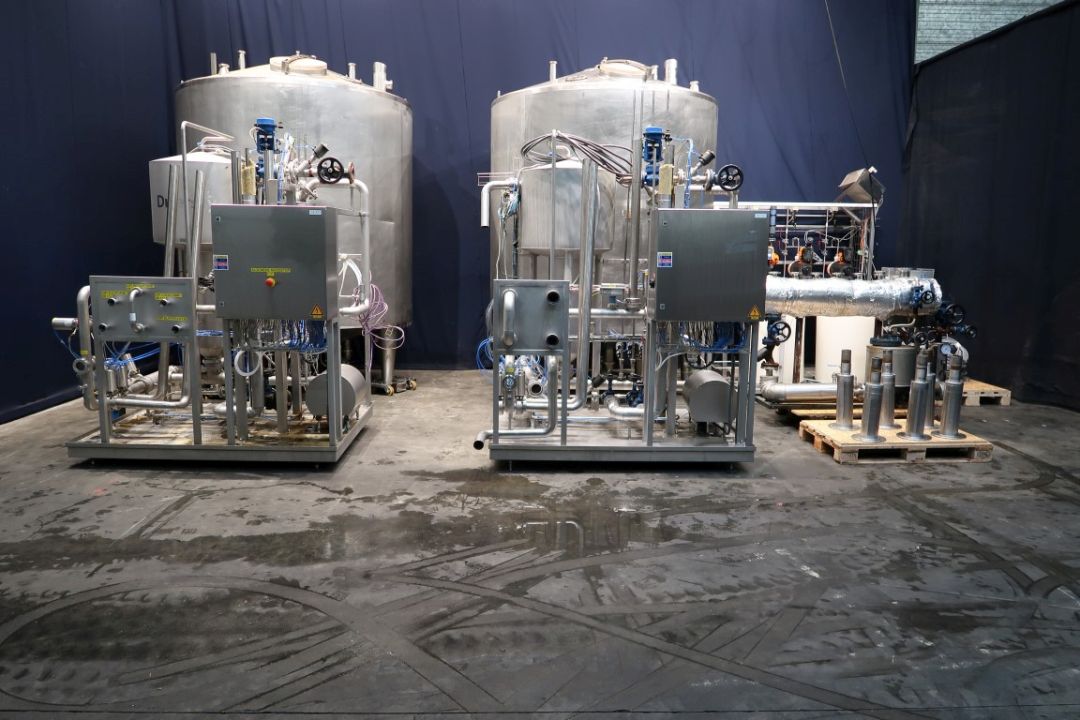

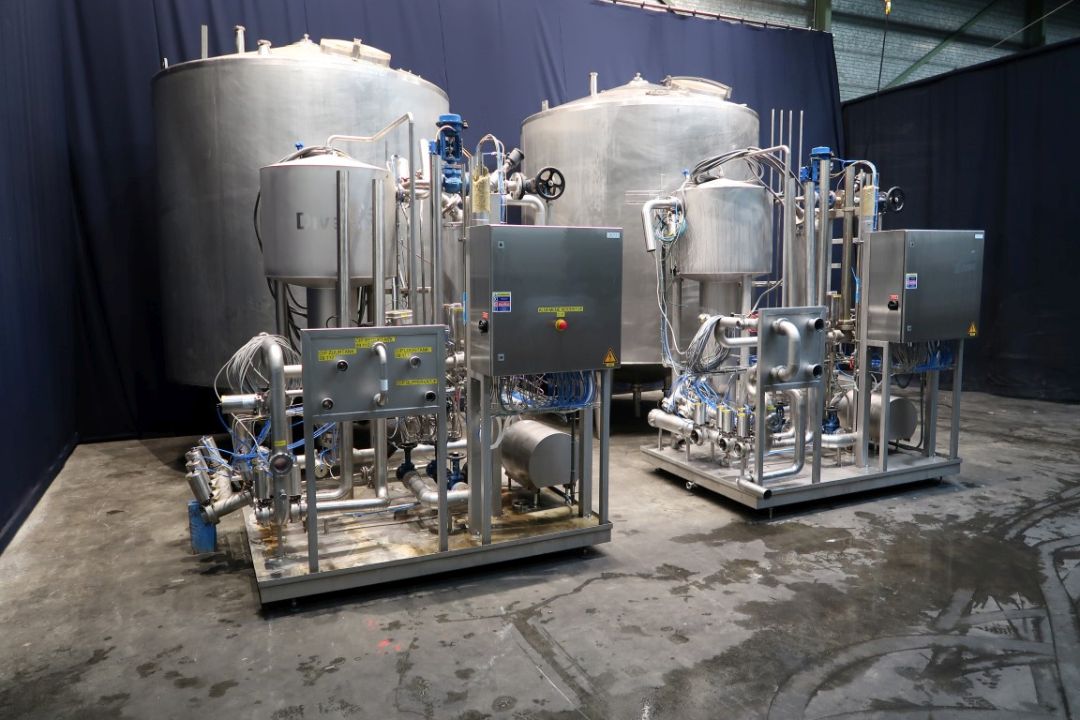

CIP unit existing out of: items 1) Lye tank, vertical, 10.000 ltr, diameter ± 2,5 mtr, total height ± 3,7 mtr, year ± 1977, insulated 2) Acid tank, vertical, 10.000 ltr, diameter ± 2,5 mtr, total height ± 3,7 mtr, year ± 1977, insulated. 3+4) 2x skid mounted modules with CIP outgoing line systems each unit exists of : a 300 ltr water tank to runs short circuit, CIP + pump (Alfa Laval LKH-25/181 DMS 7,5 kW, 80 m3/h at 2,5 bar, year 2013), Filter, Tubular heatexchanger water/steam on the outgoing line), steam control valve (spirax sarco), condensate trap. Sensors , temperature, conductivity (E&H), flow transmitter (siemens) 4 inlet valves for lye / acid / desinfection / additatives (from pump system item nr5), valves from 3 tanks and outlet valves to 2 tanks and next cip streng, swinbend panel for CIP + to spraybowls of tanks on 1 skid. Remote I-O control panel with Siemens Simatic ET200M communication module 5) concentration dosing system with 4 dosingpumps (ProMinent Dos), part of interconnecting piping, 1 x header for steam disturbution, 1x extra pipe to a recuperation water tank (water tank excluded) and . Total floor dimensions: ± 8 x 5 x 3,7 meter. Has been running in combination with CIP Unit, STN14957 + STN14958.
