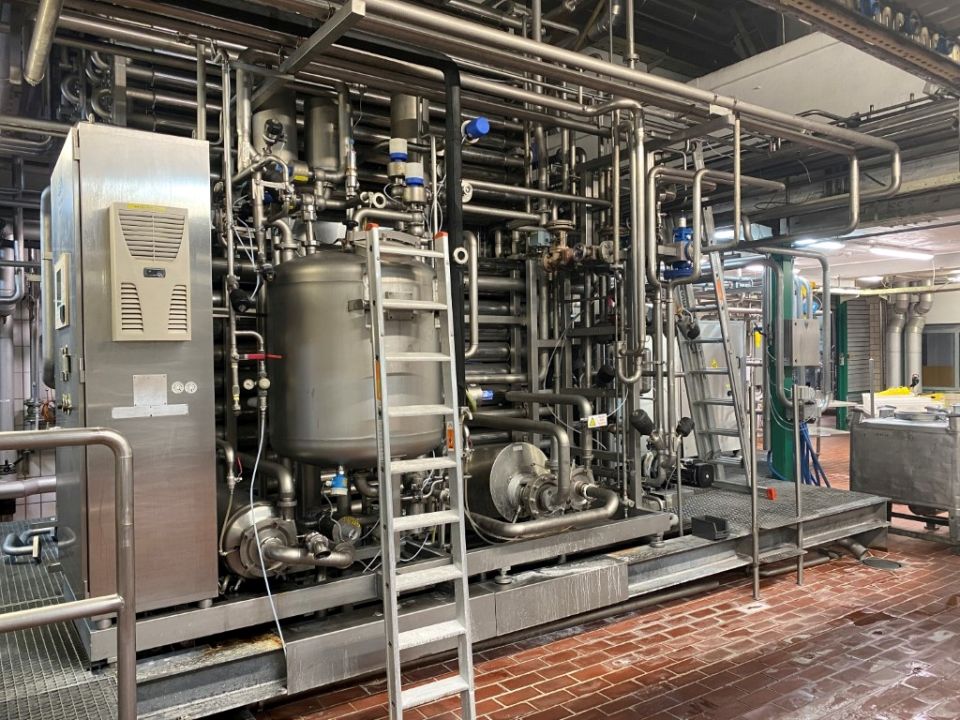

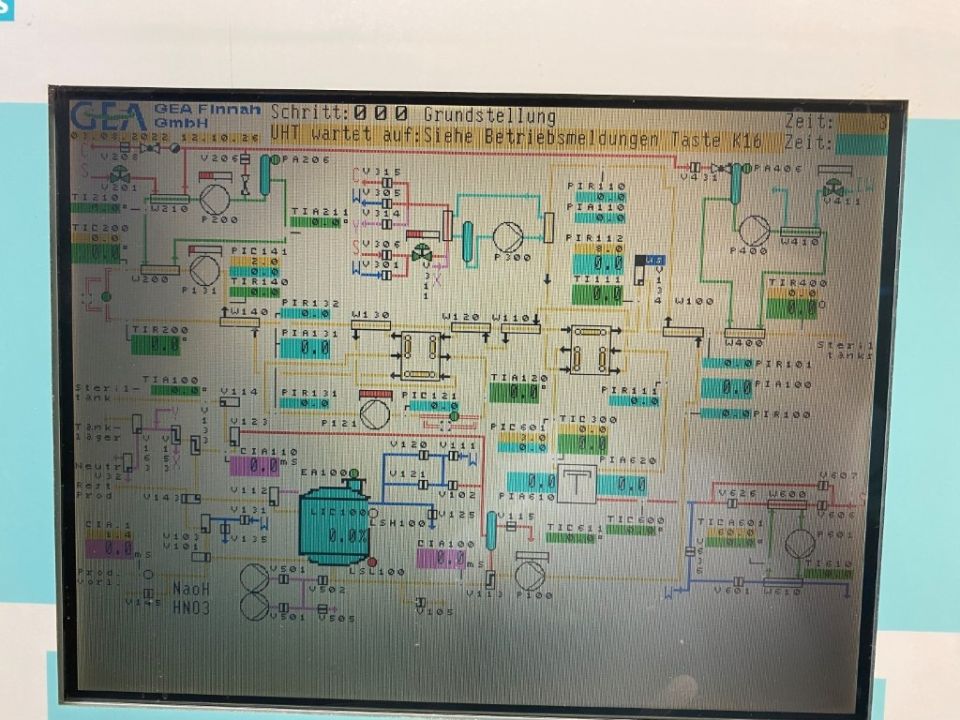

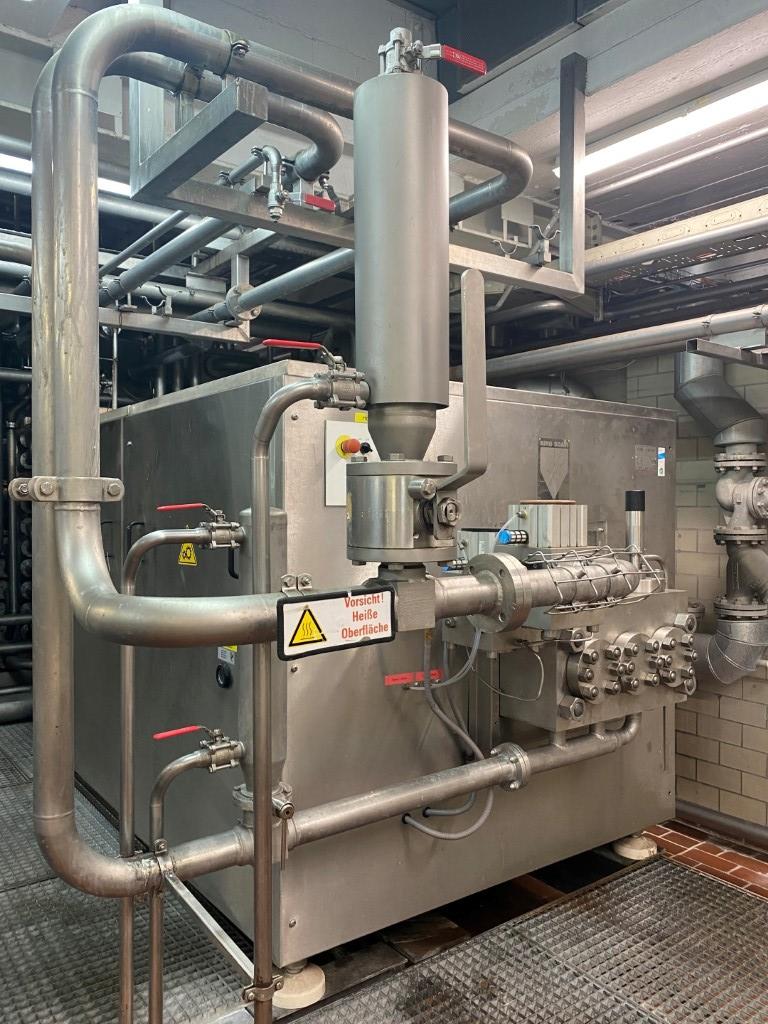

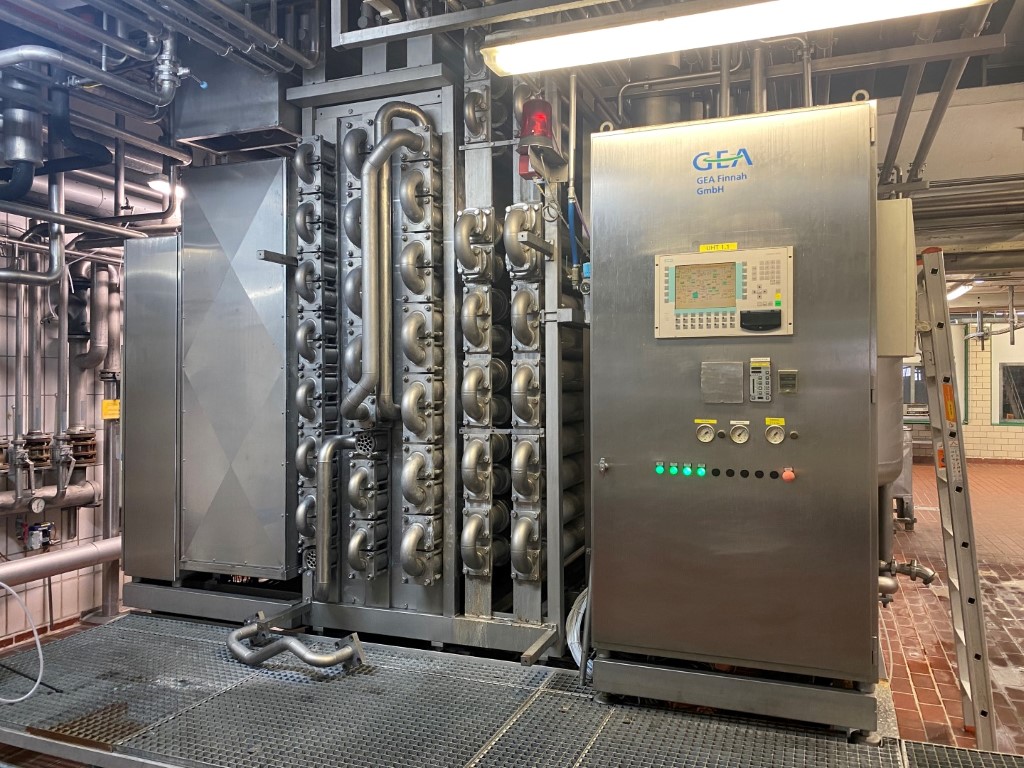

Indirect UHT unit with aseptic homogeniser. Previously used for products: UHT milk, Spray cream and coffee cream. Temperature cycle: 4 °C (in) – ± 65 °C (option: homogeniser) – 90 °C (option: protein stabiliser 180 seconds) – 120/139/145 °C (2 Holdings, 4 seconds or 120 seconds) – option: homogeniser 250 bar, 2nd stage downsteam aseptic homogenisation valve at 50 bar, out: at 26 °C / ± 8 °C . The UHT is skid mounted. The 1st stage of the homogeniser can be placed upstream or downstream and is aseptic, the second stage of 50 bar is always down stream. Indirect heating system by tubular heat exchanger in regeneration product <-> product with an outlet cooling section for cream. This is a flexible UHT for various products with 3 swingbend panels to include or exclude the 1) protein stabilizer (holding) at 90 °C - 2) Holding tube at highest temperature 3) 1st stage of the homogeniser in postion up or downstream. The homogeniser temperature can be controlled by and extra heatexchanger section. Balance tank of 610 liter, 3 product pumps Fristam 15 kW each model: FP742/2x FPH3542/205A, water pumps Fristam 11 kW + 7,5 kW, the interconnecting piping, valves and controls. Siemens S5 PLC, HMI screen and MCC box with Danfoss frequency converters direct connected on the skid. Aseptic homogeniser, make: Niro Soavi, model: NS3310H, serialnr 3619, year: 1998, capacity: 14.000 ltr/h, 250 bar, 2 stages, has been serviced in 2022 by GEA. Optional this UHT can be sold with a Thrun, 27 m3, aseptic tank with valve cluster, stocknumber: STN14969 (details can be found by this STN on our website).
