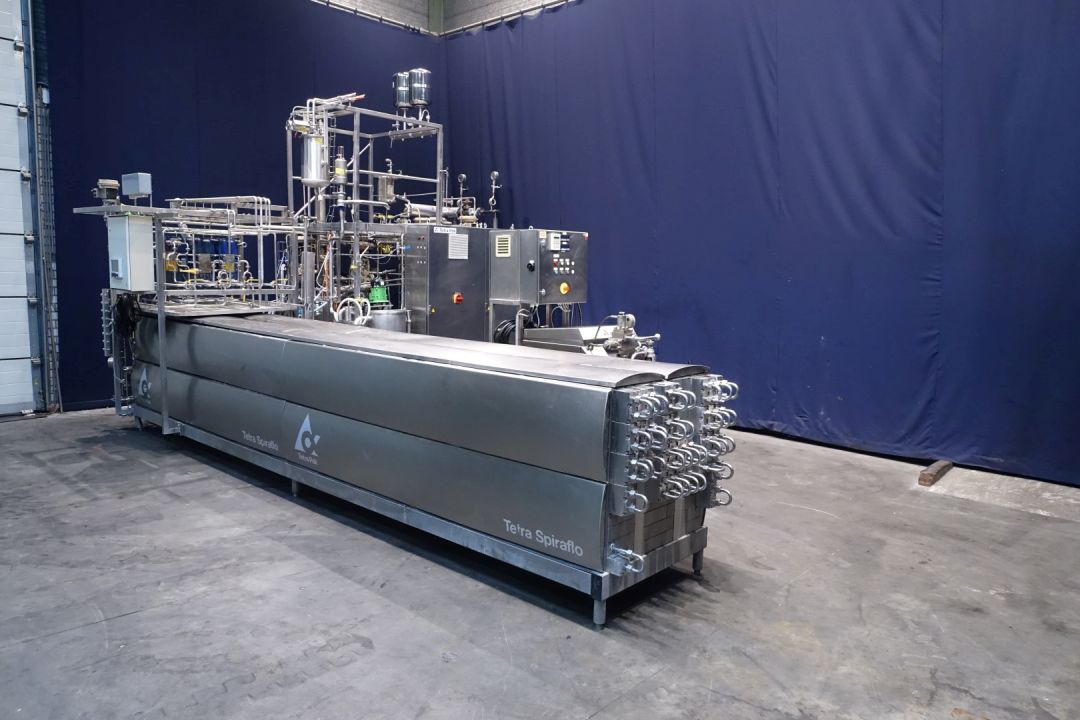

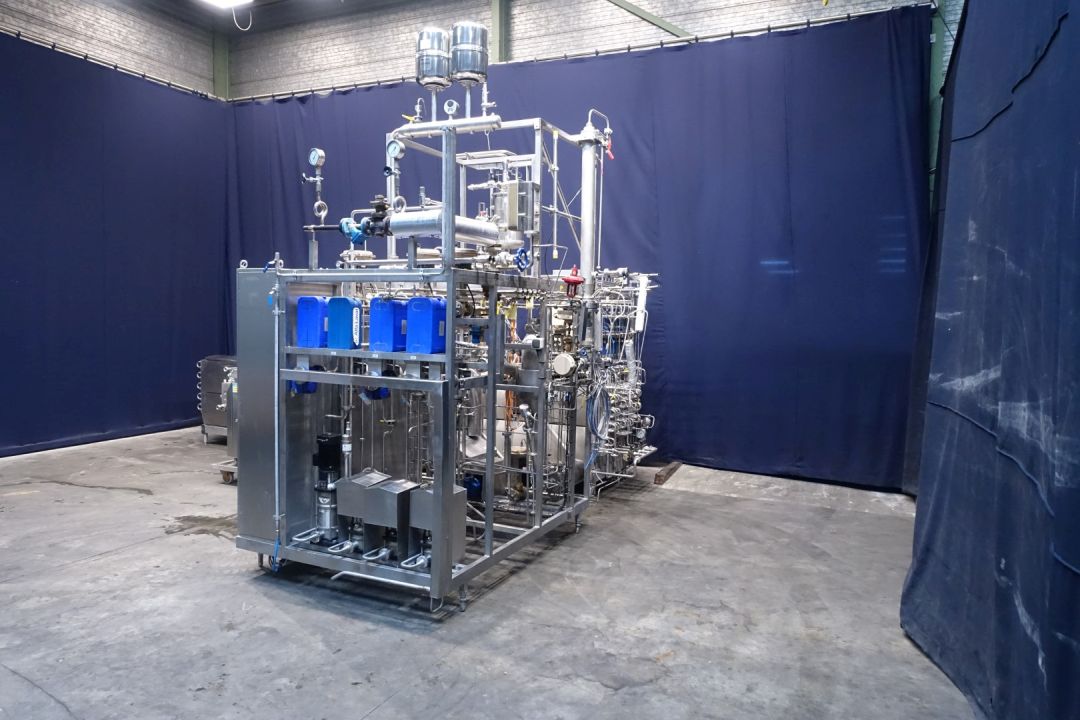

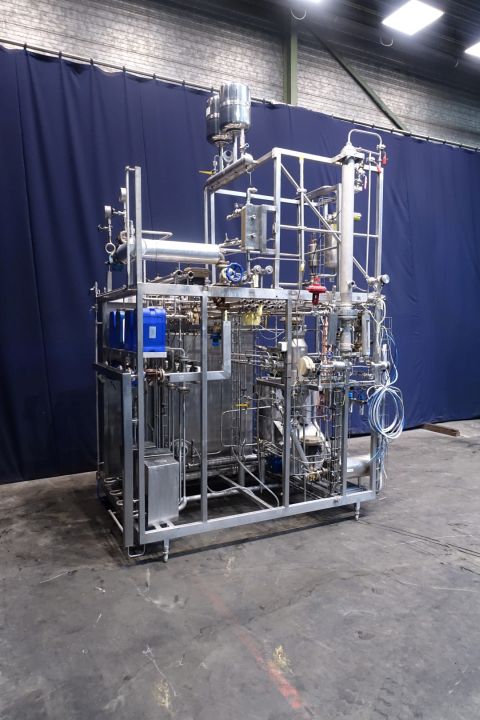

Tetra Pak Tetra Therm Aseptik Pilot PTDI 300

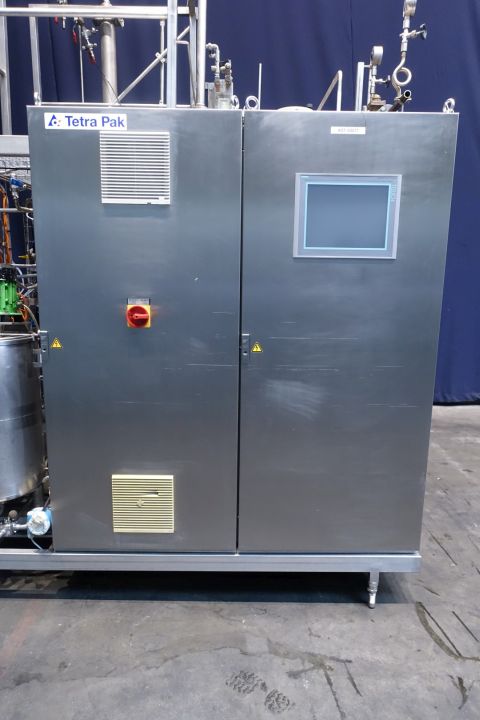

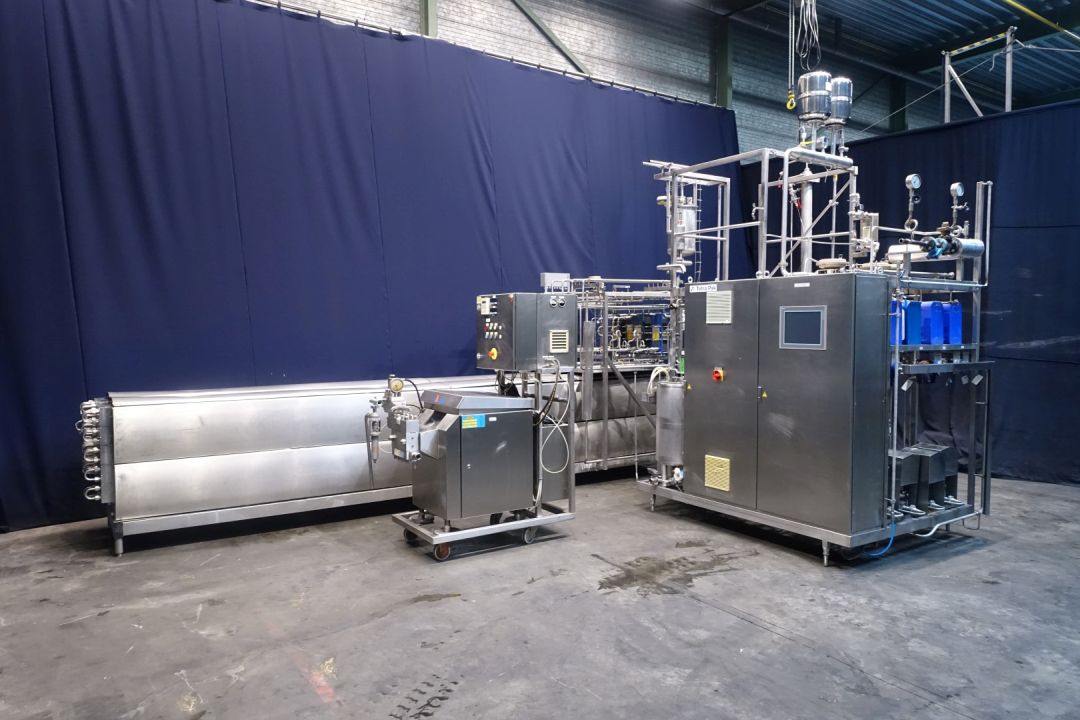

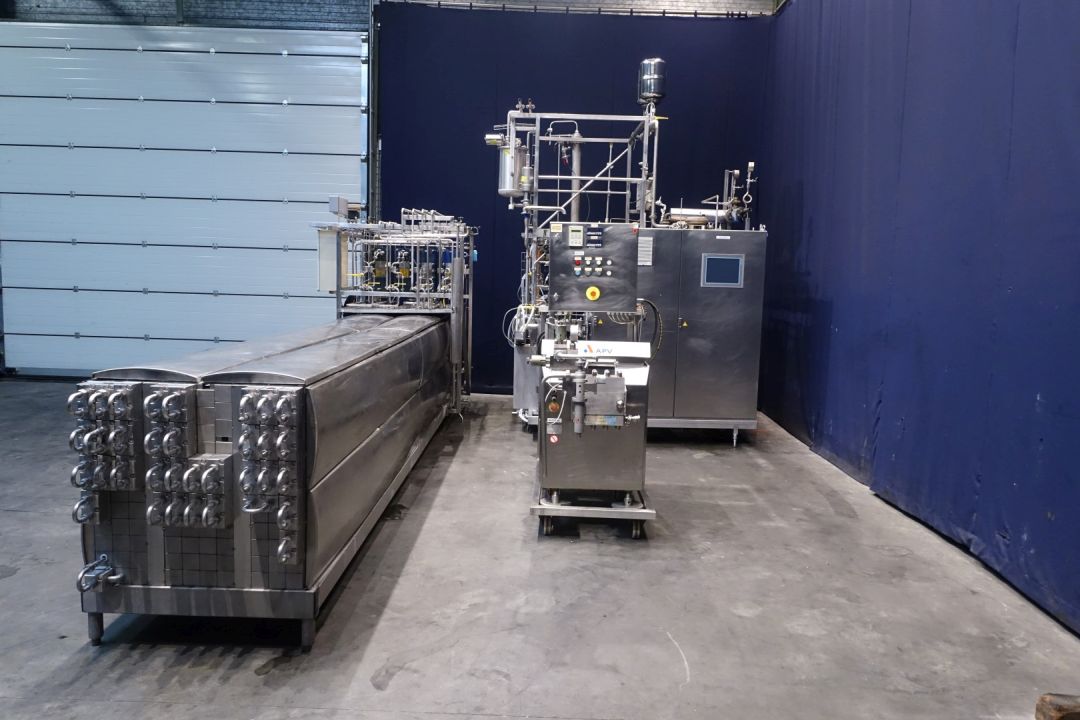

Complete flexible research pilot plant for UHT treatment of liquid foods. Heating / cooling methods: 1: indirect heating/cooling in plate heat exchangers, 2: indirect heating/cooling in tubular heat exchangers, 3: indirect heating/cooling in combination of plate and tubular heat exchangers, 4: direct heating (VTIS) with steam injection in combination of preheating in plate and tubular heat exchangers, 5: direct heating with steam infusion in combination of preheating in plate and tubular heat exchangers, 6: direct flash cooling with or without vacuum, 7: dearation with vacuum (without flash cooling). Products run on this line: milk (140 °C), condense milk (139 °C), custard products (137 °C). Capacity: ± 55 - 270 ltr/h for direct heating in reliance on the product and ± 55 - 240 ltr/h for indirect heating in reliance on the product. 2x Holding cells, protein stabilizer and highest temperature, double jacketed, with separate heating circuit. Power: 380 V - 50 Hz - 3 Ph - Ground - Neutral. Total dimensions: ± 500 x 300 x 200 cm. Weight: ± 1.800 kg. Will only be sold with a free standing, non-aseptic homogeniser (STN14873, also mentioned on the photos with this unit). Software and touchscreen updated in 2012. Including instruction manuals, spare parts manuals, electric scheme and flowchart in English language.
