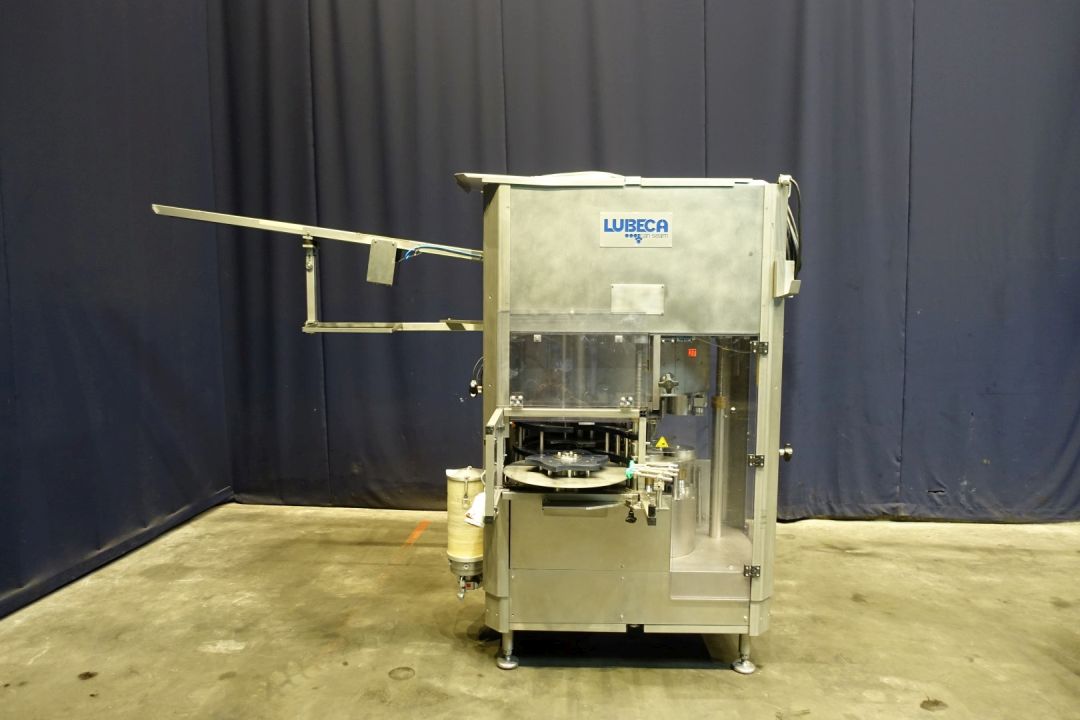

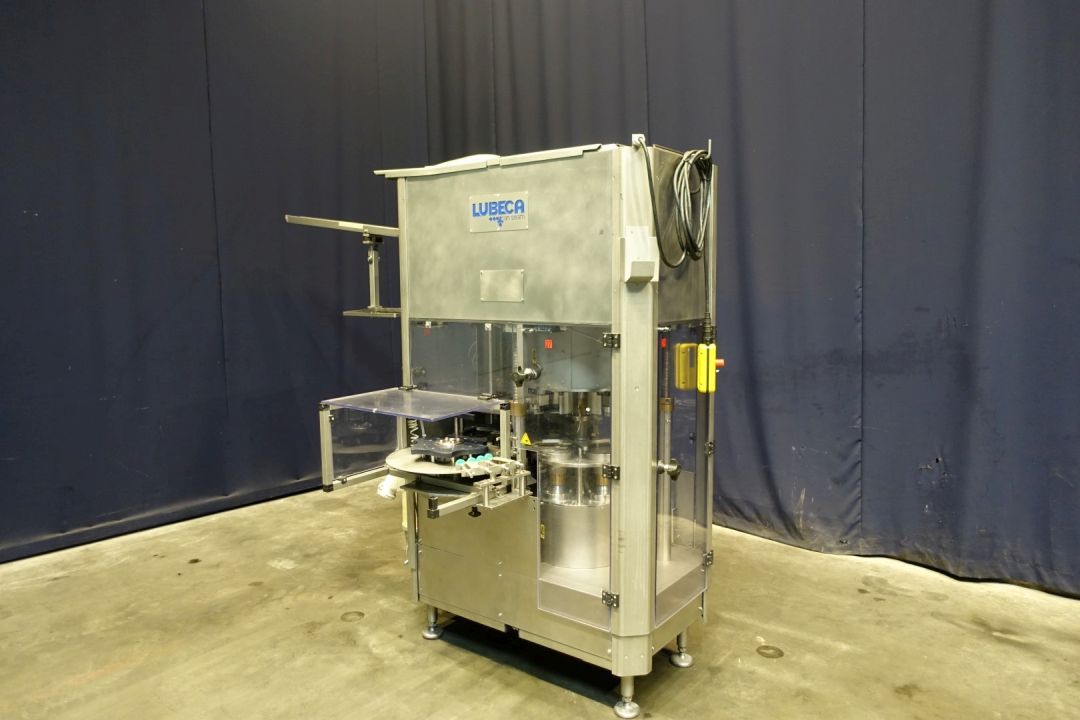

Lubeca LW504G

Metal Can closing, seaming machine. Stand-alone and fully automatic. Suitable for seaming lids onto cans, equipped with 4 seaming stations. Working principle: The incoming cans are synchronized to the machine by a specially constructed infeed gear-wheel. An electro-pneumatic system manages the required feed of lids as required (“no can –no lid”). After separation of the lid in the lid magazine, it will be fed to the transfer point of lid & can via the lid/can transfer turret. During its cam-controlled upward movement the filled can receives the lid, which was laid out in a special lid slide. Can and lid are clamped between lifter plate and seaming head.The can is seamed by a start roll and finish roll while the cans are rotating during the seaming process. After the seaming process, the cans are handed over to a outfeed conveyor. Can diameter: 127 mm. Range of can diameter according brochure: 99-153 mm and height 20-250 mm.Electrical: 400 V - 50 Hz - 3,5 kW. Total dimensions: 130 x 120 x 240 cm. Machine is without control panel!
