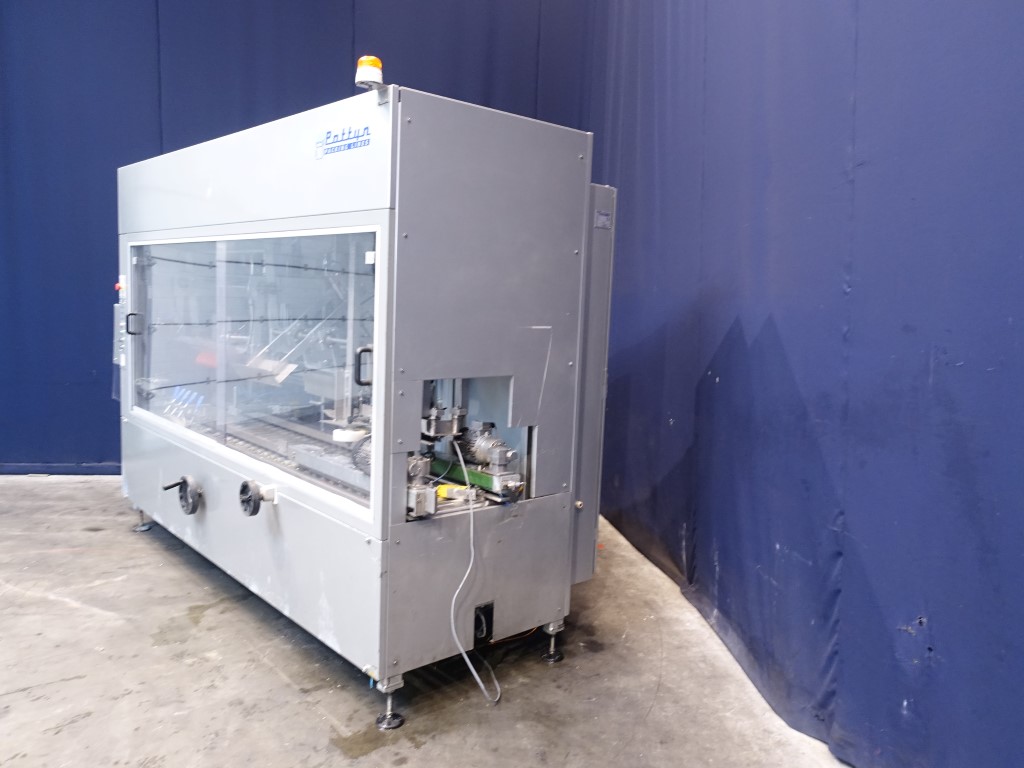

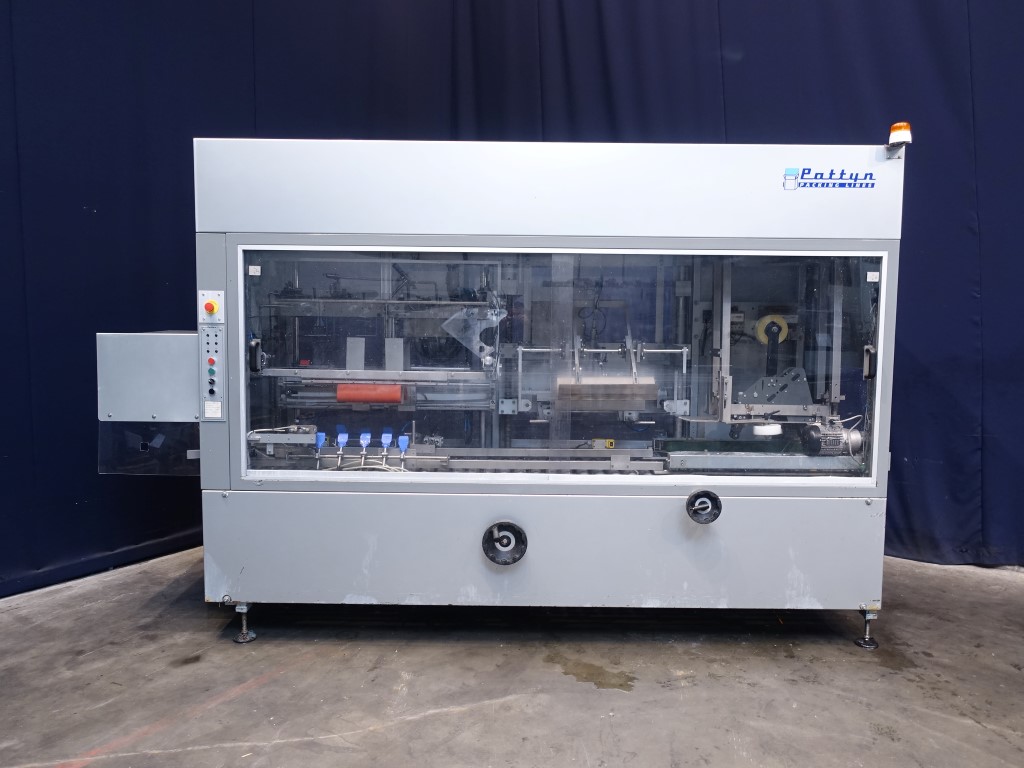

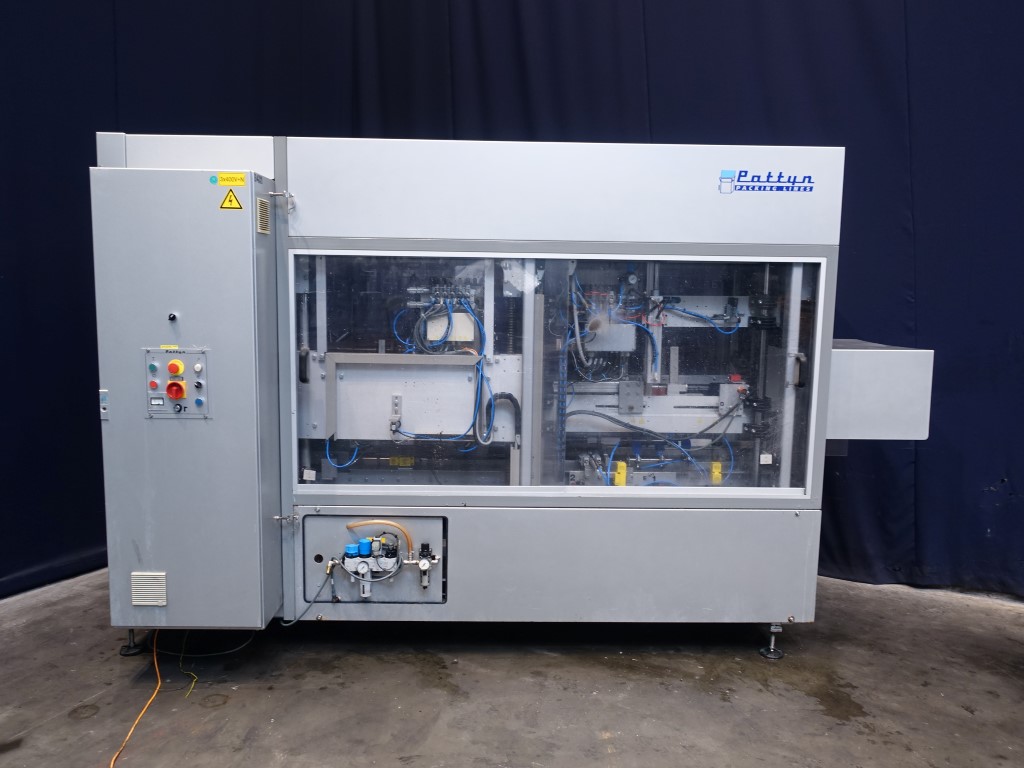

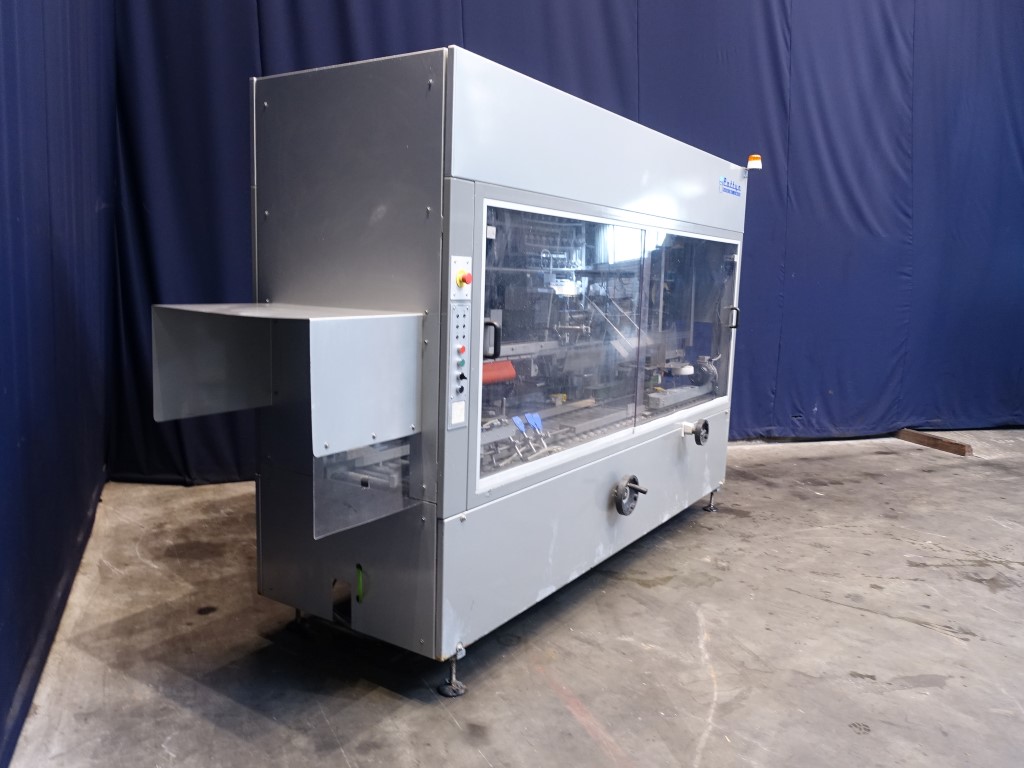

Pattyn PI-3 SL

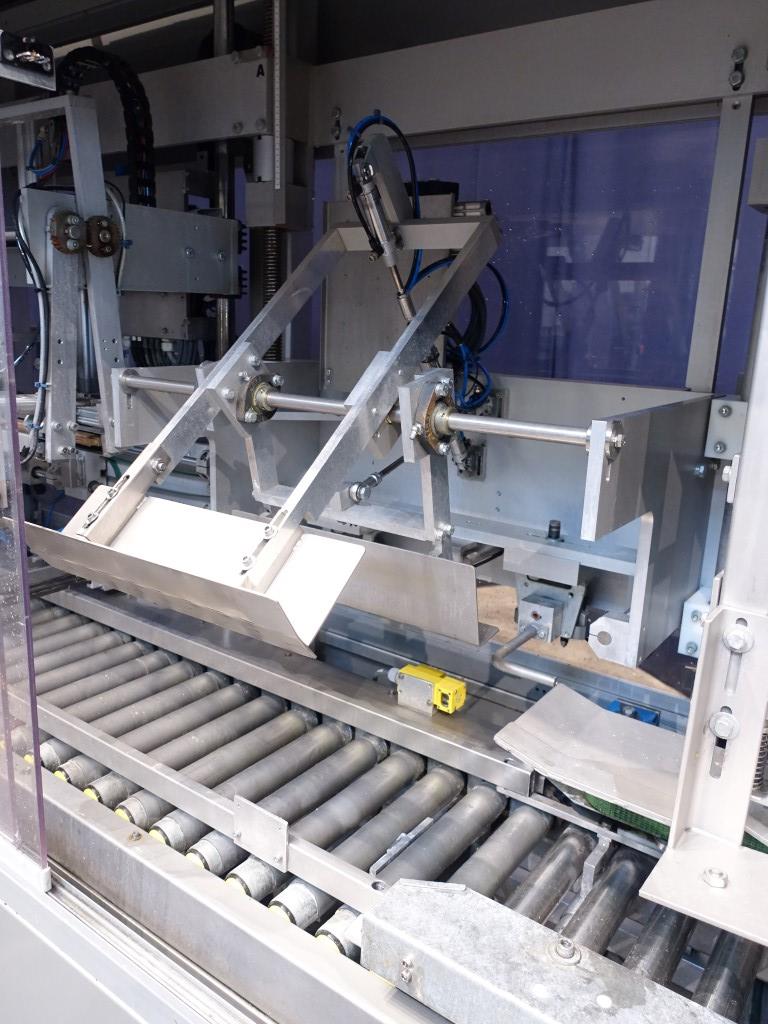

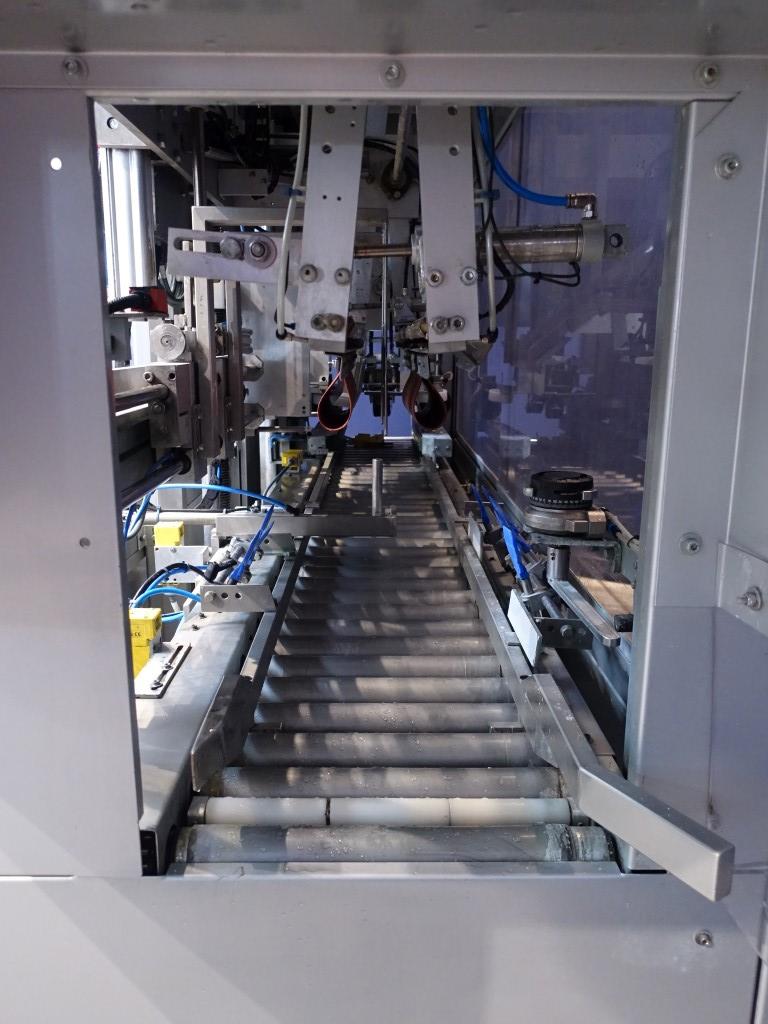

Bag sealing en box closing machine. Infeed of the already filled bag in a carton box. The bag has still a overlay over the side of the box. The overlay will be get straigth up by blowing air. The bag will be sealed as low as possible above the box (a second seal is optional, not on this machine). The box will be closed and the top will be taped. Capacity: 7 - 8 boxes/minute. Foil material: Polyethyleen (PE). Max. sealing temperature: 130 °C. Dimensions boxes: min: 300 x 200 x 200 mm and max: 400 x 300 x 450 mm. Electrical: 3x 400V - N - 50 Hz - 3 kW. Compressed air: 6 bar - air usage: 50 NL per box. Including controls and documentation. Total dimensions: 320 x 120 x 230 cm. Weight: 900 kg. Was working in combination with STN14513 and STN14517.
