Alfa Laval Steritherm B7

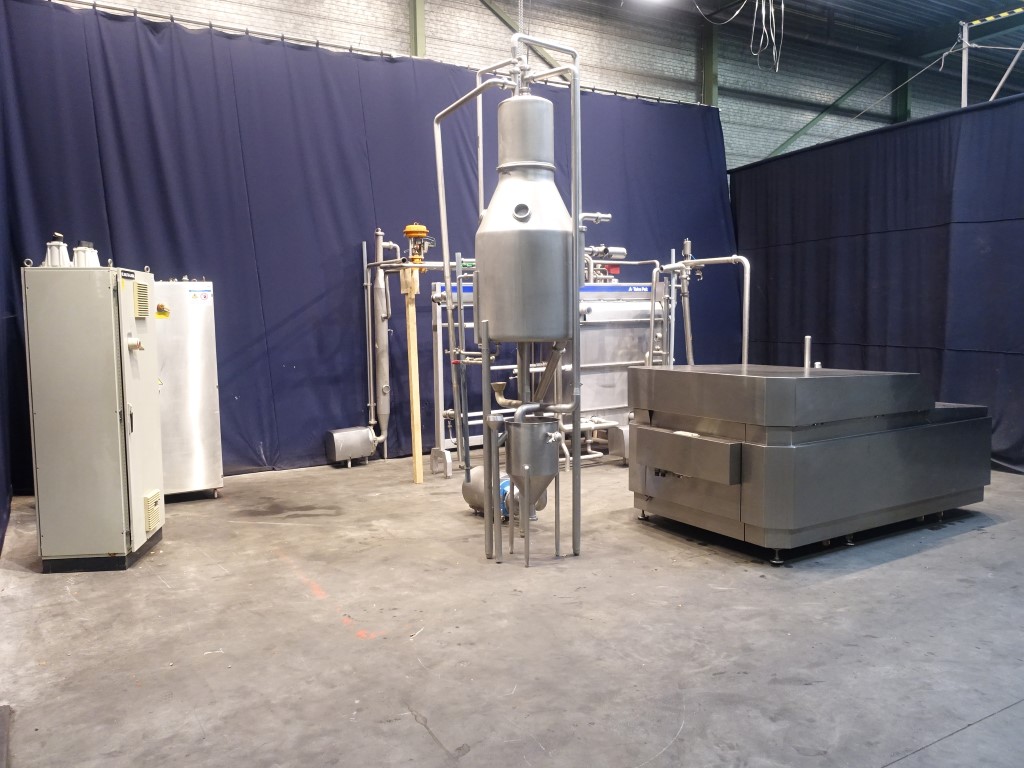

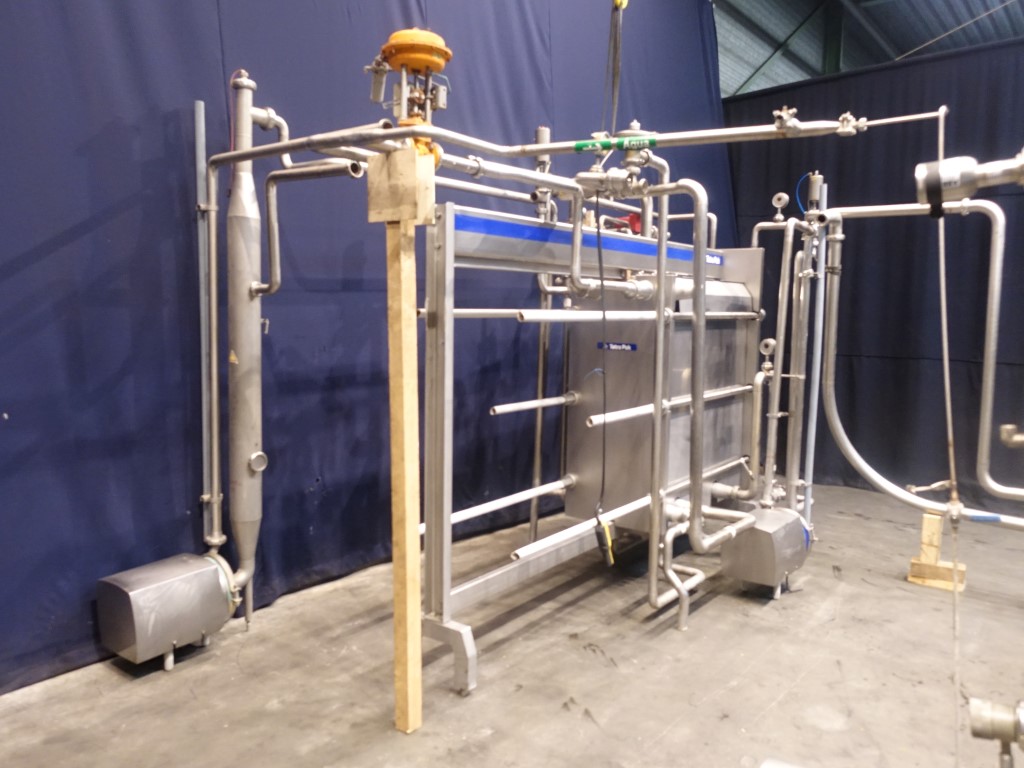

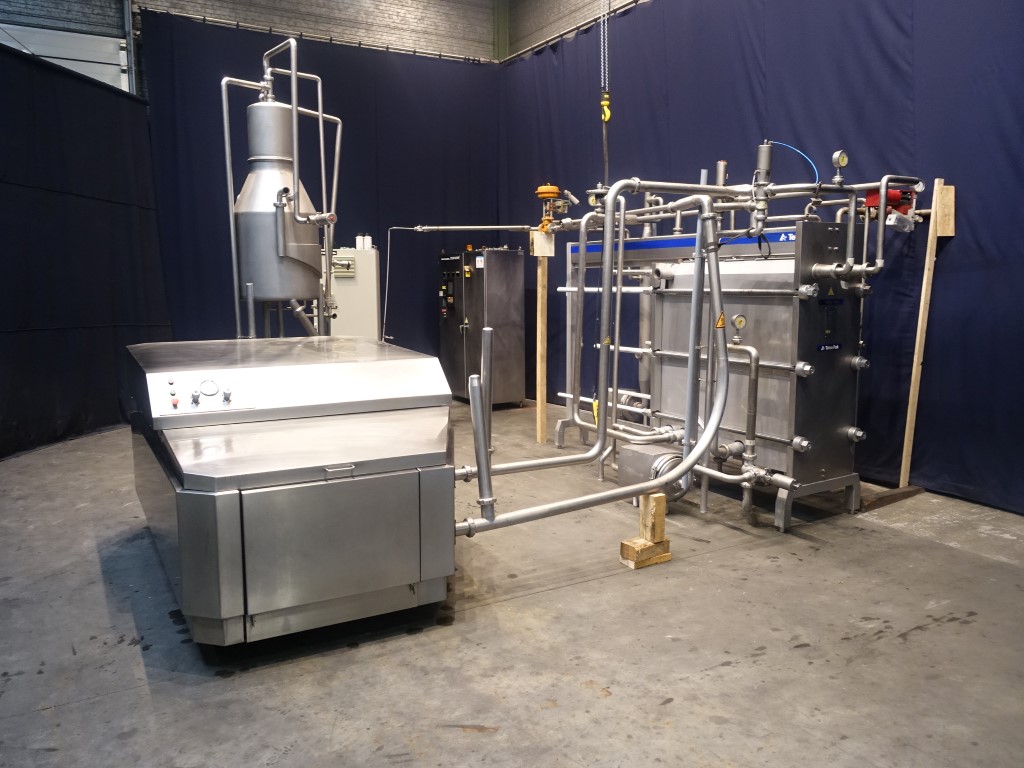

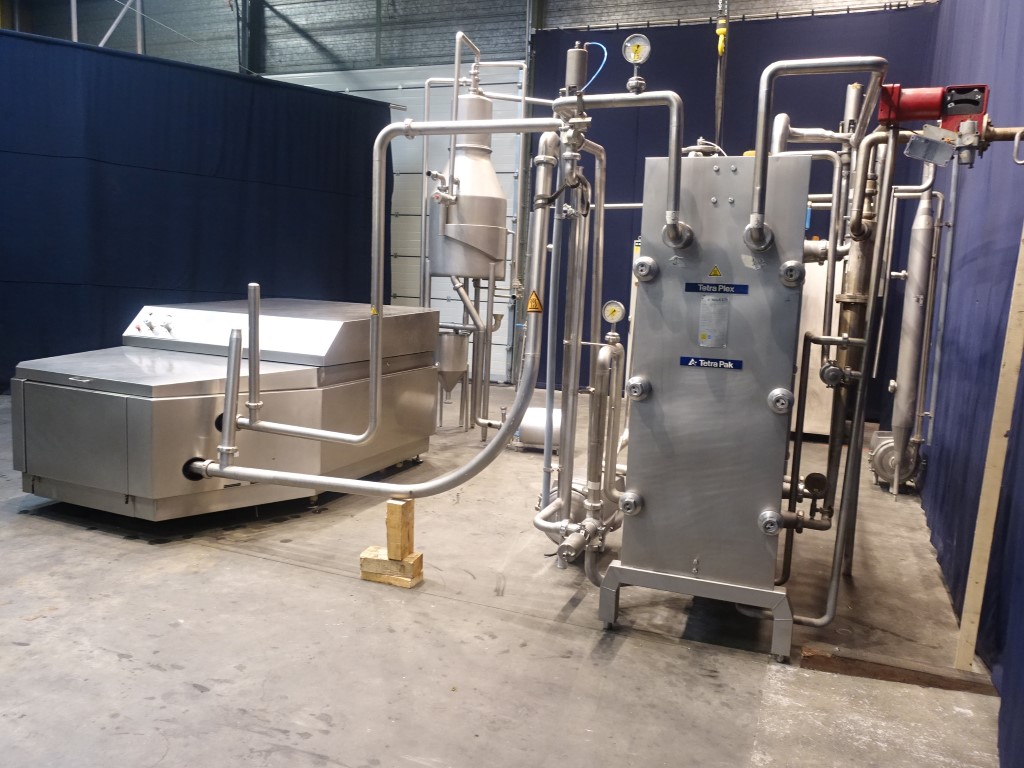

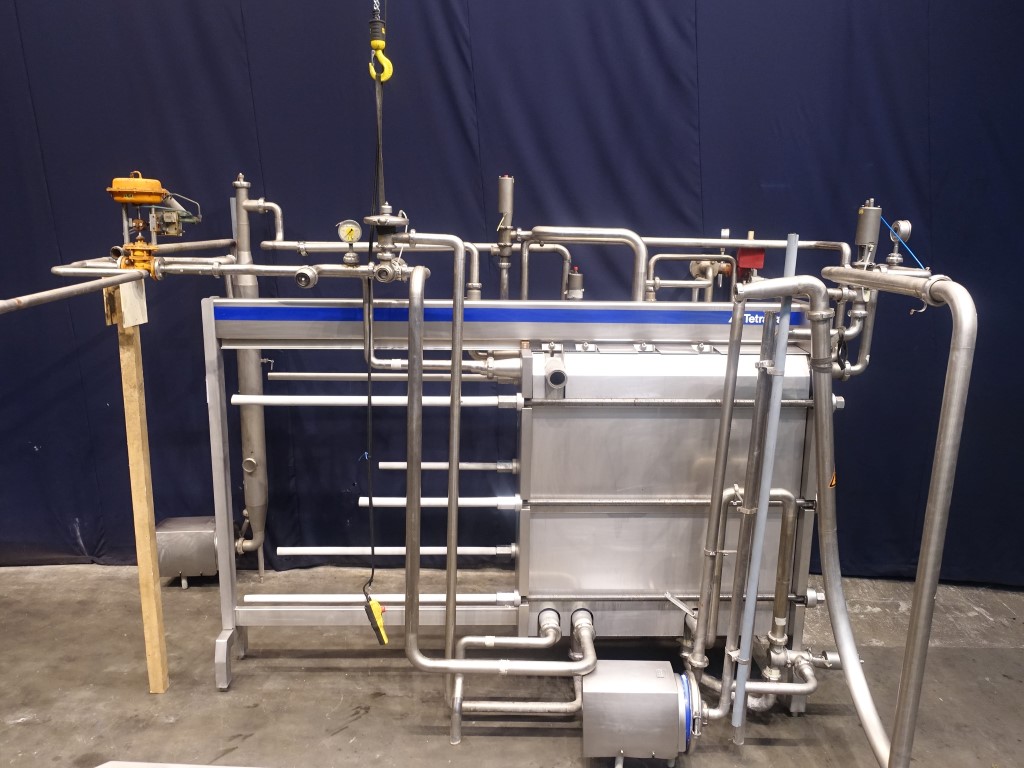

Complete UHT unit with indirect plate heating system used for 13% whole milk. Temperature cycle: 5 °C (in) - 75 °C (dearator - homogeniser) - 137 °C (holding 4 seconds) - 20 °C (to sterile tank / filler) or 5 °C (return line to balance tank). Line existing out of: plate heat exchanger (Alfa Laval, C10-KSM, 30107-33672, 2011, volume 501 liter, pressure: 16 bar, 5 sections), dearator (Alfa Laval, DC750 EC, 32142-2005), upstream homogeniser (Tetra Pak ALH30, 500.131, 1993, pressure up to 250 bar, 2 stages, plunjer diameter 56 mm, stroke 140 mm, cone valve design, motor 115 kW - 1485 rpm - 50 Hz), holding tube at 137 °C for 4 seconds, indirect hotwater system (medium Steam 600 kg/h, 6 bar), most of interconnecting piping, valves, pumps and control panel with OPC5 Sattcontrol. P&ID and manuals available. Excluding: leveltank, product pump and vacuumpump from dearator.
