Food Tech Process Tank 250 L
Tanks
Process tanks
STN14215
Food Tech
Process Tank 250 L
1805-9809
1998
250 liters

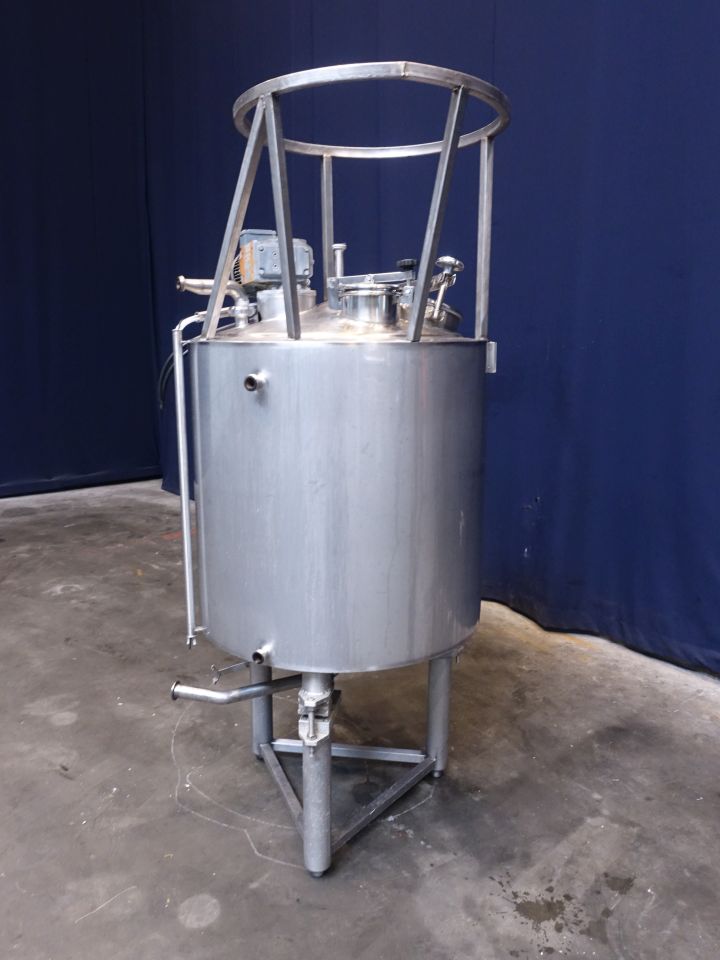

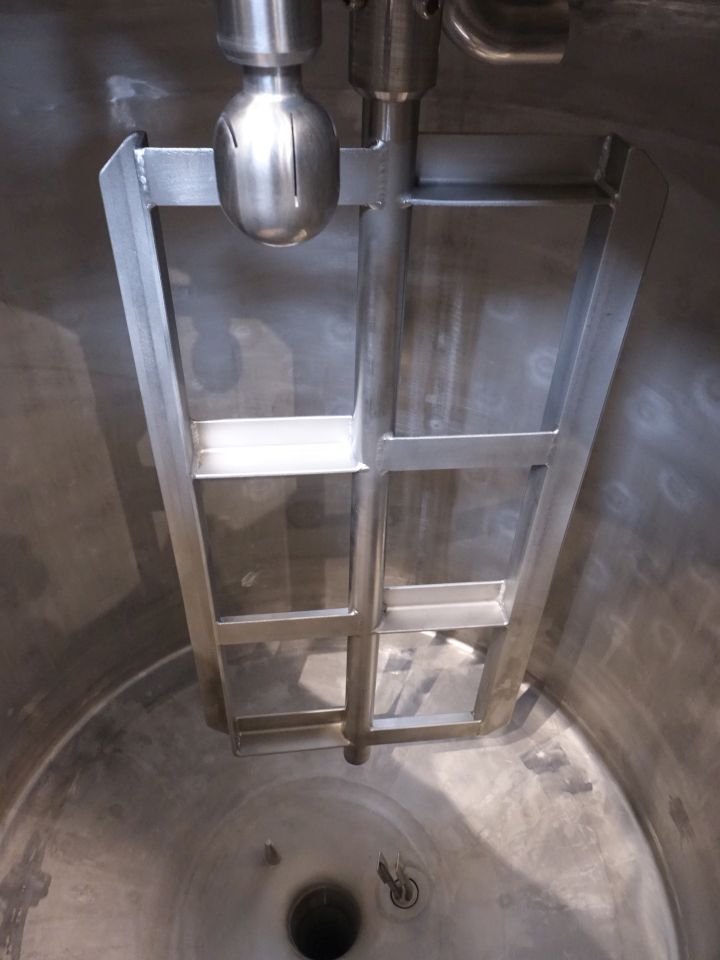

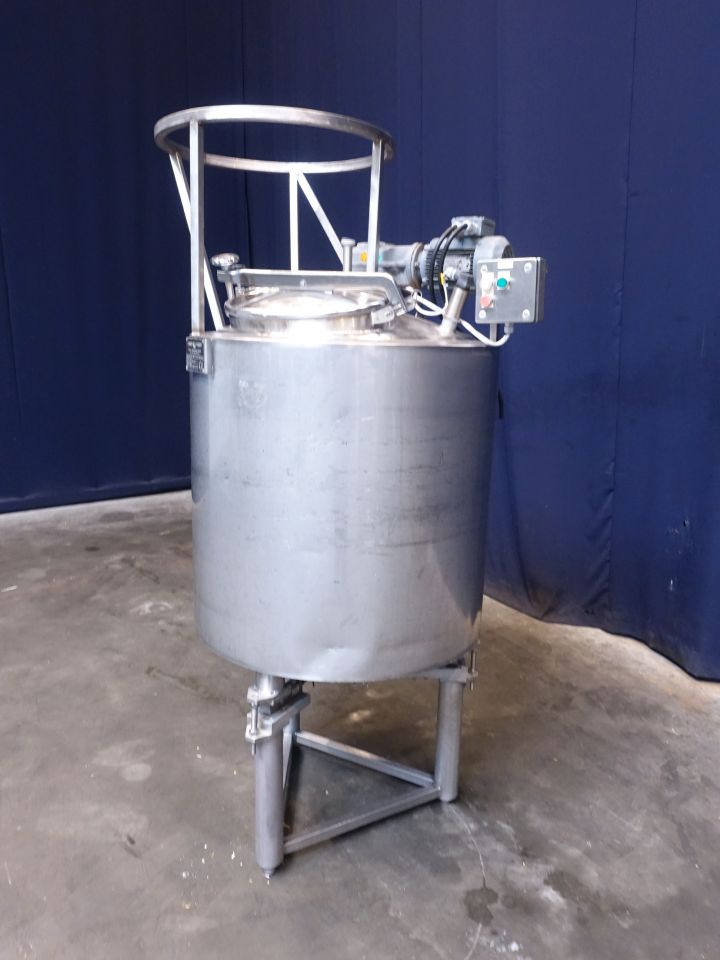

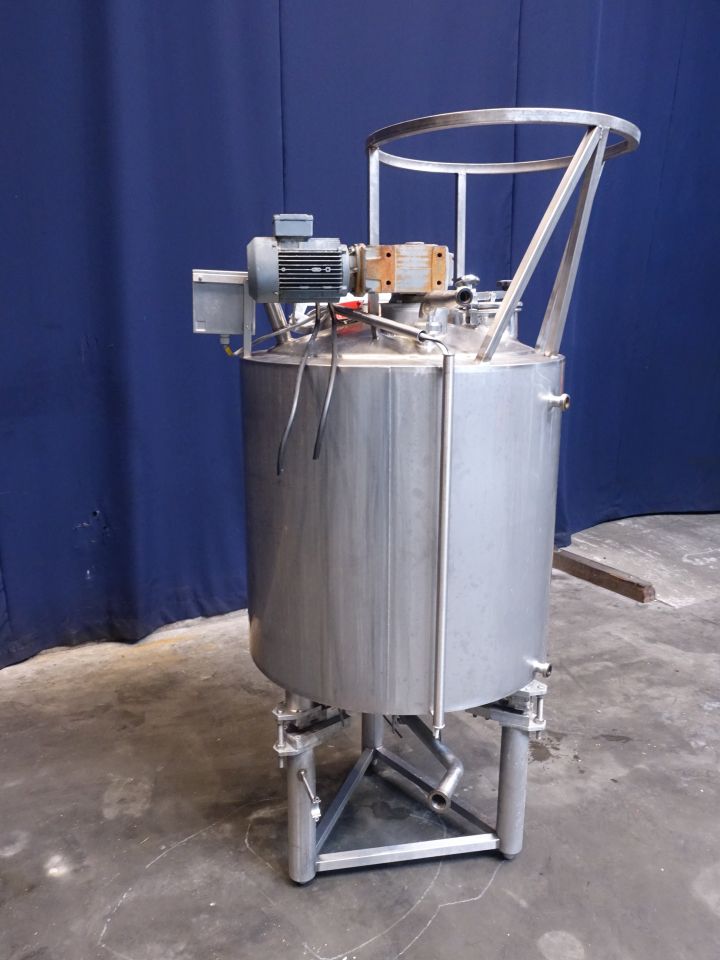

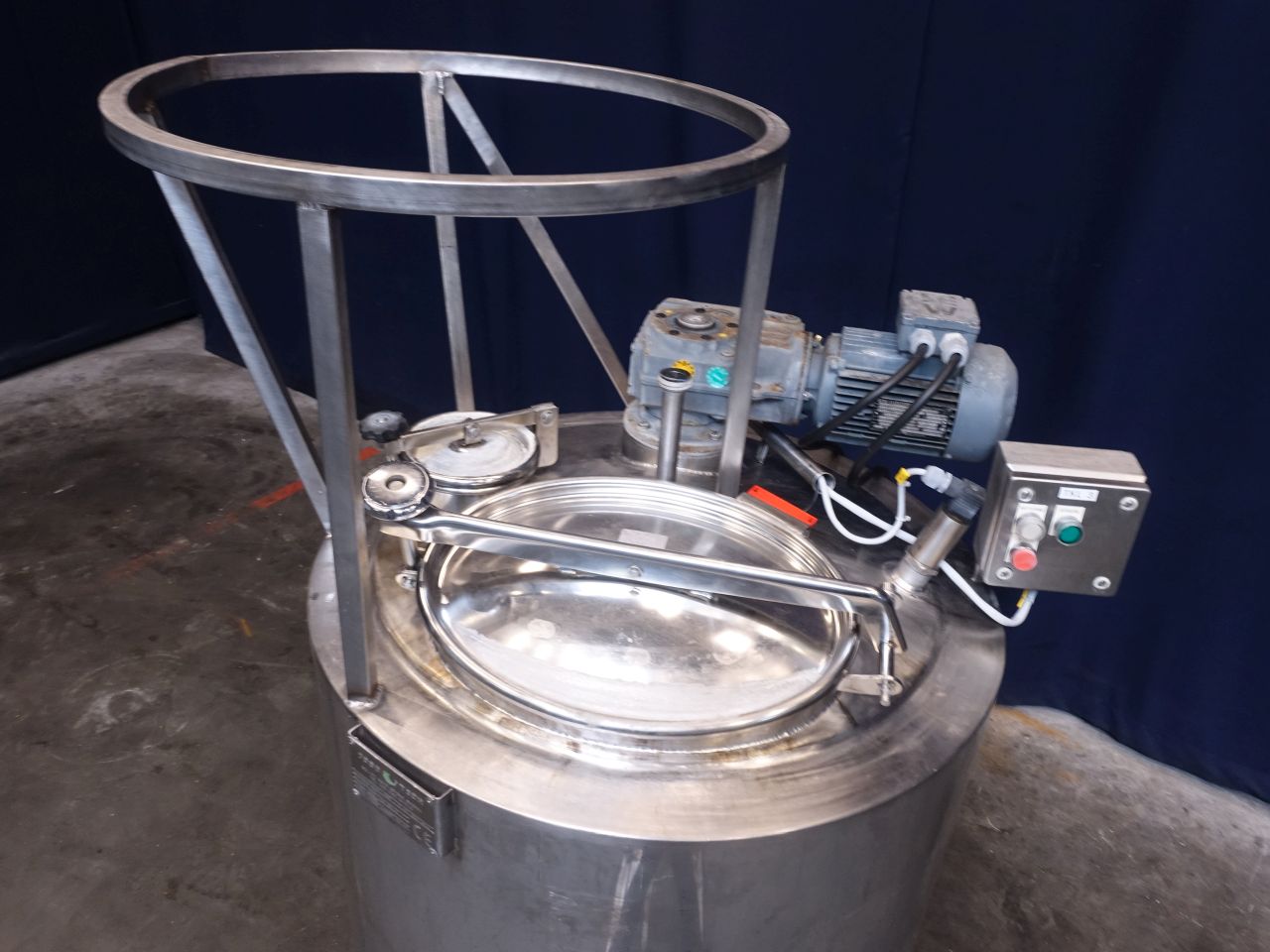

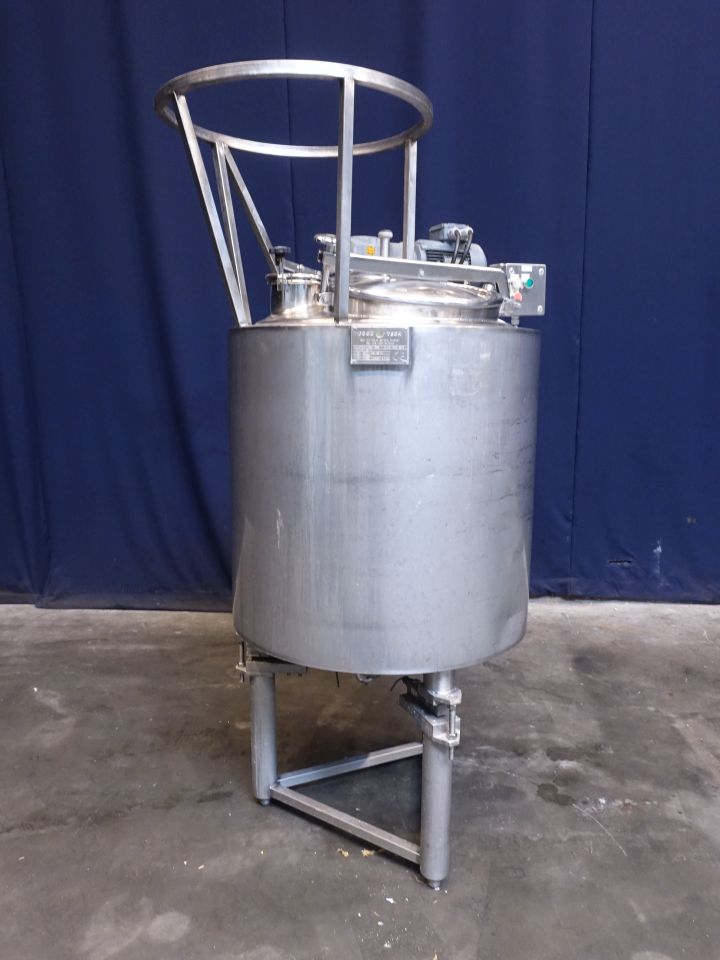

Double jacketed process tank. Top driven fence agitator. Motor power: 0,63 kW - 1,5 A - n1: 2700 rpm - i: 44,46 - n2: 61 rpm. Pressure in jacket: 3 bar. Insulated side and bottom. Pressure in tank atmospherique. Conical down bottom. Product outlet 1,5'', SMS and outlet height: 50 cm. Connections for: PT-100 tempemperature sensor, high and low level. 1 CIP rotary spray bowl. Manhole in top, oval, 440 mm. 3 Adjustable feet with 3 loadcells. Inside dimensions of tank: Ø 700 mm and height 730 mm. Total dimensions: 90 x 130 x 200 cm.
