Het Stempel BV Lofator
Heat exchangers
Tubular heat exchangers
STN13994
Het Stempel BV
Lofator
94.03.21-01
1994
- capacity

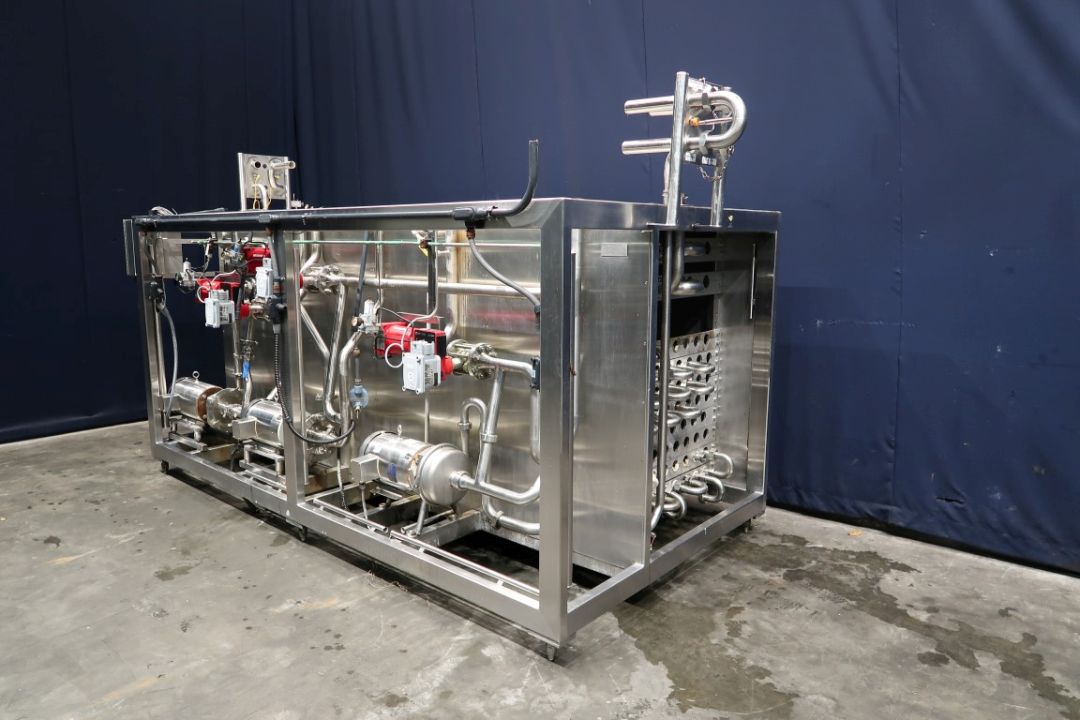

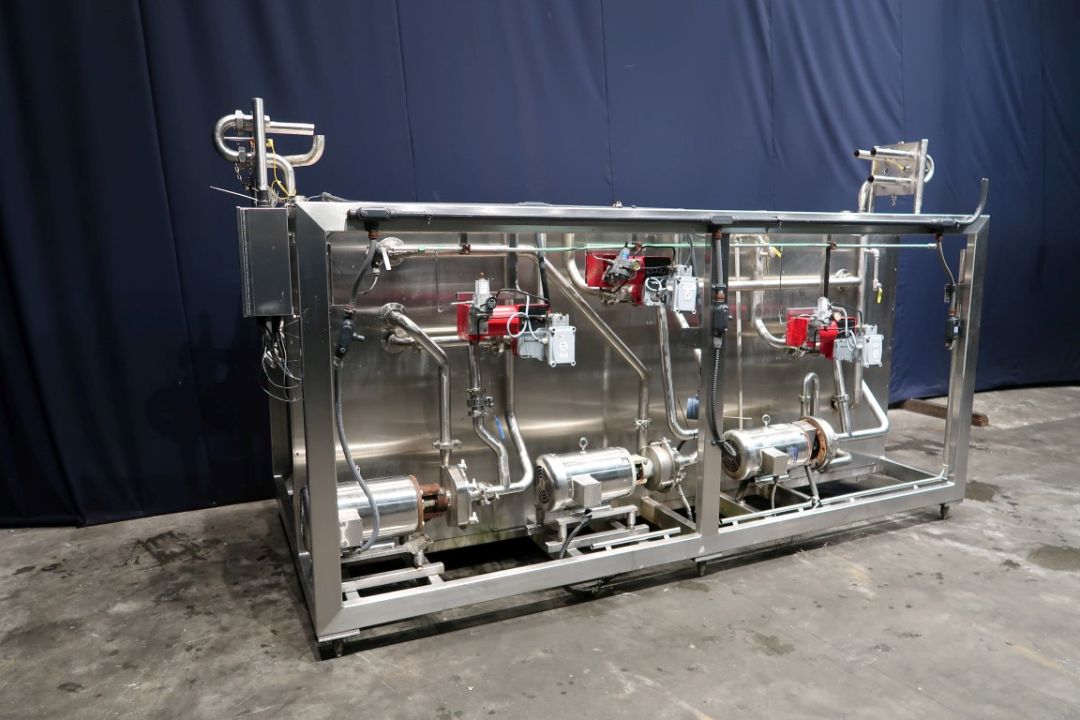

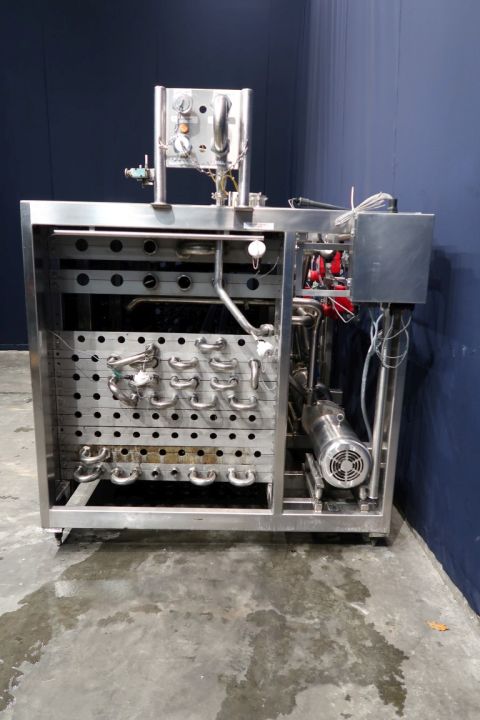

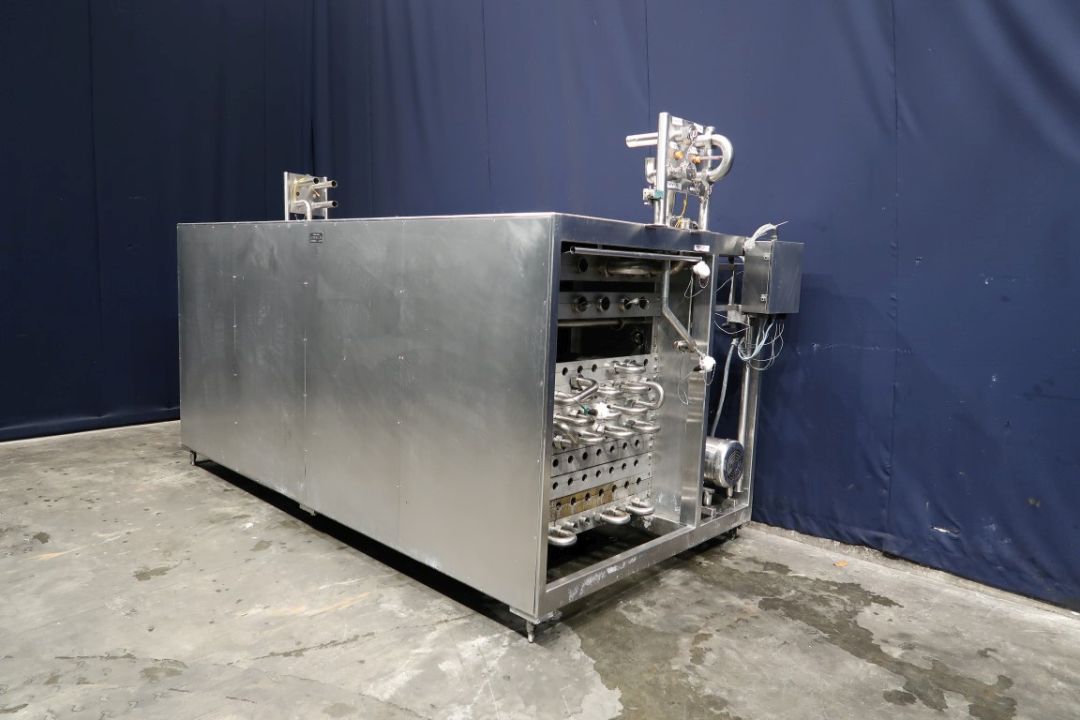

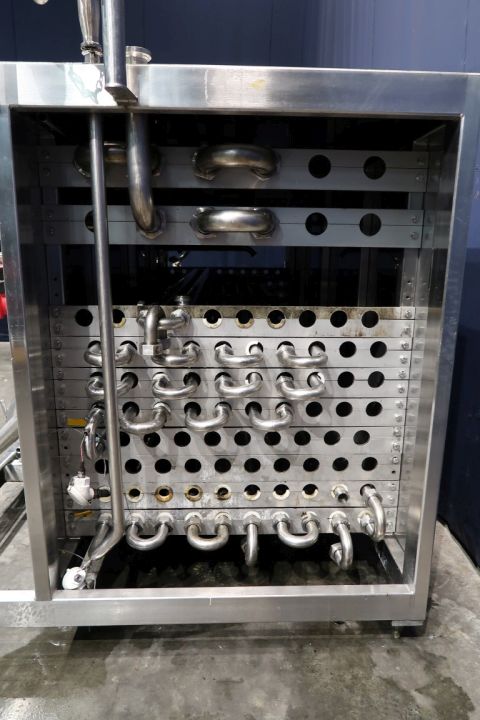

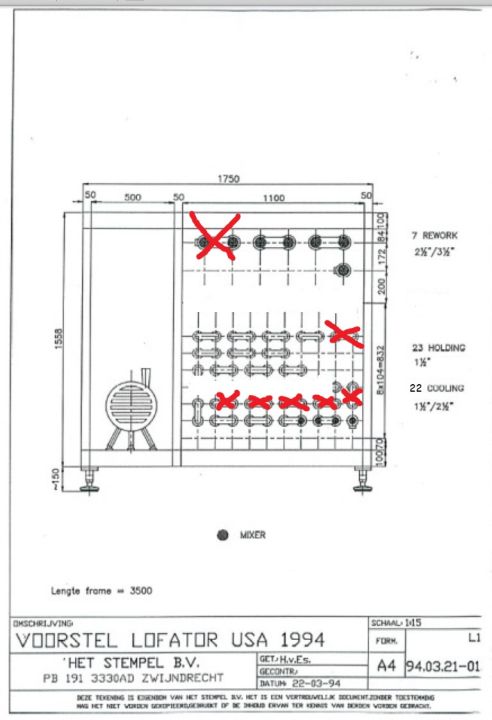

Shell and tube heat exchanger Monotube. 7 tubes (2,5'' - 3,5''), 3 meter, all with Swirreld tube mixers. 22 Tubes (1,5'' - 2,5''), 4 pieces with swirreld tube mixer, 3 meter. 23 holding tubes (1,5''), 3 meter. 3 centrifugal pumps, American standards. Fristam, FPX3532-150, 7,5 HP, connections: 2,5'' / 2'' try clamp. Fristam FPX7429, 7,5 HP, connections: 2,5'' / 2'' try clamp. APV, W50-25, 7,5 HP, connections:2,5'' / 1,5'' ISS. 5 temperature transmitters. 3 Control valves for water (Masoneilan). Several tubs has been taken out, used for other projects (see drawing).
