Waukesha 030 U1
Pumps
Lobe rotary pumps
STN13778
Waukesha
030 U1
1000002786868
2012
1.300 liter per hour

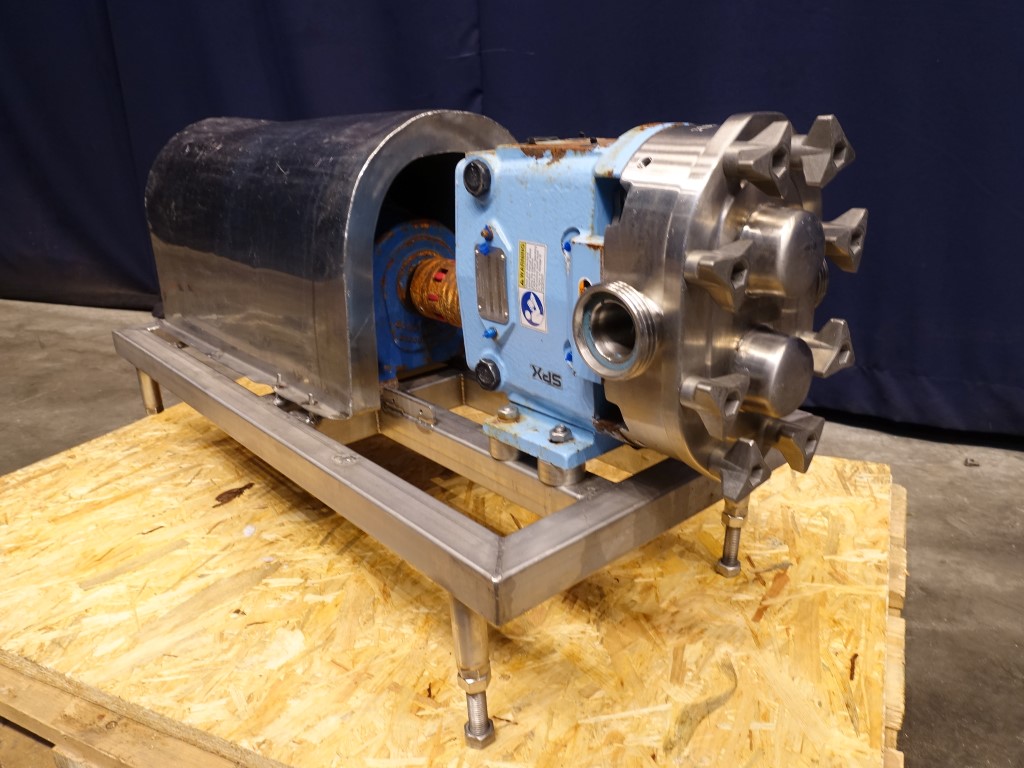

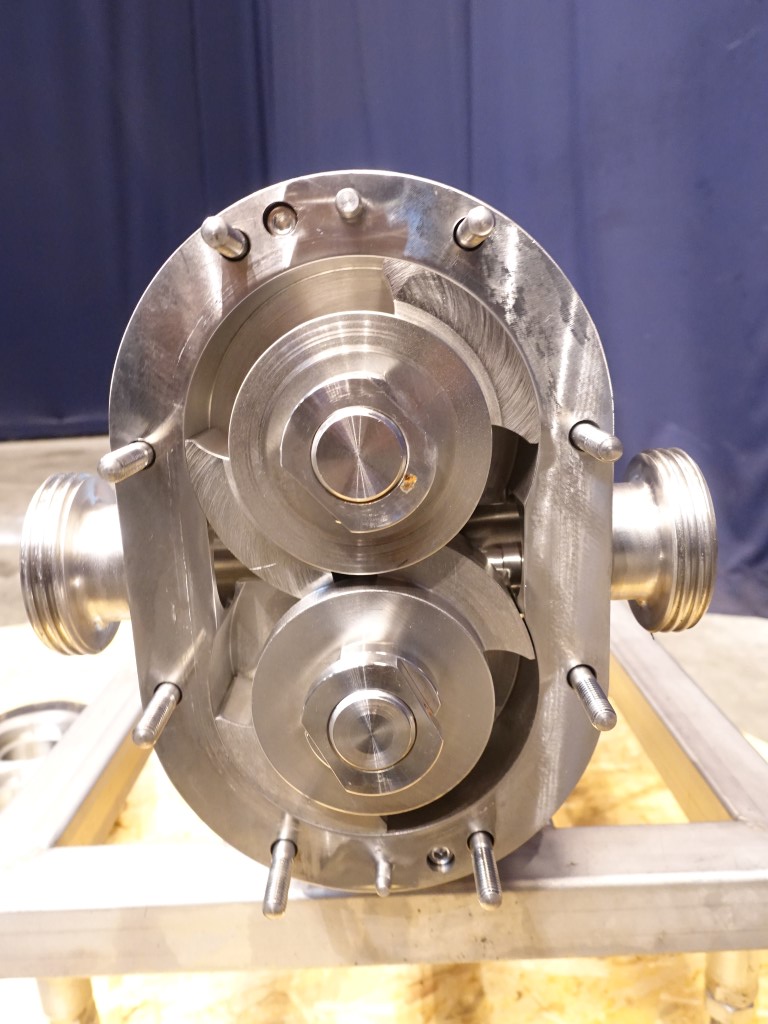

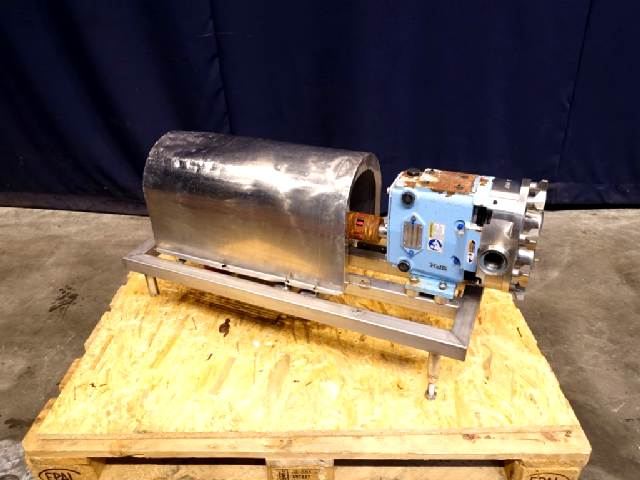

Lobbe pump with duo stainless steel lobbes. Diameter lobbes: 110 mm. Displacement per revolution: 0,227 ltr. Nominal capacity 8,2 m3/h. Maximum: 600 rpm. Current drive work: motor: 1,1 kW - 2,71 A - n1: 1390 rpm, n2: ± 95 rpm (estimated, typeshield not readable). Stainless steel cover over electric motor. Design pressure up to 13,8 bar. Mounted on frame with adjustable feet. Connections: 1,5'' / 1,5'', DIN.
