Sommer & Strassburger Membraline

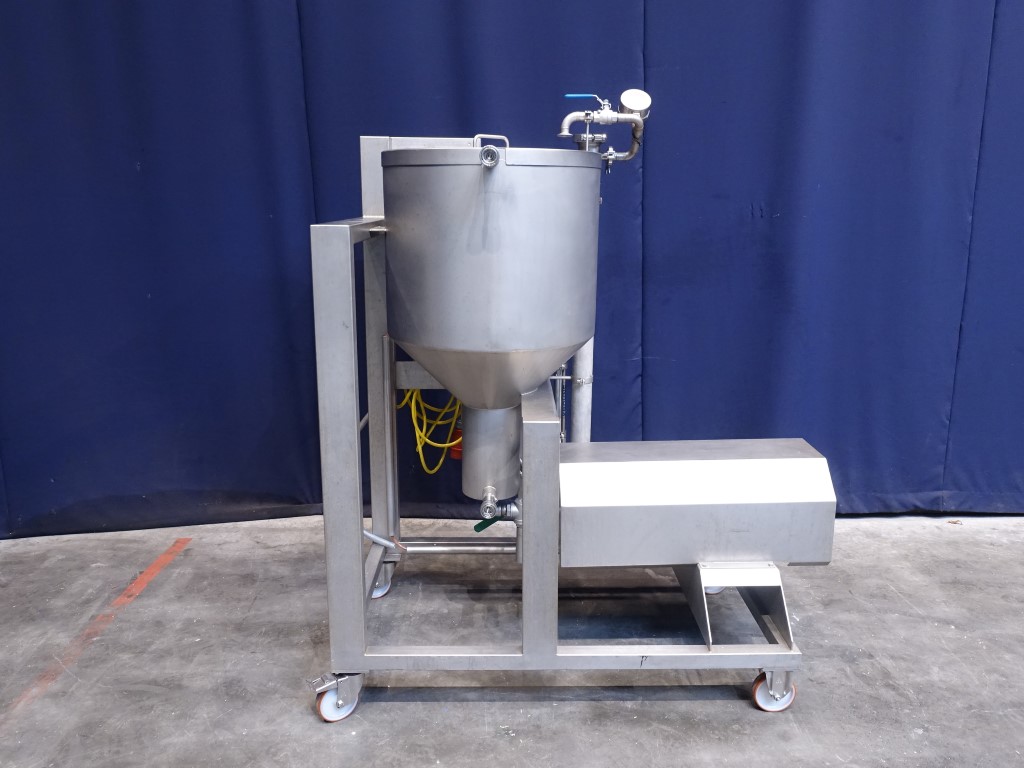

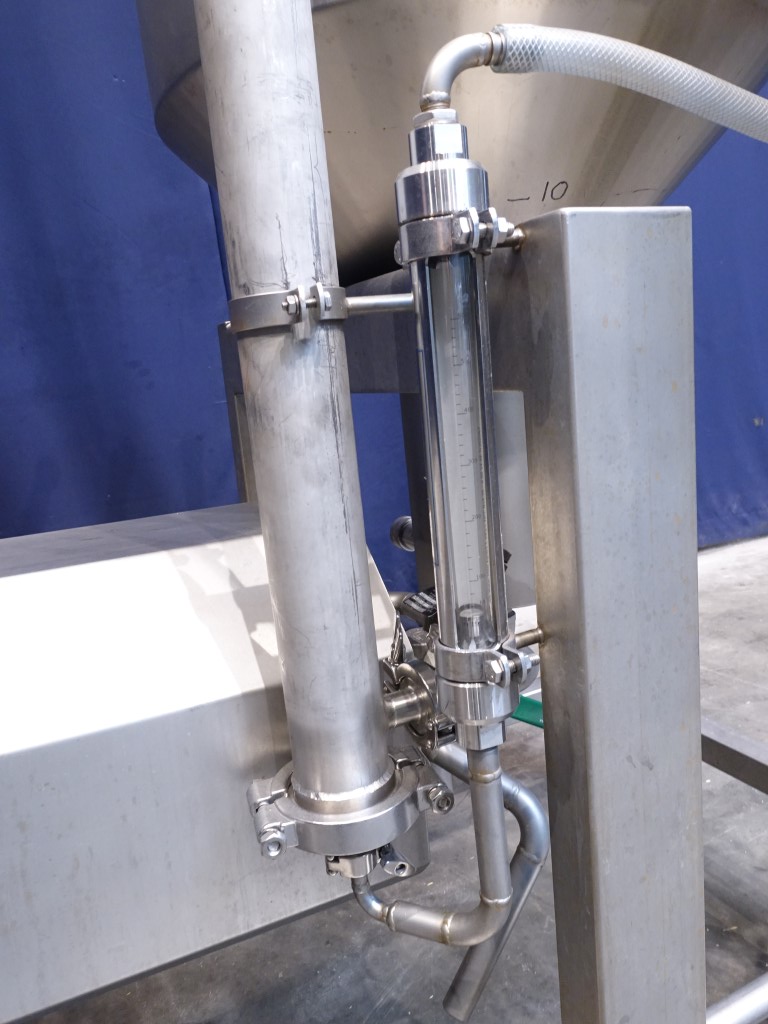

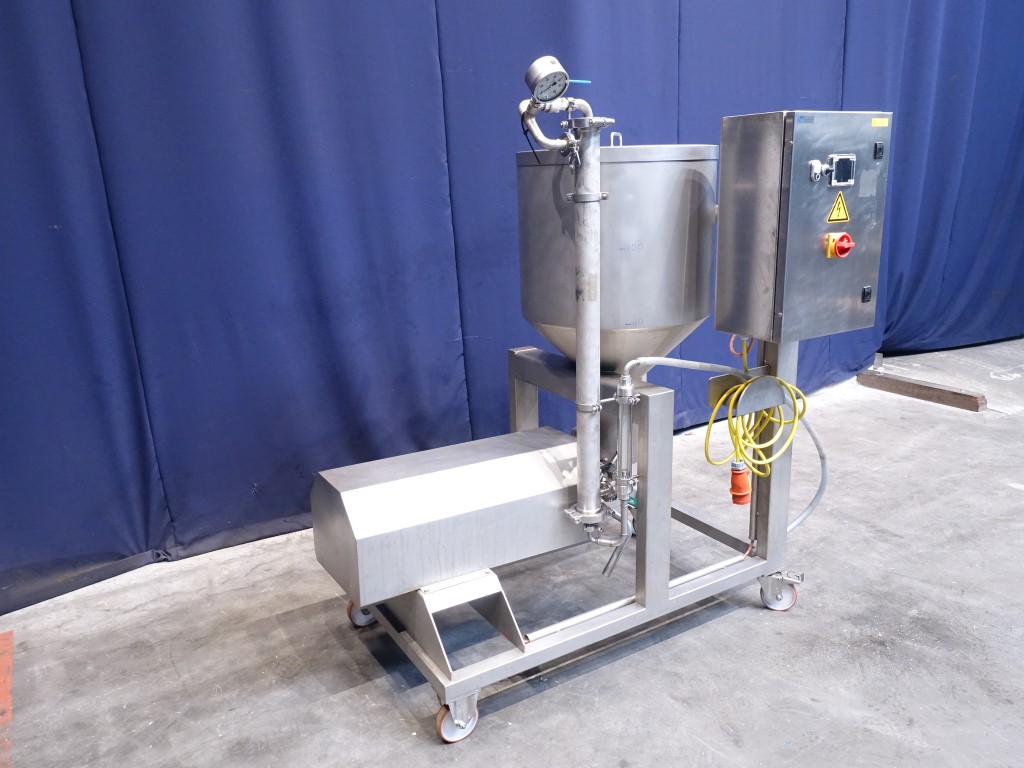

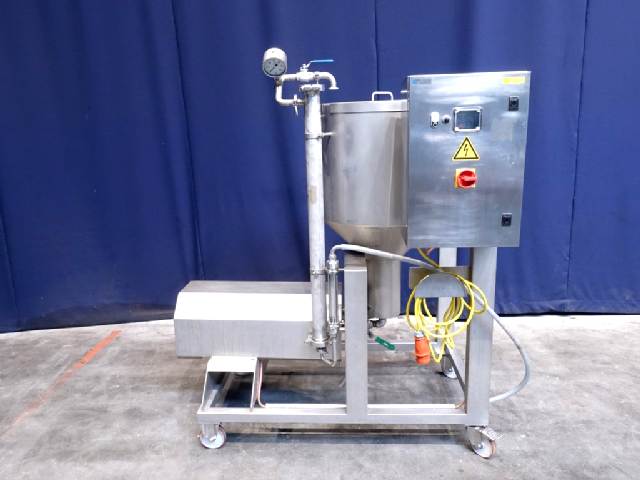

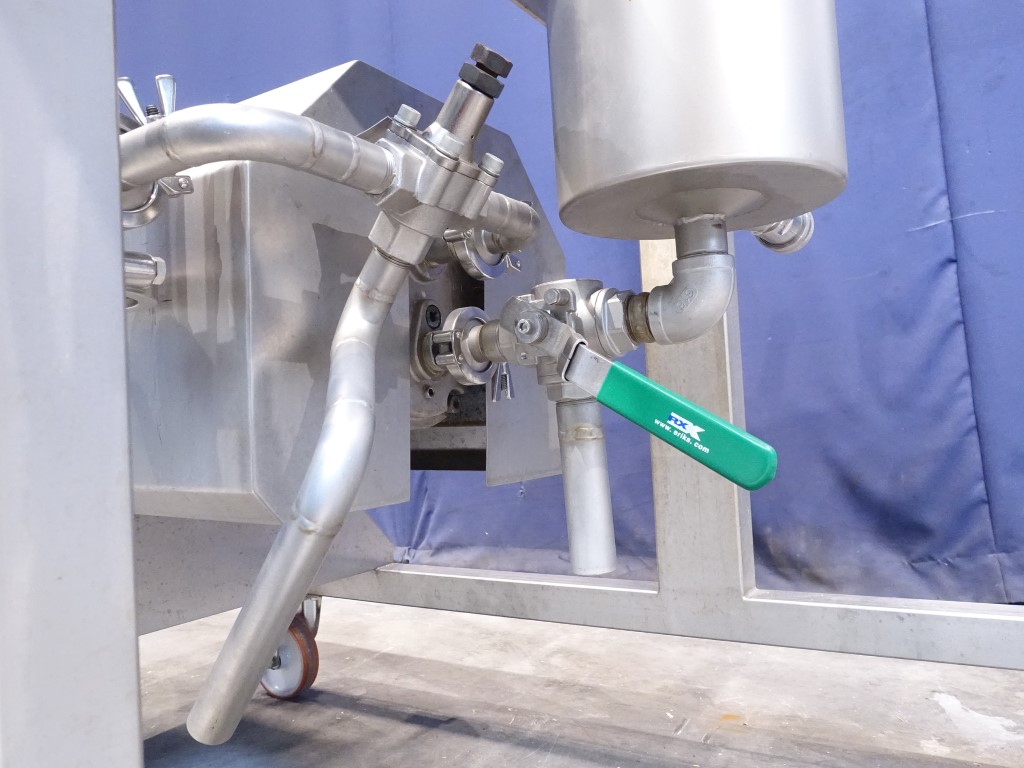

Micro filtration unit. 1 Filter section. Ceramic filter itself excluded. Double jacketed balance tank with cover (Geurtsen, type 51416, serial nr 2071642, 2007, volume 150 ltr), feedpump (Hydra-Cell pump, G10XKSESFEMD-M2M, 316L stainless steel head, EPDM diaphragm & O-ring material, 316L stainless steel valve seat material, stainless steel valve material, Elgiloy valve springs, PVDF valve spring retainers, serial nr 206822, motor 4 kW - 1.440 rpm, max pressure 50 bar, 120-1.470 ltr/h), 1 recirculation loops through filter and balance tank, 1 flow indicator. Control panel with start/stop and potential meter to control the pump. 1 Frequentz converter. Mobile mounted on a stainless steel frame. Total dimensions: 120 x 160 x 190 cm.
