Stephan TK200
Other equipment
Batch mixers
STN13648
Stephan
TK200
716.465
1990
200 liters

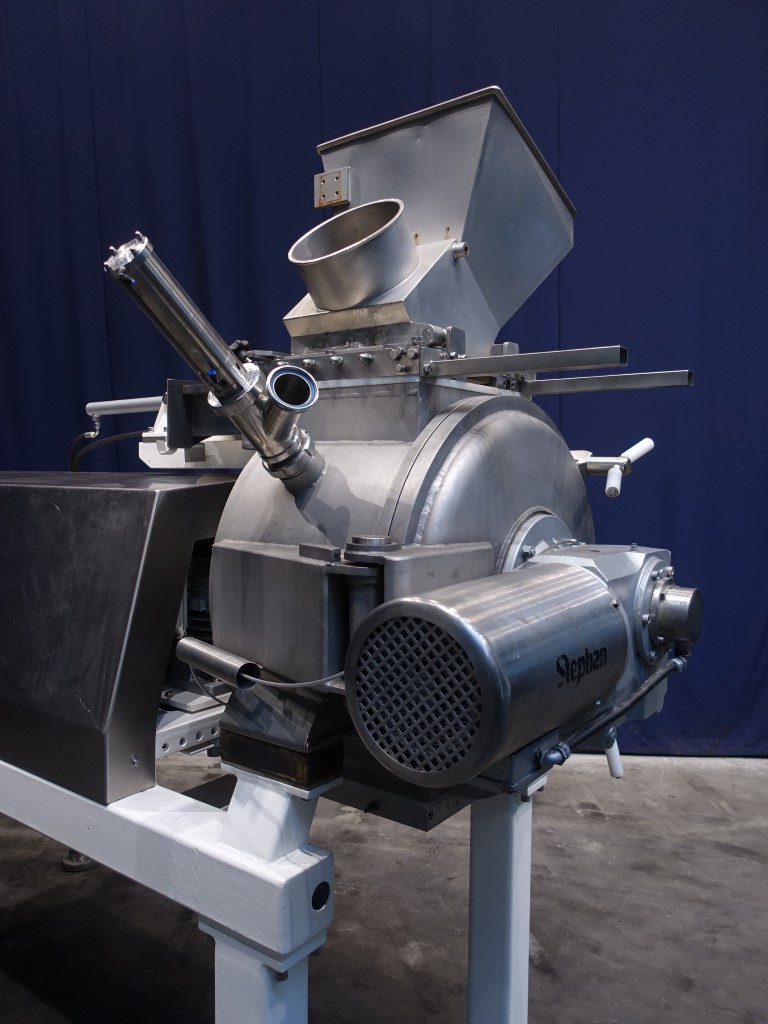

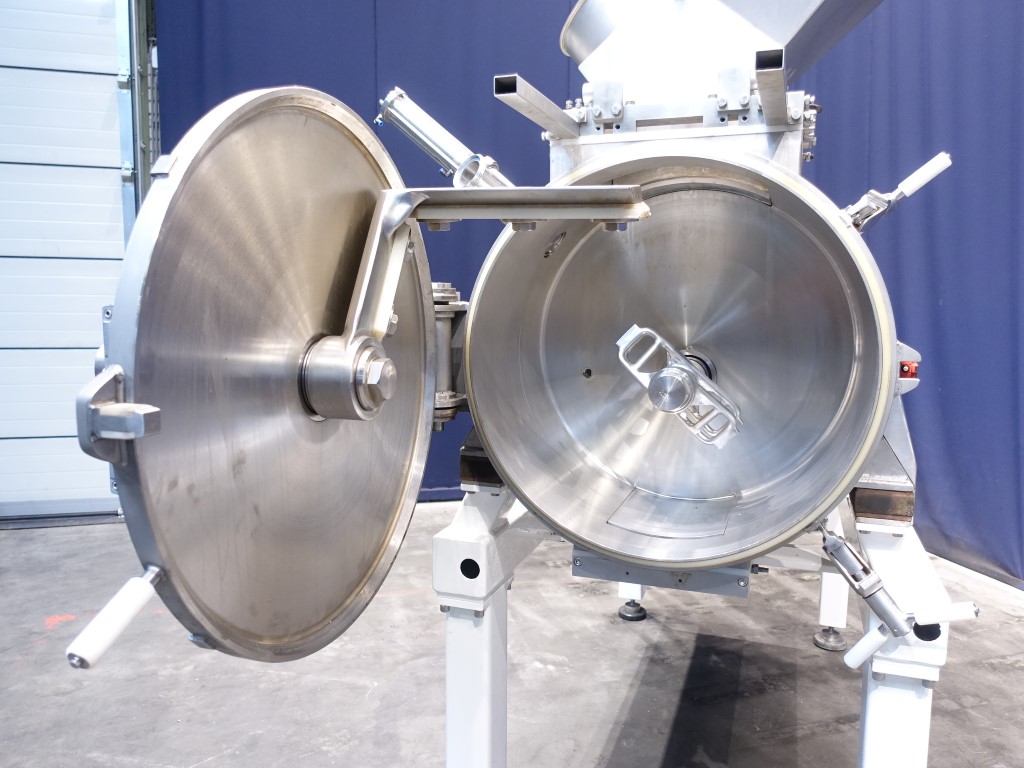

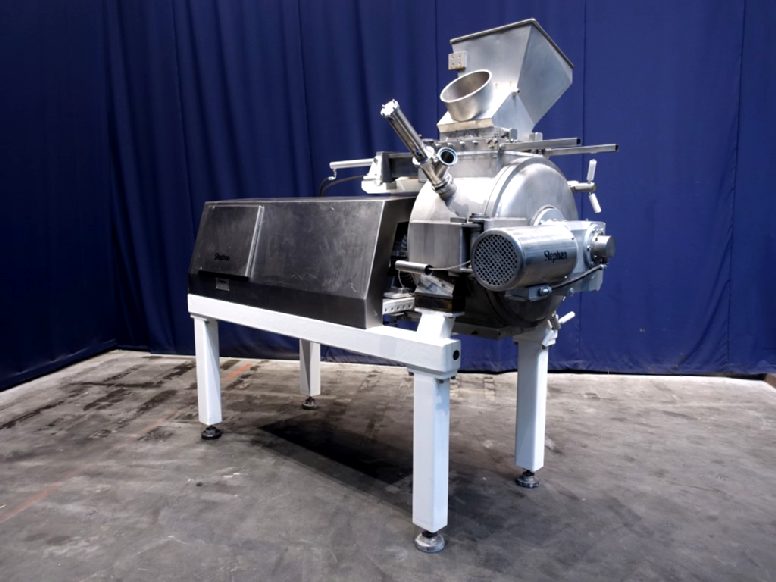

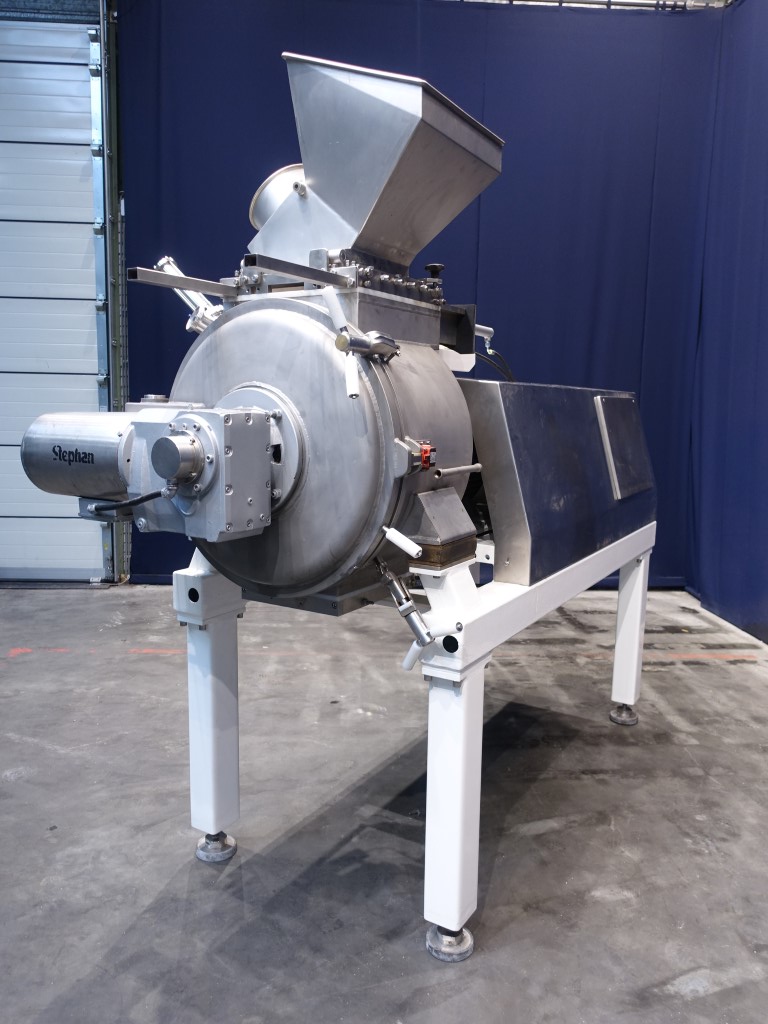

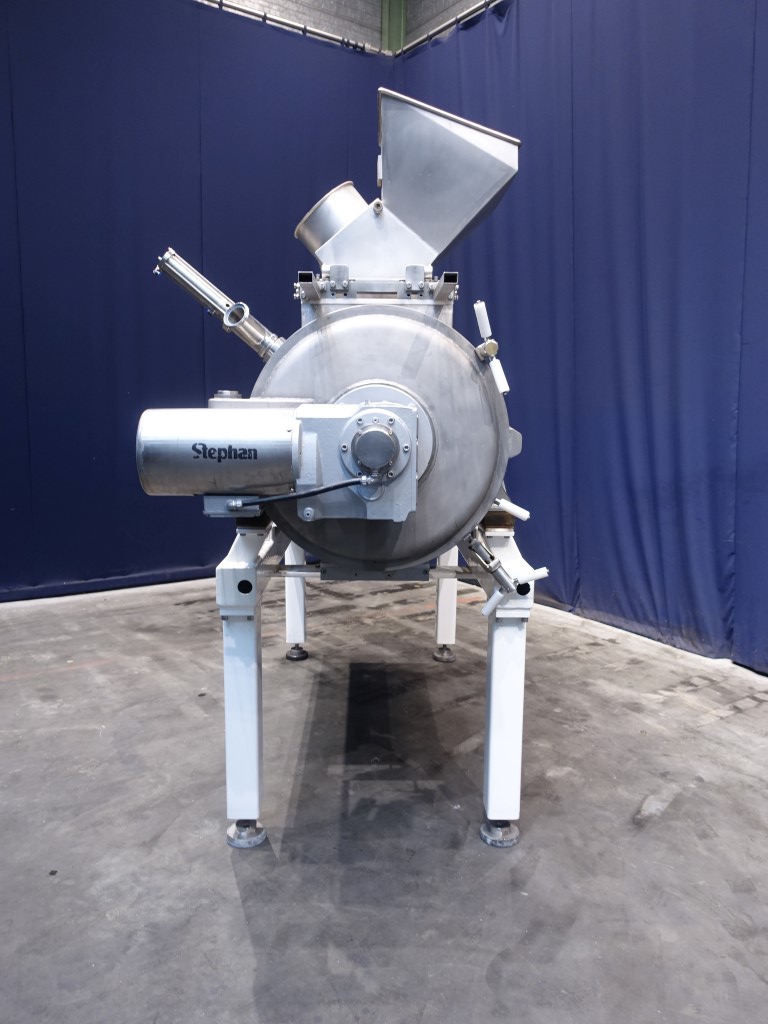

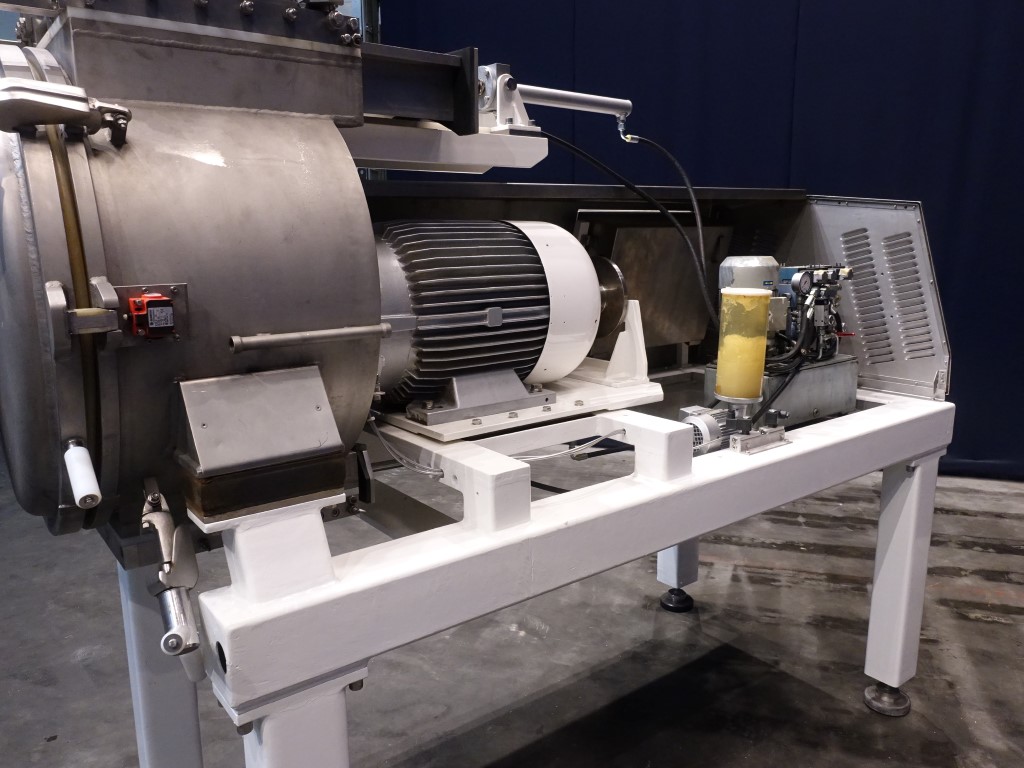

Universal horizontal mixer. The main product bowl and cover are single jackted. Currently no vacuum. Connection for temperature sensor in the bowl. Top and bottom slide for product in/outfeed by a trolley. Hydraulic unit (1,5 kW) for slide opening top and bottom. Grease pump. The main lid has 2 clamps manual tightening and contact sensor. Hopper on the top inlet. Extra product inlet 3'' on the side. 2 Agitators: 1 scraper agitator (4 kW, 25 rpm) and 1 mixer (22 kW - 43 A, 1.000 rpm, no nametag on motor). Painted frame. Excluding: Controls or break claw on main motor. Total dimensions: 1,5 x 3 x 2,6 mtr.
