Finnah THE
Heat exchangers
Tubular heat exchangers
STN13582
Finnah
THE
98724901
1998
16,6 liters

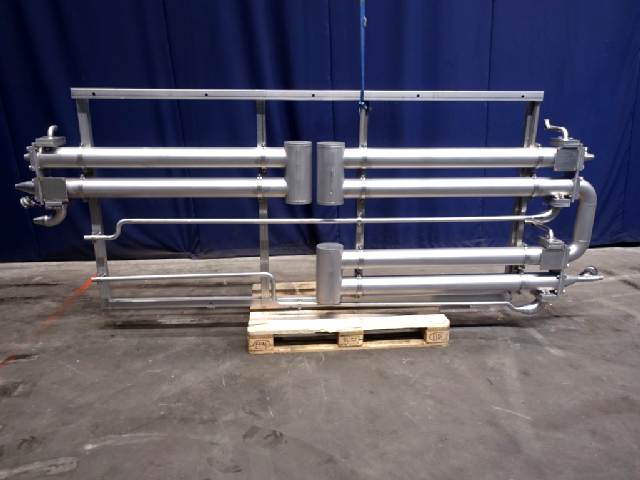

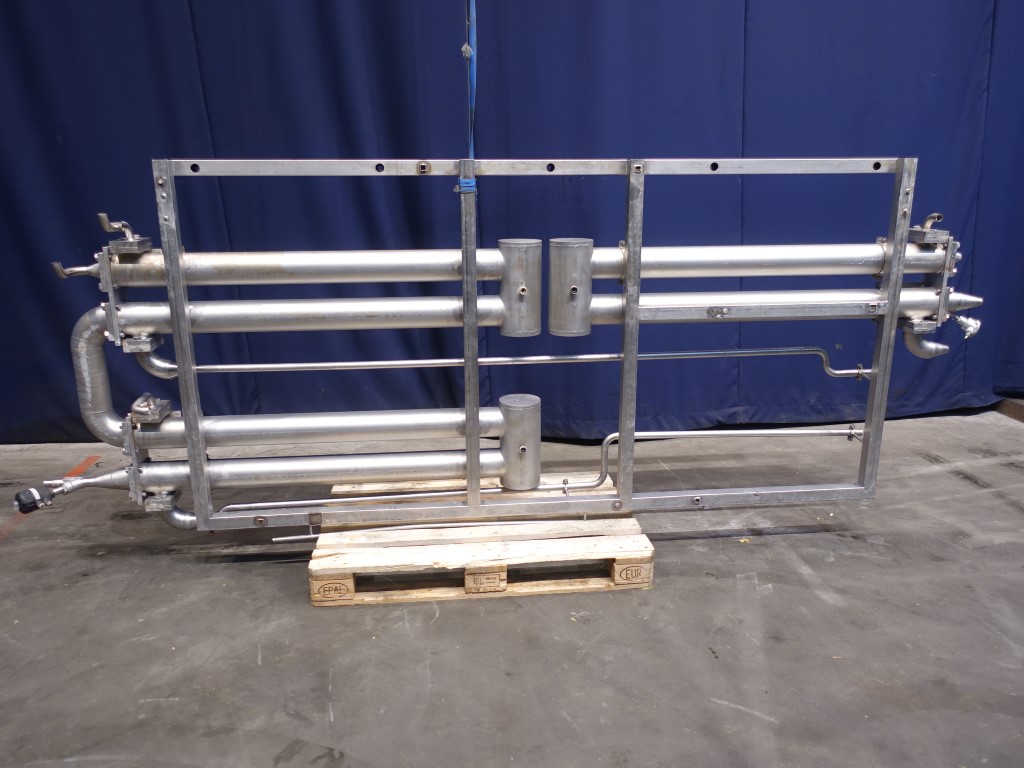

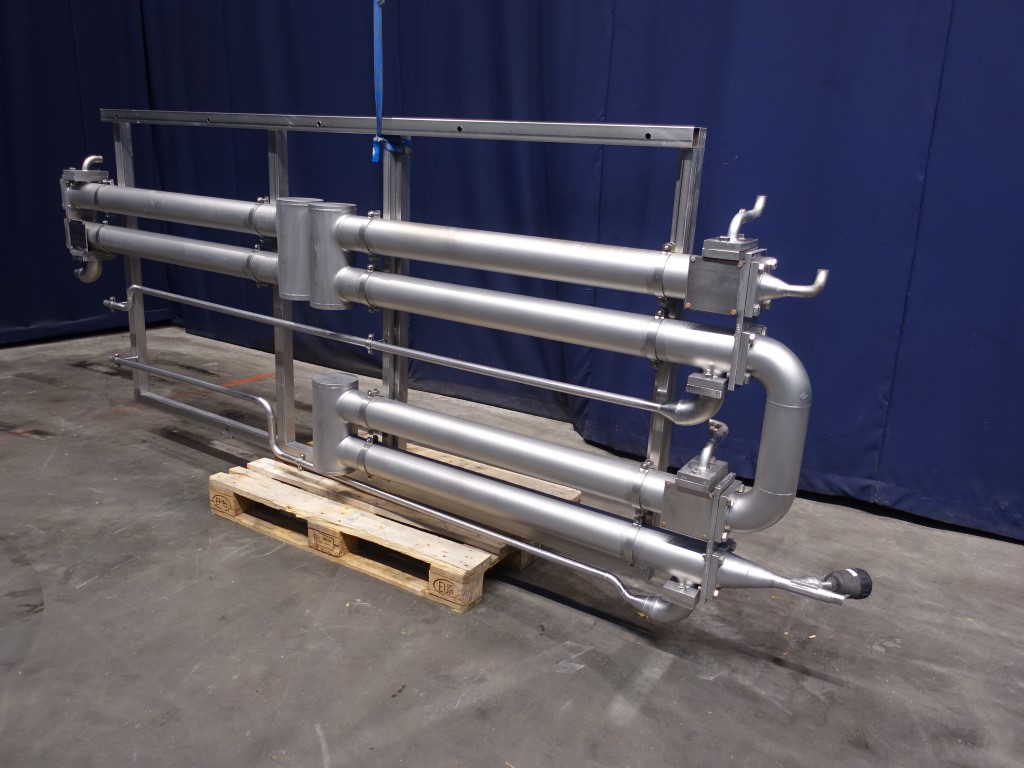

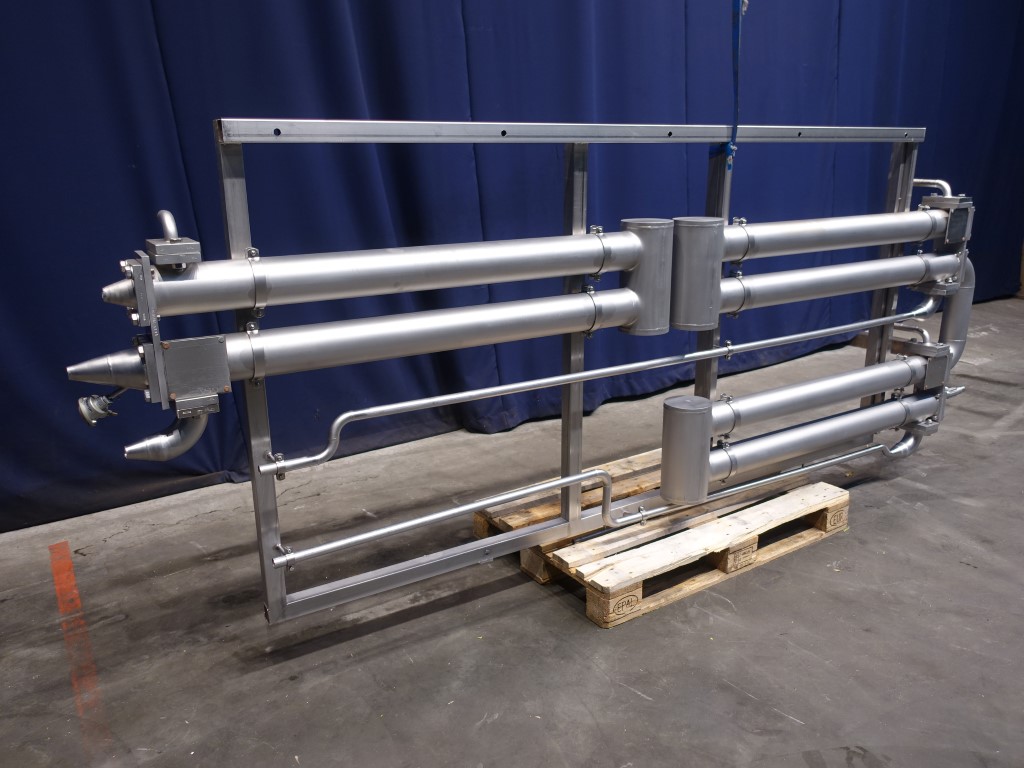

Frame with 2 tubular heat exchangers. Existing out of: 2 tubes, 1 section, length: 150 cm, outside diameter 114 mm, 55 inner tubes of diameter 8 mm. Working pressure: tube: 23 bar, shell: 10 bar. Max temperature: tube: 150 °C, shell: 190 °C. Capacity: tube: 8,3 L, shell: 18 L. Connection: Flange, including bends, Stainless steel frame. Total dimensions: 0,4 x 3,6 x 1,4 mtr. (on picture 3 THE, 1 unit already removed.
