LBL 700
Tanks
Balance tanks / hoppers
STN13408
LBL
700
0000
1999
700 liters

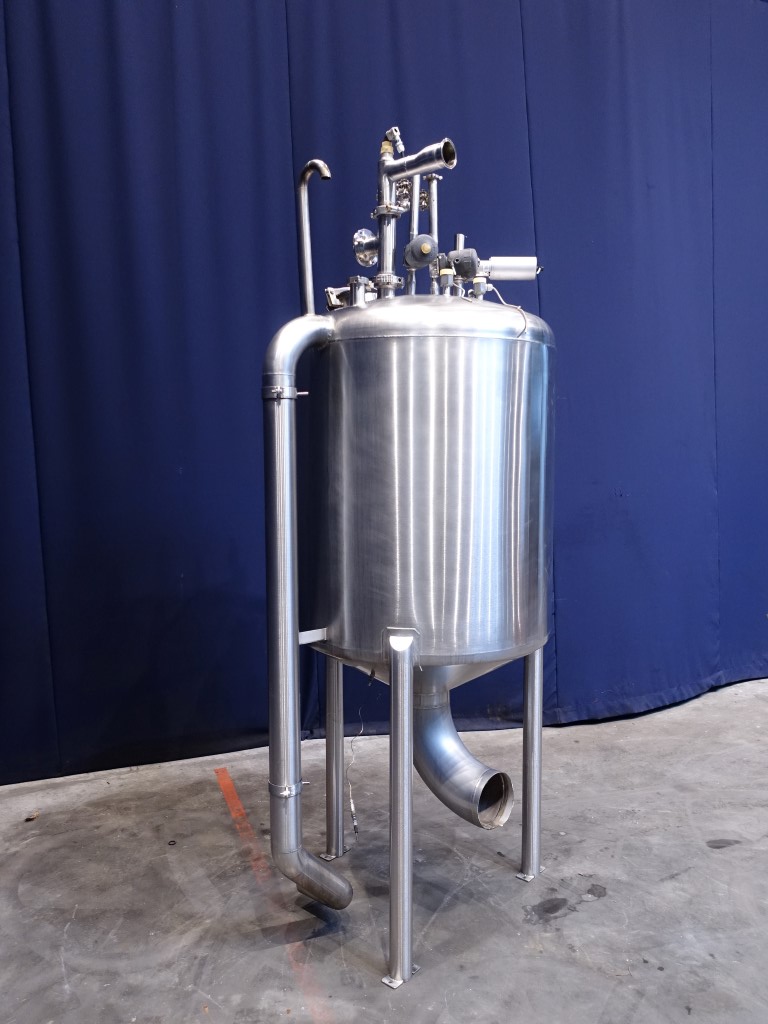

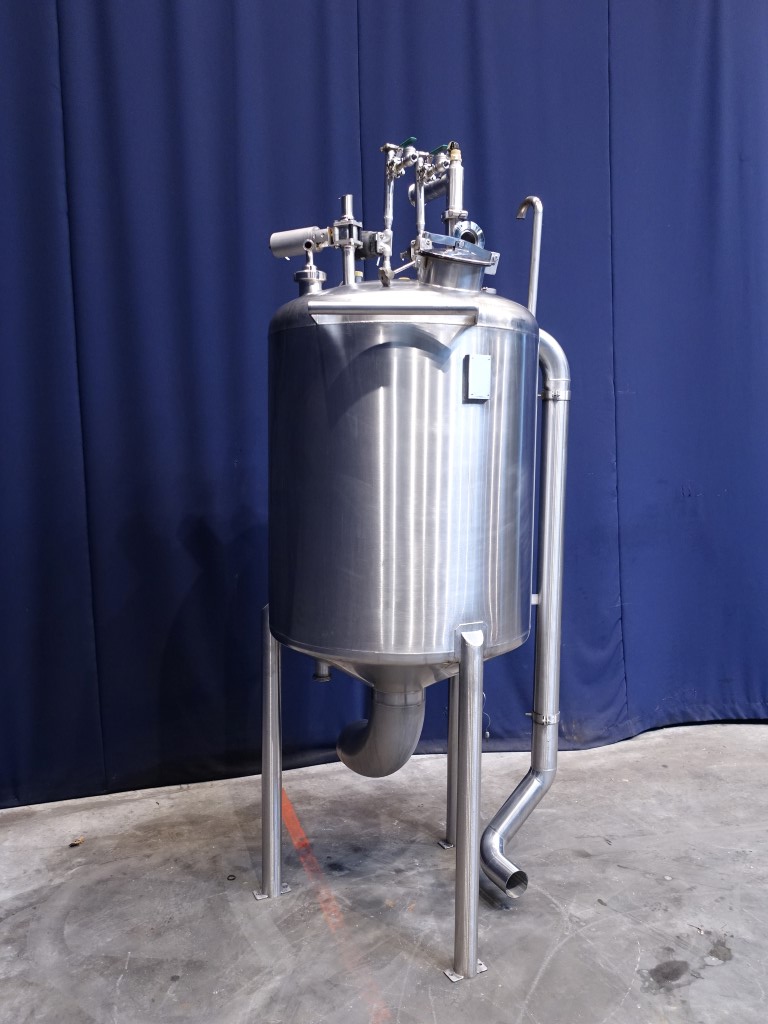

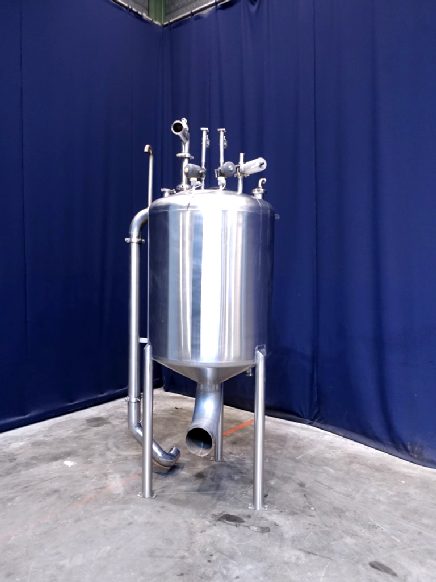

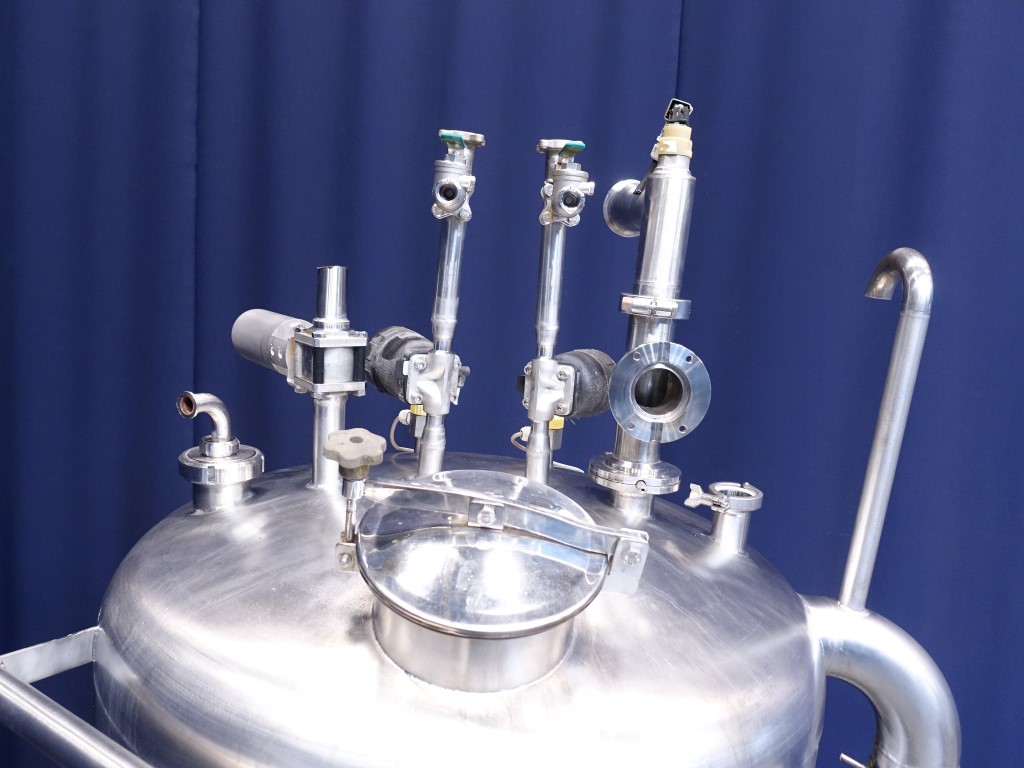

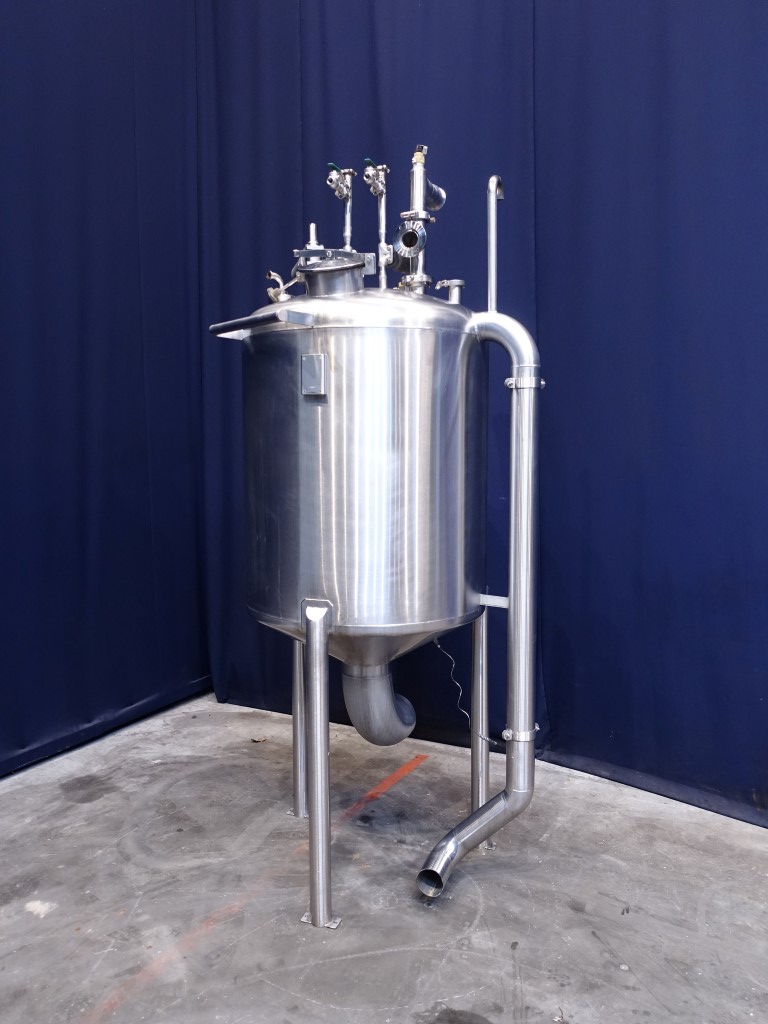

Vertical level tank. Pressure in tank atmospherique. Conical bottom. Product outlet 8'' and outlet height: 50 cm. Connections for: high and low level. Manhole in top, round, diameter 200 mm. 4'' Overflow tube. Breather. Several inlet connections on top. 3 Feet. Inside dimensions of tank: diameter 900 mm and height 1200 mm. Total dimensions: 120 x 110 x 300 cm.
