Schröder MK04/178-1200
Margarine equipment
Margarine equipment
STN13355
Schröder
MK04/178-1200
20-439
1976
3.600-4.800 kilograms per hour

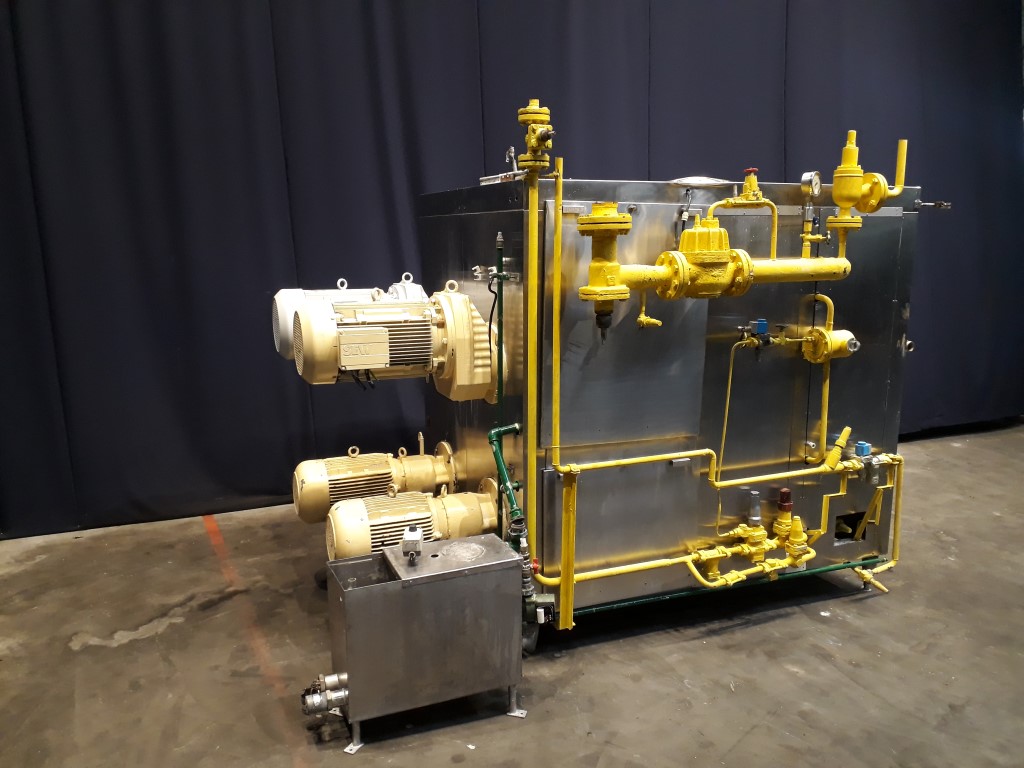

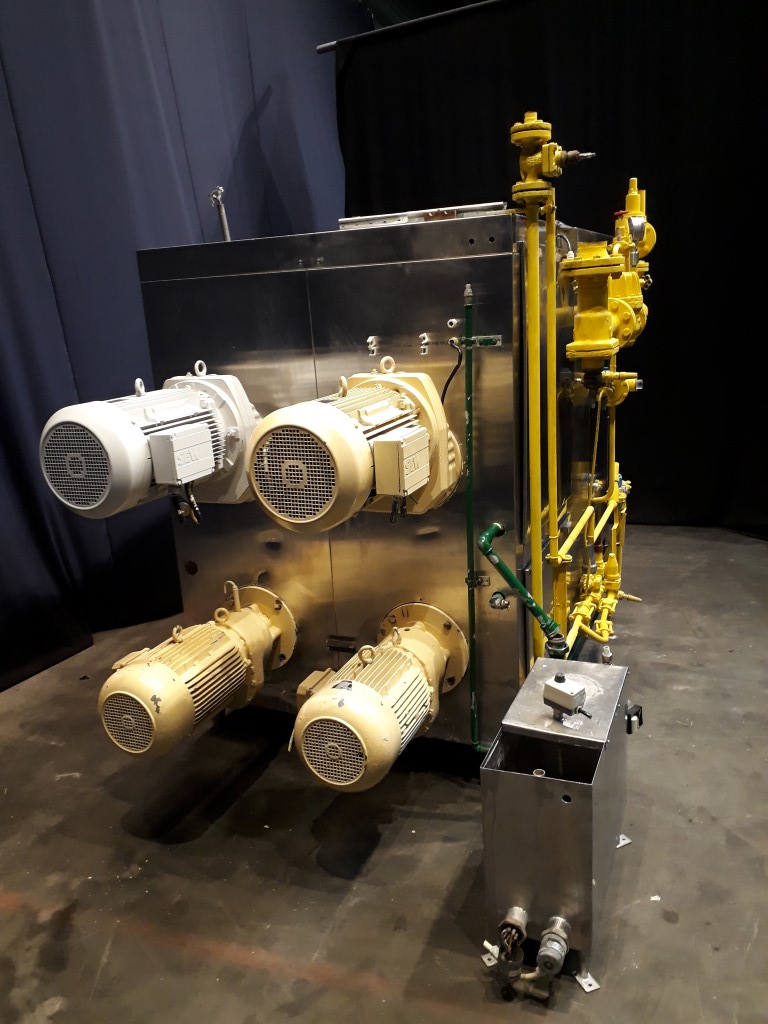

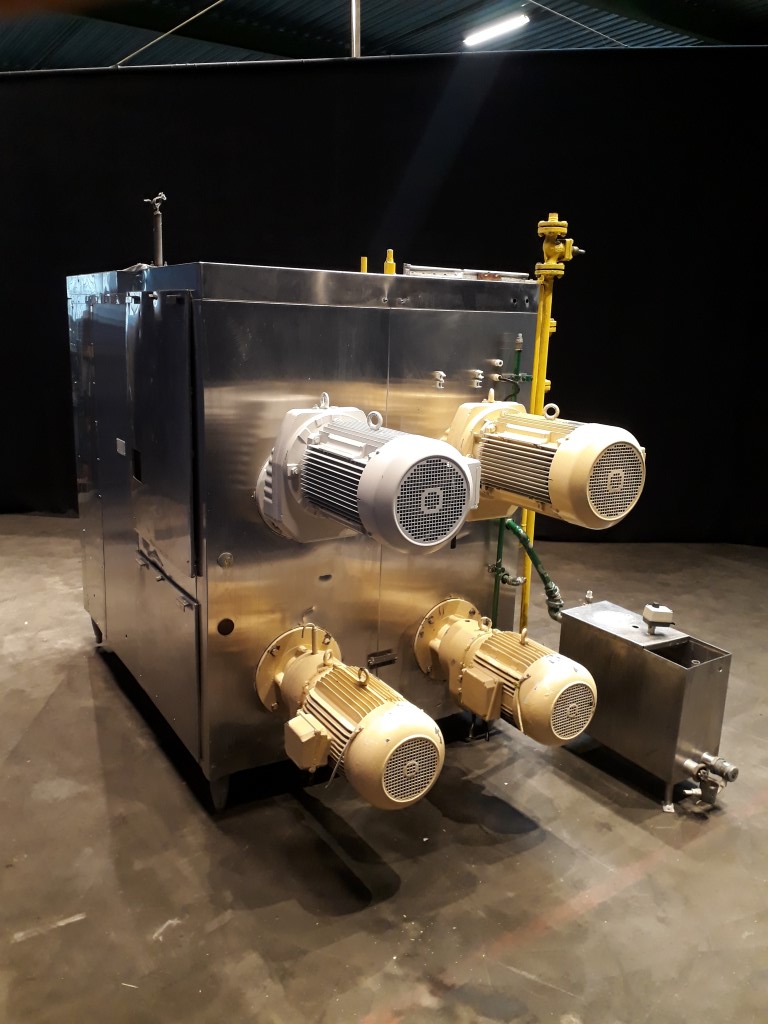

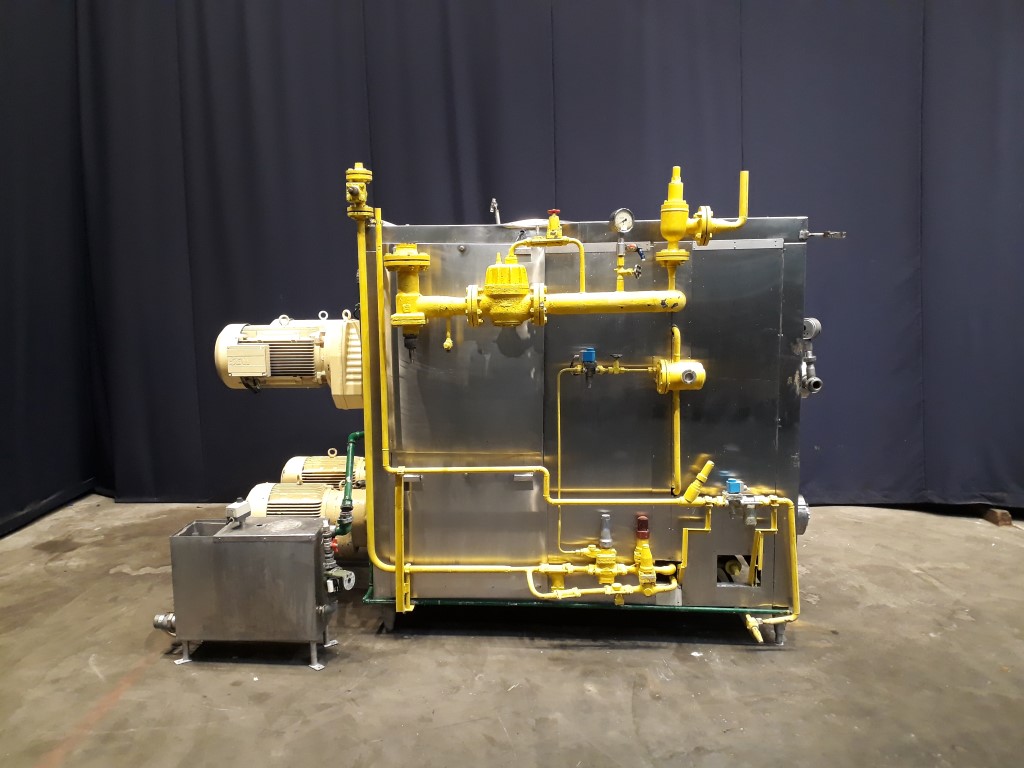

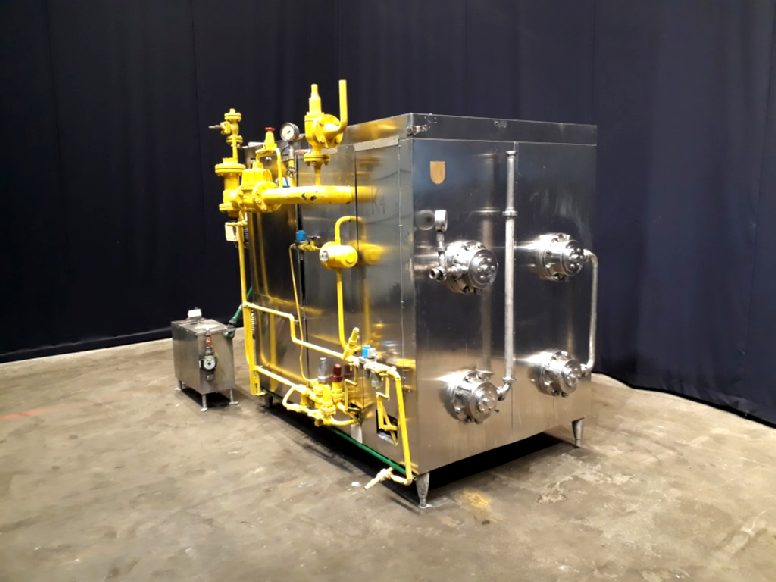

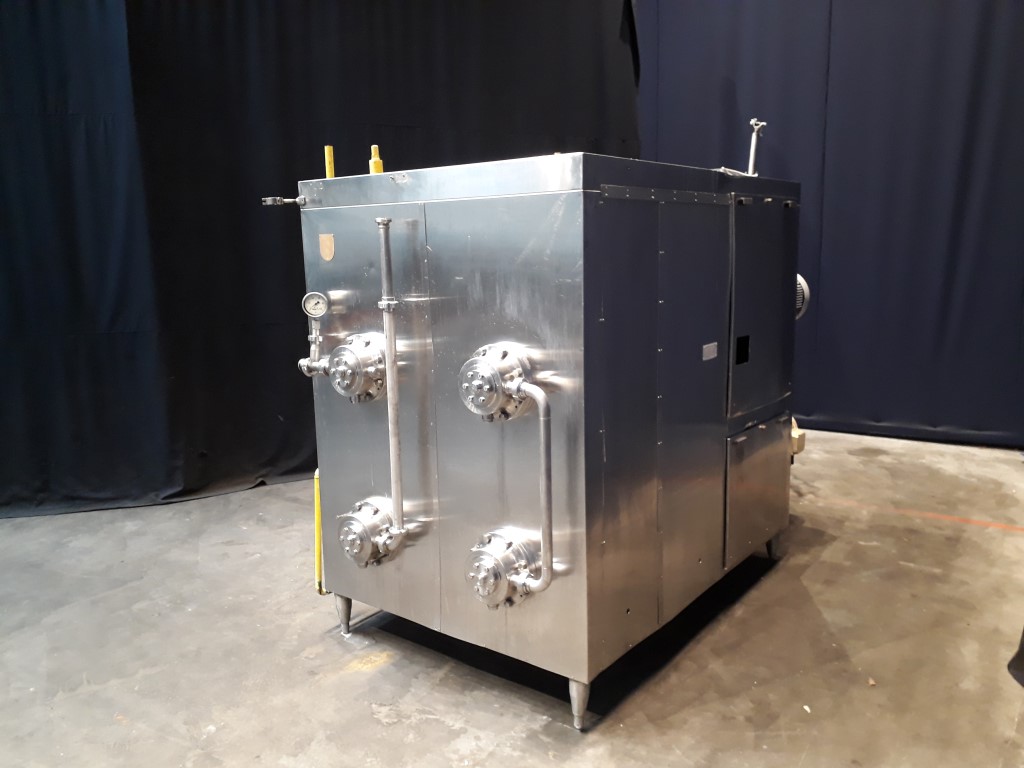

Crystalliser. Scraped surface heat exchanger for margarine for shortening or puff pastry. Product pressure: 50 bar. 4 Product cylinders. Tube: Ø 178 mm and length 1.200 mm. Cooling surface per tube 0,67 m². Rotor: Ø 160 mm with steel knives. Cooling medium: Ammonia, NH3, max pressure: 17 bar, -20/45°C. 1 ammonia system including Ammoniac control valve (Danfoss). Needed cooling energy: ± 215.000 kcal/h at - 10°C evaporation temperature. Including hotwater tank electric heated for seal water, documentation and spare parts manuals. 4 Motors: 11 kW + 11 kW + 22 kW + 22 kW Excluding controls, hotwater pump.
