De Rijk -
Tanks
Storage tanks
STN13326
De Rijk
-
1985
4.000 liters

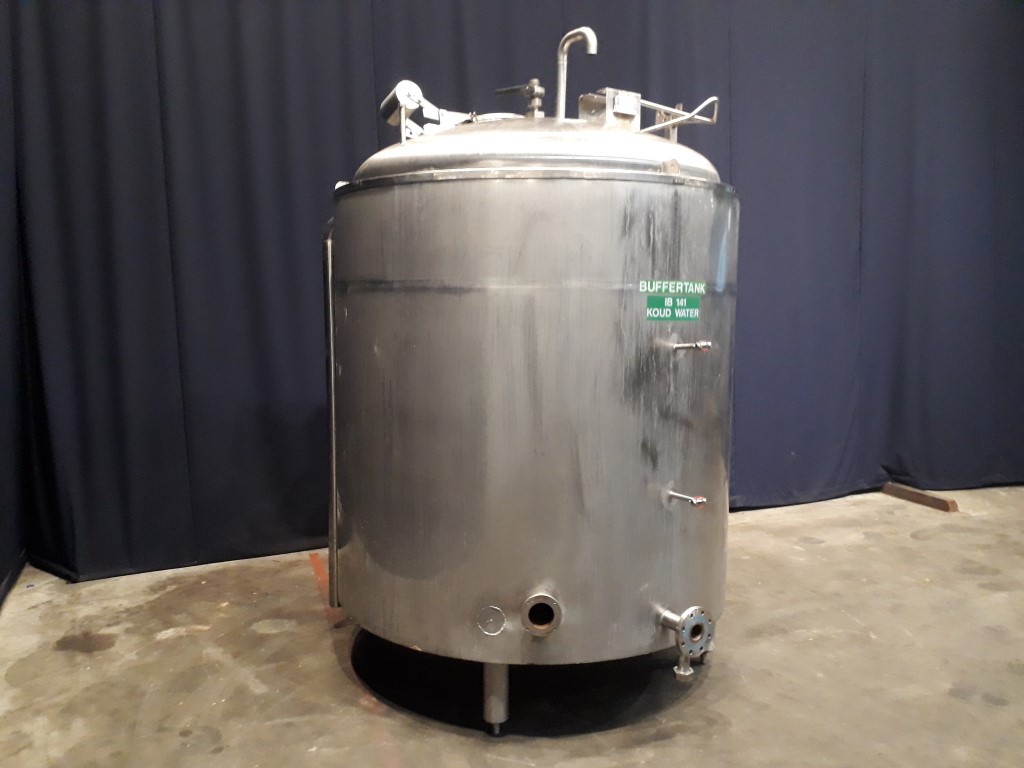

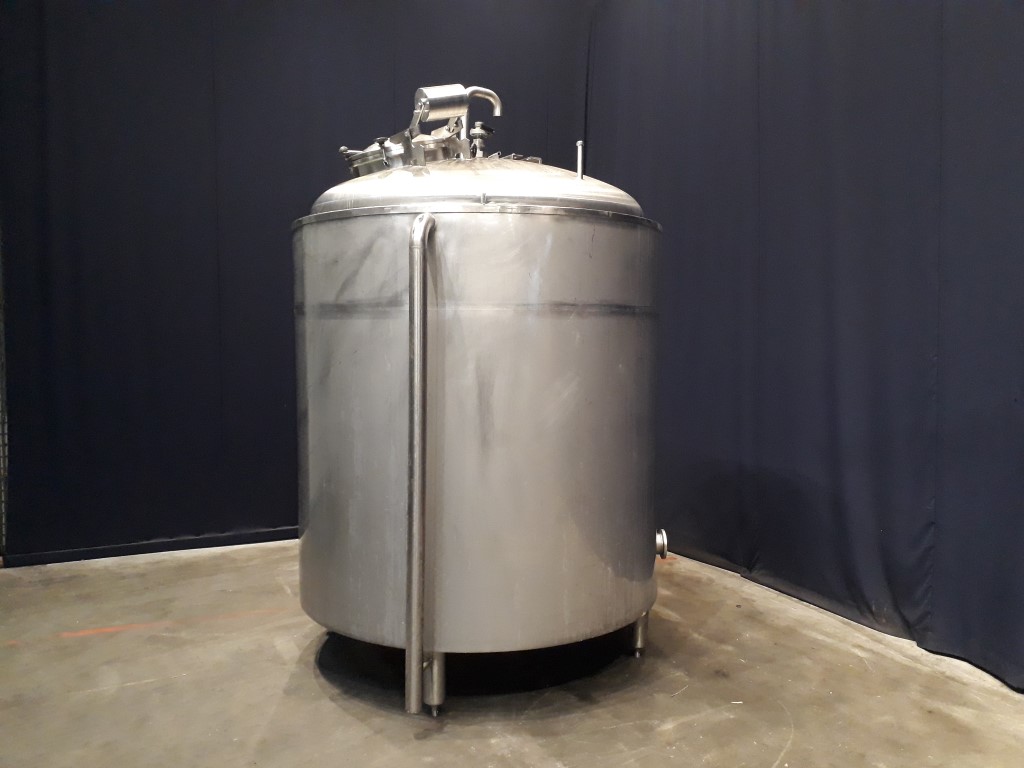

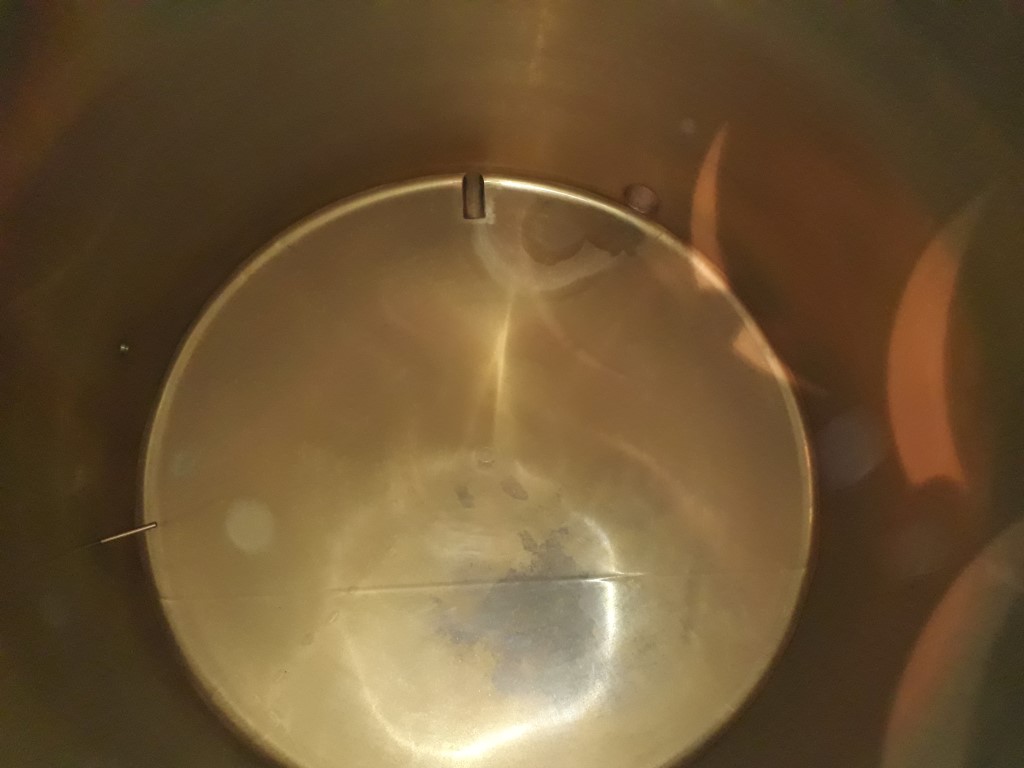

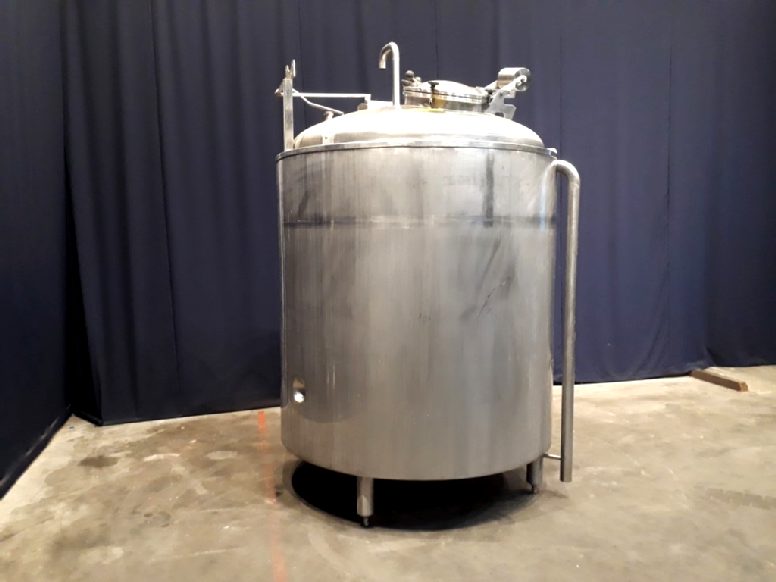

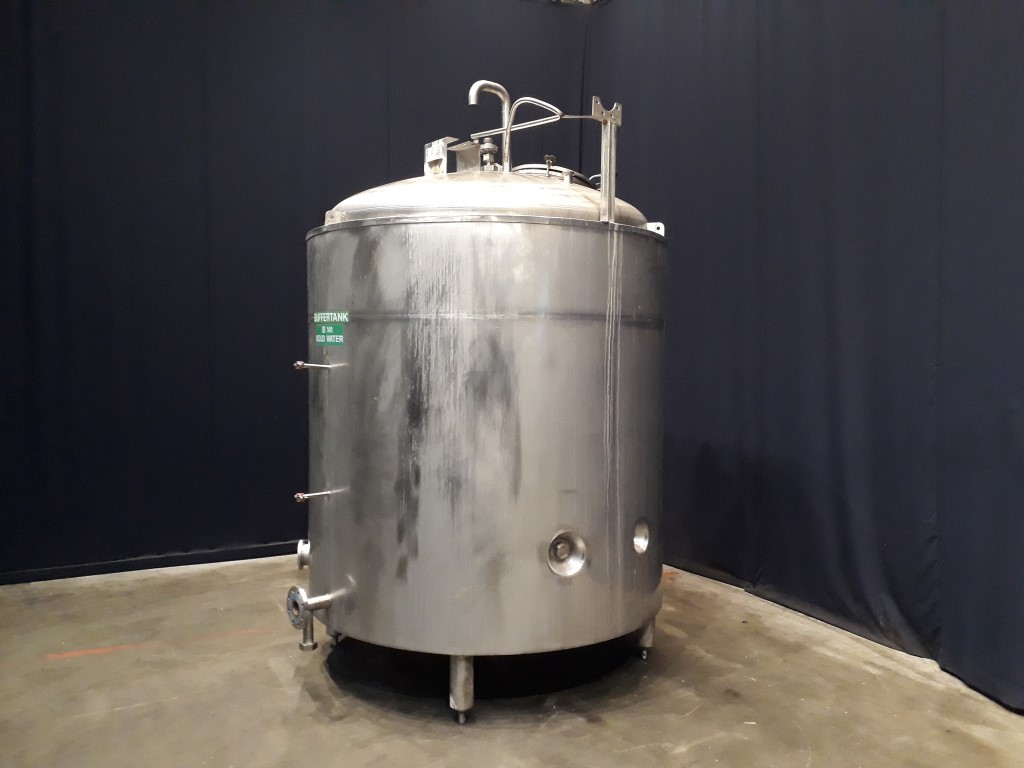

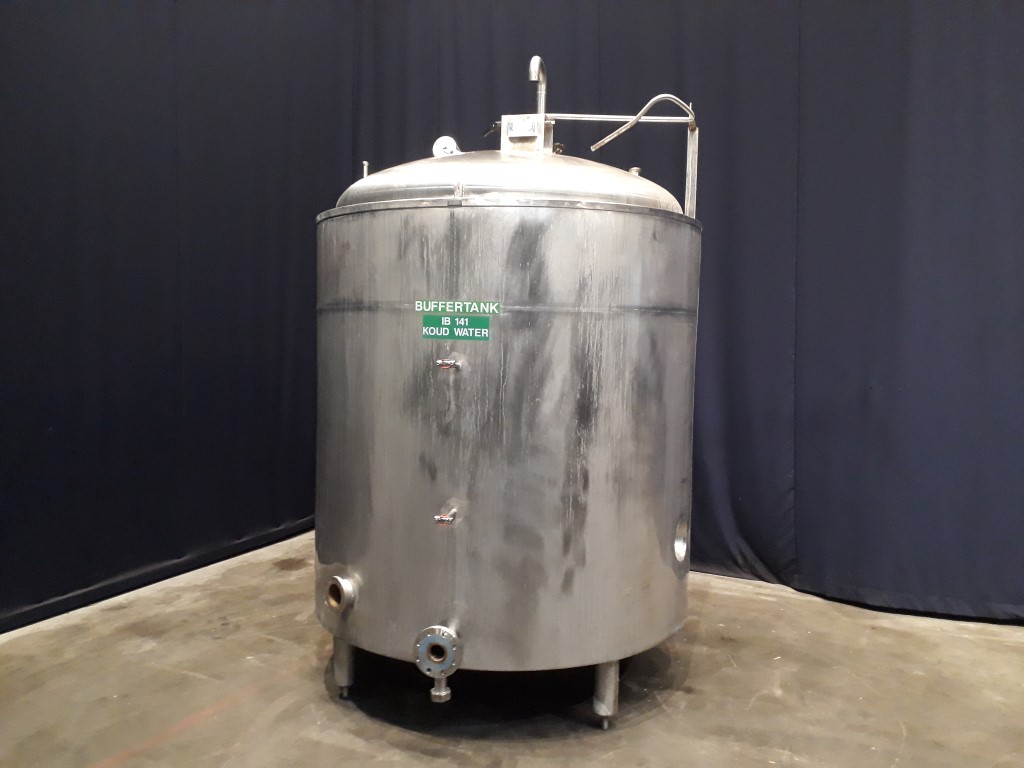

Vertical buffer tank, insulated side and bottom. Pressure in tank atmospherique. 2 Product outlets to the side, product outlet DN80 flange, outlet height: 47 cm, second product outlet DN100, flange, Outlet height: 52 cm. Connection for PT-100 temperature sensor. 1 Rotary CIP spray bowl. Manhole in top, round, diameter 500 mm, with counter weight for easy opening. 4 Adjustable feet. Inside dimensions of tank: diameter 175 cm and height 170 cm. Total dimensions: 200 x 200 x 310 cm.
