Stephan TK200
Processed cheese equipment
Processed cheese equipment
STN12780
Stephan
TK200
718596
1992
200 liters

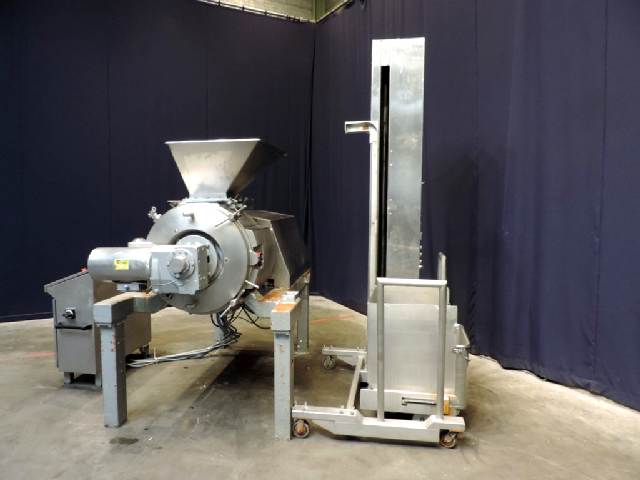

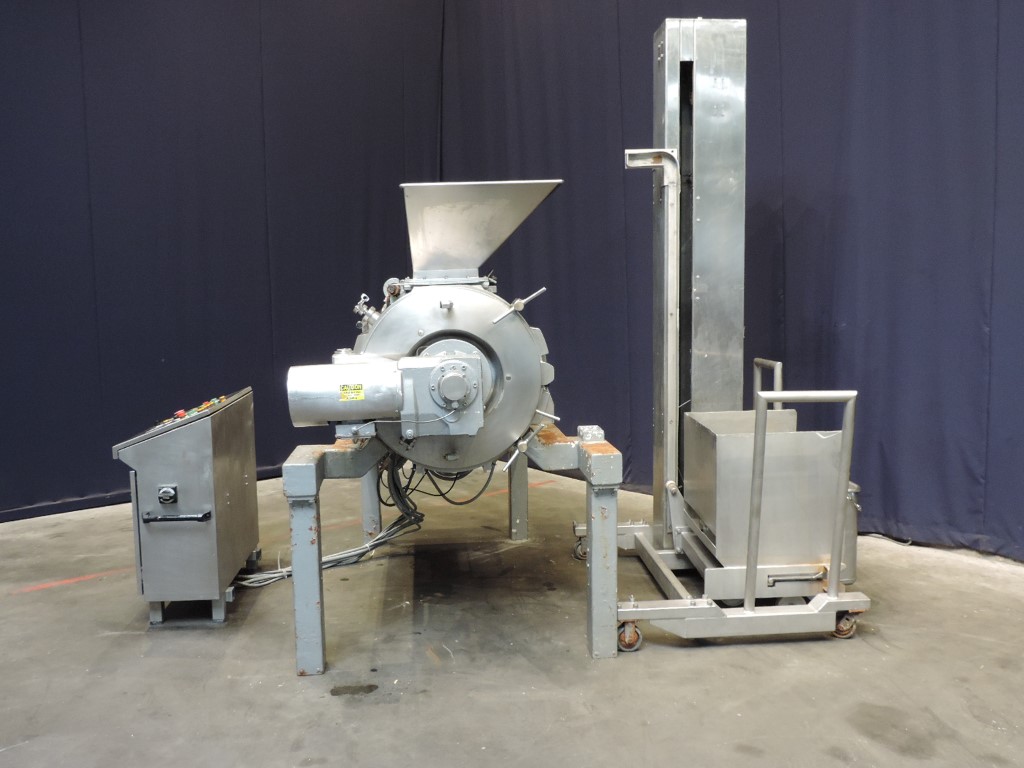

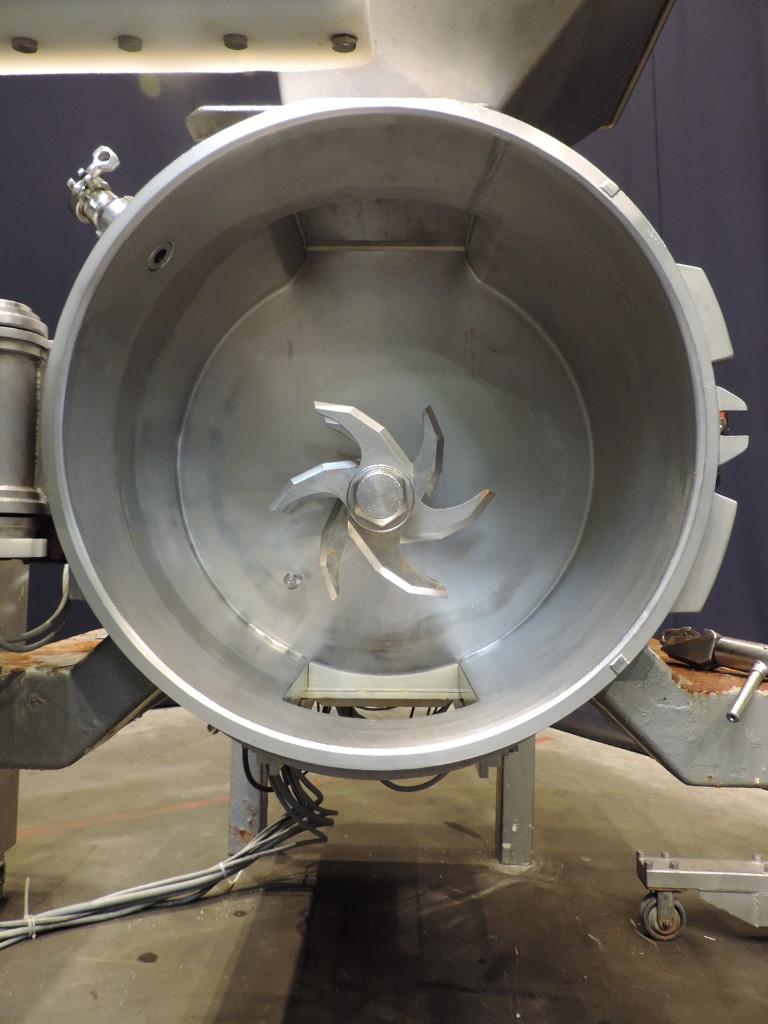

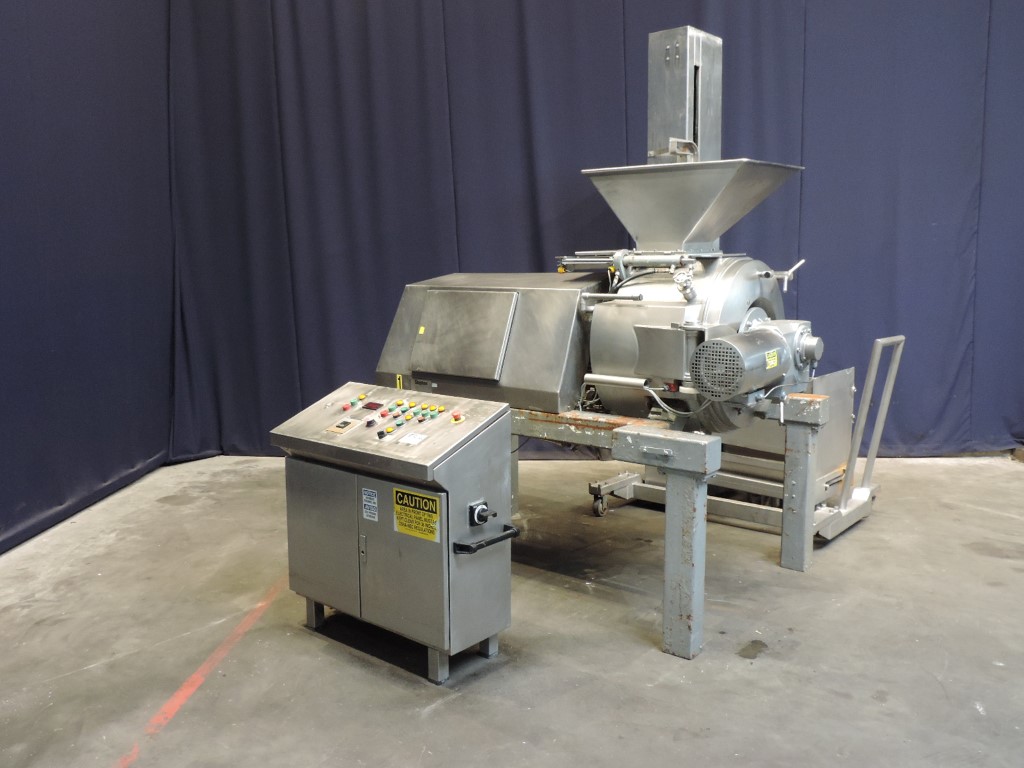

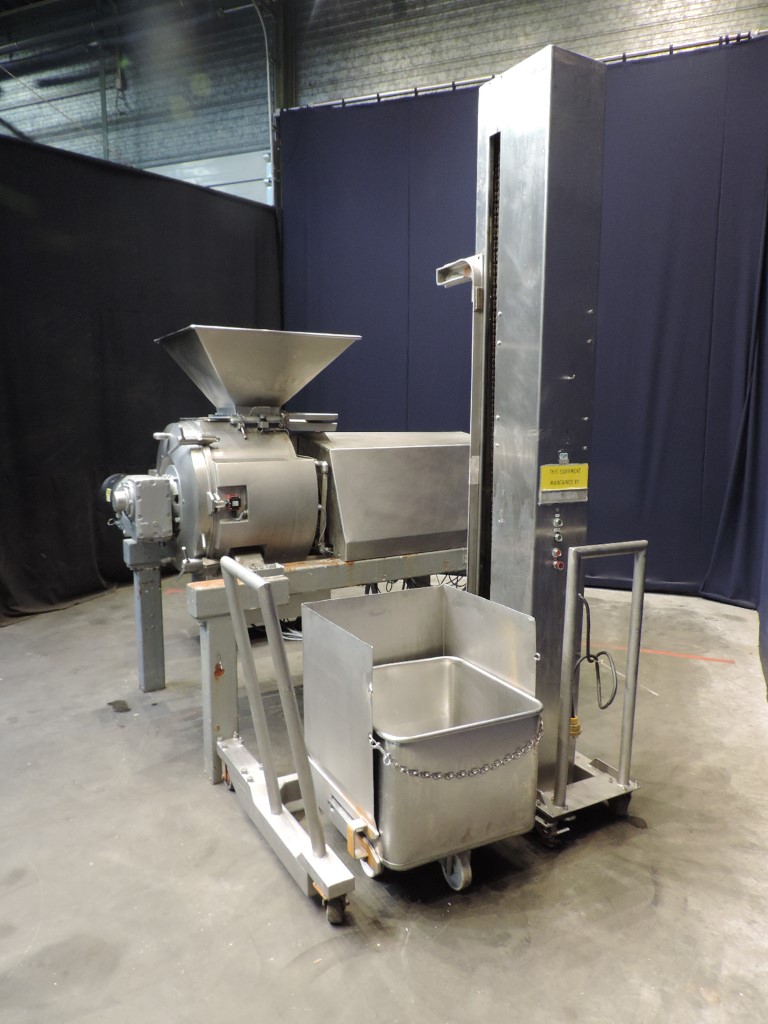

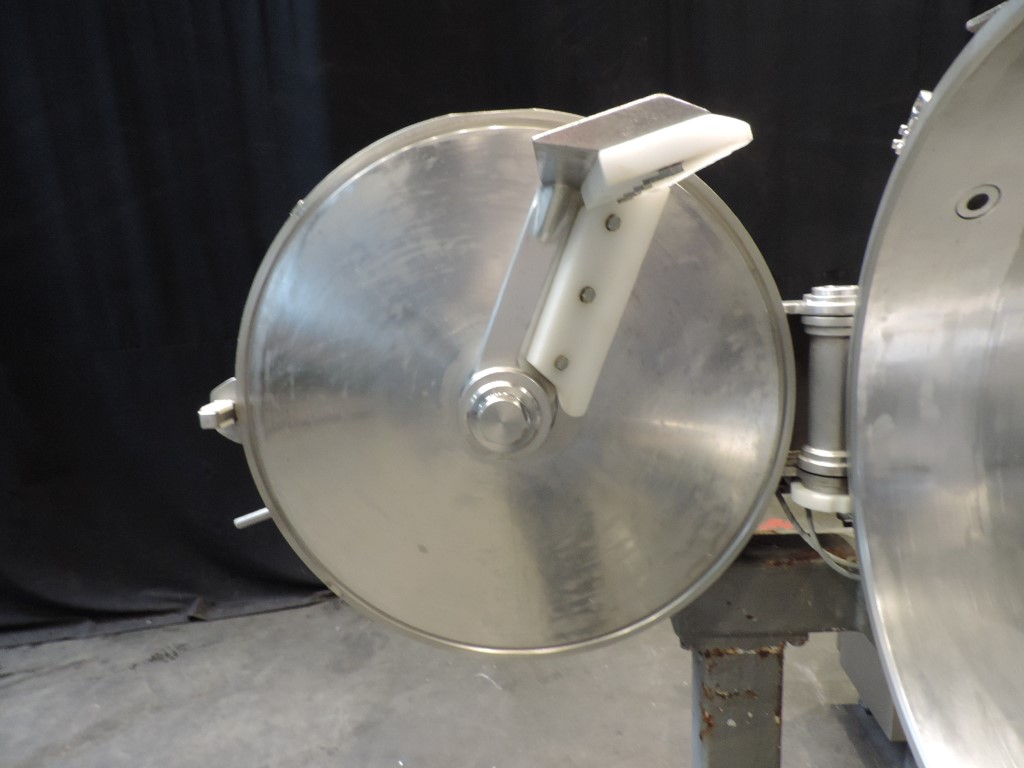

Universal horizontal mixer-cooker. The main product bowl and cover are double jacketed for cooling or heating (no valves on jacket), no vacuum. Hydraulic unit for moving inlet slide and outlet slide on bottom. Top inlet and the main front lid have 2 manual tightening clamps and contact sensor, infeed hopper. 2 agitators: 1 scraper agitator, 25 rpm and 1 mixer knife, motor 22 kW - 710 rpm. Total electrics: 27 kW - 60 A - 380 V -50 Hz. steel frame. Including elevator for trolleys 200ltr with controls cabinets on elevator and machine. Documentation available. Outside dimensions: 2,5 x 4,25 x 3,25 meter. Total weight: 1960 kg.
