Tetra Pak Spiraflow TTF-38s/16c-3-1
Heat exchangers
Tubular heat exchangers
STN12673
Tetra Pak
Spiraflow TTF-38s/16c-3-1
153901-01 / 02 / 03
1995
6 liters

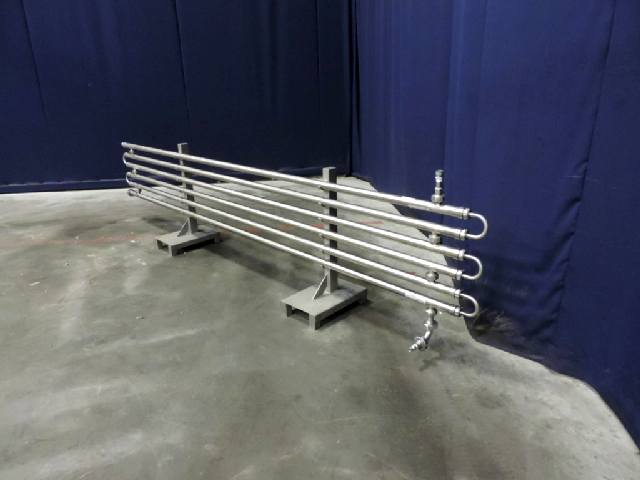

Monotube, outer diameter 38 mm (smouth) and inner diameter 16 mm (coagurated). 6 Tubes of 3 meter. Product side: pressure up to 60 bar - temperature up to 160 °C - volume: 1 liter per tube, total volume 6x 1 = 6 liter. Medium side: pressure up to 25 bar - temperature up to 160 °C - volume per tube: 4,6 liter, total volume 6x 4,6 = 27,6 liter. Material jacket: AISI304. All mountend on a stainless steel frame. Total dimensions: lxwxh: 350 x 40 x 80 cm.
