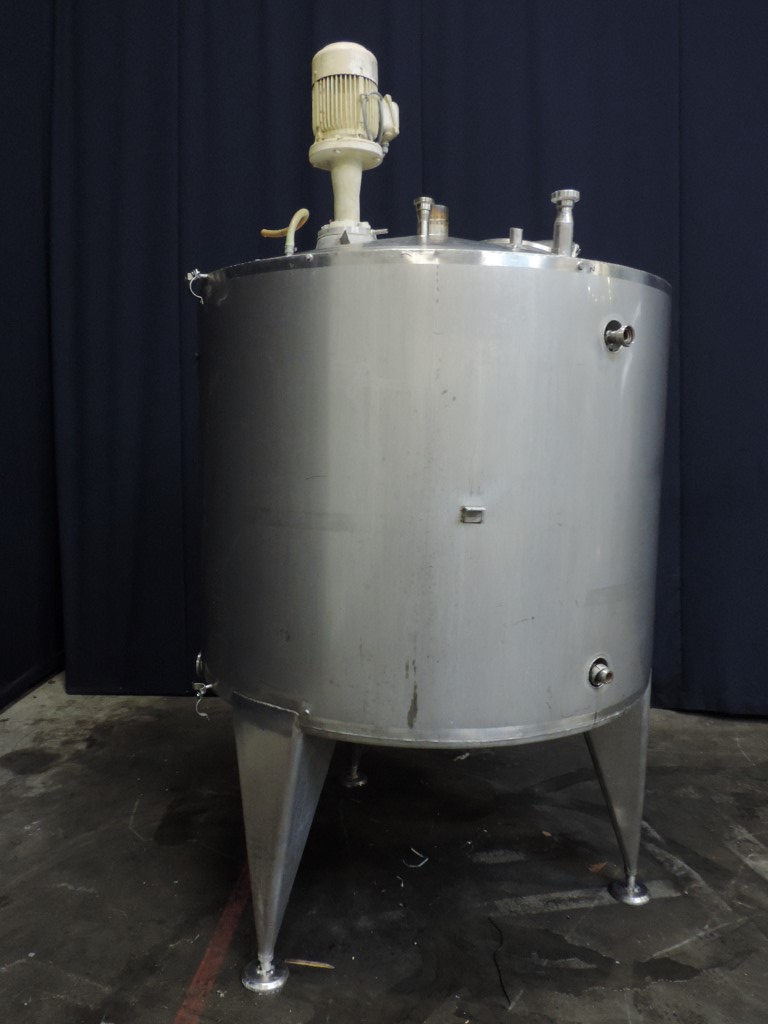

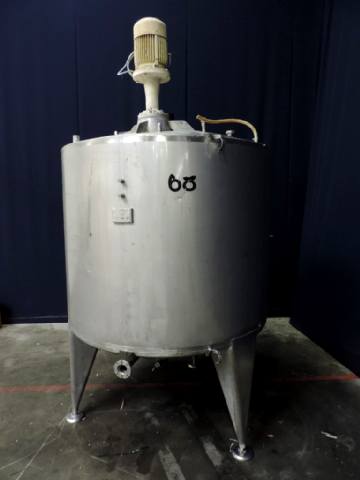

Ullmann & Co Mix tank

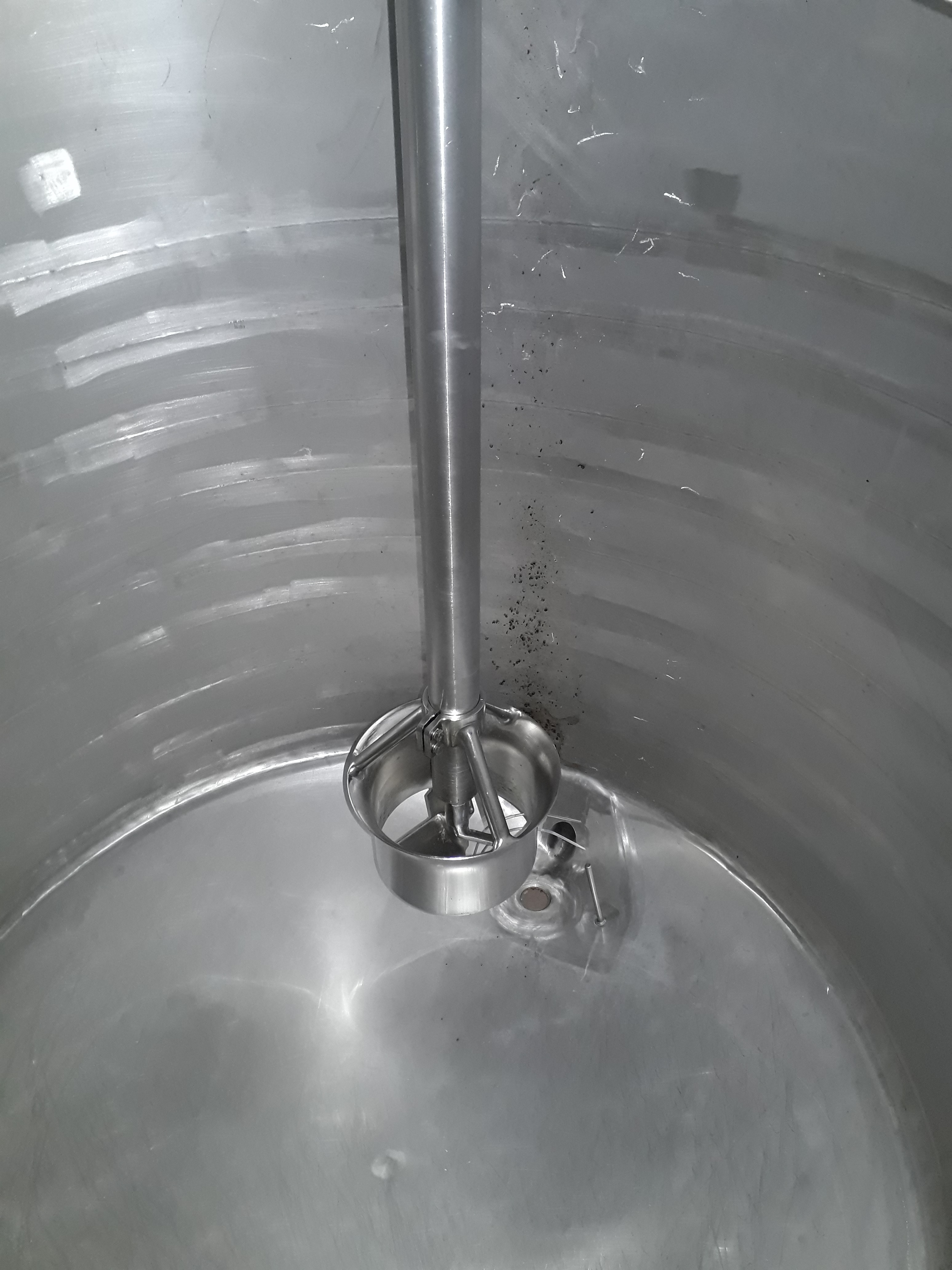

Double jacketed. Top driven mix agitator. 2 speed motor 0,9/3,7 kW - 3,8/9,7 A - 710/1450 rpm. Pressure in jacket: 4 bar. Pressure in tank atmospherique. Insulated side and bottom. Conical up. Flat to the side. Product outlet 2'' and outlet height 75 cm. Connections for: PT-100 temperature sensor and Low Level. Breather. 1 CIP spray bowl. Manhole in top, round, diameter 370 mm. 3 Adjustable feet. Inner dimensions of tank: diameter 1400 mm and height 1400 mm. Outside dimensions lxwxh: 160 x 165 x 295 cm.
