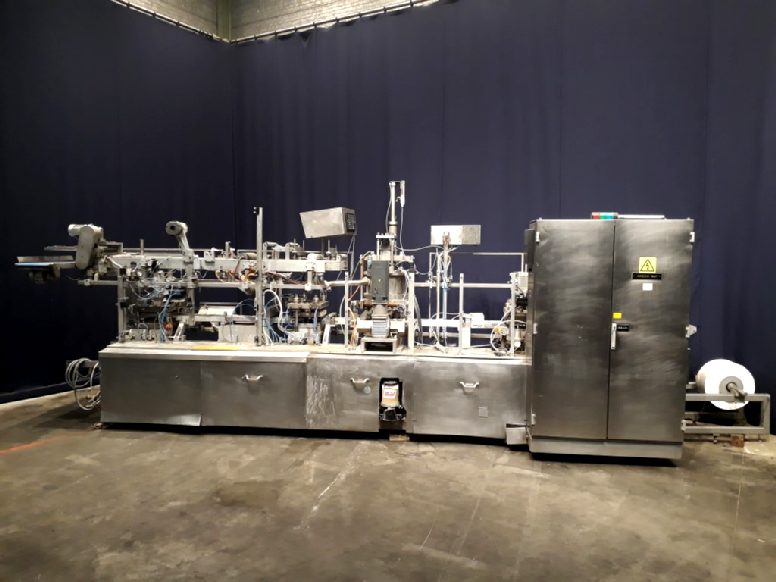

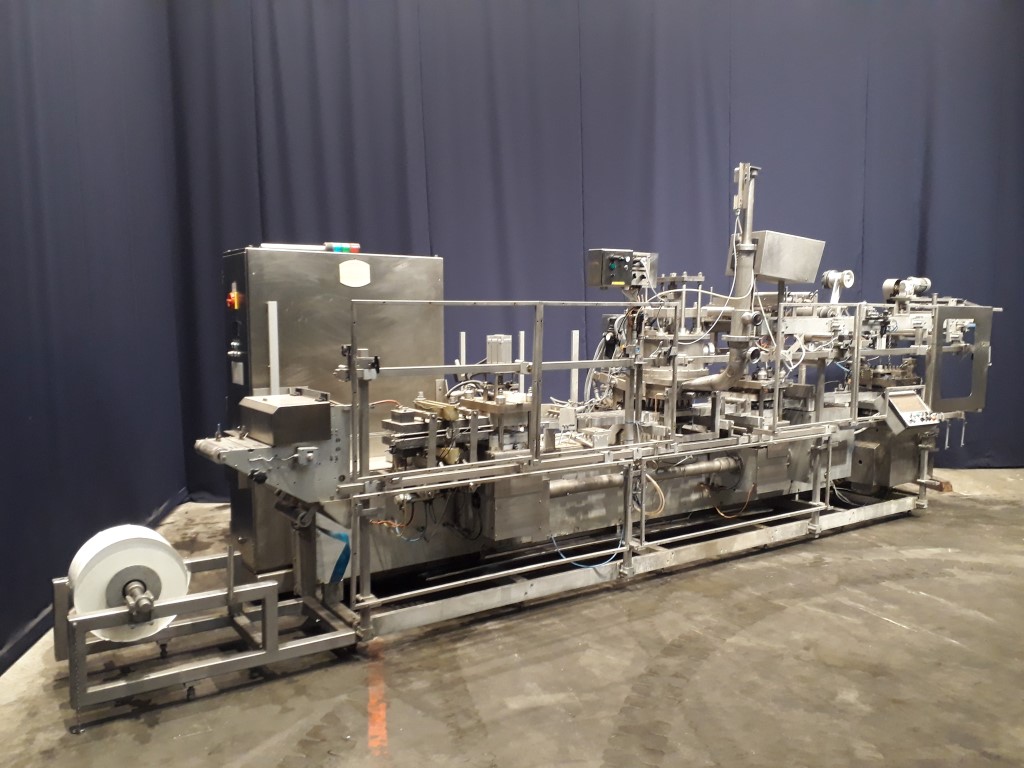

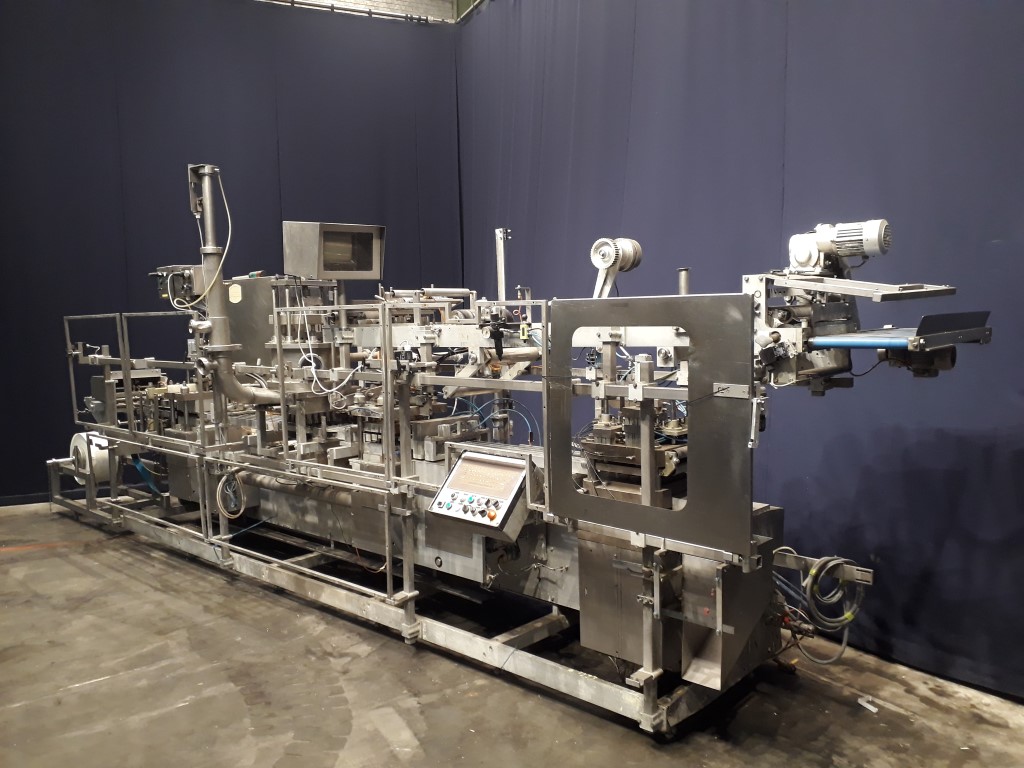

Hassia THL 24/28

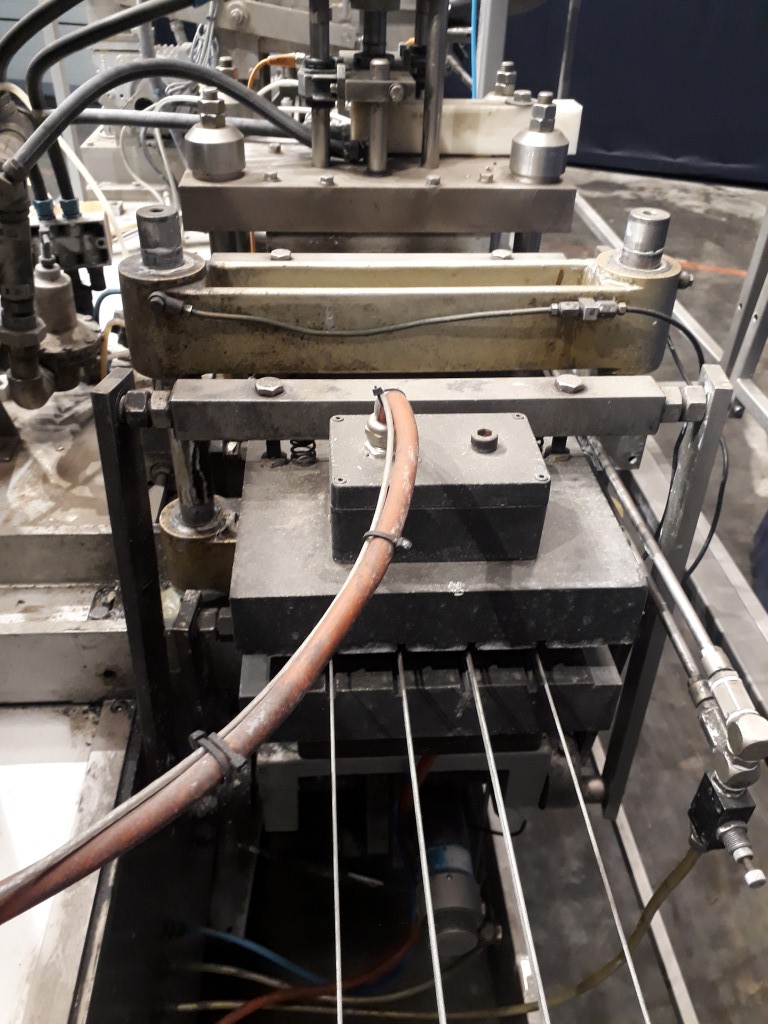

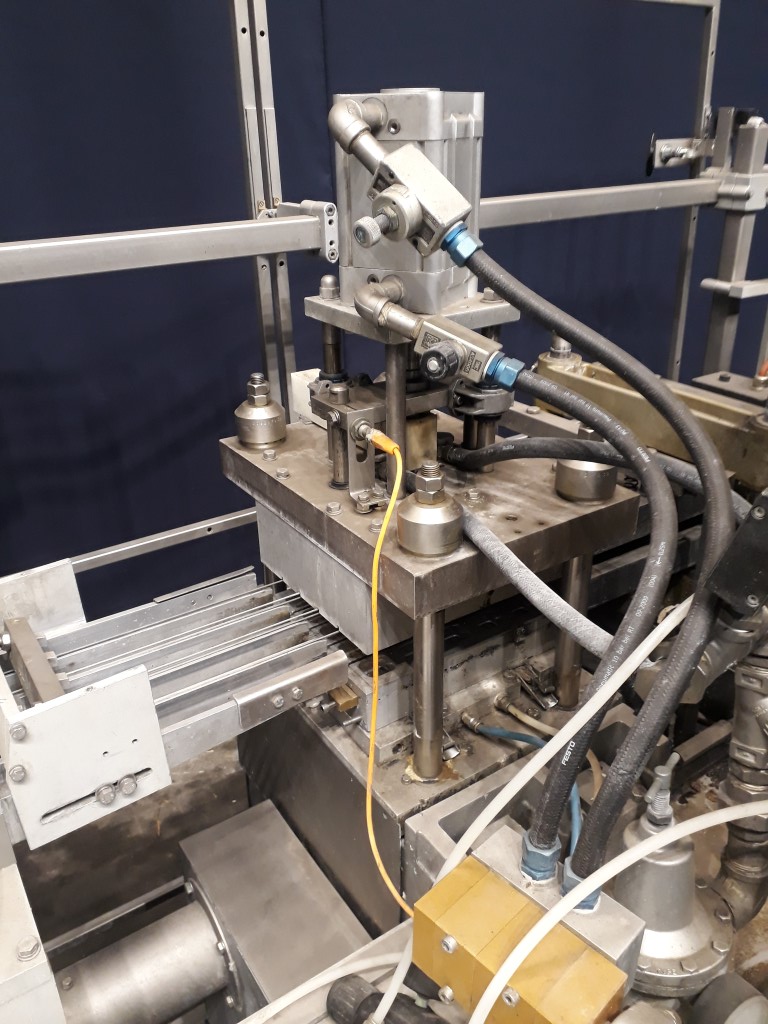

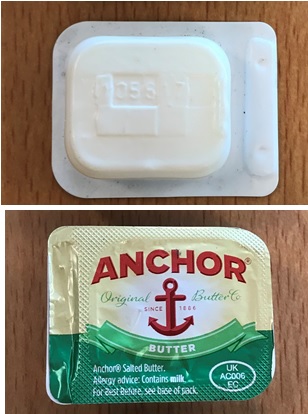

Forming, Filling, Sealing (FFS) machine for single portion mini cups with butter. Format: 25-up (5 lines times 5 filling heads). Current size of the square cup: ± 47 x 38 x 15 mm, 8-14 gram. Stations: forming foil from the roll with date in the bottom, piston doser (8-14 gram) for butter with direct connection (CIP cleanable, Servo driven), sealing with aluminium foil from the reel, punch station in piece by piece, outfeed of cups. Machine has the framework for plexiglas safety guards but the plexiglas itself is not available. Automatic central greasing system. Controls available. Only electric scheme available sparte parts manual and instruction manuals available. Total dimensions of the machine: 6,60 x 1,50 x 2,40 mtr.
