APV Schroder 2114MC45-5TPSX
Homogenisers
High pressure homogenisers
STN11698
APV Schroder
2114MC45-5TPSX
82L31702
1982
8.000 liter per hour

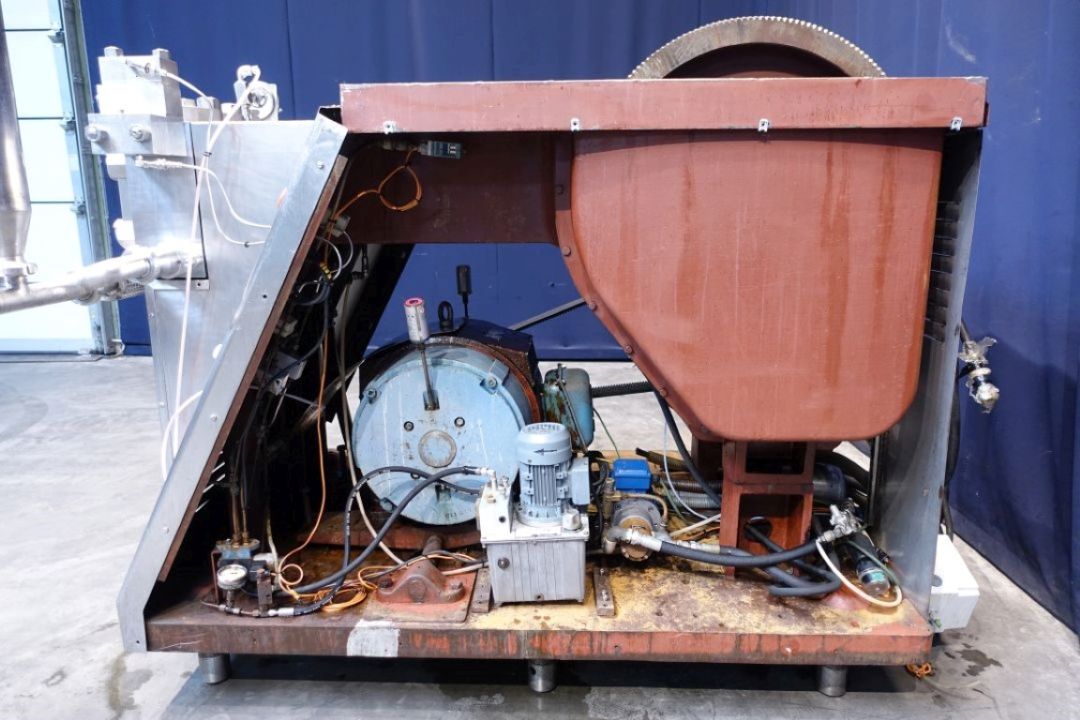

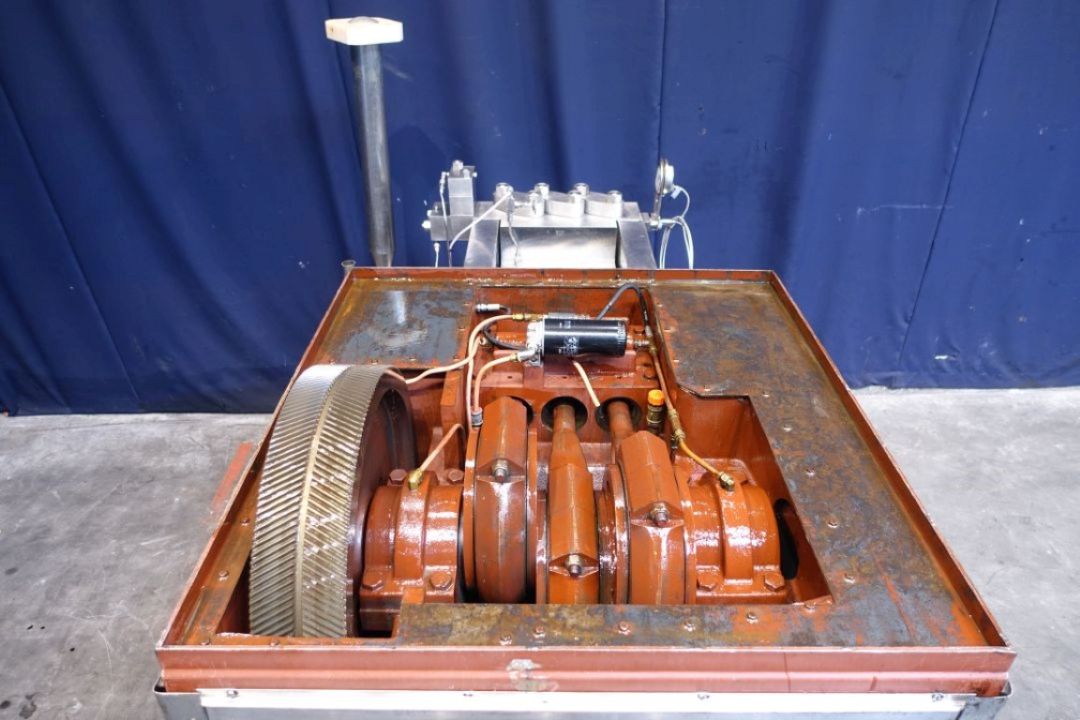

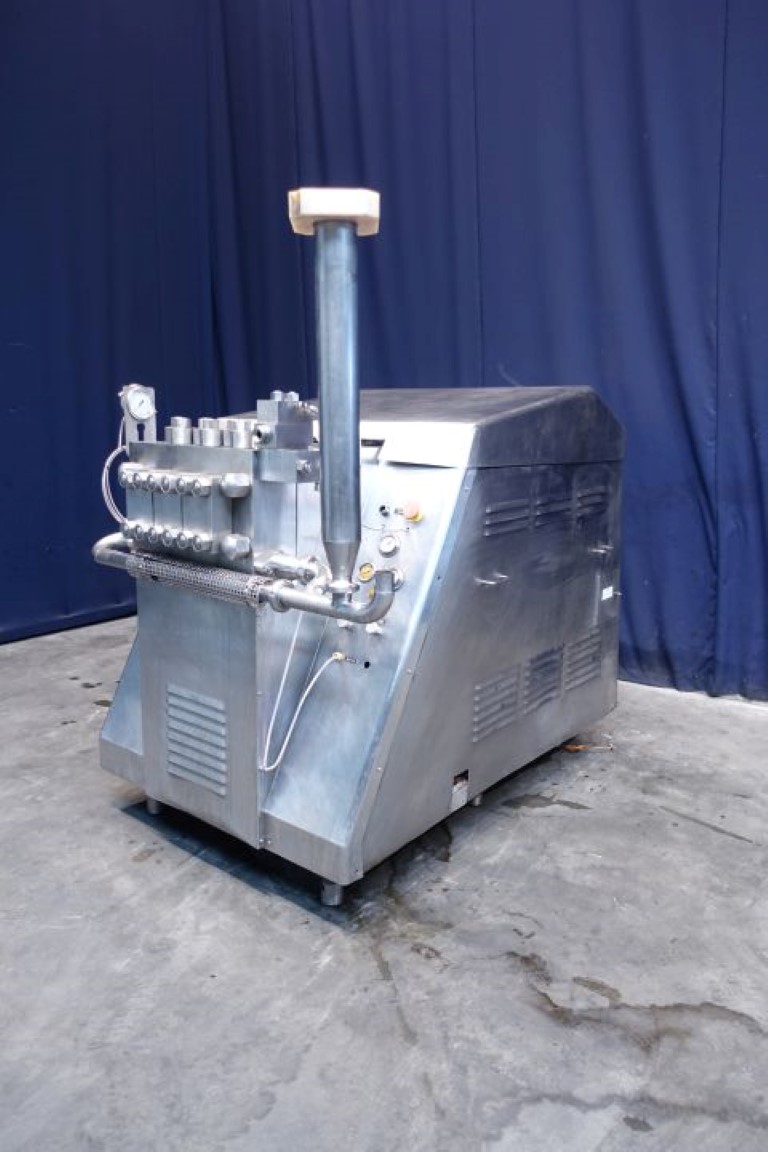

Aseptic homogenizer. 2 stages with hydraulic pressure control. 3 ceramic pistons, piston diameter: 2 1/8 '' and stroke 6 1/8 ''. Stainless steel cladded. Connections: inlet 2'' and outlet 1,5''. Maximum pressure in current configuration with this motor 250 bar with 63kW motor. (maximum capacity / pressure on this model 8.000 liter per hour at 345 bar). Including manometer on outlet, pulsation damper on inlet, 2 sides inlet and freestanding oil cooler. Without control panel.
