STN13437
Cooking vessel
1151-1
1994
1.565 liters

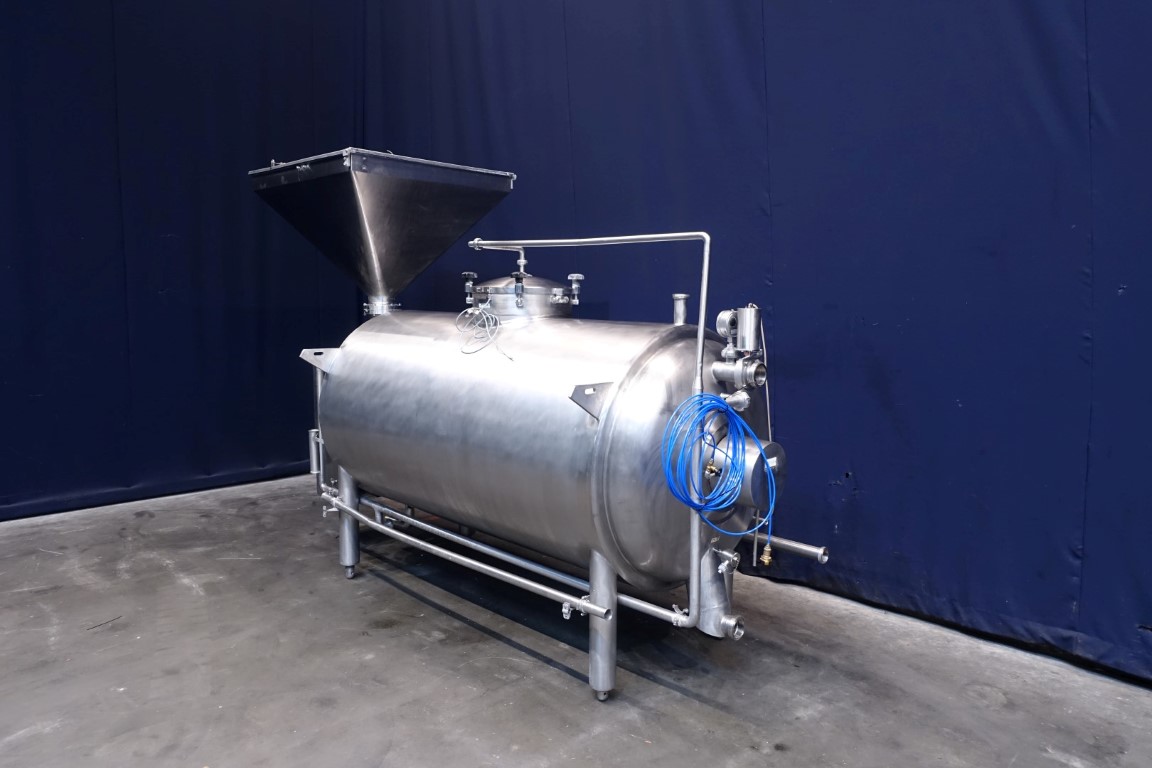

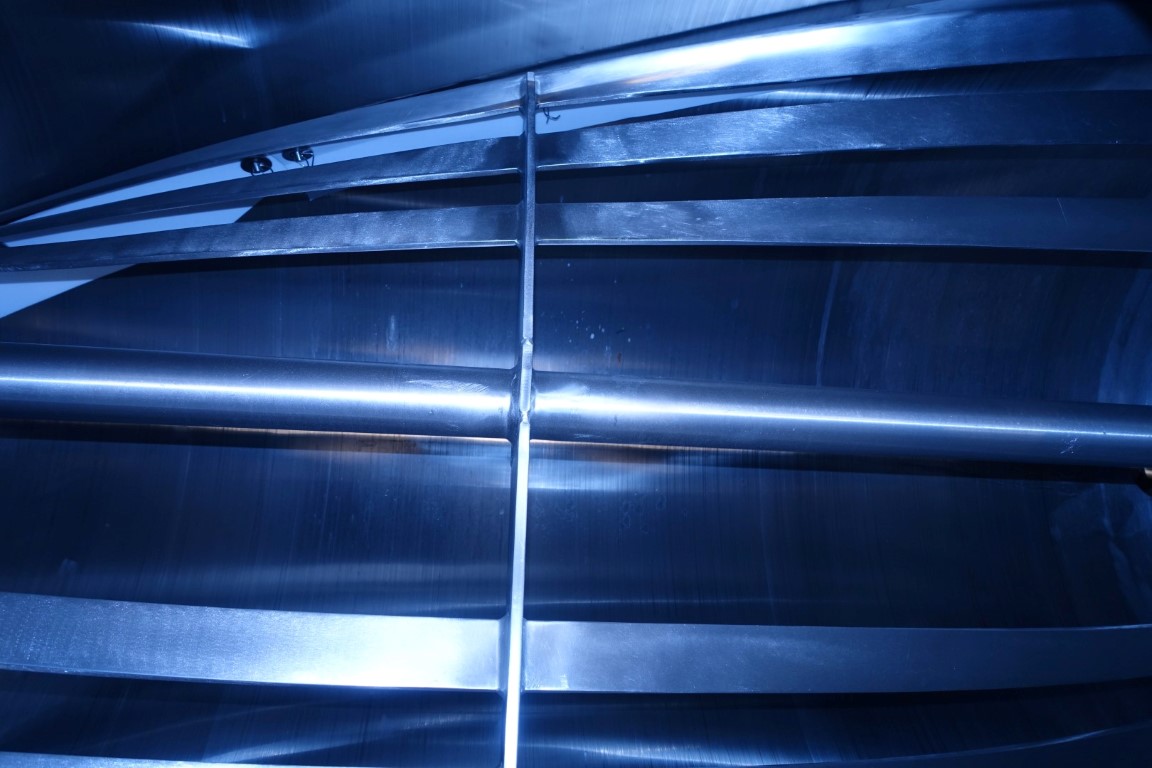

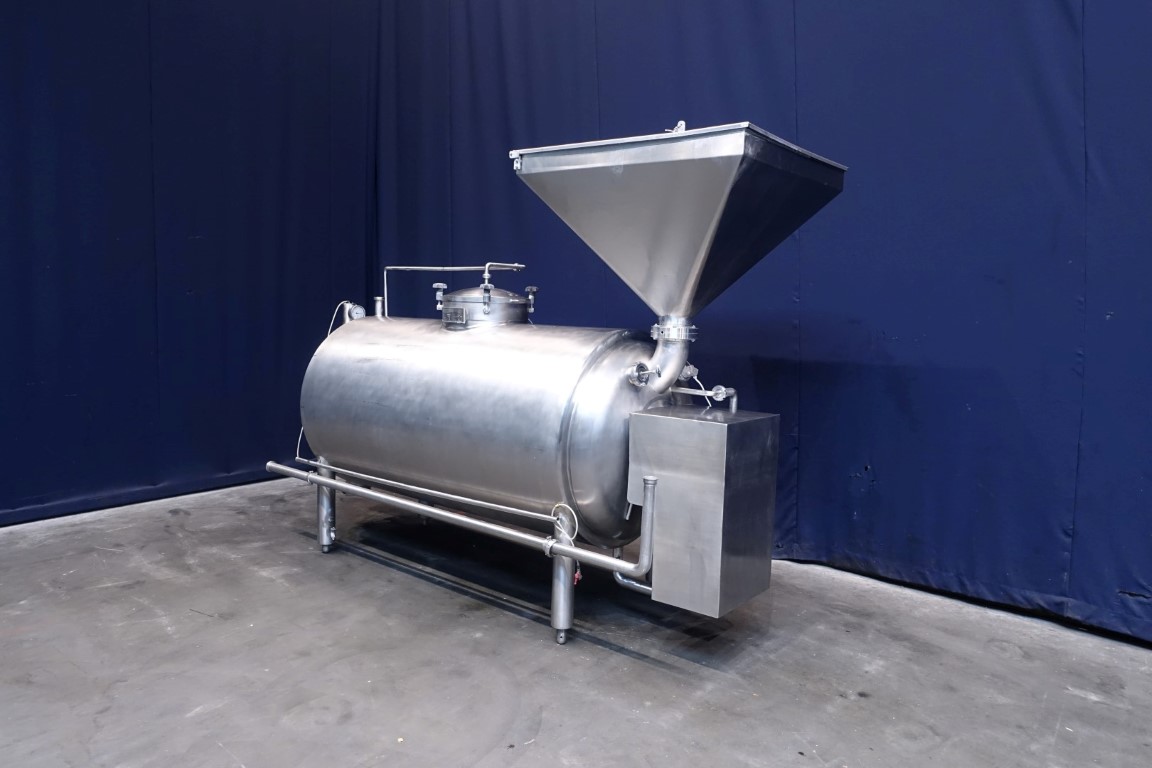

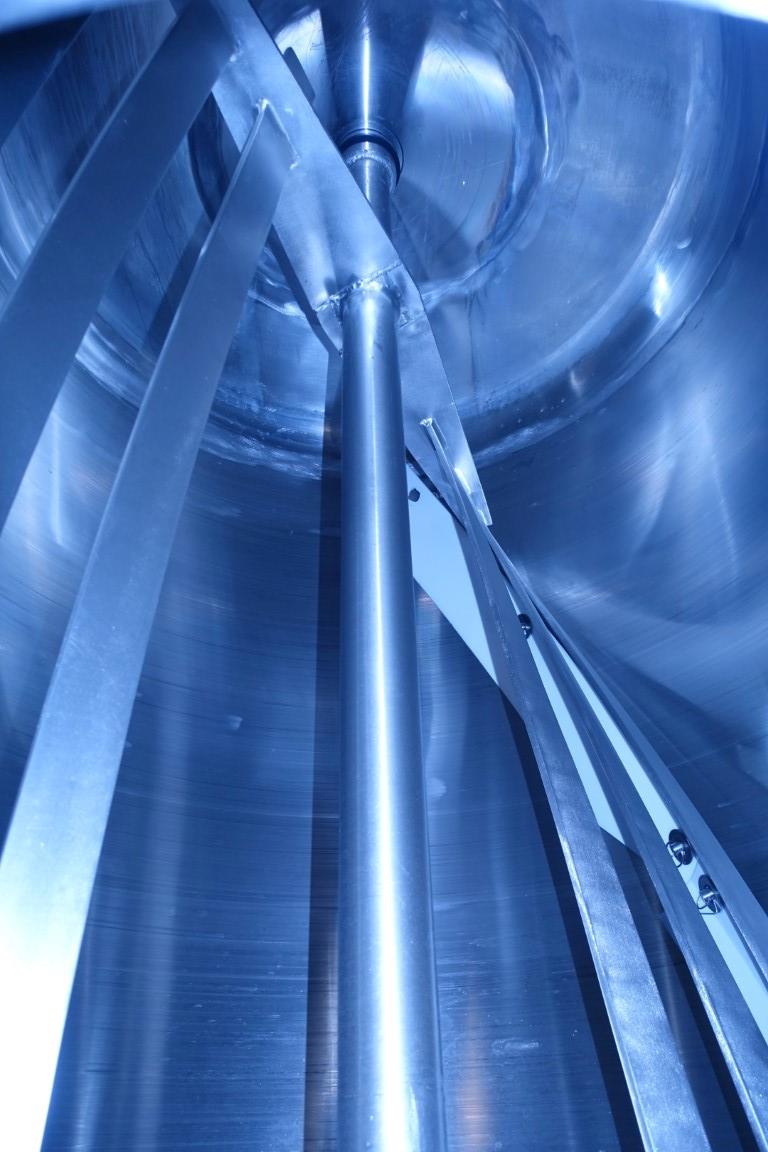

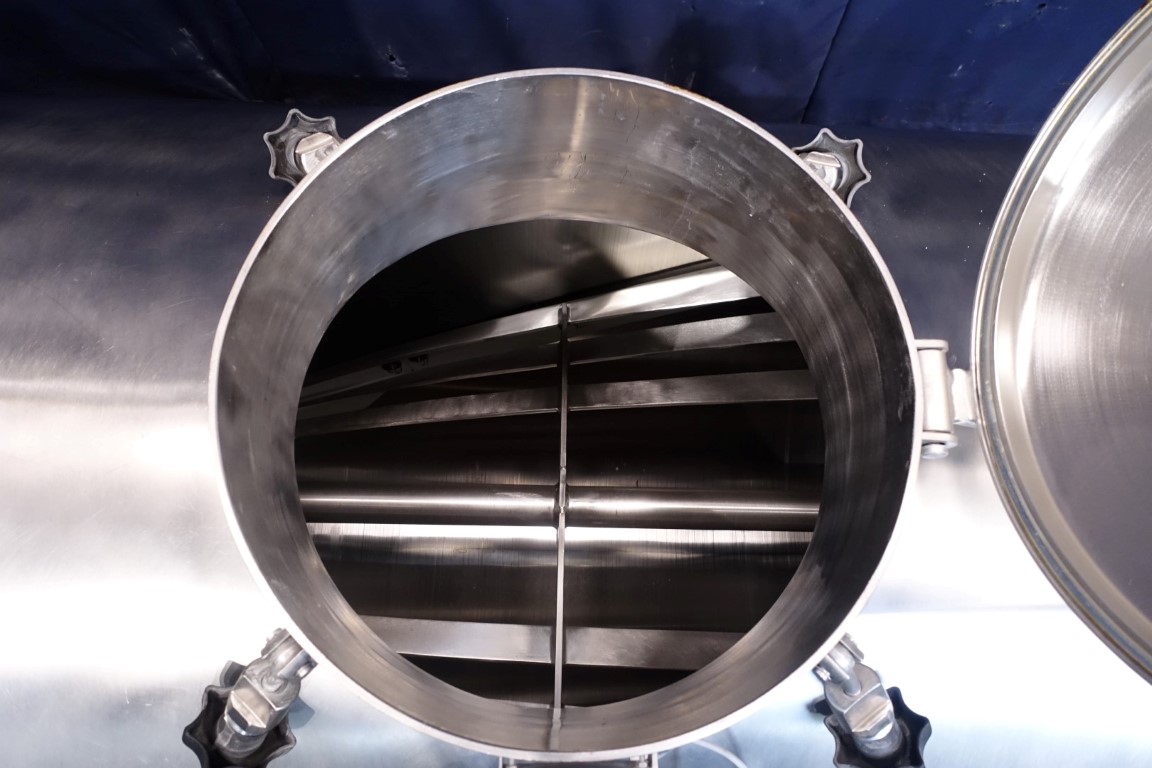

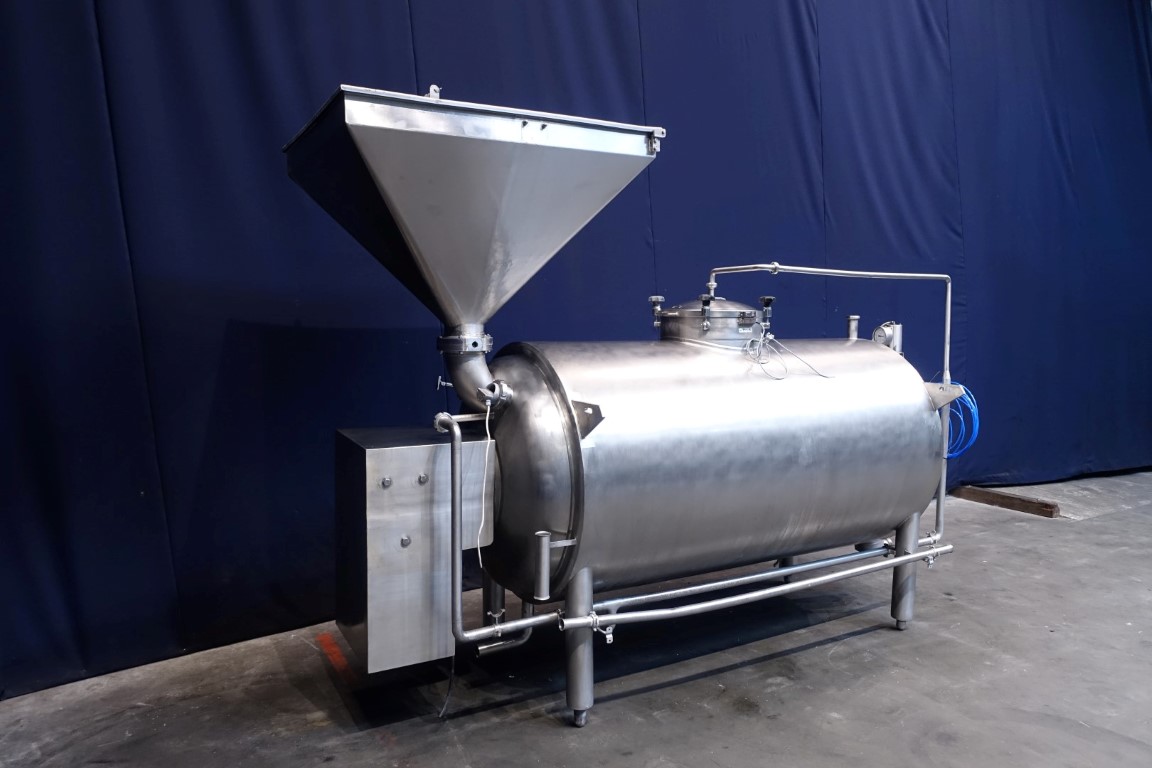

Cooking vessel. Side driven fence / scraper agitator. Motor 2,2 kW - n1: 1400 rpm - 5,2 A. Pressure in jacket: 8 bar. Insulated top, side and bottom. Pressure in tank atmospherique. Temperature in tank -20 up to 100 °C. 2 Inlet connections: 3'' SMS with butterfly valve and 6'' with hopper (± 200 ltr) with cover. Product outlet, 3'' SMS. Outlet height: 30 cm. Connections for: PT-100 temperature sensor and pressure transmitter. Sight glass with whiper and ligthning. 3 CIP spray bowls. Manhole in top round diameter 450 mm. 4 adjustable feet. Inside dimensions of tank: Ø 95 cm and length 225 cm. Total dimensions: 330 x 150 x 230 cm.
